Tiger Lake hala yeterince hızlı!

Acemagic, Intel Core i5-11500B tabanlı AD15 ile Tiger Lake işlemcinin hala yeterli performans sunduğunu gösteriyor. Mini PC'nin başka neler sunabileceğini ve fiyat-performans oranının testte doğru olup olmadığını çok sayıda ölçüm ve kıyaslamaya dayanarak analiz ediyoruz.

Sebastian Bade, 👁 Sebastian Bade (Çeviren DeepL / Ninh Duy), Published 02/28/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Tiger Lake

Acemagic AD15 ev kullanımı için basit bir mini PC'dir. Temel olarak Intel Core i5-11500Bbu son teknoloji bir SoC değil, ancak bu gereksiz - 6 çekirdekli 2024'te hala yeterli performans rezervleri sunuyor. Yaklaşık 460 ABD doları fiyat karşılığında, önceden yüklenmiş Windows 11 Home Edition ile 16 GB DDR4 RAM ve 1 TB SSD de elde edersiniz. Alternatif olarak, mini bilgisayar daha güçlü bir Intel Core i7-11800H. Biraz daha modern bir model de var Intel Core i5-12450H.

Bu incelemede Acemagic AD15, daha önce ayrıntılı olarak test ettiğimiz bilinen rakipleriyle yarışıyor. Bu inceleme için karşılaştırma cihazlarının bir listesini aşağıdaki tabloda bulabilirsiniz.

Test device courtesy of Acemagic

Download your licensed rating image as PNG / SVG

AD15, i5-11500B

İşlemci

Intel Core i5-11500B 6 x 3.3 - 4.6 GHz, 65 W PL2 / Short Burst, 45 W PL1 / Sustained, Tiger Lake-H

Grafik kartı

Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Çekirdek: 1400 MHz, 31.0.101.4953

Bellek

16 GB

, DDR4-3200, 2 von 2 verbaut, max 64 GB

Anakart

Intel HM570

Harddisk

M.2 SSD, NVMe, 950 GB Boş

Ses kartı

Intel Tiger Lake PCH-H - cAVS (Audio, Voice, Speech)

Bağlantılar

4 USB 3.0, 1 USB 3.1 Gen2, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Ses çıkışları: 3,5mm Klinke

Network

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Boyut

yükseklik x genişlik x derinlik (mm): 76 x 184 x 150

İşletim sistemi

Microsoft Windows 11 Home

Ağırlık

772 g, Güç kaynağı: 446 g

Fiyat

459 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Karşılaştırmalı olarak olası rakipler

Rating	Date	Model	Weight	Height
78.7 % v7 ^(old)	02/2024	Acemagic AD15 i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	772 g	76 mm
83.7 % v7 ^(old)		Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
81.7 % v7 ^(old)		Minisforum Venus Series UM560 XT R5 5600H, Vega 7	652 g	48 mm
81.2 % v7 ^(old)	10/2023	Geekom A5 R7 5800H, Vega 8	555 g	49.2 mm
80.6 % v7 ^(old)		Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm
78 % v7 ^(old)	10/2023	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	545 g	54.3 mm
77.8 % v7 ^(old)	09/2023	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	765 g	76 mm
73.8 % v7 ^(old)		Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	678 g	75.5 mm

Acemagic AD15 ayrıntılı olarak

Güç kaynağı üniteli Acemagic AD15 (19 V; 6,3 A)

Kasa - Baktığınız her yerde plastik

Acemagic AD15 çoğunlukla siyah plastikten yapılmıştır. İşçilik açısından şikayet edilecek pek bir şey yok. Göze çarpan herhangi bir boşluk veya keskin kenar bulamadık. Bununla birlikte, malzeme seçimi nedeniyle cihaz çok yüksek kaliteli görünmüyor. Telefon Blackview MP200 aynı zamanda sadece basit bir plastik kasaya sahiptir, ancak çok daha üstün bir hissi vardır ve Morefine M600 hatta şasi çoğunlukla alüminyumdan yapılmıştır.

Tasarımı nedeniyle Acemagic AD15 diğer mini PC'lerden biraz daha az masa alanı gerektiriyor. Ancak AD15 son derece küçük değildir ve 772 gram ağırlığıyla test örneğimiz de mevcut karşılaştırmadaki en ağır cihazlardan biridir.

Boyut ve ağırlık karşılaştırması

Acemagic AD15 Blackview MP200 Minipc Union Ace Magician TK11-A0 Morefine M600, 6600U ACEMagician ACE-CK10-8259U Minipc Union NiPoGi CK10 - 10810U Minisforum Venus Series UM560 XT Geekom Mini IT11, i7-11390H DIN A4 ❌

Ekipman - Günlük kullanım için yeterli

Bağlantı açısından Acemagic, AD15 ile yalnızca basit bir standart sunuyor. Toplam beş USB bağlantı noktası var ve bunlardan Type-C soketi görüntü çıkışı için de kullanılabiliyor. Ayrıca arkada iki HDMI bağlantı noktası ve bir LAN soketi var.

Şu anda, önceden yüklenmiş Windows ile birlikte casus yazılımının çeşitli mini PC'lere yükleneceğine dair bilgiler var. Görünüşe göre, Acemagic'in mini PC'leri etkilenmiş olabilir. Yakın zamanda bu cihazlardan bazılarını test ettiğimiz için doğal olarak endişeliyiz. Bununla birlikte, mevcut test sisteminde veri depolama alanının harici bir taramasıyla (Bitdefender ile) herhangi bir kötü amaçlı yazılım tespit edemedik. Üretici ile görüştükten sonra, sorunun halihazırda çözülmüş olduğu söyleniyor. Üretici zaten ilgili bir bildirisi yayınlamıştır. Ne yazık ki üretici, bu sorunu kolayca çözebilecek barebone cihazlar sunmuyor. Ancak yine de içinizde kötü bir his varsa, satın aldıktan hemen sonra önceden yüklenmiş işletim sistemini tamamen yeniden yüklemelisiniz. Bu işlem, üreticiden bağımsız olarak her cihazda gerçekleştirilmelidir, çünkü genellikle kesinlikle gerekli olmayan birçok program eski olarak yüklenir.

Acemagic AD15 üzerindeki bağlantı noktaları (Kaynak: Acemagic)

İletişim

Dahili Wi-Fi modülü Realtek'ten geliyor ve 5 GHz frekans bandını kullanıyor ve alternatif olarak 2.4 GHz bandını da kullanabiliyor. Test örneğimiz testte oldukça iyi performans gösterdi, ancak rakipler veri alım hızı açısından biraz daha iyi performans gösterdi. Kablosuz bağlantının performansı günlük kullanım için kesinlikle yeterli. Bu testi Asus ROG Rapture GT-AXE11000 test yönlendiricimiz ile gerçekleştirdik. Alternatif olarak Acemagic AD15, maksimum 1 GBit/s aktarım hızı sağlayan kablolu bir bağlantı da sunuyor.

Networking
iperf3 receive AXE11000
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +5%
Blackview MP200 Intel Wi-Fi 6 AX201	953 (859^min - 970^max) MBit/s +5%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +4%
Geekom A5 Realtek RTL8852BE	946 (856^min - 970^max) MBit/s +4%
Average of class Mini PC (320 - 1796, n=113, last 2 years)	945 MBit/s +4%
Acemagic AD15 Realtek RTL8852BE	909 (434^min - 935^max) MBit/s
Minisforum Venus Series UM560 XT MediaTek RZ608	890 (851^min - 908^max) MBit/s -2%
Average Realtek RTL8852BE (455 - 984, n=43)	847 MBit/s -7%
Minisforum Venus Series UN1245 MediaTek RZ608	795 (753^min - 805^max) MBit/s -13%
Acemagic AD15 Realtek RTL8852BE	721 (696^min - 743^max) MBit/s -21%
iperf3 transmit AXE11000
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	874 MBit/s +4%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s 0%
Acemagic AD15 Realtek RTL8852BE	843 (771^min - 886^max) MBit/s
Geekom A5 Realtek RTL8852BE	834 (730^min - 861^max) MBit/s -1%
Minisforum Venus Series UM560 XT MediaTek RZ608	829 (775^min - 889^max) MBit/s -2%
Blackview MP200 Intel Wi-Fi 6 AX201	825 (426^min - 867^max) MBit/s -2%
Average Realtek RTL8852BE (536 - 925, n=42)	792 MBit/s -6%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -7%
Acemagic AD15 Realtek RTL8852BE	730 (707^min - 753^max) MBit/s -13%
Minisforum Venus Series UN1245 MediaTek RZ608	724 (606^min - 852^max) MBit/s -14%

Acemagic AD15 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø910 (864-935)

Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø957 (941-967)

Acemagic AD15 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø843 (771-886)

Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø845 (818-879)

Aksesuarlar

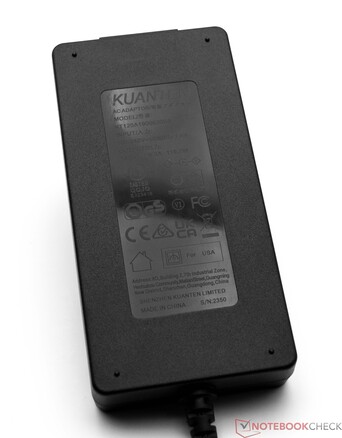

Cihaz, 120 Watt'lık bir güç kaynağı ünitesiyle birlikte teslim edilir ve bu nedenle hemen kullanıma hazırdır. Teslimat kapsamına ayrıca bir HDMI kablosu ve güç kablosu dahildir.

Bakım

Acemagic AD15 her zaman RAM ve SSD ile birlikte satıldığından, cihazı sökmek genellikle gerekli değildir. Bununla birlikte, önden görülen sağ taraf kolayca sökülebilir. Bunu yapmak için, yan paneli yerinde tutan iki küçük vidanın alt taraftan çıkarılması gerekir. RAM ve önceden yüklenmiş yığın depolama alanı daha sonra yan kapağın altında gizlenir. Kolayca görülebileceği gibi, ikinci bir depolama sürücüsü de yerleştirilebilir. WLAN modülü de değiştirilebilir, ancak bunun için Acemagic AD15'in daha fazla sökülmesi gerekir. Ancak biraz beceri ile bu büyük bir engel değildir. Devre kartının tamamen çıkarılması bile mümkündür ve herhangi bir özel alet gerektirmez. Bu aynı zamanda küçük CPU fanından tozun alınmasını da sağlar.

Performans - 6 çekirdekli ve 12 iş parçacıklı Intel Core i5-11500B

Acemagic, AD15'e Tiger Lake serisinden bir Intel Core i5-11500B işlemci yerleştirmiştir. Bu, mini PC'ye güç tüketimi açısından iyi bir performans vaat eden çok hızlı bir SoC sağlıyor. 16 GB DDR4 RAM ve 1 TB NVMe SSD ile birlikte günlük işler hiç de zor değil. Alternatif olarak, aynı modeller bir Intel Core i5-12450H ya da bir Intel Core i7-11800H.

Test koşulları

Tüm performans testlerini maksimum güç planı ile gerçekleştirdik. SoC'nin performansını değiştirmedik ve BIOS ayarlarına göre teslim durumunda bıraktık. Enerji tasarrufu planları yalnızca güç tüketimi ölçümleri ve gürültü ölçümleri için kullanıldı Test kriterleri.

İşlemci

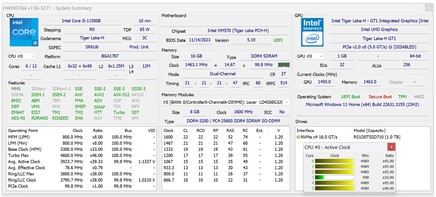

Acemagic AD15 bir Intel Core i5-11500B ile donatılmıştır. Ancak SoC artık en yenilerden biri değil ve hala Tiger Lake mimarisine dayanıyor. Bununla birlikte, performans karşılaştırmasında, test örneğimiz zaten tahmin ettiğimiz yerde sıralanıyor: Intel Core i5-11400H ile Blackview MP200 doğrudan önünde. SoC, 6 çekirdeği ve 12 iş parçacığı ile sağlam bir çoklu çekirdek performansı sunuyor. İki 8 çekirdek, ortalama performans karşılaştırmasında gerçekten öne çıkamıyor. Intel Core i7-11800H ve AMD Ryzen 7 5800H yalnızca bireysel testlerde üstünlük sağlayabilir. AIDA64 testlerinde test cihazımız orta sıralarda yer alıyor. Burada Geekom A5 kendini açıkça ortaya koyabiliyor.

Intel'e göre Intel Core i5-11500B'nin güç limiti 65 watt. Acemagic bu spesifikasyona uymaktadır, ancak bu değer yalnızca kısa süreli Turbo modu için kullanılmaktadır. Sürekli yük altında güç tüketimi 45 watt'a düşer.

Daha fazla karşılaştırma ve kıyaslama için lütfen CPU karşılaştırma tablosu.

Performance Rating - Percent
Geekom A5 AMD Ryzen 7 5800H	45.9 pt
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	45.2 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H	44.6 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	43.9 pt
Morefine M600, 6600U AMD Ryzen 5 6600U	43.4 pt
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	43.2 pt
Blackview MP200 Intel Core i5-11400H	41.6 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	40.3 pt

Cinebench R23
Multi Core
Geekom A5 AMD Ryzen 7 5800H	10819 Points +30%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	9564 Points +15%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	9503 Points +14%
Minisforum Venus Series UN1245 Intel Core i5-12450H	9134 Points +10%
Morefine M600, 6600U AMD Ryzen 5 6600U	8491 Points +2%
Blackview MP200 Intel Core i5-11400H	8451 Points +2%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	8318 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5917 Points -29%
Single Core
Minisforum Venus Series UN1245 Intel Core i5-12450H	1659 Points +12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1602 Points +8%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1496 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	1484 Points
Blackview MP200 Intel Core i5-11400H	1462 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U	1420 Points -4%
Geekom A5 AMD Ryzen 7 5800H	1405 Points -5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1375 Points -7%

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UN1245 Intel Core i5-12450H	238 Points +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	232 Points +4%
Morefine M600, 6600U AMD Ryzen 5 6600U	227 Points +2%
Geekom A5 AMD Ryzen 7 5800H	227 Points +2%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	226 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	225 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	223 Points
Blackview MP200 Intel Core i5-11400H	218 Points -2%
CPU Multi 64Bit
Geekom A5 AMD Ryzen 7 5800H	1773 Points +34%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1596 Points +21%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1591 Points +20%
Minisforum Venus Series UN1245 Intel Core i5-12450H	1379 Points +4%
Blackview MP200 Intel Core i5-11400H	1378 Points +4%
Morefine M600, 6600U AMD Ryzen 5 6600U	1361 Points +3%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	1322 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	953 Points -28%

Cinebench R20
CPU (Single Core)
Minisforum Venus Series UN1245 Intel Core i5-12450H	640 Points +13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	620 Points +10%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	574 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	566 Points
Blackview MP200 Intel Core i5-11400H	560 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U	558 Points -1%
Geekom A5 AMD Ryzen 7 5800H	551 Points -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	533 Points -6%
CPU (Multi Core)
Geekom A5 AMD Ryzen 7 5800H	4229 Points +31%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	3779 Points +17%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	3768 Points +16%
Minisforum Venus Series UN1245 Intel Core i5-12450H	3510 Points +8%
Morefine M600, 6600U AMD Ryzen 5 6600U	3419 Points +6%
Blackview MP200 Intel Core i5-11400H	3283 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	3236 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2284 Points -29%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series UN1245 Intel Core i5-12450H	2.88 Points +10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2.78 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U	2.73 Points +4%
Geekom A5 AMD Ryzen 7 5800H	2.69 Points +2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	2.63 Points 0%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	2.63 Points
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	2.62 Points 0%
Blackview MP200 Intel Core i5-11400H	2.55 Points -3%
CPU Multi 64Bit
Geekom A5 AMD Ryzen 7 5800H	21.25 Points +41%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	18.68 Points +24%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	17.87 Points +19%
Morefine M600, 6600U AMD Ryzen 5 6600U	17.15 Points +14%
Minisforum Venus Series UN1245 Intel Core i5-12450H	16.55 Points +10%
Blackview MP200 Intel Core i5-11400H	15.97 Points +6%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	15.04 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	10.68 Points -29%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series UN1245 Intel Core i5-12450H	13344 Points +13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	12516 Points +6%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	11860 Points 0%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	11802 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	11685 Points -1%
Blackview MP200 Intel Core i5-11400H	11530 Points -2%
Geekom A5 AMD Ryzen 7 5800H	11378 Points -4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	11201 Points -5%
Rendering Multiple CPUs 64Bit
Geekom A5 AMD Ryzen 7 5800H	62312 Points +13%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	59479 Points +8%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	58173 Points +6%
Minisforum Venus Series UN1245 Intel Core i5-12450H	55999 Points +2%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	54928 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	54792 Points 0%
Blackview MP200 Intel Core i5-11400H	54687 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	39426 Points -28%

Blender - v2.79 BMW27 CPU
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	513 Seconds * -35%
Morefine M600, 6600U AMD Ryzen 5 6600U	415 Seconds * -9%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	379 Seconds *
Blackview MP200 Intel Core i5-11400H	373 Seconds * +2%
Minisforum Venus Series UN1245 Intel Core i5-12450H	349 Seconds * +8%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	319 Seconds * +16%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	319 Seconds * +16%
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * +23%

wPrime 2.10
32m
Minisforum Venus Series UN1245 Intel Core i5-12450H	7.234 s * -56%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	6.518 s * -41%
Morefine M600, 6600U AMD Ryzen 5 6600U	4.688 s * -1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	4.626 s *
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	4.552 s * +2%
Blackview MP200 Intel Core i5-11400H	4.498 s * +3%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	3.969 s * +14%
Geekom A5 AMD Ryzen 7 5800H	3.93 s * +15%
1024m
Minisforum Venus Series UN1245 Intel Core i5-12450H	452.626 s * -198%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	196.909 s * -30%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	151.984 s *
Morefine M600, 6600U AMD Ryzen 5 6600U	146.553 s * +4%
Blackview MP200 Intel Core i5-11400H	140.674 s * +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	129.204 s * +15%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	121.132 s * +20%
Geekom A5 AMD Ryzen 7 5800H	111.714 s * +26%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series UN1245 Intel Core i5-12450H	277 (260^min - 288^max) fps +18%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	251.21 fps +7%
Geekom A5 AMD Ryzen 7 5800H	244 (242^min - 246^max) fps +4%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	242 (239^min - 245^max) fps +3%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	234.5 (224^min - 242^max) fps
Blackview MP200 Intel Core i5-11400H	226.5 (210^min - 228^max) fps -3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	214.5 (213^min - 216^max) fps -9%
Morefine M600, 6600U AMD Ryzen 5 6600U	212 (206^min - 224^max) fps -10%
Pass 2
Geekom A5 AMD Ryzen 7 5800H	104.65 (104.1^min - 106.9^max) fps +52%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	95.18 fps +39%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	86.25 (83.2^min - 94.6^max) fps +26%
Minisforum Venus Series UN1245 Intel Core i5-12450H	85.35 (83^min - 87.2^max) fps +24%
Blackview MP200 Intel Core i5-11400H	77.85 (69.8^min - 82.6^max) fps +13%
Morefine M600, 6600U AMD Ryzen 5 6600U	71.45 (70.2^min - 76.6^max) fps +4%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	68.65 (68^min - 79^max) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	55.2 (54.6^min - 55.9^max) fps -20%

WinRAR - Result
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	8569 KB/s +26%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7497 KB/s +10%
Geekom A5 AMD Ryzen 7 5800H	7042 KB/s +4%
Morefine M600, 6600U AMD Ryzen 5 6600U	6937 KB/s +2%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	6789 KB/s
Minisforum Venus Series UN1245 Intel Core i5-12450H	6195 KB/s -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	6144 KB/s -10%
Blackview MP200 Intel Core i5-11400H	5477 KB/s -19%

TrueCrypt
AES Mean 100MB
Geekom A5 AMD Ryzen 7 5800H	11.5 GB/s +39%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	9.7 GB/s +17%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	9.4 GB/s +13%
Morefine M600, 6600U AMD Ryzen 5 6600U	9.3 GB/s +12%
Blackview MP200 Intel Core i5-11400H	8.4 GB/s +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	8.3 GB/s
Minisforum Venus Series UN1245 Intel Core i5-12450H	8 GB/s -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5.4 GB/s -35%
Twofish Mean 100MB
Geekom A5 AMD Ryzen 7 5800H	1.6 GB/s +23%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1.5 GB/s +15%
Morefine M600, 6600U AMD Ryzen 5 6600U	1.3 GB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1.3 GB/s 0%
Blackview MP200 Intel Core i5-11400H	1.3 GB/s 0%
Minisforum Venus Series UN1245 Intel Core i5-12450H	1.3 GB/s 0%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	1.3 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.838 GB/s -36%
Serpent Mean 100MB
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1 GB/s +21%
Geekom A5 AMD Ryzen 7 5800H	1 GB/s +21%
Morefine M600, 6600U AMD Ryzen 5 6600U	0.857 GB/s +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	0.857 GB/s +4%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	0.826 GB/s
Blackview MP200 Intel Core i5-11400H	0.815 GB/s -1%
Minisforum Venus Series UN1245 Intel Core i5-12450H	0.79 GB/s -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.509 GB/s -38%

Geekbench 5.5
Multi-Core
Geekom A5 AMD Ryzen 7 5800H	8823 Points +24%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	7976 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U	7658 Points +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7253 Points +2%
Minisforum Venus Series UN1245 Intel Core i5-12450H	7200 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	7132 Points
Blackview MP200 Intel Core i5-11400H	6006 Points -16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5091 Points -29%
Single-Core
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1669 Points +7%
Minisforum Venus Series UN1245 Intel Core i5-12450H	1655 Points +6%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1603 Points +2%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	1566 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	1504 Points -4%
Geekom A5 AMD Ryzen 7 5800H	1494 Points -5%
Blackview MP200 Intel Core i5-11400H	1465 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1443 Points -8%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6600U AMD Ryzen 5 6600U	10249 Points +46%
Geekom A5 AMD Ryzen 7 5800H	8568 Points +22%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	7879 Points +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7128 Points +2%
Minisforum Venus Series UN1245 Intel Core i5-12450H	7116 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	7012 Points
Blackview MP200 Intel Core i5-11400H	5961 Points -15%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5025 Points -28%
5.0 Single-Core
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1655 Points +8%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1570 Points +2%
Minisforum Venus Series UN1245 Intel Core i5-12450H	1569 Points +2%
Morefine M600, 6600U AMD Ryzen 5 6600U	1557 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	1535 Points
Blackview MP200 Intel Core i5-11400H	1461 Points -5%
Geekom A5 AMD Ryzen 7 5800H	1421 Points -7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1393 Points -9%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Venus Series UN1245 Intel Core i5-12450H	7153 Points +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7146 Points +7%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	6747 Points +1%
Morefine M600, 6600U AMD Ryzen 5 6600U	6698 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	6663 Points
Geekom A5 AMD Ryzen 7 5800H	6295 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	6117 Points -8%
Blackview MP200 Intel Core i5-11400H	6110 Points -8%
64 Bit Multi-Core Score
Morefine M600, 6600U AMD Ryzen 5 6600U	39852 Points +40%
Geekom A5 AMD Ryzen 7 5800H	34200 Points +20%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	32181 Points +13%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	28997 Points +2%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	28454 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H	27953 Points -2%
Blackview MP200 Intel Core i5-11400H	24947 Points -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	20385 Points -28%

3DMark 11 - 1280x720 Performance Physics
Geekom A5 AMD Ryzen 7 5800H	16933 Points +23%
Minisforum Venus Series UN1245 Intel Core i5-12450H	15082 Points +9%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	14645 Points +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	14496 Points +5%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	13784 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	11630 Points -16%
Blackview MP200 Intel Core i5-11400H	10999 Points -20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	10536 Points -24%

7-Zip 18.03
7z b 4
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS +49%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	46562 MIPS +29%
Morefine M600, 6600U AMD Ryzen 5 6600U	44320 MIPS +22%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	43146 MIPS +19%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	36194 MIPS
Blackview MP200 Intel Core i5-11400H	34660 MIPS -4%
Minisforum Venus Series UN1245 Intel Core i5-12450H	33619 MIPS -7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	25876 MIPS -29%
7z b 4 -mmt1
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5895 MIPS +7%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	5732 MIPS +4%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	5498 MIPS
Morefine M600, 6600U AMD Ryzen 5 6600U	5486 MIPS 0%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	5369 MIPS -2%
Blackview MP200 Intel Core i5-11400H	5343 MIPS -3%
Minisforum Venus Series UN1245 Intel Core i5-12450H	4994 MIPS -9%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom A5 AMD Ryzen 7 5800H	13.3 fps +29%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	12.4 fps +20%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	12 fps +17%
Morefine M600, 6600U AMD Ryzen 5 6600U	11.7 fps +14%
Minisforum Venus Series UN1245 Intel Core i5-12450H	10.8 fps +5%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	10.3 fps
Blackview MP200 Intel Core i5-11400H	10.2 fps -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7.61 fps -26%

R Benchmark 2.5 - Overall mean
Blackview MP200 Intel Core i5-11400H	0.581 sec * -4%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	0.561 sec *
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	0.559 sec * -0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.543 sec * +3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	0.526 sec * +6%
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * +7%
Minisforum Venus Series UN1245 Intel Core i5-12450H	0.515 sec * +8%
Morefine M600, 6600U AMD Ryzen 5 6600U	0.511 sec * +9%

LibreOffice - 20 Documents To PDF
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	56.7 s * -38%
Geekom A5 AMD Ryzen 7 5800H	54.3 s * -32%
Morefine M600, 6600U AMD Ryzen 5 6600U	53 s * -29%
Blackview MP200 Intel Core i5-11400H	53 s * -29%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	47.2 s * -15%
Minisforum Venus Series UN1245 Intel Core i5-12450H	46.6 s * -13%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	46.3 s * -12%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	41.2 s *

WebXPRT 3 - Overall
Minisforum Venus Series UN1245 Intel Core i5-12450H	285 Points +5%
Morefine M600, 6600U AMD Ryzen 5 6600U	274 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	271 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	270 Points 0%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	270 Points 0%
Geekom A5 AMD Ryzen 7 5800H	269 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	261 Points -4%
Blackview MP200 Intel Core i5-11400H	247 Points -9%

Mozilla Kraken 1.1 - Total
Blackview MP200 Intel Core i5-11400H	660 ms * -2%
Geekom A5 AMD Ryzen 7 5800H	653 ms * -1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	651 ms * -0%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	649 ms *
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	644 ms * +1%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	641 ms * +1%
Morefine M600, 6600U AMD Ryzen 5 6600U	619 ms * +5%
Minisforum Venus Series UN1245 Intel Core i5-12450H	566 ms * +13%

3DMark
3840x2160 Fire Strike Ultra Physics
Geekom A5 AMD Ryzen 7 5800H	22307 Points +17%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	21176 Points +11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	21110 Points +11%
Minisforum Venus Series UN1245 Intel Core i5-12450H	19341 Points +1%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	19073 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	18599 Points -2%
Blackview MP200 Intel Core i5-11400H	16258 Points -15%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	11557 Points -39%
1920x1080 Fire Strike Physics
Geekom A5 AMD Ryzen 7 5800H	22433 Points +13%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	21928 Points +10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	21025 Points +5%
Minisforum Venus Series UN1245 Intel Core i5-12450H	19994 Points 0%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	19930 Points
Blackview MP200 Intel Core i5-11400H	16949 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U	15934 Points -20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	11883 Points -40%
2560x1440 Time Spy CPU
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	8744 Points +25%
Geekom A5 AMD Ryzen 7 5800H	8481 Points +21%
Acemagic AD15 AD15, i5-11500B, Intel Core i5-11500B	7021 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H	6901 Points -2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	6767 Points -4%
Blackview MP200 Intel Core i5-11400H	5160 Points -27%
Morefine M600, 6600U AMD Ryzen 5 6600U	5114 Points -27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	4598 Points -35%

* ... smaller is better

Performance Rating
Geekom A5 AMD Ryzen 7 5800H, Vega 8	93.7 pt
Average of class Mini PC	88.3 pt
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	86.9 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	81.8 pt
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	75.5 pt
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	72 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	71.9 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	68.5 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	51.3 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (646 - 51004, n=119, last 2 years)	12878 KRay/s +24%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	12468 KRay/s +20%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	12240 KRay/s +17%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	11347 KRay/s +9%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	10552 KRay/s +1%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	10418 KRay/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	9129 KRay/s -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -36%

AIDA64 / FPU Julia
Geekom A5 AMD Ryzen 7 5800H, Vega 8	77847 Points +76%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	70782 Points +60%
Average of class Mini PC (3857 - 214250, n=119, last 2 years)	64921 Points +47%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +35%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	52677 Points +19%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46204 Points +5%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	44789 Points +1%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	44205 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -37%

AIDA64 / CPU SHA3
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3501 MB/s +19%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	3103 MB/s +5%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	2944 MB/s
Average of class Mini PC (260 - 9399, n=119, last 2 years)	2856 MB/s -3%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	2707 MB/s -8%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	2360 MB/s -20%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	2071 MB/s -30%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -32%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -37%

AIDA64 / CPU Queen
Geekom A5 AMD Ryzen 7 5800H, Vega 8	91846 Points +29%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	85233 Points +20%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	80187 Points +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75724 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points +6%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	71320 Points
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	69756 Points -2%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	64750 Points -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -31%

AIDA64 / FPU SinJulia
Geekom A5 AMD Ryzen 7 5800H, Vega 8	10972 Points +56%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	8952 Points +27%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8812 Points +25%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +24%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	8510 Points +21%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	7186 Points +2%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	7039 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	5985 Points -15%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -36%

AIDA64 / FPU Mandel
Geekom A5 AMD Ryzen 7 5800H, Vega 8	42543 Points +60%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	38989 Points +46%
Average of class Mini PC (1987 - 113499, n=119, last 2 years)	33863 Points +27%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +22%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	31628 Points +19%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	26798 Points +1%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	26643 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	22917 Points -14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -37%

AIDA64 / CPU AES
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	122812 MB/s +18%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	108262 MB/s +4%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	103869 MB/s
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	99449 MB/s -4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95057 MB/s -8%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	88382 MB/s -15%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	78537 MB/s -24%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -45%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -62%

AIDA64 / CPU ZLib
Average of class Mini PC (74.9 - 2039, n=119, last 2 years)	740 MB/s +26%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	700 MB/s +19%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	687 MB/s +17%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	614 MB/s +5%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	592 MB/s +1%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	591 MB/s +1%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	587 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -37%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (350 - 26952, n=119, last 2 years)	6881 KRay/s +22%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	6651 KRay/s +18%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	6380 KRay/s +14%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	5777 KRay/s +3%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	5743 KRay/s +2%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	5619 KRay/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -10%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	4977 KRay/s -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -35%

AIDA64 / CPU PhotoWorxx
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	28682 MPixel/s +20%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	28301 MPixel/s +19%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +15%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s +7%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	25113 MPixel/s +5%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	23861 MPixel/s
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	20652 MPixel/s -13%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s -14%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	12248 MPixel/s -49%

Acemagic AD15 vs Cinebench R15 çoklu döngü

Cinebench R15 sürekli döngüsü ile şimdi işlemcinin sürekli yük altındaki performansına bakıyoruz. Test cihazımız ilk çalıştırmada daha yüksek güç hedefiyle neredeyse tutarlı bir şekilde ustalaşabiliyor. Sonraki tüm çalıştırmalarda, güç tüketimi hızla 45 watt'a düşüyor ve daha sonra sabit tutulabiliyor. Intel Core i5-11500B'nin sıcaklıkları 77 °C'lik tepe değeriyle sorunsuzdur.

Cinebench R15 döngüsü sırasında CPU ölçümleri

Acemagic AD15 Intel Core i5-11500B, Intel Core i5-11500B: Ø1218 (1188.78-1376.65)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)

Geekom A5 AMD Ryzen 7 5800H, AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel Core i5-12450H: Ø1370 (1352.4-1379.41)

Acemagic AD15 Intel Core i7-11800H, Intel Core i7-11800H: Ø1470 (1424.65-1647.85)

Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)

Sistem performansı

Sistem performansı açısından sentetik kıyaslamalarda test örneğimiz alt orta sıralarda yer almaktadır. Temel olarak, Intel Core i5-11500B tabanlı Acemagic AD15, Intel Core i7-11800H ile sözde daha hızlı olan muadilinden çok daha az performans sunmuyor.

Sentetik kıyaslamalarda Acemagic AD15 kendini göstermekte biraz daha zorlanıyor. Mini PC PCMark10'da 3D performansından yoksun, bu yüzden AMD işlemcili iki cihaz burada ilk iki sırayı alıyor. Crossmark'ta da, Morefine M600 ile arasındaki fark burada çok daha az olmasına rağmen, yalnızca üçüncü sıra için yeterli. Acemagic AD15'in RAM yapılandırmasını zayıf bir nokta olarak görüyoruz. Üretici, temelde iyi bir şey olan iki modül kullanıyor. Ancak bunlar yalnızca 2.666 MT/s hızında çalışıyor, bu da test cihazımızın RAM testlerinde yalnızca alt orta sahada yer aldığı anlamına geliyor. Saat hızı 3.200 MT/s olan RAM kullanımı daha uygun olacaktır.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points +22%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	6149 Points +21%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points +16%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	5319 Points +5%
Acemagic AD15, Intel Core i5-11500B Intel UHD Graphics Xe 32EUs (Tiger Lake-H),	5076 Points
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	5036 Points -1%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -3%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	4525 Points -11%

PCMark 10 / Essentials
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points +5%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	10356 Points +4%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	10306 Points +3%
Acemagic AD15, Intel Core i5-11500B Intel UHD Graphics Xe 32EUs (Tiger Lake-H),	9995 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -2%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	9694 Points -3%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -3%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	9513 Points -5%

PCMark 10 / Productivity
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points +41%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	9311 Points +36%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +32%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	7527 Points +10%
Acemagic AD15, Intel Core i5-11500B Intel UHD Graphics Xe 32EUs (Tiger Lake-H),	6835 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -1%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	6723 Points -2%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	6495 Points -5%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1637 Points +16%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +7%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points +2%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1429 Points +1%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1423 Points 0%
Acemagic AD15, Intel Core i5-11500B Intel UHD Graphics Xe 32EUs (Tiger Lake-H),	1416 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points -5%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1285 Points -9%

CrossMark / Responsiveness
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1888 Points +51%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points +15%
Acemagic AD15, Intel Core i5-11500B Intel UHD Graphics Xe 32EUs (Tiger Lake-H),	1248 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -1%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1233 Points -1%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points -4%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1079 Points -14%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1038 Points -17%

CrossMark / Creativity
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +13%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1598 Points +10%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1525 Points +5%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1523 Points +5%
Acemagic AD15, Intel Core i5-11500B Intel UHD Graphics Xe 32EUs (Tiger Lake-H),	1456 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points -5%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -7%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1309 Points -10%

CrossMark / Productivity
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1677 Points +17%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points +6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +4%
Acemagic AD15, Intel Core i5-11500B Intel UHD Graphics Xe 32EUs (Tiger Lake-H),	1436 Points
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1408 Points -2%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1408 Points -2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points -5%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1336 Points -7%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	48357 MB/s +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +15%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	43870 MB/s +6%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	43746 MB/s +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	41732 MB/s 0%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	41576 MB/s
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	37807 MB/s -9%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22181 MB/s -47%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	49177 MB/s +2%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	48125 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s -2%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	47042 MB/s -2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	46963 MB/s -2%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46241 MB/s -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -4%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	42236 MB/s -12%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	25003 MB/s -48%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52856 MB/s +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s +2%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46529 MB/s +2%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46407 MB/s +1%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	45724 MB/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	44872 MB/s -2%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	38930 MB/s -15%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22892 MB/s -50%

AIDA64 / Memory Latency
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -31%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	92.1 ns * -29%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	81.4 ns * -14%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	78.7 ns * -10%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	77.5 ns * -8%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75.5 ns * -5%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	73.3 ns * -2%
Acemagic AD15 Intel Core i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	71.6 ns *
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +7%

* ... smaller is better

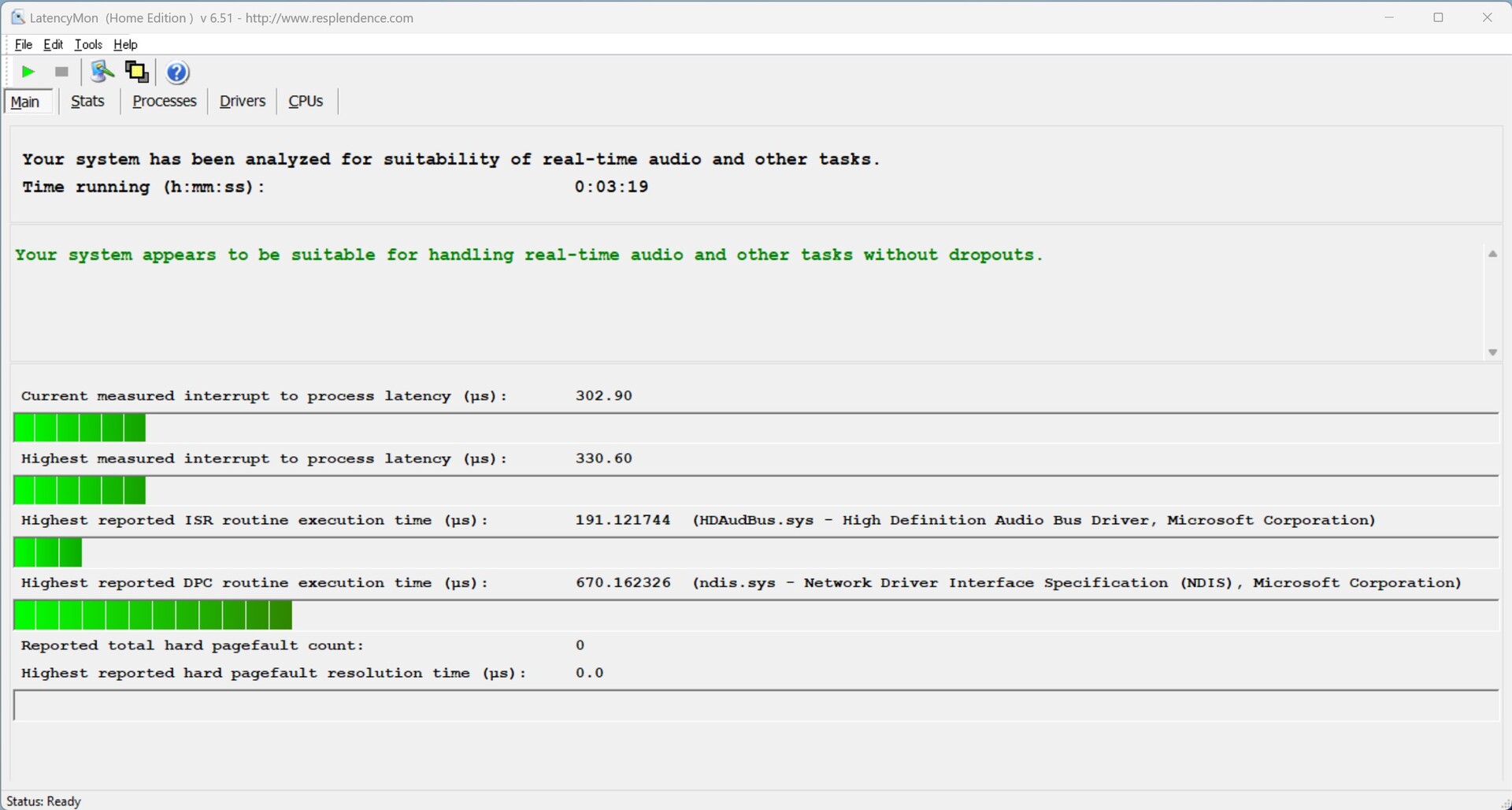

DPC gecikme süreleri

Acemagic AD15, yüksek çözünürlüklü videoları oynatmak için ideal. 4K test videosu oynatımı sorunsuz gerçekleşti. IGPU yaklaşık yüzde 25 oranında kullanılıyor ve böylece işlemciyi rahatlatıyor. Test örneğimiz, belgelenen gecikme süreleri açısından her zaman yeşil aralıkta kalıyor. Test sistemi ayrıca birkaç tarayıcı sekmesi açma ve Prime95 ile stres testinde de mükemmel bir performans gösterdi.

Birden fazla tarayıcı sekmesi açarken ve 4K video materyali oynatırken maksimum gecikme süresi

Prime95'in on saniyesinden sonra maksimum gecikme süresi

En uzun yürütme süresine göre sıralanan sürücüler

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	1411 μs * -111%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1310.5 μs * -96%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -52%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	940.27 μs * -40%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	844.9 μs * -26%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	670.1 μs *
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +30%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	447.9 μs * +33%

* ... smaller is better

Yığın depolama

Test cihazımız, bilinmeyen bir üreticinin 1 TB SSD'sini içeriyor. Her neyse, M.2 SSD, PCIe arayüzü üzerinden bağlanarak testte nispeten yüksek aktarım hızlarına ulaşmamızı sağladı. Bu da Acemagic'in AD15 ile ikinci sırayı alabileceği anlamına geliyor. Ancak sürekli yük altında sorunlar yaşadık. SSD'nin performansı başlangıç seviyesinde sürekli olarak korunamıyor. Cihaza ikinci bir yığın depolama aygıtı takılabilir, boş bir 2,5 inçlik yuva hala mevcuttur.

Daha fazla karşılaştırma ve kıyaslama için lütfen Karşılaştırma tablosu.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Sequential Read: 2159 MB/s

Sequential Write: 2824 MB/s

512K Read: 1132 MB/s

512K Write: 2418 MB/s

4K Read: 52.06 MB/s

4K Write: 129.6 MB/s

4K QD32 Read: 781.9 MB/s

4K QD32 Write: 594.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	96.5 pt
Average of class Mini PC	65.2 pt
Acemagic AD15	64.8 pt
Geekom A5 Lexar NM620 512GB	64.6 pt
Minisforum Venus Series UM560 XT ESO512GYLCT	55.2 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	52.1 pt
Blackview MP200 Foresee XP1000F512G	48.3 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	42.2 pt
Acemagic AD15 Netac NS512GSSD340	18.9 pt

DiskSpd
seq read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2655 (2644.09^min - 2654.58^max) MB/s +25%
Geekom A5 Lexar NM620 512GB	2371 (2315.68^min - 2370.91^max) MB/s +12%
Average of class Mini PC (277 - 4357, n=119, last 2 years)	2333 MB/s +10%
Acemagic AD15	2125 (2116.83^min - 2125.41^max) MB/s
Blackview MP200 Foresee XP1000F512G	2089 (1961.74^min - 2088.97^max) MB/s -2%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -19%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -21%
Minisforum Venus Series UM560 XT ESO512GYLCT	1645 (1636.91^min - 1645.01^max) MB/s -23%
Acemagic AD15 Netac NS512GSSD340	526 (524.71^min - 525.97^max) MB/s -75%
seq write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3523 (3505.18^min - 3522.8^max) MB/s +23%
Acemagic AD15	2859 (2641.74^min - 2859.2^max) MB/s
Geekom A5 Lexar NM620 512GB	2668 (292.6^min - 2668^max) MB/s -7%
Average of class Mini PC (229 - 5595, n=119, last 2 years)	2509 MB/s -12%
Blackview MP200 Foresee XP1000F512G	2395 (2371.88^min - 2394.91^max) MB/s -16%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s -20%
Minisforum Venus Series UM560 XT ESO512GYLCT	1877 (1870.87^min - 1877.35^max) MB/s -34%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -62%
Acemagic AD15 Netac NS512GSSD340	464 (461.79^min - 463.68^max) MB/s -84%
seq q8 t1 read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4788 (4242.12^min - 4787.8^max) MB/s +40%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3790 MB/s +11%
Geekom A5 Lexar NM620 512GB	3444 (2979.63^min - 3443.98^max) MB/s +1%
Acemagic AD15	3420 (2918.19^min - 3419.91^max) MB/s
Blackview MP200 Foresee XP1000F512G	3034 (2493.77^min - 3034.37^max) MB/s -11%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s -26%
Minisforum Venus Series UM560 XT ESO512GYLCT	2360 (2078.7^min - 2359.72^max) MB/s -31%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -35%
Acemagic AD15 Netac NS512GSSD340	545 (387.49^min - 544.63^max) MB/s -84%
seq q8 t1 write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3533 (3500.99^min - 3532.65^max) MB/s +5%
Acemagic AD15	3356 (3131.5^min - 3356.07^max) MB/s
Geekom A5 Lexar NM620 512GB	3117 (3075.4^min - 3117.21^max) MB/s -7%
Average of class Mini PC (239 - 6669, n=119, last 2 years)	2810 MB/s -16%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s -26%
Blackview MP200 Foresee XP1000F512G	2412 (2365.59^min - 2411.72^max) MB/s -28%
Minisforum Venus Series UM560 XT ESO512GYLCT	1946 (1938.09^min - 1945.74^max) MB/s -42%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -52%
Acemagic AD15 Netac NS512GSSD340	483 (480.04^min - 483.18^max) MB/s -86%
4k q1 t1 read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	80.2 (79.47^min - 80.17^max) MB/s +53%
Average of class Mini PC (6.85 - 86.6, n=119, last 2 years)	55.3 MB/s +6%
Geekom A5 Lexar NM620 512GB	54.5 (37.15^min - 54.54^max) MB/s +4%
Blackview MP200 Foresee XP1000F512G	53.7 (53.3^min - 53.65^max) MB/s +2%
Acemagic AD15	52.4 (51.46^min - 52.35^max) MB/s
Minisforum Venus Series UM560 XT ESO512GYLCT	44.8 (44.42^min - 44.77^max) MB/s -15%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -23%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -27%
Acemagic AD15 Netac NS512GSSD340	34.4 (34.22^min - 34.41^max) MB/s -34%
4k q1 t1 write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	386 (379.05^min - 385.59^max) MB/s +192%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +73%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	196.9 MB/s +49%
Minisforum Venus Series UM560 XT ESO512GYLCT	168.4 (166.77^min - 168.37^max) MB/s +27%
Geekom A5 Lexar NM620 512GB	148.4 (147.43^min - 148.38^max) MB/s +12%
Acemagic AD15	132.3 (125.93^min - 132.34^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -9%
Blackview MP200 Foresee XP1000F512G	105.3 (104.05^min - 105.3^max) MB/s -20%
Acemagic AD15 Netac NS512GSSD340	93.3 (91.37^min - 93.31^max) MB/s -29%
4k q32 t16 read
Geekom A5 Lexar NM620 512GB	1960 MB/s +19%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1936 (1933.07^min - 1936.22^max) MB/s +18%
Acemagic AD15	1645 (1318.84^min - 1645.41^max) MB/s
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1411 MB/s -14%
Minisforum Venus Series UM560 XT ESO512GYLCT	831 (807.33^min - 831.01^max) MB/s -49%
Blackview MP200 Foresee XP1000F512G	731 (727.82^min - 730.52^max) MB/s -56%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -61%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -66%
Acemagic AD15 Netac NS512GSSD340	189.2 (184.89^min - 189.2^max) MB/s -88%
4k q32 t16 write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2578 (1137.7^min - 2578.06^max) MB/s +56%
Acemagic AD15	1653 (1585.95^min - 1653.24^max) MB/s
Minisforum Venus Series UM560 XT ESO512GYLCT	1611 (1590.22^min - 1610.86^max) MB/s -3%
Geekom A5 Lexar NM620 512GB	1370 (84.65^min - 1370.23^max) MB/s -17%
Average of class Mini PC (32.6 - 4288, n=119, last 2 years)	1332 MB/s -19%
Blackview MP200 Foresee XP1000F512G	754 (743.45^min - 754.38^max) MB/s -54%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s -67%
Acemagic AD15 Netac NS512GSSD340	229 (222.72^min - 229.28^max) MB/s -86%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -89%

AS SSD
Score Total
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	6225 Points +43%
Acemagic AD15	4339 Points
Average of class Mini PC (211 - 10021, n=117, last 2 years)	4244 Points -2%
Geekom A5 Lexar NM620 512GB	4006 Points -8%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points -10%
Blackview MP200 Foresee XP1000F512G	3153 Points -27%
Minisforum Venus Series UM560 XT ESO512GYLCT	3139 Points -28%
Acemagic AD15 Netac NS512GSSD340	753 Points -83%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -83%
Score Read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2327 Points +45%
Acemagic AD15	1603 Points
Average of class Mini PC (76 - 3741, n=117, last 2 years)	1578 Points -2%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points -6%
Geekom A5 Lexar NM620 512GB	1502 Points -6%
Blackview MP200 Foresee XP1000F512G	1276 Points -20%
Minisforum Venus Series UM560 XT ESO512GYLCT	954 Points -40%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -59%
Acemagic AD15 Netac NS512GSSD340	266 Points -83%
Score Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2732 Points +43%
Acemagic AD15	1914 Points
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1902 Points -1%
Geekom A5 Lexar NM620 512GB	1739 Points -9%
Minisforum Venus Series UM560 XT ESO512GYLCT	1702 Points -11%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points -15%
Blackview MP200 Foresee XP1000F512G	1235 Points -35%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -63%
Acemagic AD15 Netac NS512GSSD340	345 Points -82%
Seq Read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4095 MB/s +40%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3231 MB/s +11%
Geekom A5 Lexar NM620 512GB	3020 MB/s +4%
Blackview MP200 Foresee XP1000F512G	2930 MB/s 0%
Acemagic AD15	2917 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s -3%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s -22%
Minisforum Venus Series UM560 XT ESO512GYLCT	2193 MB/s -25%
Acemagic AD15 Netac NS512GSSD340	529 MB/s -82%
Seq Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3118 MB/s +8%
Acemagic AD15	2893 MB/s
Geekom A5 Lexar NM620 512GB	2714 MB/s -6%
Blackview MP200 Foresee XP1000F512G	2478 MB/s -14%
Average of class Mini PC (242 - 5783, n=117, last 2 years)	2292 MB/s -21%
Minisforum Venus Series UM560 XT ESO512GYLCT	1762 MB/s -39%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s -54%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -82%
Acemagic AD15 Netac NS512GSSD340	425 MB/s -85%
4K Read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	100.9 MB/s +122%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s +39%
Average of class Mini PC (21.4 - 104.3, n=117, last 2 years)	59.7 MB/s +31%
Geekom A5 Lexar NM620 512GB	57.7 MB/s +27%
Minisforum Venus Series UM560 XT ESO512GYLCT	55.3 MB/s +22%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s +18%
Blackview MP200 Foresee XP1000F512G	52.2 MB/s +15%
Acemagic AD15	45.5 MB/s
Acemagic AD15 Netac NS512GSSD340	30.6 MB/s -33%
4K Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	332 MB/s +205%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s +107%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +70%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	177.5 MB/s +63%
Minisforum Venus Series UM560 XT ESO512GYLCT	151.8 MB/s +39%
Geekom A5 Lexar NM620 512GB	125.5 MB/s +15%
Acemagic AD15	108.9 MB/s
Blackview MP200 Foresee XP1000F512G	103.1 MB/s -5%
Acemagic AD15 Netac NS512GSSD340	89.4 MB/s -18%
4K-64 Read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1817 MB/s +44%
Acemagic AD15	1265 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s -3%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1195 MB/s -6%
Geekom A5 Lexar NM620 512GB	1143 MB/s -10%
Blackview MP200 Foresee XP1000F512G	931 MB/s -26%
Minisforum Venus Series UM560 XT ESO512GYLCT	679 MB/s -46%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -74%
Acemagic AD15 Netac NS512GSSD340	182.1 MB/s -86%
4K-64 Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2089 MB/s +38%
Acemagic AD15	1515 MB/s
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1495 MB/s -1%
Minisforum Venus Series UM560 XT ESO512GYLCT	1374 MB/s -9%
Geekom A5 Lexar NM620 512GB	1342 MB/s -11%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s -16%
Blackview MP200 Foresee XP1000F512G	884 MB/s -42%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -70%
Acemagic AD15 Netac NS512GSSD340	213 MB/s -86%
Access Time Read
Blackview MP200 Foresee XP1000F512G	0.158 ms * -42%
Acemagic AD15	0.111 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * +10%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09579 ms * +14%
Geekom A5 Lexar NM620 512GB	0.08 ms * +28%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.073 ms * +34%
Acemagic AD15 Netac NS512GSSD340	0.063 ms * +43%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +46%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.044 ms * +60%
Access Time Write
Blackview MP200 Foresee XP1000F512G	0.16 ms * -50%
Acemagic AD15 Netac NS512GSSD340	0.137 ms * -28%
Geekom A5 Lexar NM620 512GB	0.13 ms * -21%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1133 ms * -6%
Acemagic AD15	0.107 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * +19%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.031 ms * +71%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.024 ms * +78%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +79%

* ... smaller is better

Continuous reading: DiskSpd Read Loop, Queue Depth 8

Acemagic AD15 ; diskspd 2.0.17 f: Ø3044 (2021.18-3428.49)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)

Geekom A5 Lexar NM620 512GB: Ø3437 (3126.47-3454.22)

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0: Ø4040 (1626.34-4798.7)

Acemagic AD15 Netac NS512GSSD340: Ø540 (386.44-542.74)

Blackview MP200 Foresee XP1000F512G: Ø3033 (2552.65-3092.67)

Grafik kartı

Görüntü çıkışı 32 EU'lu Intel UHD Graphics Xe tarafından gerçekleştirilir. Bu da burada çok fazla 3D performansı beklenemeyeceğini açıkça ortaya koyuyor. Test cihazımız sondan ikinci sırada yer aldığı için sonuçlar da buna uygun olarak zayıf. Acemagic AD15 ile yapılandırmada elde edilebilecek performans Intel Core i5-12450H minisforum Venus Serisi UN1245 örneğinde görülebilir. Ancak burada zorlu görevler için sınırlara hızla ulaşılır. Gözle görülür şekilde daha fazla performans sadece bir AMD Radeon 680M ya da bir AMD Radeon 780M. İkincisi şu şekilde gelir Minisforum EliteMini UM780 XTX kullanılır.

Daha fazla karşılaştırma ve kıyaslama için lütfen GPU karşılaştırma tablomuza bakın.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	97.1 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	93 pt
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	85.3 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	79.7 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	61 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	48.7 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	47.4 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	24.5 pt

3DMark 11 - 1280x720 Performance GPU
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +132%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points +98%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points +84%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points +77%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3912 Points +28%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	3168 Points +3%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	3065 Points
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -46%

3DMark
1280x720 Cloud Gate Standard Graphics
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	32875 Points +109%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	29927 Points +90%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +79%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20098 Points +28%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points +22%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	15716 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	15662 Points 0%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7779 Points -51%
1920x1080 Fire Strike Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +96%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points +93%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points +71%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	3971 Points +68%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3055 Points +29%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	2495 Points +6%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	2363 Points
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -49%
2560x1440 Time Spy Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +117%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points +116%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points +98%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points +90%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points +30%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	658 Points 0%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	658 Points
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -47%
Fire Strike Extreme Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +104%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1879 Points +79%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points +74%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1654 Points +57%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	1349 Points +28%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	1101 Points +5%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	1051 Points
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	544 Points -48%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Unigine Superposition

Performance Rating - Percent
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	96.8 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	87.2 pt
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	83.7 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	71.7 pt
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	58 pt
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	48.7 pt
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	47.9 pt
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	26.5 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	22.8 fps +78%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	20.9 fps +63%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps +59%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps +38%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.3 fps +4%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	12.8 fps
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	9.8 fps -23%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.5 fps -41%
Extreme Preset DX11
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	22 fps +59%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +51%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	19.8 fps +43%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps +30%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	15.9 fps +15%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	14 fps +1%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	13.8 fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.7 fps -44%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	14.2 fps +71%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.2 fps +59%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps +36%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps +31%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	10 fps +20%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	8.8 fps +6%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	8.3 fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.1 fps -39%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	17.7 fps +84%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	14.7 fps +53%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.5 fps +41%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps +22%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps +21%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	10.1 fps +5%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	9.6 fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.4 fps -44%

ComputeMark v2.1
1024x600 Normal, Score
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	4020 Points +182%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +142%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	3244 Points +128%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points +94%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	1735 Points +22%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	1424 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1422 Points 0%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	745 Points -48%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +69%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	296 Points +57%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	272 Points +45%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points +19%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	203 Points +8%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	188 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	182 Points -3%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	118 Points -37%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +97%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	280 Points +62%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	260 Points +50%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points +33%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	197 Points +14%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	173 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	170 Points -2%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	109 Points -37%
1024x600 Normal, Mandel Vector
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1236 Points +398%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	948 Points +282%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +276%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points +141%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	306 Points +23%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	254 Points +2%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	248 Points
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	144 Points -42%
1024x600 Normal, Mandel Scalar
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1062 Points +187%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +139%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	884 Points +139%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points +111%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	483 Points +31%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	378 Points +2%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	370 Points
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	141 Points -62%
1024x600 Normal, QJuliaRayTrace
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1145 Points +157%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +116%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points +110%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	880 Points +97%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	547 Points +23%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	457 Points +2%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	446 Points
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	233 Points -48%

Unigine Superposition
1280x720 720p Low
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	7952 Points +97%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7862 Points +95%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	7180 Points +78%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	4666 Points +16%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4362 Points +8%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	4043 Points 0%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	4032 Points
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	2027 Points -50%
1920x1080 1080p High
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1949 Points +91%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points +76%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	1664 Points +63%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1522 Points +49%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	1256 Points +23%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	1020 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1018 Points 0%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	511 Points -50%
1920x1080 1080p Extreme
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	914 Points +105%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points +80%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	768 Points +72%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	752 Points +69%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	570 Points +28%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	465 Points +4%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	446 Points
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	231 Points -48%

3DMark 05 Standard		31282 puan
3DMark 06 Standard Score		19448 puan
3DMark Vantage P Result		13558 puan
3DMark 11 Performance		3530 puan
3DMark Ice Storm Standard Score		81246 puan
3DMark Cloud Gate Standard Score		14883 puan
3DMark Fire Strike Score		2240 puan
3DMark Fire Strike Extreme Score		1053 puan
3DMark Time Spy Score		761 puan
Yardım

... kıyaslama

Oyun performansı

Intel UHD Graphics Xe sadece sınırlı ölçüde 3D oyun oynamak için uygundur. Bununla birlikte, iGPU'nun ustalaştığı bazı oyunlar vardır. Eski oyunlar ve iddiasız başlıklar, grafik adaptörüne mutlaka çözülemez görevler sunmaz. Bununla birlikte, yeterli kare hızlarına ulaşmak için genellikle düşük ayrıntılarla yetinmeniz gerekir.

Daha fazla karşılaştırma ve kıyaslama için lütfen GPU karşılaştırma tablosu.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	85.6 (16^min, 36.2^P0.1, 60.2^P1) fps +80%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps +61%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	75.4 fps +58%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	63.3 fps +33%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	62.4 (20.6^min, 26.1^P0.1, 35.1^P1) fps +31%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	47.6 (4.25^min, 19.9^P0.1, 26.2^P1) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	47.3 (4.78^min, 19.9^P0.1, 25.3^P1) fps -1%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	24.5 fps -49%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	26 (20.8^min, 21.4^P0.1, 22.6^P1) fps +59%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	23 fps +40%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps +38%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	22.2 fps +35%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	20.2 (10.1^min, 10.8^P0.1, 11.1^P1) fps +23%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	16.4 (8.36^min, 8.88^P0.1, 9^P1) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	16.1 (8.34^min, 8.6^P0.1, 8.83^P1) fps -2%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	8.3 fps -49%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	68 fps +159%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	66.4 fps +152%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps +86%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36.6 fps +39%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	32.9 fps +25%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	26.3 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	24.5 fps -7%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	13.4 fps -49%
1920x1080 High Overall Quality (DX11)
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	16.4 fps +148%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	15.6 fps +136%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps +106%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	10.5 fps +59%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	8.52 fps +29%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	6.6 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	6.23 fps -6%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	3.3 fps -50%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps +36%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	140.7 (5.04^min, 90.9^P1) fps +34%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	140.1 (17.4^min, 90.9^P1) fps +34%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	116.1 (16^min, 83.3^P1) fps +11%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	104.9 (35.3^min, 71.4^P1) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	100.8 (23.7^min, 71.4^P1) fps -4%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	97.7 (25.6^min, 55.6^P1) fps -7%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	59.3 (9.5^min, 33.3^P1) fps -43%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	35.1 (10.8^min, 25.6^P1) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	31.7 (15.9^min, 23.3^P1) fps
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	20.5 (8.17^min, 14.5^P1) fps
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	14.6 (9.64^min, 11^P1) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.7 (7.54^min, 9.71^P1) fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	8.59 (3.34^min, 6.21^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	62 (56^min) fps
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	57 (51^min) fps
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	40 (35^min) fps
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	36 (32^min) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	30 (26^min) fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	16 (14^min) fps
1920x1080 High Preset AA:T
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	27 (24^min) fps
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	25 (22^min) fps
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	19 (17^min) fps
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	16 (13^min) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	12 (10^min) fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7 (6^min) fps

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	56 (43^min) fps
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	52 (39^min) fps
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36 (24^min) fps
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	34 (21^min) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	27 (17^min) fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	15 (11^min) fps
1920x1080 High Preset
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	27 (22^min) fps
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	24 (20^min) fps
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	18 (14^min) fps
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	16 (12^min) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13 (9^min) fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7 (5^min) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	137.7 (114.5^min) fps +8%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps +6%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	133.3 (93.2^min) fps +4%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	129.5 (112.6^min) fps +1%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	127.8 (110.9^min) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	116 (101.7^min) fps -9%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	98.7 (85.5^min) fps -23%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	95.8 (84.4^min) fps -25%
1920x1080 high (2/3)
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	67.7 (59.9^min) fps +83%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps +75%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	62.1 (57.1^min) fps +68%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	45.2 (38.5^min) fps +22%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	44.7 (41.8^min) fps +21%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	37.1 (33.3^min) fps 0%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i5-11500B	37 (33.9^min) fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	22.6 (20.6^min) fps -39%

	düşük	orta	yüksek	ultra
GTA V (2015)	104.9	90.4
The Witcher 3 (2015)	47.6		16.4	8.27
Dota 2 Reborn (2015)	127.8	80.5	37	33.8
X-Plane 11.11 (2018)	38.9	26.5	23.4
Strange Brigade (2018)	55.7	21.5	16.7	14.4
Borderlands 3 (2019)	26.3	11.4	6.6	4.74
F1 2020 (2020)	50.1	22.9	16.8	10.4
F1 2021 (2021)	59.3	25.9	20.8	13.2
GRID Legends (2022)	29.2	25.3	19.5
Tiny Tina's Wonderlands (2022)	13.8	10.8	6.57	5.04
F1 22 (2022)	22.4	20.1	14.2	10.9
F1 23 (2023)	19.7	17.9	12.1
Prince of Persia The Lost Crown (2024)		70.3	45.4	42.1

Emisyonlar - İyi performans ve orta düzeyde gürültü seviyesi

Gürültü emisyonları

Çoğu senaryoda Acemagic AD15 çok sessiz çalışır, ancak fanlar rölantide çalışırken nadiren hareketsiz kalır. Sadece 25 dB(A) ses basınç seviyesi ile cihaz rölantide çalışırken neredeyse duyulmuyor. Ortalama yük altında, 28 dB(A)'dan biraz daha fazla olduğunu görüyoruz. Ancak maksimum yükte 42,4 dB(A)'ya kadar ölçüm yapılabilmektedir. Ancak, stres testi sırasında maksimum değere sürekli olarak ulaşılmaz. Bu sırada gürültü seviyesi yaklaşık 40 dB(A)'ya düşer.

Ses yüksekliği

Boşta		24.9 / 25.2 / 25.2 dB
Çalışırken		28.2 / 42.4 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: Earthworks M23R (15 cm uzaklık) environment noise: 24.7 dB(A)

	Acemagic AD15 i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Geekom A5 R7 5800H, Vega 8	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
Noise		-8%	-13%	-20%	-10%	-22%	-3%	-15%
off / environment *	24.7	29.4 -19%	30 -21%	25 -1%	29.7 -20%	25.2 -2%	25.4 -3%	25.1 -2%
Idle Minimum *	24.9	29.4 -18%	30.3 -22%	28.2 -13%	30.2 -21%	32 -29%	26.2 -5%	25.3 -2%
Idle Average *	25.2	29.4 -17%	30.5 -21%	28.2 -12%	30.2 -20%	32.1 -27%	26.5 -5%	25.3 -0%
Idle Maximum *	25.2	29.5 -17%	30.6 -21%	28.2 -12%	30.2 -20%	32.2 -28%	27.3 -8%	25.3 -0%
Load Average *	28.2	29.6 -5%	32.5 -15%	47.8 -70%	30.6 -9%	39.8 -41%	30.8 -9%	46 -63%
Witcher 3 ultra *	32.4				30.5 6%		32.6 -1%
Load Maximum *	42.4	29.6 30%	33.2 22%	47.4 -12%	36.4 14%	43.3 -2%	37.5 12%	51.8 -22%

* ... smaller is better

Sıcaklık

Acemagic AD15'te asla yüksek kasa sıcaklıkları görmüyoruz. İşlemcinin kendisi stres testi sırasında maksimum 86 °C'ye ulaştı. Ancak test örneğimiz bu değeri yalnızca kısa bir süre için tutuyor. PL1 ve PL2 olarak tanımlanan performans sınırlarına ulaşılıyor ve 45 watt'lık PL1 değeri ilerleyen süreçte kolaylıkla korunabiliyor. Ortalama CPU sıcaklığı da test sırasında yaklaşık 70 °C'ye düşmektedir.

Stres testi sırasında Acemagic AD15 (Prime95)

Maksimum yük

Bekleme


38 °C	34.5 °C	34 °C
39.7 °C	28.6 °C	30.3 °C
26.3 °C	24 °C	24.9 °C

Maksimum: 39.7 °C
Ortalama: 31.1 °C


30.9 °C	35.6 °C	32.6 °C
32.5 °C	31.1 °C	33.2 °C
28.4 °C	25.8 °C	25.9 °C

Maksimum: 35.6 °C
Ortalama: 30.7 °C

Güç kaynağı 34.1 °C | Oda sıcaklığı 22 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 31.1 °C / 88 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 39.7 °C / 103 F, compared to the average of 35.8 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35.6 °C / 96 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 31 °C / 88 F, compared to the device average of 32.3 °C / 90 F.

Güç tüketimi

Mini PC'lerin en büyük avantajı düşük enerji tüketimleridir. Prensip olarak, test örneğimiz de nispeten ekonomiktir, ancak ayrıntılı olarak biraz şüpheli değerler görüyoruz. Acemagic AD15 boş modda 10,7 ila 30,5 watt ile ekonomik değildir. Ayrıca boştayken çok dalgalı bir güç tüketimi görüyoruz. Bunun nedeninin Windows güncellemeleri ve diğer işlemler olduğunu tespit edemedik. Ölçümleri aynı sonuçla birkaç kez tekrarladık. Ortalama yük altında güç tüketimi 49 watt'a yükselirken, en yoğun zamanlarda 98,9 watt'a kadar ulaşıldı. Birlikte verilen 120 watt'lık güç kaynağı (19V; 6,3 A) hiçbir zaman aşırı yüklenmedi.

	Acemagic AD15 i5-11500B, UHD Graphics Xe 32EUs (Tiger Lake-H)	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Geekom A5 R7 5800H, Vega 8	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	Average Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	Average of class Mini PC
Power Consumption		28%	40%	27%	46%	30%	11%	23%	10%	11%
Idle Minimum *	10.7	8 25%	6.6 38%	6.9 36%	7.3 32%	8.2 23%	8.7 19%	9 16%	10 ?(5.4 - 15.2, n=4) 7%	9.69 ?(1.9 - 45.7, n=121, last 2 years) 9%
Idle Average *	14.4	8.7 40%	6.8 53%	7.9 45%	7.8 46%	8.6 40%	14.9 -3%	10.6 26%	14.1 ?(9.8 - 17.2, n=4) 2%	11.9 ?(1.9 - 47.5, n=119, last 2 years) 17%
Idle Maximum *	30.5	8.8 71%	7.2 76%	8.9 71%	8.4 72%	9.6 69%	18.9 38%	19.9 35%	20.2 ?(14 - 30.5, n=4) 34%	15.2 ?(2.6 - 57.1, n=121, last 2 years) 50%
Load Average *	49	54.6 -11%	45.1 8%	60.8 -24%	28.7 41%	52.1 -6%	49.6 -1%	30.9 37%	45.7 ?(40 - 49.6, n=4) 7%	59 ?(11.3 - 170.6, n=121, last 2 years) -20%
Load Maximum *	98.9	83.2 16%	73.4 26%	89.7 9%	61.1 38%	73.6 26%	97.7 1%	97.8 1%	96.6 ?(76.8 - 112.8, n=4) 2%	100.5 ?(18.1 - 423, n=121, last 2 years) -2%
Witcher 3 ultra *								44.8

* ... smaller is better

Power consumption with external monitor

Acemagic AD15; Prime95 V2810 Stress (external Monitor): Ø75.7 (70.1-98.9)

Acemagic AD15; Cinebench R15 Multi (external Monitor): Ø95 (94.2-95.3)

Acemagic AD15; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.4 (38.4-47.2)

Acemagic AD15; 1920x1080 The Witcher 3 ultra (external Monitor): Ø50.9 (49.2-95.2)

Acemagic AD15; Idle 1min (external Monitor): Ø14.5 (2.45-30.6)

Acemagic AD15; Cinebench R23 Single (external Monitor): Ø45.8 (43.8-92.5)

Acemagic AD15; Cinebench R23 Multi (external Monitor): Ø76.3 (68.2-94.9)

Artılar

+ 6 çekirdekli ve 12 iş parçacıklı SoC

+ iyi günlük performans

+ kolay açılır

+ birçok USB bağlantı noktası

+ sağlam gövde

+ iyi ve nispeten sessiz soğutma ünitesi

+ istikrarlı CPU performansı

+ düşük DPC değerleri

+ üç adede kadar ekran aynı anda kullanılabilir

Eksiler

- düşük 3D performansı

- boş modda nispeten yüksek güç tüketimi

- ucuz görünümlü çanta

- thunderbolt 4 yok

Karar - Yaşlı SoC'ye rağmen yeterli performans

Acemagic AD15 incelemesi - Acemagic tarafından sağlanmıştır

Acemagic AD15 testimizde iyi günlük performansı ile etkiledi. Bu sayede Intel Core i5-11500B 16 GB RAM ve 1 TB SSD'den oluşan sağlam bir yapılandırma ile desteklenen 12 iş parçacığına sahip 6 çekirdekli bir işlemci var. Sonuçta Acemagic, test cihazımıza 3.200 MHz saat frekansına sahip uygun bir RAM taktı. Intel Core i7-11800H tabanlı aynı modelde durum böyle değildi. Bu nedenle Intel Core i5-11500B SoC'ye sahip AD15 için biraz daha iyi bir RAM performansı elde edilmiştir.

Acemagic AD15 günlük kullanımda makul bir performans sergileyebilir. Ancak fiyat açısından, üreticinin doğru fiyat-performans oranını sağlamak için bazı iyileştirmeler yapması gerekiyor.

CPU performansı açısından Intel Core i5-11500B, AMD Ryzen 5 6600U ile rekabet edebilir. Bununla birlikte, Intel SoC için açık bir dezavantaj var: entegre grafik birimi AMD iGPU'larına ayak uyduramıyor. Bu da kullanılabilirliğini yalnızca ofis uygulamaları ve internette gezinme ile sınırlıyor. Bununla birlikte, düşük DPC gecikmeleri nedeniyle Acemagic AD15, yüksek çözünürlüklü videoları oynatmak için de uygundur. Hiçbir şey onu oturma odasında bir akış istemcisi olarak kullanmanızı engellemez. CPU fanının düşük ses seviyesinden de bu noktada tekrar bahsetmek gerekir.

Acemagic AD15, malzeme seçimi söz konusu olduğunda eleştirilere katlanmak zorunda. Üretici şu anda 459 ABD doları ücret alıyor. Bu fiyata, artık modası geçmiş bir CPU ile sadece basit bir plastik kasa alıyorsunuz. Muhafaza ve işlemci kesinlikle amaçlarını yerine getiriyor, ancak AD15 diğer cihazlara kıyasla ucuz görünüyor. Ancak yine de indirimlerle biraz tasarruf edebilirsiniz. Test cihazı şu anda Amazon'da 399 Euro'ya satılıyor. Bazı rakipler Thunderbolt desteği sunduğundan, bağlantı açısından biraz daha fazlasını bekleyebilirsiniz.

Fiyatlar ve müsaitlik durumu

Acemagic AD15 şu anda test versiyonuyla Amazon 'dan 399 Euro'ya temin edilebilir. Aynı model 512 GB SSD ile sadece 369 avroya mal oluyor ve Amazon'dan da temin edilebiliyor. AD15 elbette Acemagic mağazasından da sipariş edilebilir. Burada fiyatlar 359 ABD dolarından başlıyor (Intel Core i5-12450H, 16 GB RAM, 512 GB SSD).

Acemagic AD15 - 02/20/2024 v7 ^(old)
Sebastian Bade

İşcilik

64 / 98 → 66%

Bağlanılabilirlik

59 / 81 → 72%

Ağırlık

79%

Oyun performansı

58%

Uygulama performansı

93%

Workstation

56%

Isınma

92%

Ses

93%

Ortalama

74%

79%

Mini PC - Ortalama Ağırlık

Acemagic AD15 Mini-PC incelemesi: 6 çekirdekli Intel Core i5-11500B sayesinde AMD Ryzen 5 6600U ile aynı seviyede

Tiger Lake hala yeterince hızlı!

Karşılaştırmalı olarak olası rakipler

Acemagic AD15 ayrıntılı olarak

Kasa - Baktığınız her yerde plastik

Boyut ve ağırlık karşılaştırması

Ekipman - Günlük kullanım için yeterli

İletişim

Aksesuarlar

Bakım

Performans - 6 çekirdekli ve 12 iş parçacıklı Intel Core i5-11500B

Test koşulları

İşlemci

Acemagic AD15 vs Cinebench R15 çoklu döngü

Sistem performansı

DPC gecikme süreleri

Yığın depolama

Continuous reading: DiskSpd Read Loop, Queue Depth 8

Grafik kartı

Oyun performansı

Emisyonlar - İyi performans ve orta düzeyde gürültü seviyesi

Gürültü emisyonları

Sıcaklık

Güç tüketimi

Power consumption with external monitor

Artılar

Eksiler

Karar - Yaşlı SoC'ye rağmen yeterli performans

Fiyatlar ve müsaitlik durumu

More articles related to this device

Transparency
