GMK NucBox K3 Pro mini PC incelemesi: NucBox K2 daha iyi

Name: GMK NucBox K3 Pro
Brand: GMK

Klasik AMD Intel'e karşı.

NucBox K3 Pro, NucBox K2'nin AMD alternatifidir ve her biri aynı kasa tasarımına sahiptir ancak farklı iç aksamlara sahiptir. NucBox K3 Pro model adı kulağa daha yeni ve daha hızlı gelebilir, ancak performans söz konusu olduğunda NucBox K2'den açıkça daha düşüktür.

Allen Ngo, 👁 Allen Ngo (Çeviren DeepL / Ninh Duy), Published 10/09/2023 🇺🇸 🇸🇪 ...

Mini PC Alder Lake Desktop

NucBox K3 Pro mini PC, AMD tabanlı NucBox K2'nin Intel versiyonudur. İkincisi Ryzen 7 Zen 3+ HS serisi CPU ile gönderilirken, NucBox K3 Pro bunun yerine 12. nesil Core i7-12650U ile geliyor. Her iki model de görsel olarak aynıdır, ancak incelemede belirteceğimiz birkaç dahili farklılık vardır. NucBox K2 ile ilgili incelememize göz atmanızı öneririz çünkü bağlantı noktaları ve fiziksel özellikleriyle ilgili mevcut tüm yorumlarımız burada NucBox K3 Pro için de geçerlidir.

NucBox K3 Pro'nun alternatifleri arasında Lenovo IdeaCentre Mini 01IRH8, Intel NUC 13 veya Beelink SEi12 gibi entegre grafikli diğer mini bilgisayarlar bulunmaktadır.

Daha fazla GMKtec incelemesi:

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

GMK NucBox K3 Pro

İşlemci

Intel Core i7-12650H 10 x 1.7 - 4.7 GHz, Alder Lake-H

Grafik kartı

Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Çekirdek: 1400 MHz, Bellek: 2400 MHz, 52 W TDP ( including 35 W Dynamic Boost), LPDDR5, 31.0.101.4575

Bellek

24 GB

, LPDDR5, 2400 MHz, Dual-Channel, Soldered

Anakart

Intel Alder Lake-P PCH

Harddisk

Lexar NM610 Pro NM610P001T-HNNNG, 1024 GB

Ses kartı

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Bağlantılar

2 USB 2.0, 2 USB 3.0, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Ses çıkışları: 3.5 mm headset

Network

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Boyut

yükseklik x genişlik x derinlik (mm): 43.2 x 123 x 112

İşletim sistemi

Microsoft Windows 11 Pro

Ek özellikler

Klavye ışığı: hayır, Mounting bravket with screws, AC power adapter, USB-C to USB-C cable, 12 Ay Garanti

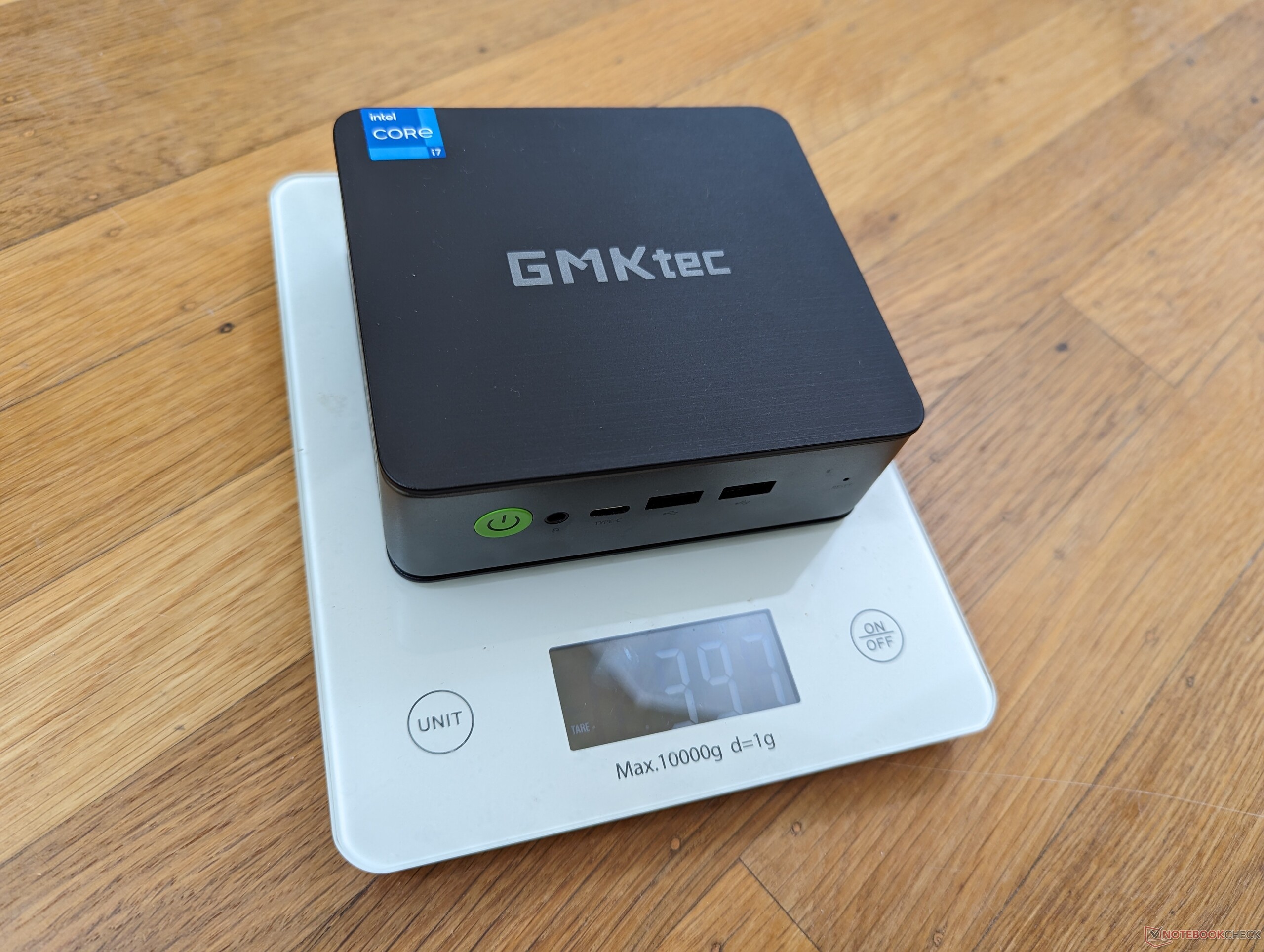

Ağırlık

396 g, Güç kaynağı: 516 g

Fiyat

460 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Karşılaştırmalı olarak olası rakipler

Rating	Date	Model	Weight	Height	Resolution
82.8 % v7 ^(old)	10/2023	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 g	43.2 mm	x
83 % v7 ^(old)		GMK NucBox K2 R7 7735HS, Radeon 680M	440 g	43.2 mm	x
v ^(old)		Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
86.3 % v7 ^(old)		Beelink GTR7 7840HS R7 7840HS, Radeon 780M	890 g	48.8 mm	x
83.1 % v7 ^(old)		Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
81 % v7 ^(old)		Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs	1.8 kg	39 mm	x

Dava

NucBox K3 Pro, lehimli RAM ve WLAN modülleri nedeniyle K2'den biraz daha hafiftir.

Boyut karşılaştırması

Beelink GTR7 7840HS Beelink SEi12 Core i5-1235U GMK NucBox K3 Pro GMK NucBox K2 Intel NUC 13 Pro Desk Edition Kit DIN A5 ❌

İletişim

Sistem, Wi-Fi 6 desteği için bir Intel AX201 ile birlikte gönderilir. muhtemelen maliyetlerden tasarruf etmek için Wi-Fi 6E içermez.

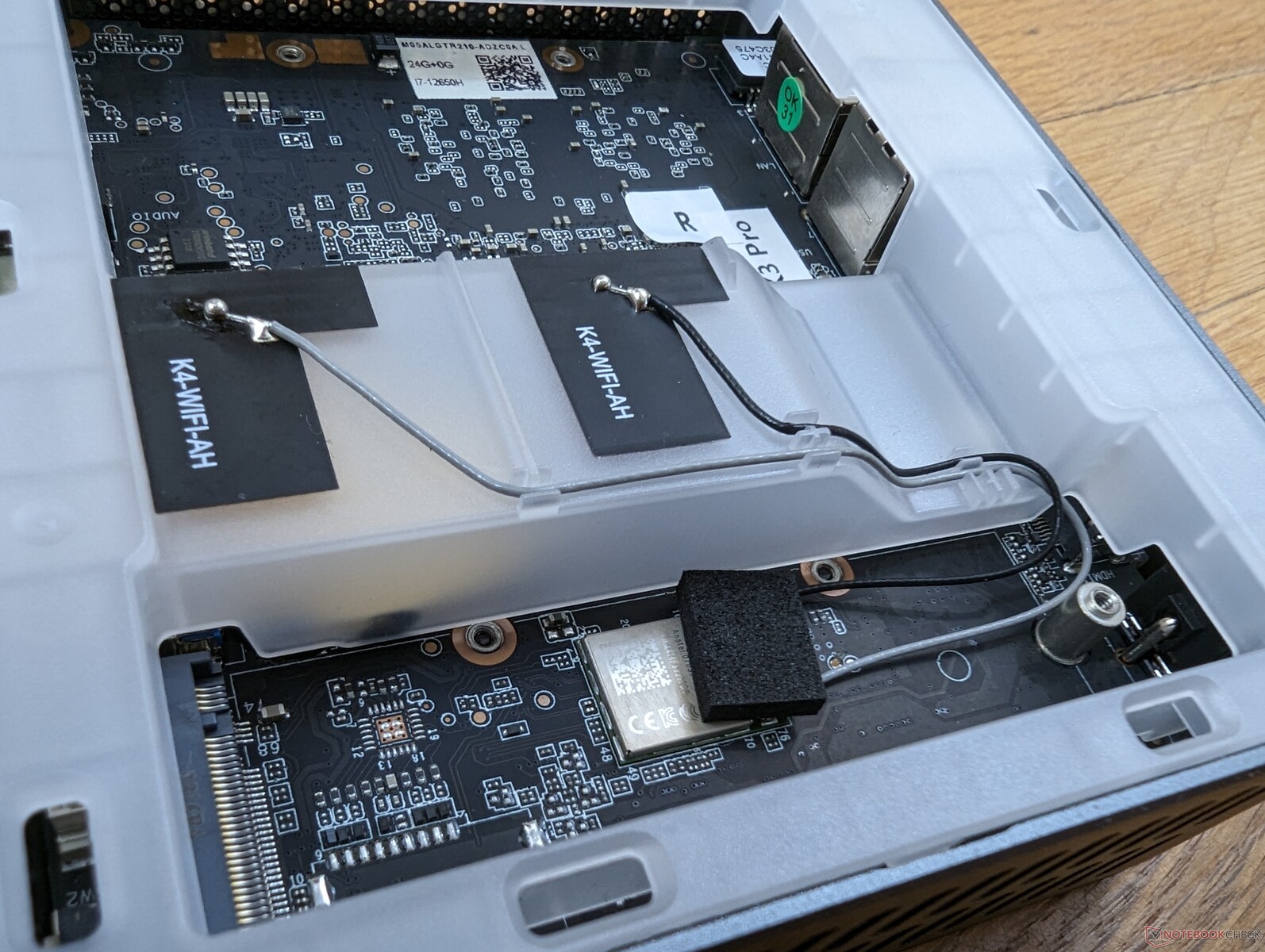

WLAN modülü NucBox K2'den farklı olarak çıkarılabilir değildir

Networking
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s +27%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +11%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1031 (961^min - 1109^max) MBit/s -12%
GMK NucBox K2 MediaTek RZ608	864 (682^min - 951^max) MBit/s -26%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	803 (713^min - 847^max) MBit/s -31%
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s +7%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1211 (1112^min - 1284^max) MBit/s -7%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s -14%
GMK NucBox K2 MediaTek RZ608	865 (443^min - 893^max) MBit/s -33%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	801 (656^min - 887^max) MBit/s -38%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s
GMK NucBox K2 MediaTek RZ608	764 (524^min - 875^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s
GMK NucBox K2 MediaTek RZ608	739 (709^min - 762^max) MBit/s

GMK NucBox K3 Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø1171 (923-1342)

GMK NucBox K3 Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø1296 (1164-1393)

Bakım

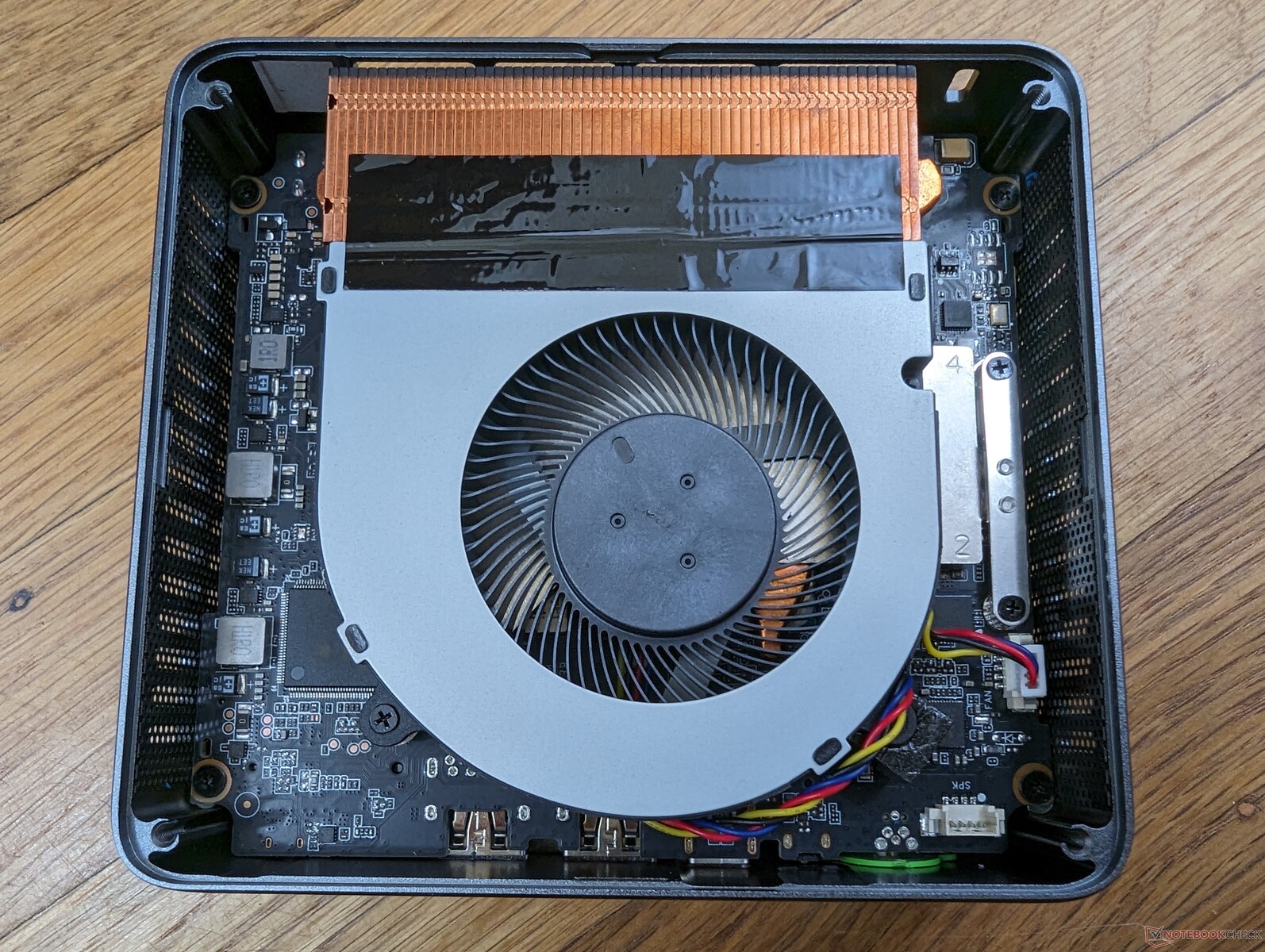

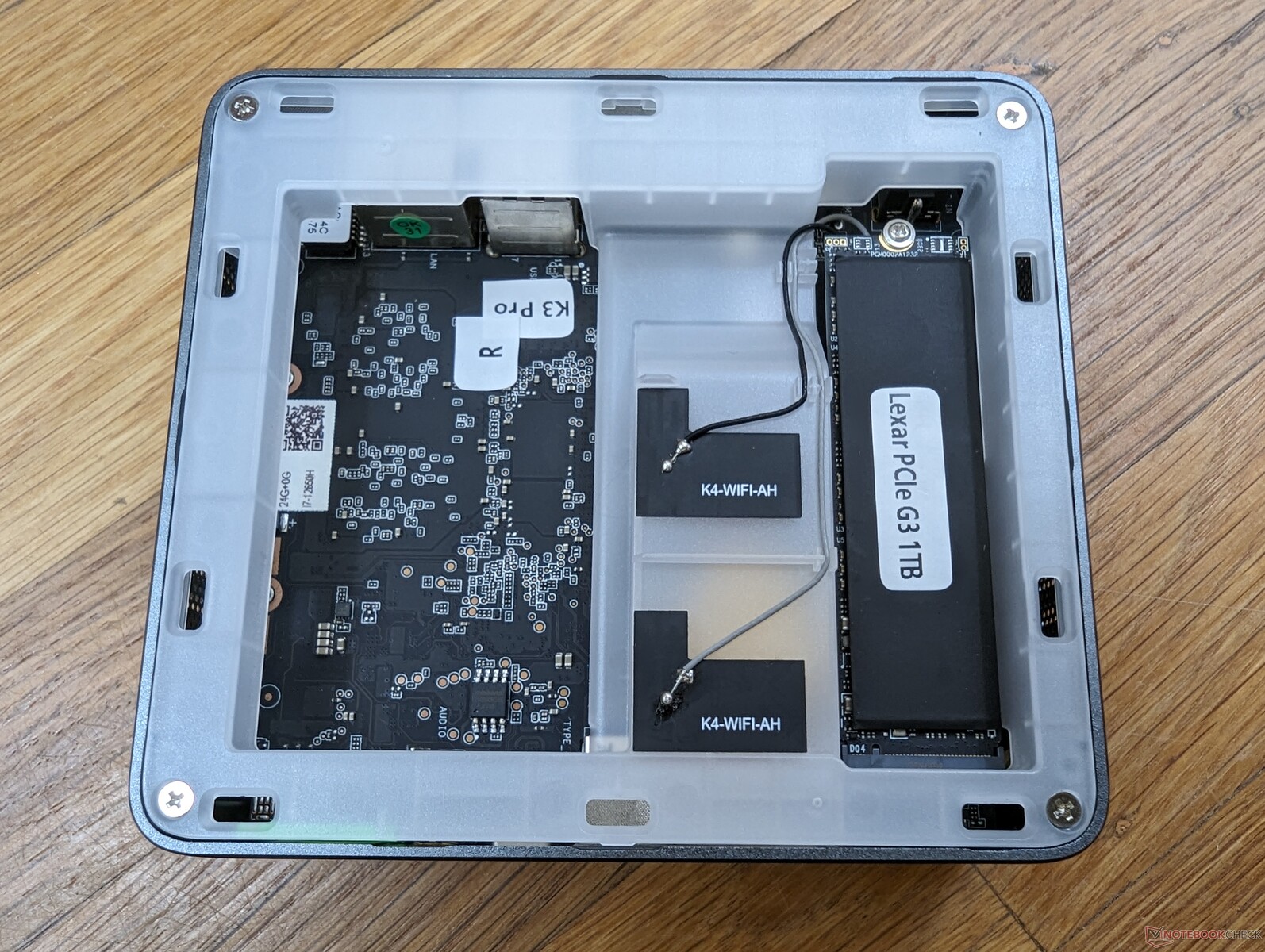

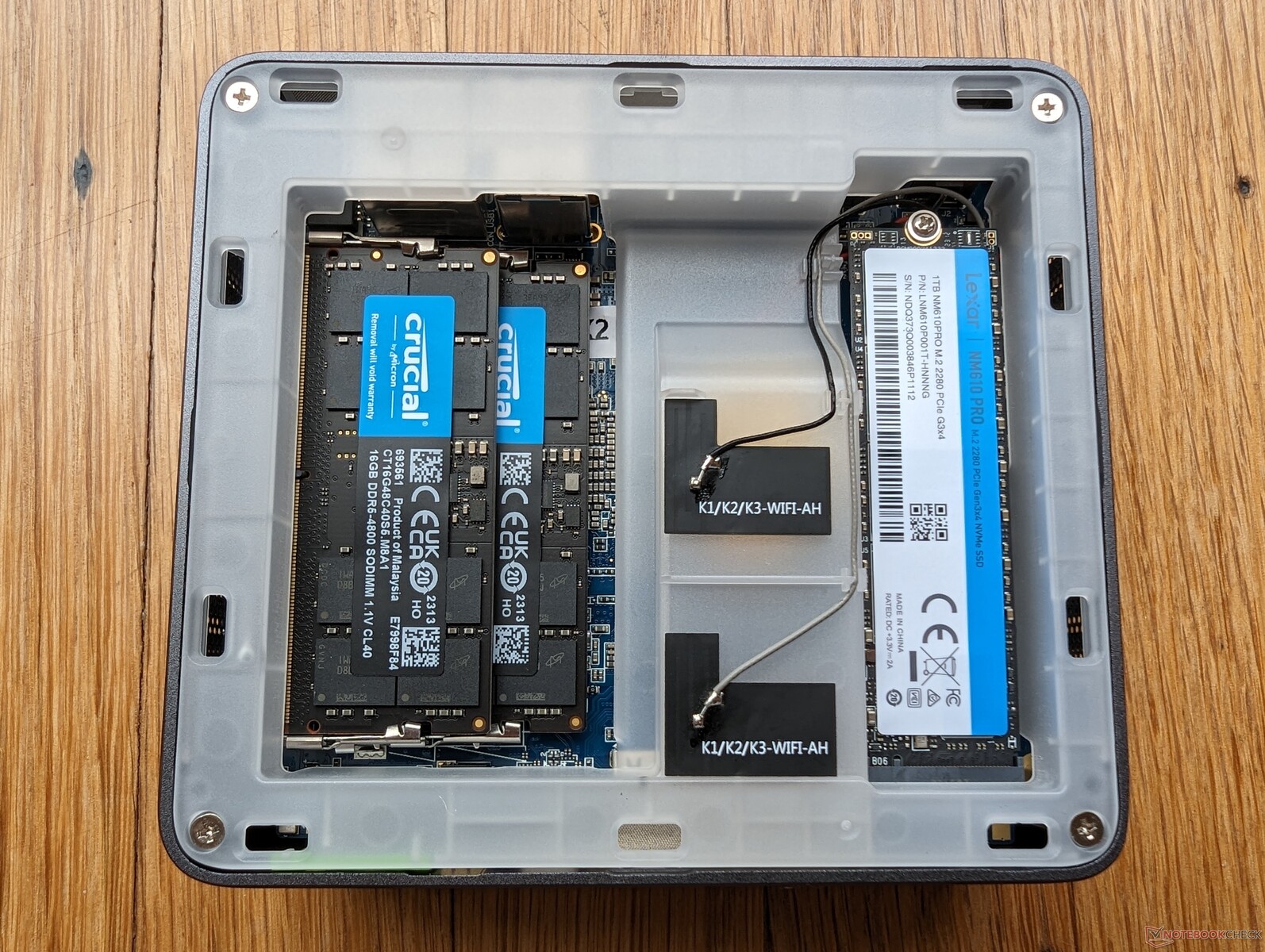

Üst panel, tek M.2 PCIe SSD yuvasını ortaya çıkarmak için açılır. Aşağıdaki resimlerde gösterildiği gibi NucBox K2 ile karşılaştırıldığında eksik SODIMM yuvalarına dikkat edin.

Aksesuarlar ve Garanti

Perakende kutusunda çıkarılabilir VESA montaj braketi, AC adaptörü, HDMI kablosu, evraklar ve hatta varsayılan gri kapağın görünümünü beğenmeyen kullanıcılar için plastik kırmızı bir üst kapak bulunmaktadır.

ABD'de satın alındığında bir yıllık sınırlı üretici garantisi geçerlidir.

Performans

Test Koşulları

Aşağıdaki kıyaslamaları çalıştırmadan önce Windows'u Performans moduna ayarladık.

İşlemci

Bu Core i7-12650H kadar yaygın değildir Core i7-12700H. Çoklu iş parçacığı performansı, i7-12650H'deki daha düşük çekirdek ve iş parçacığı sayısı nedeniyle i7-12700H'ye göre yaklaşık yüzde 35 daha yavaş. Bu önemli eksiklik, i7-12650H'yi rakiplerinin sadece birkaç puan gerisinde bırakmaya yetiyor Ryzen 7 7735HS nucBox K2'de.

CPU performansı da CineBench R15 xT döngü testimiz altında zorlandığında yaklaşık yüzde 17 düşerken, NucBox K2'deki AMD CPU saat hızları açısından daha istikrarlı bir performans sergiliyor.

Cinebench R15 Multi Loop

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

GMK NucBox K2 AMD Ryzen 7 7735HS: Ø1907 (1875.64-1972)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Beelink GTR7 7840HS AMD Ryzen 7 7840HS: Ø2669 (2587.99-2689.08)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H: Ø1926 (1862.02-2240.14)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	82.7 pt
Intel NUC X15 LAPAC71H Intel Core i7-12700H	81.2 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	78.8 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	74.1 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H	73.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	72.1 pt
Average Intel Core i7-12650H	67.9 pt
GMK NucBox K2 AMD Ryzen 7 7735HS	67.8 pt
GMK NucBox K3 Pro Intel Core i7-12650H	67.2 pt
Acemagic AM20 AMD Ryzen 7 7735H	64.9 pt
Acemagic AD15 Intel Core i7-11800H	59.4 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	55.7 pt
BMAX B7 Power G7A2 Intel Core i7-11390H	39.9 pt

Cinebench R23 / Multi Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	17214 (17017.5^min - 17213.9^max) Points +61%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	16338 Points +53%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points +35%
Minisforum Venus Series NPB5 Intel Core i5-13500H	13542 Points +27%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points +18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points +14%
GMK NucBox K2 AMD Ryzen 7 7735HS	11584 (11082.5^min - 11584.2^max) Points +8%
Average Intel Core i7-12650H (5362 - 15537, n=14)	11525 Points +8%
Acemagic AM20 AMD Ryzen 7 7735H	10920 Points +2%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points
Acemagic AD15 Intel Core i7-11800H	9503 Points -11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points -24%
BMAX B7 Power G7A2 Intel Core i7-11390H	4570 Points -57%

Cinebench R23 / Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +5%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	1812 Points +1%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points
Intel NUC X15 LAPAC71H Intel Core i7-12700H	1789 Points 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1775 Points -1%
Average Intel Core i7-12650H (1428 - 1808, n=14)	1722 Points -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points -10%
Acemagic AM20 AMD Ryzen 7 7735H	1536 Points -14%
GMK NucBox K2 AMD Ryzen 7 7735HS	1499 Points -16%
Acemagic AD15 Intel Core i7-11800H	1496 Points -17%
BMAX B7 Power G7A2 Intel Core i7-11390H	1407 Points -21%

Cinebench R20 / CPU (Multi Core)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	6744 Points +66%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	6338 Points +56%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points +43%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5108 Points +26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points +20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points +16%
GMK NucBox K2 AMD Ryzen 7 7735HS	4533 Points +12%
Average Intel Core i7-12650H (2106 - 6009, n=14)	4459 Points +10%
Acemagic AM20 AMD Ryzen 7 7735H	4354 Points +7%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points
Acemagic AD15 Intel Core i7-11800H	3779 Points -7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points -23%
BMAX B7 Power G7A2 Intel Core i7-11390H	1767 Points -56%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +4%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	705 Points +2%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points
Minisforum Venus Series NPB5 Intel Core i5-13500H	687 Points -1%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	687 Points -1%
Average Intel Core i7-12650H (552 - 696, n=14)	664 Points -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points -10%
Acemagic AM20 AMD Ryzen 7 7735H	601 Points -13%
GMK NucBox K2 AMD Ryzen 7 7735HS	591 Points -14%
Acemagic AD15 Intel Core i7-11800H	574 Points -17%
BMAX B7 Power G7A2 Intel Core i7-11390H	550 Points -20%

Cinebench R15 / CPU Multi 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	2689 (2587.99^min - 2689.08^max) Points +59%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	2506 Points +48%
Minisforum Venus Series NPB5 Intel Core i5-13500H	2304 Points +36%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points +32%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points +20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points +18%
GMK NucBox K2 AMD Ryzen 7 7735HS	1972 (1875.64^min - 1972^max) Points +17%
Acemagic AM20 AMD Ryzen 7 7735H	1825 Points +8%
Average Intel Core i7-12650H (753 - 2253, n=14)	1770 Points +5%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points
Acemagic AD15 Intel Core i7-11800H	1591 Points -6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points -17%
BMAX B7 Power G7A2 Intel Core i7-11390H	775 (685.89^min - 775.39^max) Points -54%

Cinebench R15 / CPU Single 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	286 Points +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points +6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points +2%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	257 Points 0%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points
Minisforum Venus Series NPB5 Intel Core i5-13500H	255 Points 0%
Acemagic AM20 AMD Ryzen 7 7735H	246 Points -4%
Average Intel Core i7-12650H (206 - 261, n=14)	245 Points -4%
GMK NucBox K2 AMD Ryzen 7 7735HS	244 Points -5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points -10%
Acemagic AD15 Intel Core i7-11800H	226 Points -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	209 Points -18%

Blender / v2.79 BMW27 CPU
BMAX B7 Power G7A2 Intel Core i7-11390H	665 Seconds * -102%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * -18%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds *
Acemagic AD15 Intel Core i7-11800H	319 Seconds * +3%
Average Intel Core i7-12650H (222 - 553, n=15)	300 Seconds * +9%
Acemagic AM20 AMD Ryzen 7 7735H	280 Seconds * +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * +17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * +19%
Minisforum Venus Series NPB5 Intel Core i5-13500H	260 Seconds * +21%
GMK NucBox K2 AMD Ryzen 7 7735HS	259 Seconds * +22%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	235 Seconds * +29%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	229 Seconds * +31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * +35%

7-Zip 18.03 / 7z b 4
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	65706 MIPS +53%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	61768 MIPS +44%
GMK NucBox K2 AMD Ryzen 7 7735HS	57785 MIPS +34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS +27%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS +23%
Minisforum Venus Series NPB5 Intel Core i5-13500H	52630 MIPS +22%
Acemagic AM20 AMD Ryzen 7 7735H	52518 MIPS +22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS +19%
Average Intel Core i7-12650H (27053 - 59034, n=14)	46612 MIPS +8%
Acemagic AD15 Intel Core i7-11800H	43146 MIPS 0%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS -17%
BMAX B7 Power G7A2 Intel Core i7-11390H	20822 MIPS -52%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	6749 MIPS +17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS +3%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	5878 MIPS +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +1%
GMK NucBox K2 AMD Ryzen 7 7735HS	5790 MIPS 0%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS
Acemagic AD15 Intel Core i7-11800H	5732 MIPS -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5695 MIPS -1%
Average Intel Core i7-12650H (5265 - 6116, n=14)	5635 MIPS -2%
Acemagic AM20 AMD Ryzen 7 7735H	5621 MIPS -3%
BMAX B7 Power G7A2 Intel Core i7-11390H	5539 MIPS -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS -10%

Geekbench 5.5 / Multi-Core
Intel NUC X15 LAPAC71H Intel Core i7-12700H	12929 Points +32%
Minisforum Venus Series NPB5 Intel Core i5-13500H	11465 Points +17%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	10752 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +8%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points +6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points +5%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points
Average Intel Core i7-12650H (6478 - 11284, n=16)	9797 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	9436 Points -4%
Acemagic AM20 AMD Ryzen 7 7735H	8612 Points -12%
Acemagic AD15 Intel Core i7-11800H	7976 Points -19%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points -20%
BMAX B7 Power G7A2 Intel Core i7-11390H	4457 Points -55%

Geekbench 5.5 / Single-Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	2010 Points +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points +3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points +2%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points
Minisforum Venus Series NPB5 Intel Core i5-13500H	1762 Points -2%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	1756 Points -2%
Average Intel Core i7-12650H (1590 - 1797, n=16)	1743 Points -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points -9%
Acemagic AD15 Intel Core i7-11800H	1603 Points -10%
GMK NucBox K2 AMD Ryzen 7 7735HS	1564 Points -13%
Acemagic AM20 AMD Ryzen 7 7735H	1563 Points -13%
BMAX B7 Power G7A2 Intel Core i7-11390H	1486 Points -17%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps +43%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	16.9 fps +37%
GMK NucBox K2 AMD Ryzen 7 7735HS	15.1 fps +23%
Minisforum Venus Series NPB5 Intel Core i5-13500H	14.6 fps +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps +15%
Acemagic AM20 AMD Ryzen 7 7735H	14.1 fps +15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps +13%
Average Intel Core i7-12650H (6.62 - 17.4, n=16)	13.8 fps +12%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps
Acemagic AD15 Intel Core i7-11800H	12 fps -2%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	11.7 fps -5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps -23%
BMAX B7 Power G7A2 Intel Core i7-11390H	5.84 fps -53%

LibreOffice / 20 Documents To PDF
BMAX B7 Power G7A2 Intel Core i7-11390H	52.6 s * -32%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -17%
Acemagic AD15 Intel Core i7-11800H	46.3 s * -16%
Acemagic AM20 AMD Ryzen 7 7735H	46.1 s * -15%
GMK NucBox K2 AMD Ryzen 7 7735HS	46 s * -15%
Minisforum Venus Series NPB5 Intel Core i5-13500H	44 s * -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * -9%
Average Intel Core i7-12650H (35.1 - 58.5, n=14)	42.9 s * -7%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s *
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	39 s * +2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +6%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	37 s * +7%

R Benchmark 2.5 / Overall mean
BMAX B7 Power G7A2 Intel Core i7-11390H	0.571 sec * -21%
Acemagic AD15 Intel Core i7-11800H	0.559 sec * -19%
Acemagic AM20 AMD Ryzen 7 7735H	0.536 sec * -14%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * -9%
GMK NucBox K2 AMD Ryzen 7 7735HS	0.4924 sec * -5%
Average Intel Core i7-12650H (0.4584 - 0.515, n=14)	0.478 sec * -2%
Minisforum Venus Series NPB5 Intel Core i5-13500H	0.473 sec * -1%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec *
Intel NUC X15 LAPAC71H Intel Core i7-12700H	0.4618 sec * +2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * +4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +5%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	0.4184 sec * +11%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1692 Points

Cinebench R15 OpenGL 64Bit

109 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

256 Points

Cinebench R20 CPU (Multi Core)

4058 Points

Cinebench R20 CPU (Single Core)

691 Points

Cinebench R23 Multi Core

10691 Points

Cinebench R23 Single Core

1792 Points

Yardım

... kıyaslama

Performance Rating
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	99.2 pt
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	66.7 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	58.3 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	51.4 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	50 pt
Average Intel Core i7-12650H	49.7 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	38.4 pt

AIDA64 / FP32 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	27538 KRay/s +193%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	13337 KRay/s +42%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	13281 KRay/s +41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s +19%
Average Intel Core i7-12650H (5422 - 15620, n=14)	10778 KRay/s +15%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s -28%

AIDA64 / FPU Julia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	116903 Points +140%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	84934 Points +74%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	69808 Points +43%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points +17%
Average Intel Core i7-12650H (26386 - 76434, n=14)	55072 Points +13%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points -29%

AIDA64 / CPU SHA3
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	5096 MB/s +143%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	3190 MB/s +52%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	2969 MB/s +42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s +27%
Average Intel Core i7-12650H (1479 - 3244, n=14)	2392 MB/s +14%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s -10%

AIDA64 / CPU Queen
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	117764 Points +51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	101624 Points +30%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	95223 Points +22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points +11%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points
Average Intel Core i7-12650H (59278 - 89537, n=14)	77353 Points -1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points -23%

AIDA64 / FPU SinJulia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	15525 Points +137%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	12254 Points +87%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	8851 Points +35%
Average Intel Core i7-12650H (4690 - 8726, n=14)	7255 Points +11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points +10%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points -29%

AIDA64 / FPU Mandel
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	62378 Points +164%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	46670 Points +97%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	32781 Points +39%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points +19%
Average Intel Core i7-12650H (15001 - 37738, n=14)	26632 Points +13%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points -31%

AIDA64 / CPU AES
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	177158 MB/s +115%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	120363 MB/s +46%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s -19%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	65953 MB/s -20%
Average Intel Core i7-12650H (32702 - 92530, n=14)	59831 MB/s -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -35%

AIDA64 / CPU ZLib
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	1103 MB/s +84%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	956 MB/s +59%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s +29%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	751 MB/s +25%
Average Intel Core i7-12650H (443 - 891, n=14)	700 MB/s +16%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s +5%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s

AIDA64 / FP64 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	14722 KRay/s +181%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	7123 KRay/s +36%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	7090 KRay/s +35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s +14%
Average Intel Core i7-12650H (3096 - 8448, n=14)	5885 KRay/s +12%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s -33%

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	40726 MPixel/s -8%
Average Intel Core i7-12650H (22046 - 44164, n=14)	31632 MPixel/s -28%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	30200 MPixel/s -32%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s -33%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	19552 MPixel/s -56%

Sistem Performansı

PCMark 10 / Score
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7453 Points +27%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	7000 Points +20%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	6247 Points +7%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points 0%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (5156 - 6057, n=5)	5690 Points -3%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points -5%

PCMark 10 / Essentials
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	11401 Points +6%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	11155 Points +3%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	11040 Points +2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points +2%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points 0%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (9905 - 11395, n=5)	10573 Points -2%

PCMark 10 / Productivity
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10702 Points +37%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	9854 Points +26%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (7167 - 8164, n=5)	7744 Points -1%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7691 Points -1%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points -6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -16%

PCMark 10 / Digital Content Creation
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9409 Points +45%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	8556 Points +32%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points +18%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7547 Points +17%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (5242 - 6482, n=5)	6112 Points -6%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points -10%

CrossMark / Overall
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1723 Points +10%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1655 Points +5%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points +5%
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (1532 - 1875, n=5)	1638 Points +4%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points +1%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1566 Points 0%

CrossMark / Productivity
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1677 Points +12%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points +12%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1641 Points +9%
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (1503 - 1876, n=5)	1613 Points +7%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1559 Points +4%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points +2%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points

CrossMark / Creativity
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1872 Points +7%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points +1%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1720 Points -2%
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (1554 - 1811, n=5)	1695 Points -3%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1556 Points -11%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points -12%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points +44%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1620 Points +25%
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (1301 - 2077, n=5)	1562 Points +20%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1515 Points +16%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1456 Points +12%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points +1%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points

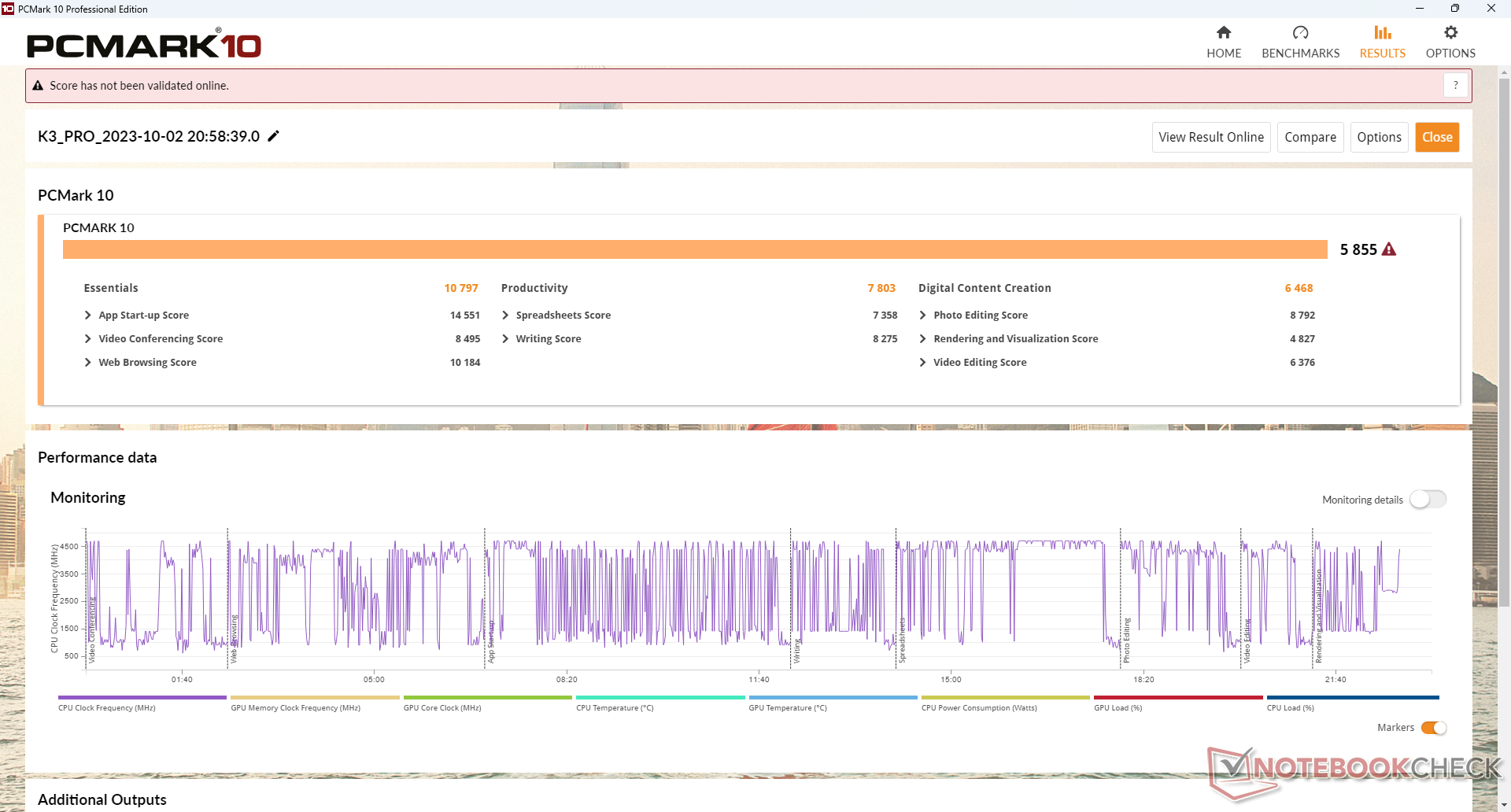

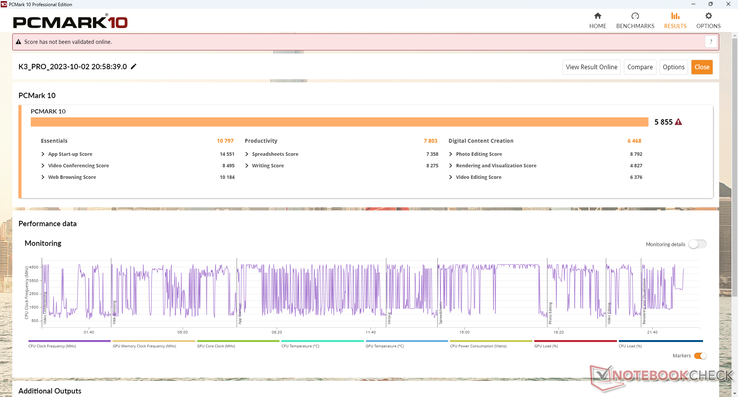

PCMark 10 Score		5855 puan
Yardım

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	69199 MB/s -1%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	51223 MB/s -27%
Average Intel Core i7-12650H (43261 - 69735, n=14)	51052 MB/s -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -36%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s -38%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	40018 MB/s -43%

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	61838 MB/s -8%
Average Intel Core i7-12650H (47313 - 67412, n=14)	55861 MB/s -17%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	51734 MB/s -23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	44583 MB/s -34%

AIDA64 / Memory Write
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	87226 MB/s +47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	55242 MB/s -7%
Average Intel Core i7-12650H (45617 - 59361, n=14)	53407 MB/s -10%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -23%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	42710 MB/s -28%

AIDA64 / Memory Latency
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns *
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns * +6%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * +12%
Average Intel Core i7-12650H (71.6 - 103.9, n=14)	83.6 ns * +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	82.4 ns * +15%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	82.1 ns * +16%

* ... smaller is better

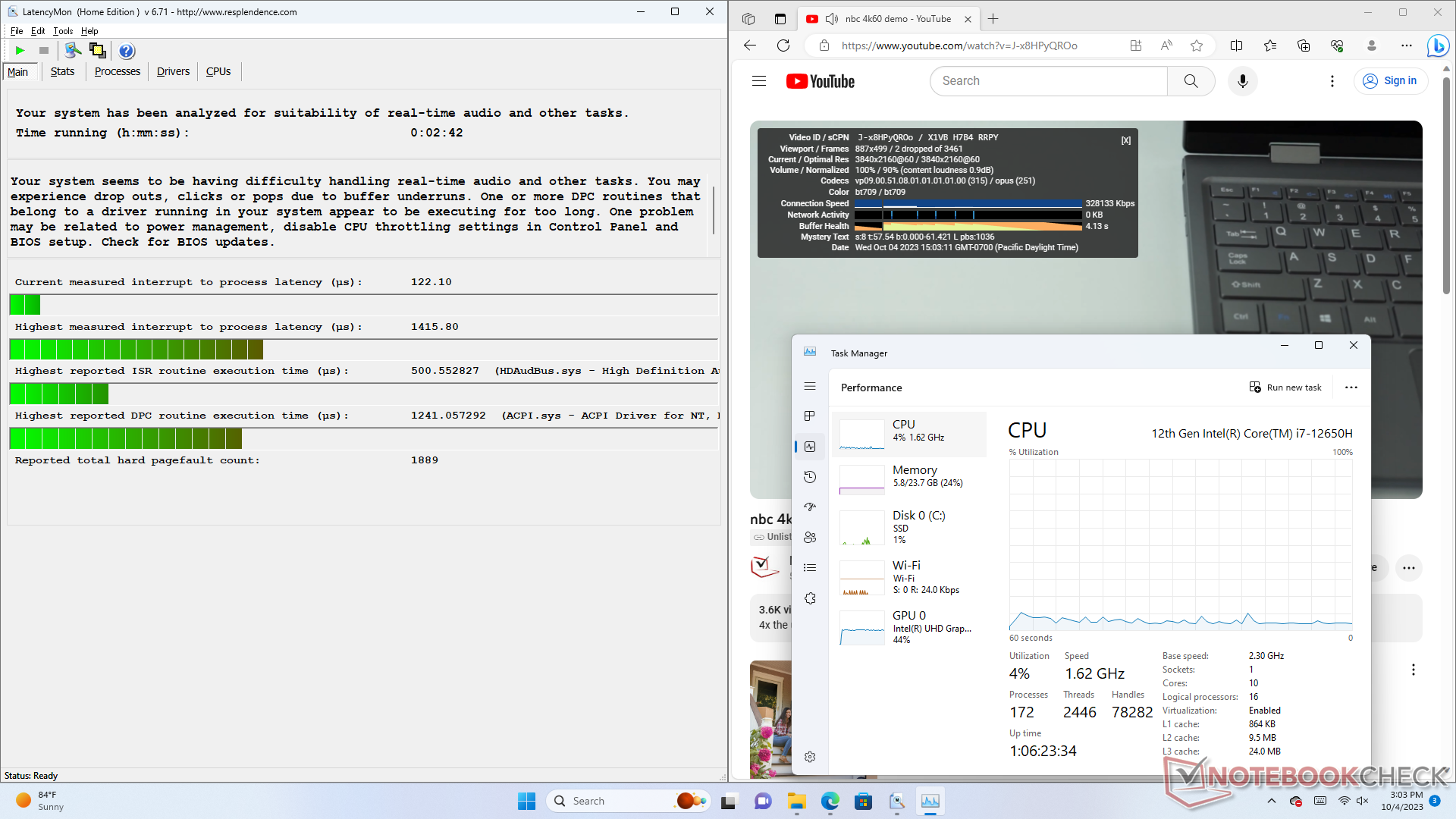

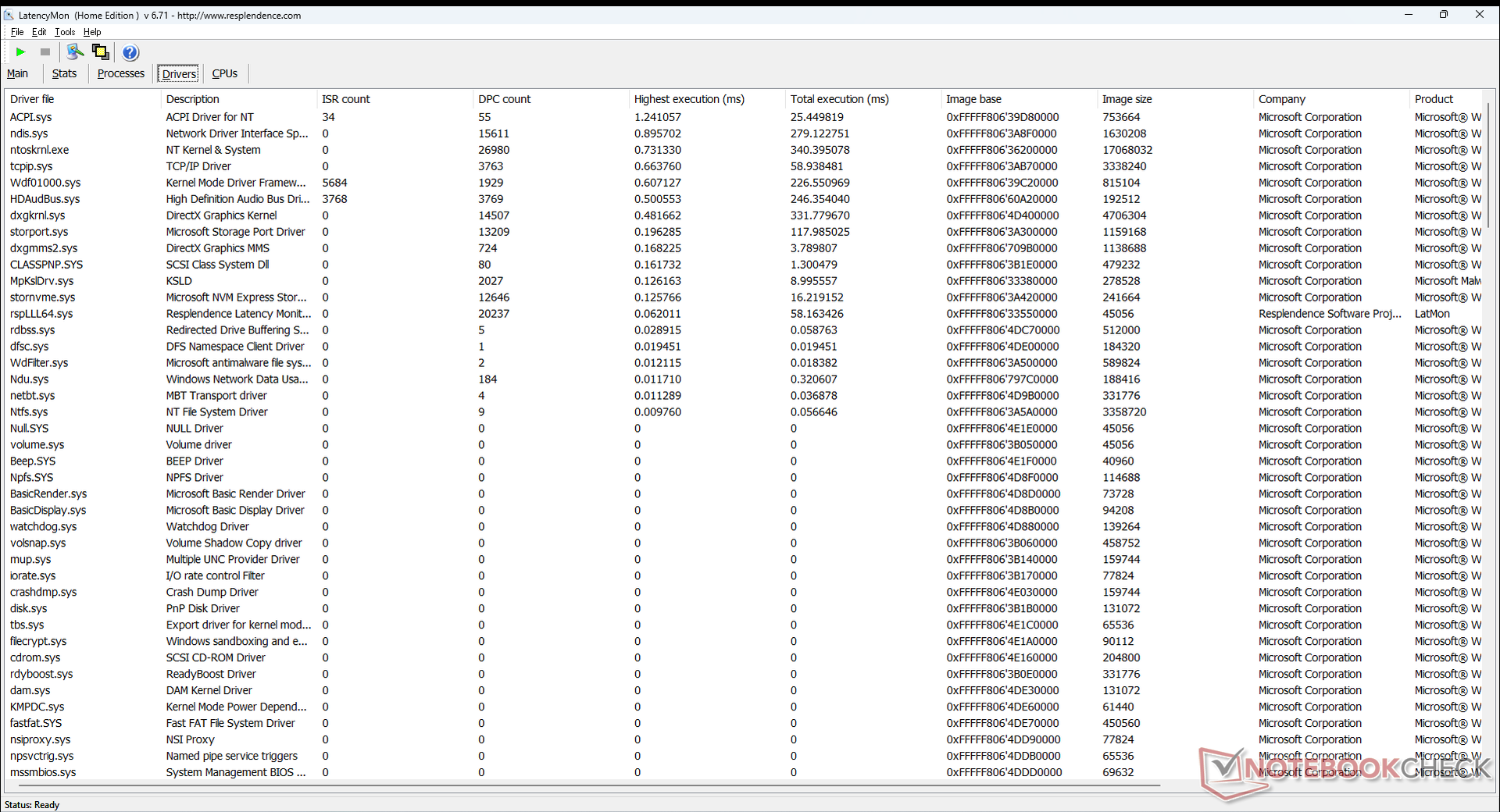

DPC Gecikme Süresi

LatencyMon, ana sayfamızın birden fazla tarayıcı sekmesini açarken küçük DPC sorunları ortaya çıkarır. 60 FPS'de 4K video oynatma da kusurludur ve 60 saniyelik bir test videosu sırasında 2 kare düşmüştür.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	2372.9 μs * -68%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs *
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1094.7 μs * +23%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +25%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * +41%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	718.7 μs * +49%

* ... smaller is better

Depolama Cihazları

GMK'nın kullandığı aynıLexar NM610 Pro SSD'ler k2 ve K3 Pro test ünitelerimiz arasında.

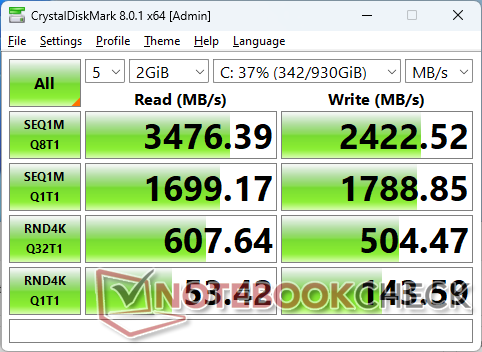

CrystalDiskMark 5.2 / 6

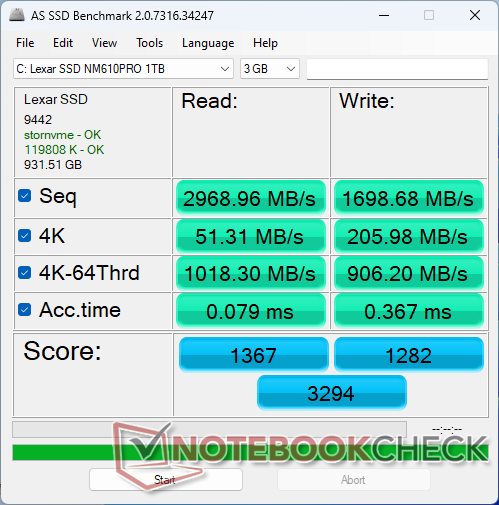

AS SSD

DiskSpd

Lexar NM610 Pro NM610P001T-HNNNG

CDM 5/6 Read Seq Q32T1: 3484 MB/s

CDM 5/6 Write Seq Q32T1: 2429 MB/s

CDM 5/6 Read 4K Q32T1: 596.9 MB/s

CDM 5/6 Write 4K Q32T1: 511.3 MB/s

CDM 5 Read Seq: 1965 MB/s

CDM 5 Write Seq: 1783 MB/s

CDM 5/6 Read 4K: 53.88 MB/s

CDM 5/6 Write 4K: 164.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	85.2 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	78.4 pt
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	74.4 pt
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	57.5 pt
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	57.1 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.2 pt

DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +67%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3033 (3026.64^min - 3032.69^max) MB/s +51%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2625 (2562.3^min - 2625.21^max) MB/s +31%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s +25%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2129 (2045.25^min - 2129.3^max) MB/s +6%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s
seq write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3591 (3535.23^min - 3591.16^max) MB/s +87%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +75%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s +48%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2180 (2126.36^min - 2180.16^max) MB/s +14%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1773 (1718.7^min - 1773.12^max) MB/s -8%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +56%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5174 (4541.87^min - 5174.3^max) MB/s +49%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s +4%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3582 (3101.69^min - 3581.9^max) MB/s +3%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	3411 (3096.44^min - 3410.5^max) MB/s -2%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +106%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3570 (3522.17^min - 3569.77^max) MB/s +48%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s +18%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2378 (2283.33^min - 2377.68^max) MB/s -1%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2291 (2242.9^min - 2291.17^max) MB/s -5%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +68%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	80.5 (74.84^min - 80.54^max) MB/s +60%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s +58%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	62.6 (62.13^min - 62.62^max) MB/s +24%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	51.8 (50.1^min - 51.75^max) MB/s +3%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s +139%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	269 (266.85^min - 269.05^max) MB/s +65%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	212 (203.51^min - 212.25^max) MB/s +30%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -12%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	140.4 (133.49^min - 140.42^max) MB/s -14%
4k q32 t16 read
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2765 (2513.4^min - 2765.45^max) MB/s +144%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s +72%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1530 (1528.13^min - 1529.56^max) MB/s +35%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	945 (935.84^min - 944.53^max) MB/s -17%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -29%
4k q32 t16 write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3254 (3139.57^min - 3253.57^max) MB/s +508%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s +315%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	836 (794.23^min - 835.97^max) MB/s +56%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	505 (469.38^min - 505.2^max) MB/s -6%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -15%

AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +59%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5182 Points +57%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points +40%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	4049 Points +23%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3692 Points +12%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points
Score Read
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1800 Points +32%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1796 Points +31%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points +19%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -3%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1257 Points -8%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +159%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2508 Points +96%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points +78%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1852 Points +44%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1357 Points +6%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +53%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3786.44 MB/s +28%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s +8%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3048.92 MB/s +3%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2984.26 MB/s +1%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s
Seq Write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2799.85 MB/s +65%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s +59%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2339.34 MB/s +38%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1430.07 MB/s -16%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s -73%
4K Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +40%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	70.4 MB/s +37%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	59.79 MB/s +17%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s +16%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	49.99 MB/s -3%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s +36%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	210.95 MB/s +2%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	191.19 MB/s -7%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	179.91 MB/s -13%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -19%
4K-64 Read
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1451.2 MB/s +43%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1357.17 MB/s +33%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s +23%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	882.05 MB/s -13%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -22%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +219%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2017.38 MB/s +123%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s +115%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1529.03 MB/s +69%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	931.89 MB/s +3%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s
Access Time Read
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.099 ms * -25%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms *
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	0.078 ms * +1%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +24%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * +38%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.047 ms * +41%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms *
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	0.358 ms * +2%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.097 ms * +74%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * +81%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.049 ms * +87%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +93%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K3 Pro: Ø3380 (2828.02-3417.73)

GPU Performansı

Grafik performansı, NucBox K2 ile karşılaştırıldığında NucBox K3 Pro'nun en büyük zayıflığıdır. Entegre UHD Graphics 64 AB'ler zaten yavaş olan Iris Xe 96 EU'lardan daha yavaştır ve rakipleriyle kıyaslandığında sönük kalır Radeon 680M. Bu nedenle model, yerel grafik işleme yerine oyun akışı ve 4K video oynatma için daha iyidir.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	86.6 pt
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	85.7 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	60.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	59.1 pt
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	55.3 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	54.5 pt
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	47.4 pt
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	41.9 pt
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.1 pt
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	35.1 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	25.4 pt

3DMark 11 - 1280x720 Performance GPU
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	12978 Points +133%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	11116 Points +100%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	10439 Points +88%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points +32%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points +28%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points +24%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	6477 Points +16%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points -9%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4770 Points -14%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (3886 - 5566, n=12)	4735 Points -15%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	3168 Points -43%

3DMark
1920x1080 Fire Strike Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	7980 Points +75%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	7570 Points +66%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	7530 Points +65%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points +23%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	5305 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points +5%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points -14%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (2592 - 4567, n=12)	3671 Points -20%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	2886 Points -37%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	2495 Points -45%
2560x1440 Time Spy Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2910 Points +126%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2436 Points +89%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	2429 Points +89%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +30%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points +30%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1508 Points +17%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points +17%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points -11%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (830 - 1336, n=12)	1067 Points -17%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	986 Points -23%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	658 Points -49%
2560x1440 Time Spy Score
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	3274 Points +122%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2738 Points +85%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	2712 Points +83%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1907 Points +29%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points +29%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1731 Points +17%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1724 Points +17%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1478 Points
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1311 Points -11%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (935 - 1537, n=12)	1219 Points -18%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1103 Points -25%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	763 Points -48%

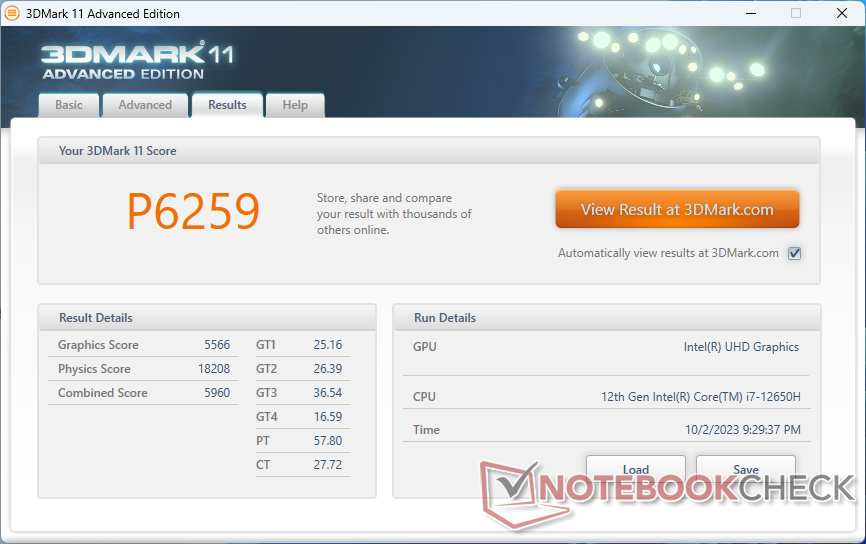

3DMark 11 Performance		6259 puan

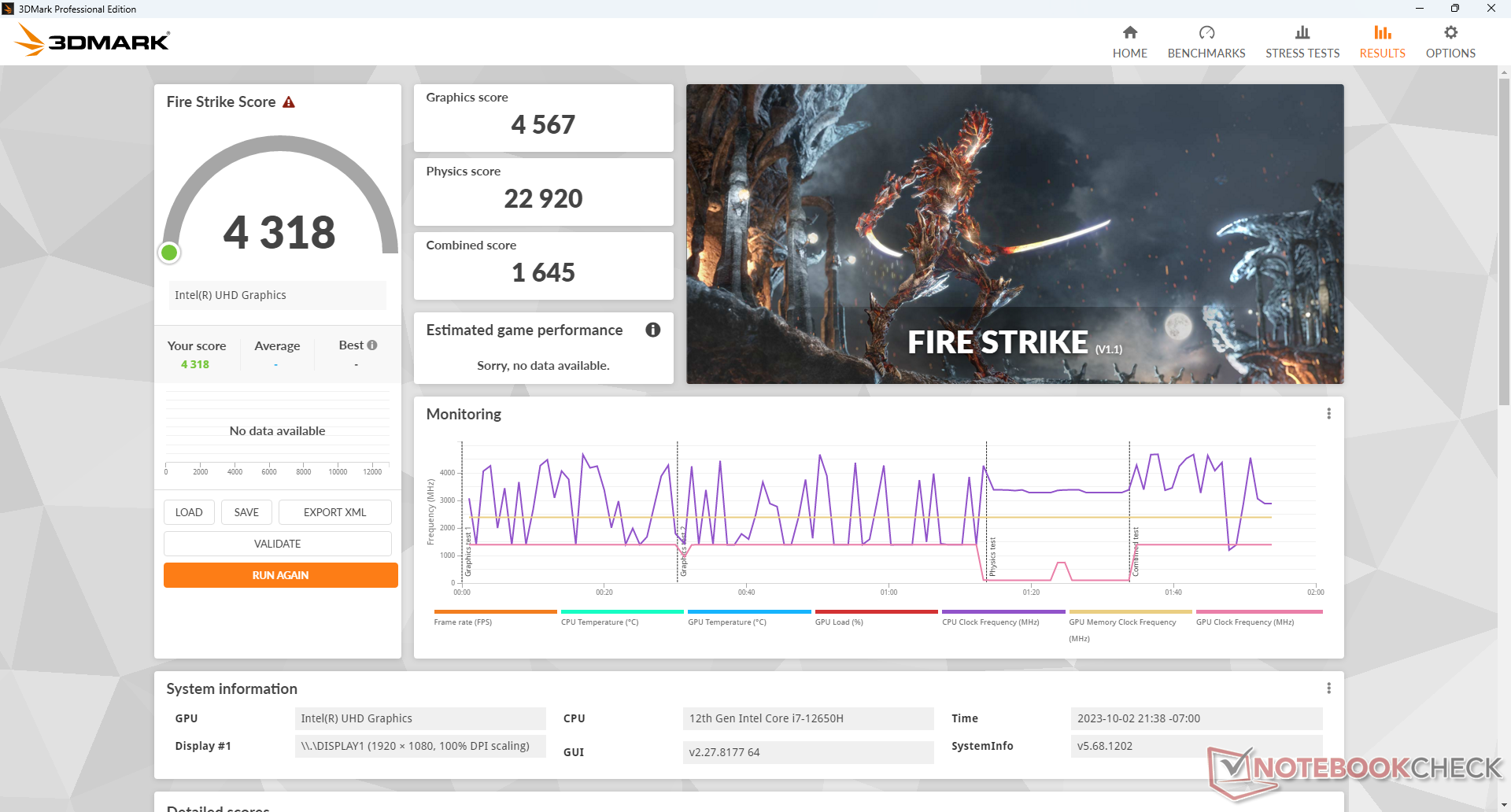

3DMark Fire Strike Score		4318 puan

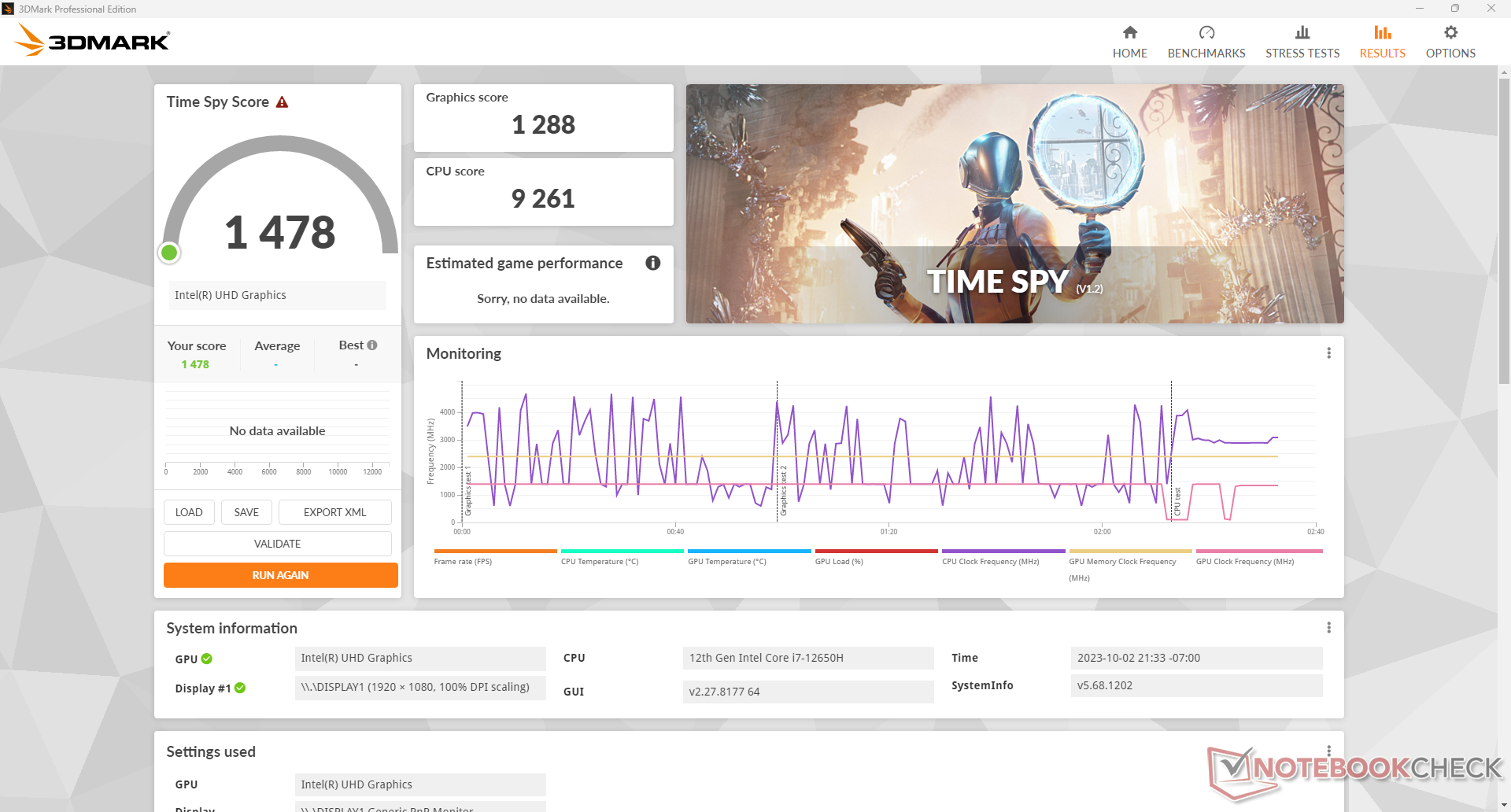

3DMark Time Spy Score		1478 puan
Yardım

... kıyaslama

Blender
v3.3 Classroom HIP/AMD
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	270 Seconds *
v3.3 Classroom CPU
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1259 Seconds * -121%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (494 - 1253, n=11)	760 Seconds * -33%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds * -24%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds *
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	559 Seconds * +2%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * +19%
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	463 Seconds * +19%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	463 Seconds * +19%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * +23%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	438 Seconds * +23%

* ... smaller is better

Final Fantasy XV Benchmark | The Witcher 3 | Dota 2 Reborn | X-Plane 11.11

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	77.6 fps +96%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	64.7 fps +63%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.4 fps +60%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	45.6 fps +15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps +15%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps -6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps -10%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (21.9 - 39.9, n=11)	33.1 fps -16%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.6 fps -40%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.1 fps -44%
1920x1080 Standard Quality
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	38.7 fps +77%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	35.5 fps +62%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps +51%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	25.1 fps +15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps +11%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	21.9 fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 fps -9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	19.3 fps -12%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (12.4 - 21.9, n=11)	17.8 fps -19%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	12.4 fps -43%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	10.5 fps -52%
1920x1080 High Quality
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	28.9 fps +90%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	25.7 fps +69%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.8 fps +63%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	17.4 fps +14%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps +14%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	15.2 fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps -11%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (8.38 - 21.4, n=11)	13.2 fps -13%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.57 fps -44%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.15 fps -46%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	148.9 (122^min) fps +75%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	121.6 (89^min) fps +43%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	116.4 (10.1^min, 21.9^P0.1, 75.6^P1) fps +36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps +20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.7 fps +19%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.4 fps +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	85.8 (61^min) fps +1%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	85.3 (69^min) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	77.7 (46^min) fps -9%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (48 - 85.3, n=11)	67.5 fps -21%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	48.4 fps -43%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	47.3 (4.78^min, 19.9^P0.1, 25.3^P1) fps -45%
1366x768 Medium Graphics & Postprocessing
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	101.5 (93^min) fps +81%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	75.9 (71^min) fps +36%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	56 (53^min) fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 (52^min) fps -3%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	51.4 (16.6^min, 27.5^P0.1, 43.3^P1) fps -8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.7 (43^min) fps -13%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (31 - 56, n=10)	43 fps -23%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	31.3 fps -44%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	50.2 (45^min) fps +67%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	40.2 (12.2^min, 17.8^P0.1, 30.7^P1) fps +34%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	37.9 (35^min) fps +26%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	33.5 fps +11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.1 fps +3%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	30.1 (28^min) fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.8 (26^min) fps -11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps -14%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (15 - 30.2, n=11)	23.3 fps -23%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.1 (8.34^min, 8.6^P0.1, 8.83^P1) fps -47%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	31.5 (29^min) fps +128%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	26.3 (13.4^min, 14.2^P0.1, 16.7^P1) fps +91%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (20^min) fps +64%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps +18%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	15.7 fps +14%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	13.8 (12^min) fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps -10%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps -12%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (7.06 - 13.8, n=11)	10.9 fps -21%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.8 fps -36%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.22 (4.84^min, 4.86^P0.1, 5.03^P1) fps -40%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	160.6 (139.7^min) fps +34%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	141.2 (122.4^min) fps +18%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	140.3 (102.2^min) fps +17%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	125.7 (106.9^min) fps +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	123.8 (98^min) fps +4%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	116 (101.7^min) fps -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps -5%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (76 - 134.7, n=12)	113.6 fps -5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps -8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps -22%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	92.3 (83.6^min) fps -23%
1366x768 med (1/3)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	123.9 (104.8^min) fps +33%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps +22%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	102.8 (86.7^min) fps +10%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	101.3 (78.4^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (77.2^min) fps +1%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps -5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -7%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (61.1 - 100.9, n=12)	82.9 fps -11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps -11%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	73.6 (65.4^min) fps -21%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	64.9 (55.9^min) fps -31%
1920x1080 high (2/3)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	95.1 (84.3^min) fps +52%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.2 (74.4^min) fps +34%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	79.5 (69.9^min) fps +27%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	70.7 (65.7^min) fps +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (59.9^min) fps +8%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps +8%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps -9%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (37.1 - 62.7, n=12)	50.3 fps -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps -27%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	37.1 (33.3^min) fps -41%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	32.9 (30.6^min) fps -48%
1920x1080 ultra (3/3) best looking
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	85.5 (75.7^min) fps +49%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	73.7 (65.4^min) fps +28%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	69.2 (61^min) fps +20%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	64.5 (58.2^min) fps +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps +5%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps -10%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (34.4 - 57.5, n=12)	46.5 fps -19%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps -27%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	33.8 (30.9^min) fps -41%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29.6 (27.2^min) fps -49%

X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.7 fps +62%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	60.8 fps +47%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	56.7 fps +37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps +32%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	48.7 fps +18%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps +17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps +5%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (29.1 - 61, n=10)	43 fps +4%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.4 fps -7%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	38 fps -8%
1920x1080 med (fps_test=2)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 fps +60%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	44.1 fps +33%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	44 fps +33%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps +24%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	34.4 fps +4%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps -1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps -1%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (24.2 - 42.7, n=10)	31.4 fps -5%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	30 fps -9%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	25.8 fps -22%
1920x1080 high (fps_test=3)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 fps +63%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	37.5 fps +44%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps +36%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	35.4 fps +36%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps +17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps +10%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	27.9 fps +7%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) (21.5 - 38, n=10)	27.5 fps +6%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	22.5 fps -13%

Witcher 3 FPS Chart

GMK NucBox K3 Pro: Ø84.9 (80-89)

	düşük	orta	yüksek	ultra
The Witcher 3 (2015)	85.3	56	30.1	13.8
Dota 2 Reborn (2015)	119.5	93.4	62.7	57.5
Final Fantasy XV Benchmark (2018)	39.6	21.9	15.2
X-Plane 11.11 (2018)	41.3	33.1	26

Emisyonlar

Sistem Gürültüsü

Dahili fan, daha düşük yüklerde çalışırken K2'deki kadar sık atmıyor, bu da NucBox K3 Pro'yu K2'den biraz daha sessiz yapıyor. Aksi takdirde, her ikisi de oyunlar gibi zorlu yükleri çalıştırırken yaklaşık 40 dB(A)'lık benzer maksimum gürültü seviyelerine ulaşır.

Fan gürültü profili (Beyaz: Arka plan, Kırmızı: Sistem boşta, Mavi: 3DMark 06, Turuncu: Witcher 3 Aşırı Performans, Yeşil: Prime95+FurMark stres)

Ses yüksekliği

Boşta		25 / 25.5 / 25.5 dB
Çalışırken		39.9 / 39.9 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: Earthworks M23R, Arta (15 cm uzaklık) environment noise: 23.1 dB(A)

	GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
Noise		-8%	1%	-4%	-9%	-4%
off / environment *	23.1	24.1 -4%	23.3 -1%	25.6 -11%	25.2 -9%	23.4 -1%
Idle Minimum *	25	24.4 2%	27.8 -11%	28.1 -12%	28.1 -12%	30.4 -22%
Idle Average *	25.5	24.4 4%	27.8 -9%	28.1 -10%	28.2 -11%	30.4 -19%
Idle Maximum *	25.5	36.8 -44%	27.8 -9%	28.1 -10%	28.3 -11%	30.4 -19%
Load Average *	39.9	41.6 -4%	32 20%	34.9 13%	42 -5%	30.7 23%
Witcher 3 ultra *	39.9	41.7 -5%	34.1 15%	36.4 9%		33.9 15%
Load Maximum *	39.9	41.6 -4%	39.2 2%	42.4 -6%	42.1 -6%	41 -3%

* ... smaller is better

Sıcaklık

Stres Testi

NucBox K3 Pro, NucBox K2'ye kıyasla daha yüksek çekirdek sıcaklıklarında stabilize olur. Gibi zorlu yükleri çalıştırırken CPU sıcaklığı Witcher 3 veya Prime95, AMD destekli K2'deki 67 C ve 79 C'ye kıyasla sırasıyla 80 C ve 83 C'de stabilize olur.

Yüksek Turbo Çekirdek saat hızları sürdürülebilir değildir. Örneğin Prime95 çalıştırıldığında, saat hızları ve kart güç çekişi sırasıyla 2,3 GHz ve 52 W'a yükselirken, yaklaşık 45 saniye sonra sadece 2,0 GHz ve 35 W'a düşüyor.

	CPU Saati (GHz)	GPU Saati (MHz)	Ortalama CPU Sıcaklığı (°C)
Sistem Boşta	--	--	43
Prime95 Stres	2.0	--	83
Prime95 + FurMark Stres	~1,3	948	78
Witcher 3 Stres	~0,8	1397	80

Enerji Yönetimi

Güç Tüketimi

NucBox K2, K3 Pro'ya göre biraz daha zorludur ve bu da K2'nin daha aktif dahili fanını kısmen açıklayabilir. Bununla birlikte, watt başına performans hala önemli ölçüde AMD'nin lehine. Çalışıyor Witcher 3 örneğin K2'de grafik performansında yüzde 70 ila 90 arasında büyük bir artış için sadece yüzde 13 daha fazla güç gerekiyor.

Prime95 stresi başlatıldığında tüketim 76 W'a yükselir ve yaklaşık 45 saniye sonra keskin bir düşüşle 53 W'a iner

Anlık tüketim

Kapalı / Bekleme modu	0.58 / 0.79 Watt
Boşta	7.1 / 10.1 / 18.6 Watt
Çalışırken	45.3 / 52.9 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	GMK NucBox K2 R7 7735HS, Radeon 680M, Lexar NM610 Pro NM610P001T-HNNNG, , x,	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink GTR7 7840HS R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs, Samsung PM9B1 512GB MZVL4512HBLU, , x,
Power Consumption		-7%	-53%	-15%	-7%	-9%
Idle Minimum *	7.1	7.3 -3%	15.8 -123%	5.5 23%	7 1%	6.7 6%
Idle Average *	10.1	9.8 3%	16.8 -66%	5.8 43%	9.2 9%	6.7 34%
Idle Maximum *	18.6	10.5 44%	17 9%	7.7 59%	11.8 37%	7.1 62%
Load Average *	45.3	61.3 -35%	54.4 -20%	70.6 -56%	45 1%	68.5 -51%
Witcher 3 ultra *	55.2	62.2 -13%	50.7 8%	79.8 -45%		58.3 -6%
Load Maximum *	52.9	72.8 -38%	119.1 -125%	111.8 -111%	97.2 -84%	104.3 -97%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; Witcher 3 ultra: Ø55.2 (51.1-62.8)

GMK NucBox K2 R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.2 (60.2-65.2)

GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59.5 (51.7-80.2)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (62.8-72.8)

Power Consumption external Monitor

GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; Prime95 V2810 Stress (external Monitor): Ø58.1 (50-75.8)

GMK NucBox K2 R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63 (62.1-72.5)

GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; Cinebench R15 Multi (external Monitor): Ø69.9 (65.2-77.4)

GMK NucBox K2 R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø60.7 (57.3-67.4)

GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54 (42.7-68.9)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.2 (61.9-71)

GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø55.2 (51.1-62.8)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.2 (60.2-65.2)

GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; Idle 1min (external Monitor): Ø6.83 (6.64-8.31)

Artılar

+ iyi tek iş parçacıklı CPU performansı

+ VESA ve USB4 desteği

+ küçük ve hafif

+ kolay servis edilebilirlik

Eksiler

- nispeten yavaş grafik performansı

- wi-Fi 6E ile birlikte gönderilmez

- RAM kullanıcı tarafından yükseltilemez

- yalnızca bir USB-C bağlantı noktası

Karar - AMD FTW

İncelemede: GMKtec NucBox K3 Pro. GMK tarafından sağlanan ünite

NucBox K3 Pro ve NucBox K2 arasında karar veriyorsanız, sadece "Pro" ismini seçmeyin çünkü K2 tartışmasız daha üstün bir seçenektir. AMD destekli K2 benzer işlemci performansı, çok daha hızlı grafik performansı, hem çıkarılabilir WLAN hem de RAM sunuyor ve hatta tüm kuponlar hesaba katıldığında yaklaşık aynı fiyata satılıyor. Bu bağlamda Intel destekli NucBox K3 Pro'yu tercih etmek için çok az neden var, tabii ki zaten ucuz olan <500$ fiyat noktasından 50 USD tasarruf etmek istemiyorsanız.

NucBox K3 Pro hiçbir şekilde kötü değildir, ancak hem dolar başına performans hem de watt başına performans açısından görsel olarak aynı olan NucBox K2 tarafından kesinlikle gölgede bırakılmıştır.

Ne olursa olsun, fan gürültüsü K2'ye kıyasla K3 Pro'da biraz daha az fark edilir, ancak tipik bir ofis veya HTPC ortamında rahatsız edici olacak kadar önemli değildir.

Fiyat ve Bulunabilirlik

Amazon şu anda GNKtec NucBox K3 Pro'yu 460 USD'ye veya ödeme sırasında 25 $ kupon kodunu uyguladıktan sonra 435 $'a gönderiyor. Alternatif olarak, model adresinden doğrudan üreticiden satın alınabilir.

GMK NucBox K3 Pro - 10/11/2023 v7 ^(old)
Allen Ngo

İşcilik

79 / 98 → 80%

Bağlanılabilirlik

63 / 81 → 77%

Ağırlık

85%

Görüntü

83%

Oyun performansı

69%

Uygulama performansı

93%

Ses

91%

Ortalama

80%

83%

Mini PC - Ortalama Ağırlık

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5250 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 470341 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebooklar Hakkında Aradığınız Herşey > İnceleme > GMK NucBox K3 Pro mini PC incelemesi: NucBox K2 daha iyi

Allen Ngo, 2023-10- 9 (Update: 2023-10- 9)

GMK NucBox K3 Pro mini PC incelemesi: NucBox K2 daha iyi

Klasik AMD Intel'e karşı.

Karşılaştırmalı olarak olası rakipler

Dava

Boyut karşılaştırması

İletişim

Bakım

Aksesuarlar ve Garanti

Performans

Test Koşulları

İşlemci

Cinebench R15 Multi Loop

Sistem Performansı

DPC Gecikme Süresi

Depolama Cihazları

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU Performansı

Witcher 3 FPS Chart

Emisyonlar

Sistem Gürültüsü

Sıcaklık

Stres Testi

Enerji Yönetimi

Güç Tüketimi

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Artılar

Eksiler

Karar - AMD FTW

Fiyat ve Bulunabilirlik

More articles related to this device

Transparency

Price comparison
