İnceleme: Intel HD Graphics 4600

Düşündüğünüzden daha fazlası. Intel her daim kendisini lider konuma taşıyan işlemci teknolojisine odaklandı. Ancak grafik kartları her daim öksüz evlatları oynadı ve Ivy Bridge mimarisine kadar yeterince ilgi görmedi. Yeni Haswell çiplerindeki HD Graphics 4600 ile yeni durumu inceliyoruz.

Till Schönborn, ✓ Stefanie Voigt, Published 06/10/2013 🇺🇸 🇩🇪 ...

Haswell

Intel dahili grafik kartları hiçbir zaman 3D oyun ve uygulamalar için uygun görülmemişti, ta ki şimdiye kadar. Kullanıcılar her zaman düşük performans, yetersiz sürücü desteği ve oyunların neredeyse oynanmasını imkansız kılan grafik kalitesinden şikayetçiydi.

Son iki işlemci jenerasyonundan bu yana durum biraz değişmiş gibi duruyor. Sandy Bridge mimarisinde yer alan HD Graphics 3000 ile Arrandale öncesi döneme kıyasla büyük bir adım atıldı. Bu çözüm halen yeterli görülmemekle beraber arkasından gelen HD Graphics 4000 daha büyük bir adım atıldı ve oyun oynamayı mümkün kıldı. Performansın orta seviye grafik kartlarına yaklaşmasına karşın halen AMD kartlarının gerisindeydi.

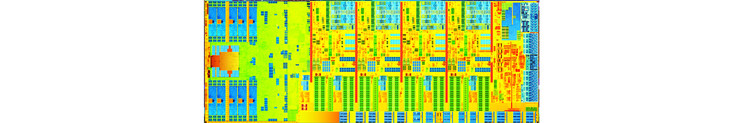

Haswell ile Intel performans yönünden ileriye dönük bir büyük adım daha atıyor. En iyi konfigrasyon olan "GT3e" HD 4000'e kıyasla sadece 2.5 kat fazla shader ünitesine sahip olmakla kalmıyor; aynı zamanda ekstra eDRAM belleği ile geliyor. Ancak sadece üst sınıf Core i7-4850HQ vei7-4950HQ işlemcilerde bu kullanımı görüyoruz.

Orta seviye olan "GT2" yani HD Graphics 4600 serisini bu yazımızda inceliyoruz.

Test sistemi

We used the same test system for benchmarking the HD 4600 as for our CPU measurements in the article about the Haswell architecture. We configured the Schenker W503 (Clevo P150SM barebone) with a Core i7-4930MX, whose graphics unit clocks at 1.35 GHz. Other quad core CPUs with lower GPU clocks or smaller L3 cache will perform slightly worse. In order to also assess the performance of these models, we repeated the synthetic tests with the Core i7-4900MQ (1.3 GHz, 8 MB) and the Core i7-4700MQ (1.15 GHz, 6 MB).

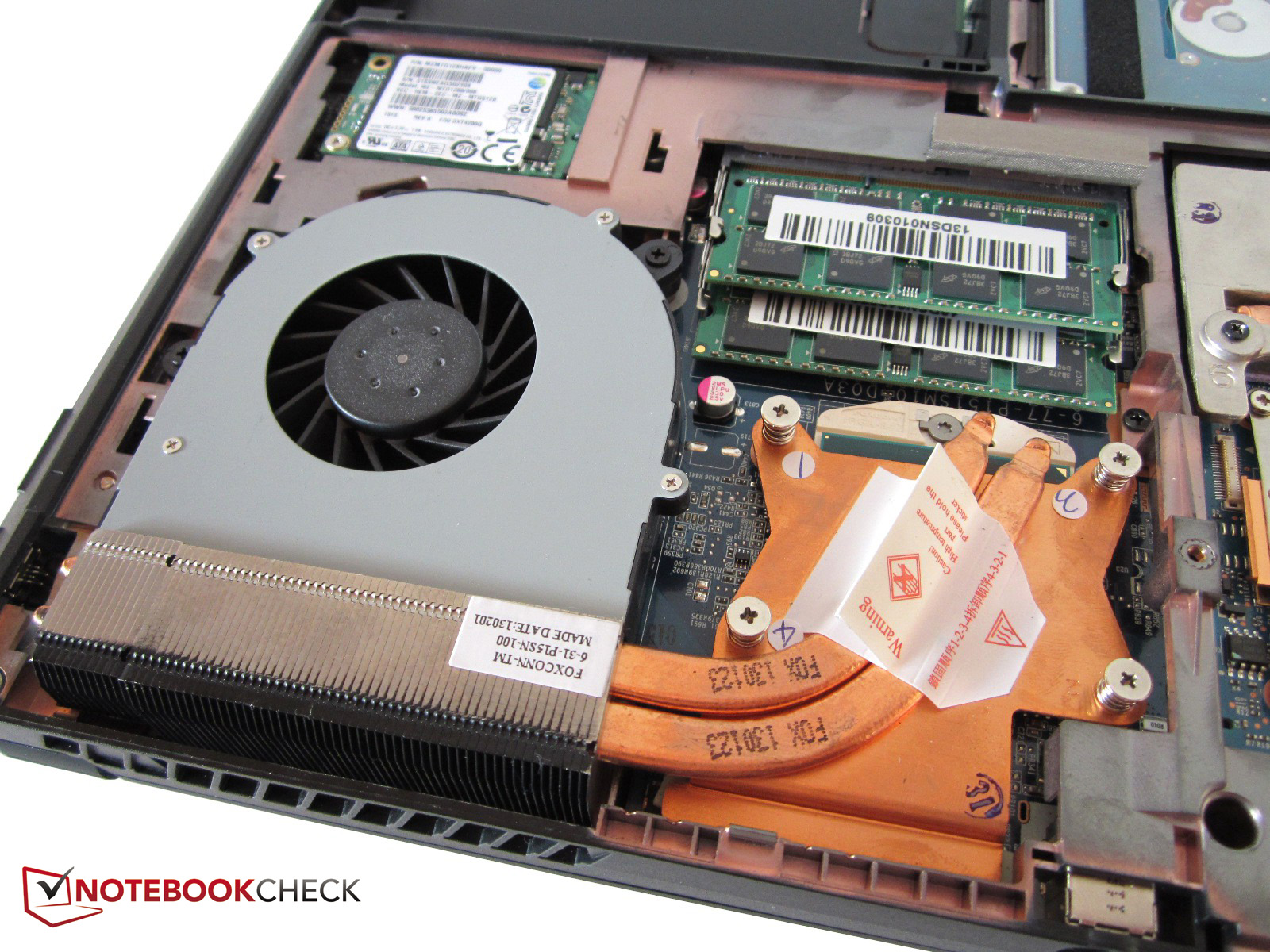

Test sistemimizde Schenker W503 modelini kullandık. Bu modelde Core i7-4930MX işlemci kullanılmakta ve 2x4 GB DDR3-1600 RAM, 128 GB mSATA SSD kullanılmakta. HD Graphics 4600 kullanımı için dahili GeForce GTX 765M kullanımını deaktifleştirdik.

The test system: Schenker W503 (Clevo P150SM)

Test konfigrasyonu:

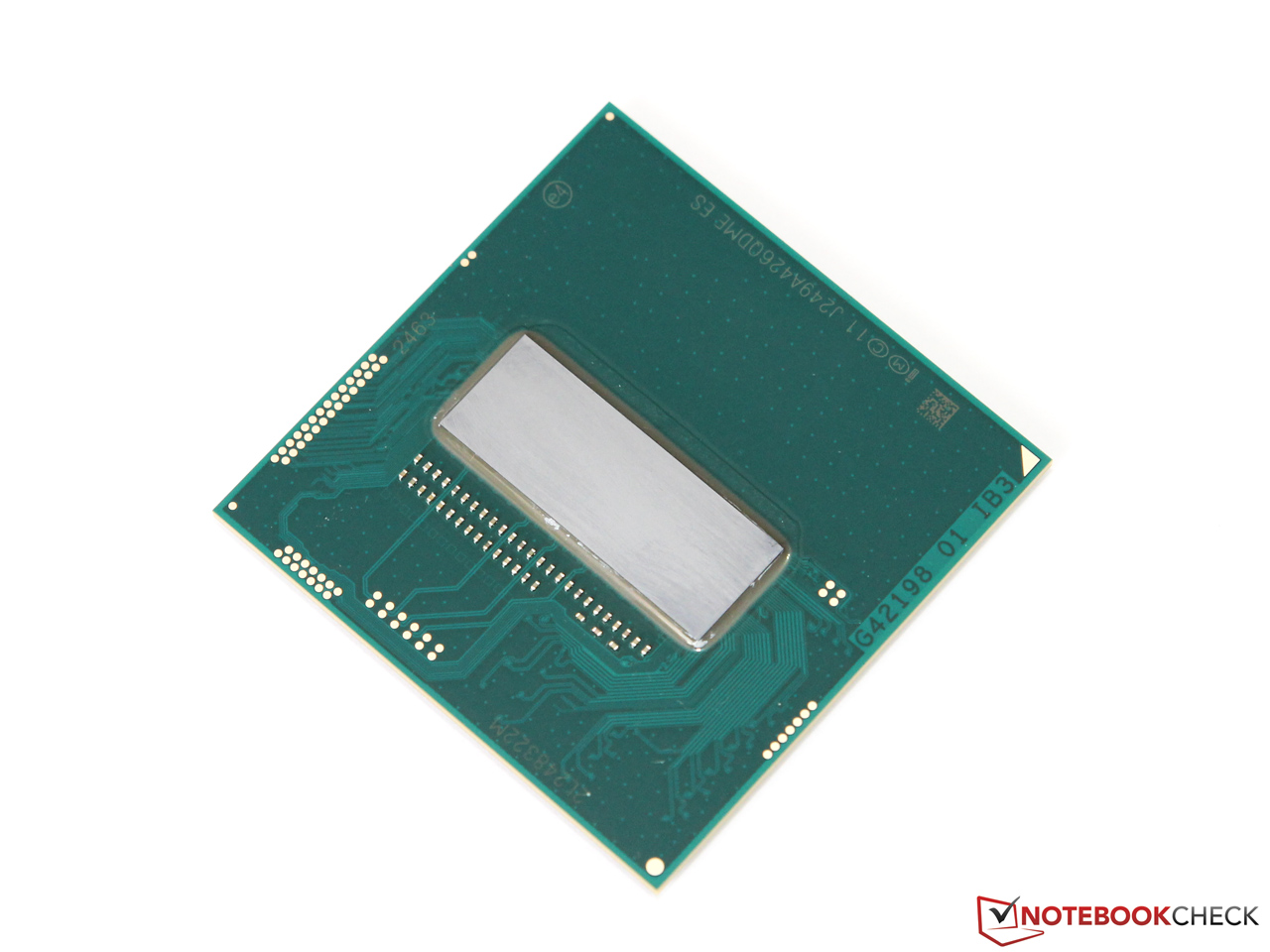

Intel Core i7 quad core CPUs "Haswell"
Intel HM87 chip set
HD Graphics 4600 (driver 9.18.10.3071)
2x 4 GB Micron DDR3-1600 RAM (CL11)
Samsung SSD PM841 (mSATA, 128 GB)
180 W power adapter
Windows 8 Enterprise 64 Bit

Malesef tüm testlerimizi diğer takip cihazlarda vakit darlığından ötürü kullanamadık. Bu yüzden mevcut datalarımız arasında bulunan sonuçları kullandık:

AMD Pumori Reference Design, A10-4600M, Radeon HD 7660G, 2x 4 GB DDR3-1600, Samsung SSD 830, Windows 7 64 Bit, Driver Catalyst 12.7 - 13.5
One M73-2N, Core i7-3820QM, HD Graphics 4000, 4x 4 GB DDR3-1600, Crucial M4 SSD, Windows 7 64 Bit, Driver 8.15.10.2639
Schenker XMG P502, Core i7-3610QM, HD Graphics 4000, 2x 4 GB DDR3-1600, Intel SSD 320, Windows 7 64 Bit, Driver 9.18.10.3071
Asus N56VM, Core i7-3720QM, HD Graphics 4000, 2x 4 GB DDR3-1600, Seagate Momentus 7200.5, Windows 7 64 Bit, Driver 8.15.10.2696 - 9.17.10.2932
Asus N56VM, Core i7-3720QM, GeForce GT 630M, 2x 4 GB DDR3-1600, Seagate Momentus 7200.5, Windows 7 64 Bit, Driver 296.35 - 320.14
HP Envy dv7-7202eg, Core i7-3630QM, GeForce GT 630M, 4 + 8 GB DDR3-1600, Hitachi Travelstar 5K750, Windows 7 64 Bit, Driver 306.97

Sentetik testler

3DMark - 1920x1080 Fire Strike Graphics (sort by value)
HD Graphics 4600 (1.35 GHz) HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	978 Points
HD Graphics 4600 (1.30 GHz) HD Graphics 4600, 4900MQ, Samsung SSD PM841 MZMTD128HAFV mSATA	953 Points
HD Graphics 4600 (1.15 GHz) HD Graphics 4600, 4700MQ, Samsung SSD PM841 MZMTD128HAFV mSATA	851 Points
HD Graphics 4000 HD Graphics 4000, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	705 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	847 Points

3DMark 11 - 1280x720 Performance GPU (sort by value)
HD Graphics 4600 (1.35 GHz) HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	1258 Points
HD Graphics 4600 (1.30 GHz) HD Graphics 4600, 4900MQ, Samsung SSD PM841 MZMTD128HAFV mSATA	1215 Points
HD Graphics 4600 (1.15 GHz) HD Graphics 4600, 4700MQ, Samsung SSD PM841 MZMTD128HAFV mSATA	1081 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	1056 Points
HD Graphics 4000 HD Graphics 4000, 3720QM, Seagate Momentus 7200.5 ST9750420AS	684 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	1149 Points

3DMark Vantage - 1280x1024 P GPU no PhysX (sort by value)
HD Graphics 4600 (1.35 GHz) HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	5041 Points
HD Graphics 4600 (1.30 GHz) HD Graphics 4600, 4900MQ, Samsung SSD PM841 MZMTD128HAFV mSATA	4954 Points
HD Graphics 4600 (1.15 GHz) HD Graphics 4600, 4700MQ, Samsung SSD PM841 MZMTD128HAFV mSATA	4387 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	4176 Points
HD Graphics 4000 HD Graphics 4000, 3720QM, Seagate Momentus 7200.5 ST9750420AS	3446 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	4268 Points

3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x (sort by value)
HD Graphics 4600 (1.35 GHz) HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	8813 Points
HD Graphics 4600 (1.30 GHz) HD Graphics 4600, 4900MQ, Samsung SSD PM841 MZMTD128HAFV mSATA	8659 Points
HD Graphics 4600 (1.15 GHz) HD Graphics 4600, 4700MQ, Samsung SSD PM841 MZMTD128HAFV mSATA	7824 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	7316 Points
HD Graphics 4000 HD Graphics 4000, 3820QM, Crucial RealSSD M4 CT128M4SSD2	7159 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	9193 Points

Eski 3DMark 06'dan farklı olarak HD Graphics 4600'ün en hızlı versiyonu tüm sentetik testleri kazanıyor. Saat hızı biraz düşük modelleri ise GeForce GT 630M ve Radeon HD 7660G'nin biraz gerisinde kalıyor. Maksimum performans farkı ise genelde %20 dolaylarında kalıyor.

Ivy Bridge jenerasyonunun HD Graphics 4000 çözümü ise tüm testlerde en yavaş kalan model. 3DMark11 de yeni HD 4600 %80 gibi bir performans farkı atmakta.

Oyun testlerı

Ancak 3DMark gibi sentetik testler gerçek bir performans değerlendirmesi için uygun değil. Malesef özel "sürücü" optimizasyonları burada genellikle kullanılmakta. Bu yüzden son oyunların bir kısmını seçip, kullandık.

Daha iyi bir inceleme için sadece iki detay ayarını test ettik.

Battlefield 3
1024x768 low AA:- AF:2x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	32.4 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	32 fps
HD Graphics 4000 HD Graphics 4000, 3820QM, Crucial RealSSD M4 CT128M4SSD2	26.9 fps
GeForce GT 630M GeForce GT 630M, 3630QM, Hitachi Travelstar 5K750 HTS547575A9E384	42.4 fps
1366x768 medium AA:- AF:4x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	22.7 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	22 fps
HD Graphics 4000 HD Graphics 4000, 3820QM, Crucial RealSSD M4 CT128M4SSD2	20.4 fps
GeForce GT 630M GeForce GT 630M, 3630QM, Hitachi Travelstar 5K750 HTS547575A9E384	28.3 fps

The Elder Scrolls V: Skyrim
1280x720 Low Preset (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	51.1 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	38 fps
HD Graphics 4000 HD Graphics 4000, 3820QM, Crucial RealSSD M4 CT128M4SSD2	39.5 fps
GeForce GT 630M GeForce GT 630M, 3630QM, Seagate Momentus SpinPoint M8 ST1000LM024	46.82 fps
1366x768 Medium Preset AA:4x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	24.2 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	29 fps
HD Graphics 4000 HD Graphics 4000, 3820QM, Crucial RealSSD M4 CT128M4SSD2	19.5 fps
GeForce GT 630M GeForce GT 630M, 3630QM, Seagate Momentus SpinPoint M8 ST1000LM024	33.8 fps

Anno 2070
1366x768 Medium Preset AA:on (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	42.1 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	34 fps
HD Graphics 4000 HD Graphics 4000, 3820QM, Crucial RealSSD M4 CT128M4SSD2	27.9 fps
GeForce GT 630M GeForce GT 630M, 3630QM, Hitachi Travelstar 5K750 HTS547575A9E384	35.9 fps
1366x768 High Preset AA:on AF:2x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	25.4 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	22 fps
HD Graphics 4000 HD Graphics 4000, 3820QM, Crucial RealSSD M4 CT128M4SSD2	17.8 fps
GeForce GT 630M GeForce GT 630M, 3630QM, Hitachi Travelstar 5K750 HTS547575A9E384	22.9 fps

Sleeping Dogs
1024x768 Low Preset AA:Normal (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	45.5 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	47.4 (28.6^min - 86^max) fps
HD Graphics 4000 HD Graphics 4000, 3360M	31.6 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	64.3 (34.5^min - 93.4^max) fps
1366x768 Medium Preset AA:Normal (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	32.8 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	35.9 (22.6^min - 61.8^max) fps
HD Graphics 4000 HD Graphics 4000, 3360M	22.3 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	47.7 (27.4^min - 67.1^max) fps

Counter-Strike: GO
1366x768 Medium (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	99.2 fps
HD Graphics 4000 HD Graphics 4000, 3720QM, Seagate Momentus 7200.5 ST9750420AS	64 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	118 fps
1366x768 High AA:2x MS AF:4x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	55.5 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	58 fps
HD Graphics 4000 HD Graphics 4000, 3720QM, Seagate Momentus 7200.5 ST9750420AS	39 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	83 fps

Dishonored
1366x768 Medium / Off, FOV: 75 (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	43.8 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	40.2 fps
HD Graphics 4000 HD Graphics 4000, 3720QM, Seagate Momentus 7200.5 ST9750420AS	36 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	65 fps
1366x768 High / On, FOV: 75 AA:FX (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	38.5 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	36.4 fps
HD Graphics 4000 HD Graphics 4000, 3720QM, Seagate Momentus 7200.5 ST9750420AS	32 (30^min - 54^max) fps
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	58 fps

Call of Duty: Black Ops 2
1366x768 Medium / Off (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	40.9 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	42 fps
HD Graphics 4000 HD Graphics 4000, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	25.2 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	49.4 fps
1366x768 High / On, FXAA AA:2xMS (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	17.5 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	19.6 fps
HD Graphics 4000 HD Graphics 4000, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	8.7 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	28.3 fps

Dead Space 3
1366x768 Medium Preset (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	41.9 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	41.6 fps
HD Graphics 4000 HD Graphics 4000, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	34.3 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	59 fps
1366x768 High Preset (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	31.4 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	32.9 fps
HD Graphics 4000 HD Graphics 4000, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	27.2 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	42.8 fps

Crysis 3
1024x768 Low Preset (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	30.4 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	28 fps
HD Graphics 4000 HD Graphics 4000, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	22 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	35.2 fps
1366x768 Medium Preset AF:16x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	19.3 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	15 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	19.3 fps

BioShock Infinite
1280x720 Very Low Preset (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	57 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	56 fps
HD Graphics 4000 HD Graphics 4000, 3610QM	39.3 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	65 fps
1366x768 Medium Preset (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	25.7 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	28.1 fps
HD Graphics 4000 HD Graphics 4000, 3610QM	18.2 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	36 fps

Metro: Last Light
1024x768 Low (DX10) AF:4x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	34 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	24.9 fps
HD Graphics 4000 HD Graphics 4000, 3610QM	26.4 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	25.3 fps
1366x768 Medium (DX10) AF:4x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	23.7 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	20.2 fps
HD Graphics 4000 HD Graphics 4000, 3610QM	17.6 fps
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	18.2 fps

	düşük	orta	yüksek	ultra
Battlefield 3 (2011)	32.4	22.7	18.6	6.7
The Elder Scrolls V: Skyrim (2011)	51.1	24.2	13.8	7.3
Anno 2070 (2011)	92.3	42.1	25.4	11.4
Diablo III (2012)	82.2	50.3	42.6	26.5
Sleeping Dogs (2012)	45.5	32.8	12.6	6.5
Counter-Strike: GO (2012)	186.9	99.2	55.5	28.3
Dishonored (2012)	57.9	43.8	38.5	19.7
Call of Duty: Black Ops 2 (2012)	62	40.9	17.5	10.6
Dead Space 3 (2013)	101.2	41.9	31.4	17.4
Crysis 3 (2013)	30.4	19.3	13.5	4.7
BioShock Infinite (2013)	57	25.7	21.8	7
Metro: Last Light (2013)	34	23.7	13.2	6.6

Öncelikle Intel'in sürücü geliştiricileri takdiri hak ediyor. Tüm testlerimizi hatasız ve sorunsuz tamamlayabildik. Geçmişte böyle bir imkanımız neredeyse hiçbir zaman olmamıştı.

HD Graphics 4600'ün performansını gerçekten çok beğendik. Tüm testler göz önüne alındığında HD Graphics 4000'e kıyasla %40 gibi bir performans artışı söz konsu. Adil olmak gerekirse HD 4000 modellerini düşük saat hızları ve farklı sürücü versiyonları da sonuçlarda biraz etkili oldu.

Haswell, AMD dahili grafik kartları ile girişilen rekabette bir adım ileriyi işaret ediyor gibi görünmekle beraber henüz net bir zafer kazanmış değil. Farklılıklar oldukça düşükve Radeon HD 7660G, HD 4600'den halen biraz daha hızlı. Ancak düşük detay ve çözünürlüklerde HD 4600 daha iyi performans veriyor. Bunun sebebi de A10-4600M'in bazen grafik performansını düşürmesi.

HD 4600 çoğu harici kartla yarışamamakta. Eski GeForce GT 630M bile daha iyi bir performans sunmakta. Sadece GT3 çözümü iki kat shader ünitesine ve ek eDRAM belleğine sahip olduğundan daha iyi performans vermekte.

GPU Performansı

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	190 Samples/s
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	77 Samples/s
HD Graphics 4000 (Desktop) HD Graphics 4000, 3770K	163 Samples/s
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	61 Samples/s
Sala GPUs-only (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	290 Samples/s
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	179 Samples/s
HD Graphics 4000 (Desktop) HD Graphics 4000, 3770K	251 Samples/s
GeForce GT 630M GeForce GT 630M, 3720QM, Samsung SSD 840 250GB MZ7TD256HAFV	122 Samples/s

ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	303 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	208 Points
HD Graphics 4000 (Desktop) HD Graphics 4000, 3770K	222 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	212 Points
1024x600 Normal, Mandel Scalar (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	175 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	146 Points
HD Graphics 4000 (Desktop) HD Graphics 4000, 3770K	101 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	110 Points
1024x600 Normal, Mandel Vector (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	167 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	208 Points
HD Graphics 4000 (Desktop) HD Graphics 4000, 3770K	125 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	139 Points
1024x600 Normal, Fluid 2DTexArr (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	84 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	80 Points
HD Graphics 4000 (Desktop) HD Graphics 4000, 3770K	44 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	84 Points
1024x600 Normal, Fluid 3DTex (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	86 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	129 Points
HD Graphics 4000 (Desktop) HD Graphics 4000, 3770K	65 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	113 Points
1024x600 Normal, Score (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	816 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	771 Points
HD Graphics 4000 (Desktop) HD Graphics 4000, 3770K	556 Points
GeForce GT 630M GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS	658 Points

Haswell, Ivy Bridge ekran kartlarının işlem performansını oldukça geliştirmiş. OpenCL tabanlı Luxmark da sadece Radeon HD 7660G'yi geçmekle kalmayan kart harici GeForce GT630M'den de daha iyi bir performans sunmakta. Ancak sonuçlar ComputeMark testinde biraz ufak farklar çıkarıyor. Burada HD4600 halen lider olmasına karşın, performans kazancı çok farklı değil.

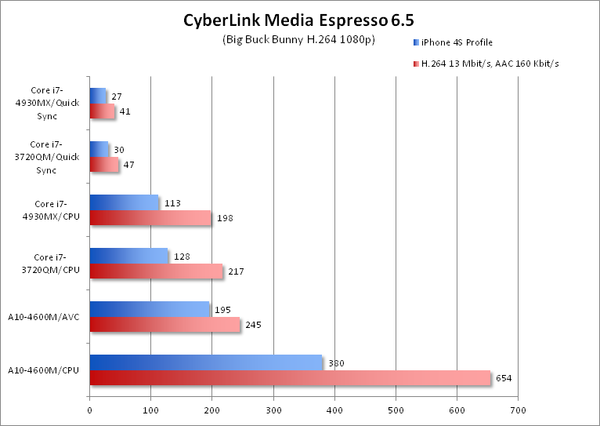

Video işleme

CyberLinks MediaEspresso 6.5 ile video işleme performansını da incelediğimiz grafik kartı sonuç olarak eski jenerasyonlara oranla sadece birkaç puanlık performans artışı sunmakta.

Bu testten çıkarabildiğimiz en önemli sonuç ise AMD'nin AVC çeviricisinin iyi bir performans sunmasına karşın halen Intel'in çözümünden daha yavaş olduğu.

Sonuç

Eğer HD Graphics 4600'ü sadece orta sınıf bir çözüm olarak ele alırsanız, performans kesinlikle harika. Sürücü ve saat farklılıkları ele alınırsa HD Graphics 4000'e kıyasla %30 daha hızlı. Bu en hızlı AMD dahili grafik kartı olan A10-4600M (Radeon HD7660G)den bile daha iyi. Yeni tanıtılan ancak henüz satılmayan A10-5750M (Radeon HD 8650) ise belki biraz daha iyi olabilir.

Intel bu sene dahili grafik kartlarında performans tacını çok zor kaybedecek gibi duruyor. Iris Pro Graphics 5200 GeForce GT 640M gibi harici grafik kartlarını bile zorlayabilir. Iris Graphics 5100 ve HD Graphics 5000 ince notebooklar için oldukça güçlü çözümler. Ancak her iki modelde performanslarının bedeli olan fiyatlarla gelecektir.

HD 4600'e geri dönecek olursak, performansın nadiren oyun oynayanlar için ideal olduğunu ancak daha fazlasını bekleyenleri tatmin etmeyeceğini söyleyelim. Eski Geforce GT 630M bile halen daha hızlı ve daha iyi performans sunabilmekte.

Ek

Yorum katılmadan ekledğimiz diğer testler:

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	2.4 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	6.26 fps
1920x1080 Tcvis (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	3.62 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	3.02 fps
1920x1080 SolidWorks (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	14.01 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	12.06 fps
1920x1080 Pro/ENGINEER (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	2.53 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	1.14 fps
1920x1080 Maya (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	18.57 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	6.86 fps
1920x1080 Lightwave (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	19.49 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	15.03 fps
1920x1080 Ensight (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	2.42 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	15.24 fps
1920x1080 Catia (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	6.55 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	3.59 fps

Cinebench R11.5 - OpenGL 64Bit (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	29.85 fps
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	29.91 fps

3DMark 03 - 1024x768 Standard AA:0x AF:0x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	22200 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	21606 Points

3DMark 05 - 1024x768 Standard AA:0x AF:0x (sort by value)
HD Graphics 4600 HD Graphics 4600, 4930MX, Samsung SSD PM841 MZMTD128HAFV mSATA	15760 Points
Radeon HD 7660G Radeon HD 7660G, A10-4600M, Samsung SSD 830 Series MZ-7PC0128D/EU	11235 Points

Please share our article, every link counts!

> Notebooklar Hakkında Aradığınız Herşey > İnceleme > İnceleme: Intel HD Graphics 4600

Till Schönborn (Update: 2013-06-10)
