MagyarKısa inceleme: Acer Aspire S7 (2015) Ultrabook

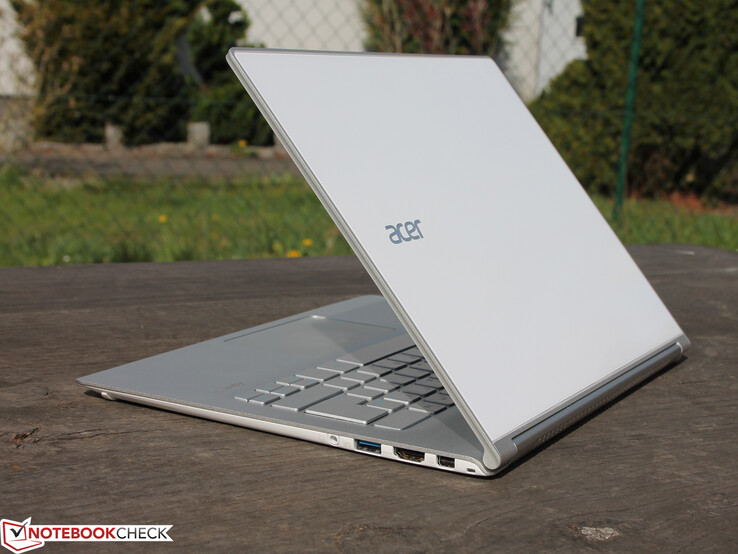

Acer Aspire S7-393-75508G25EWS (Aspire S7 Seri)
İşlemci

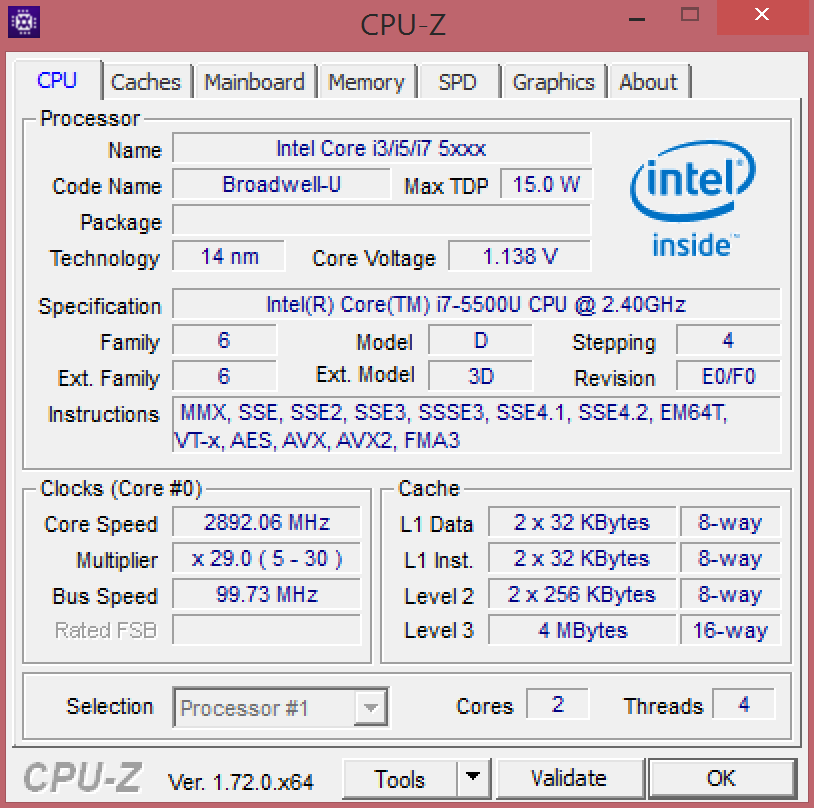

Intel Core i7-5500U 2 x 2.4 - 3 GHz, Broadwell
Grafik kartı
Intel HD Graphics 5500, DDR3

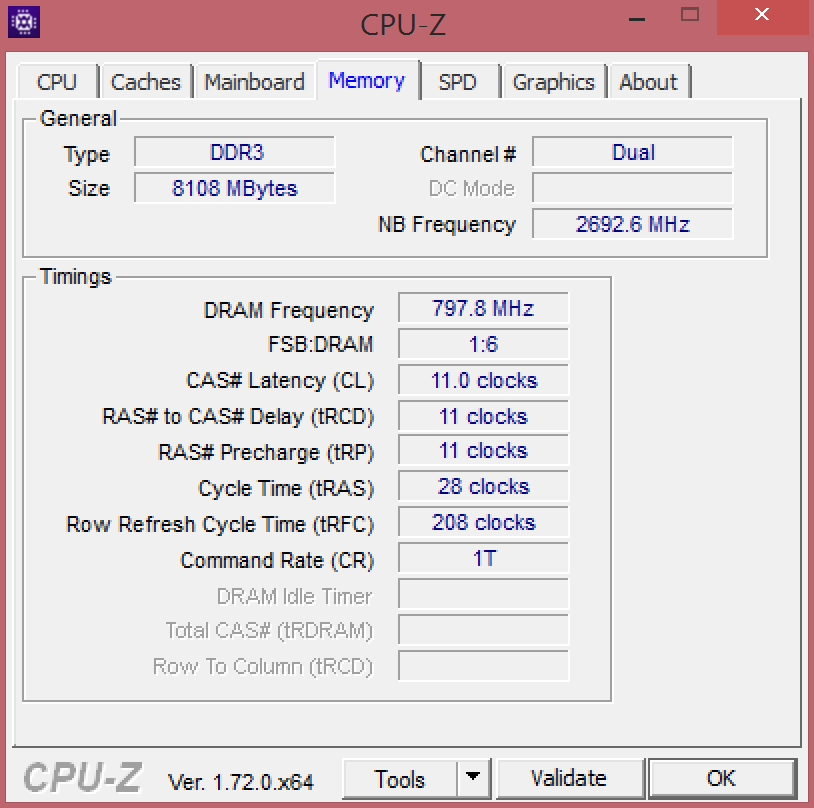

Bellek
8 GB
, dual-channel
Görüntü
13.30 inç 16:9, 2560 x 1440 pixel, 10-finger-multitouch, Sharp SHP13FF LQ133T1JW02, IPS, IGZO-TFT, parlak: evet
Anakart
Intel Broadwell-U PCH-LP (Premium)
Harddisk
2x Kingston SMSR150S3256G (RAID 0), 256 GB
, Intel RAID array 2x128 GB on single chip
Ağırlık

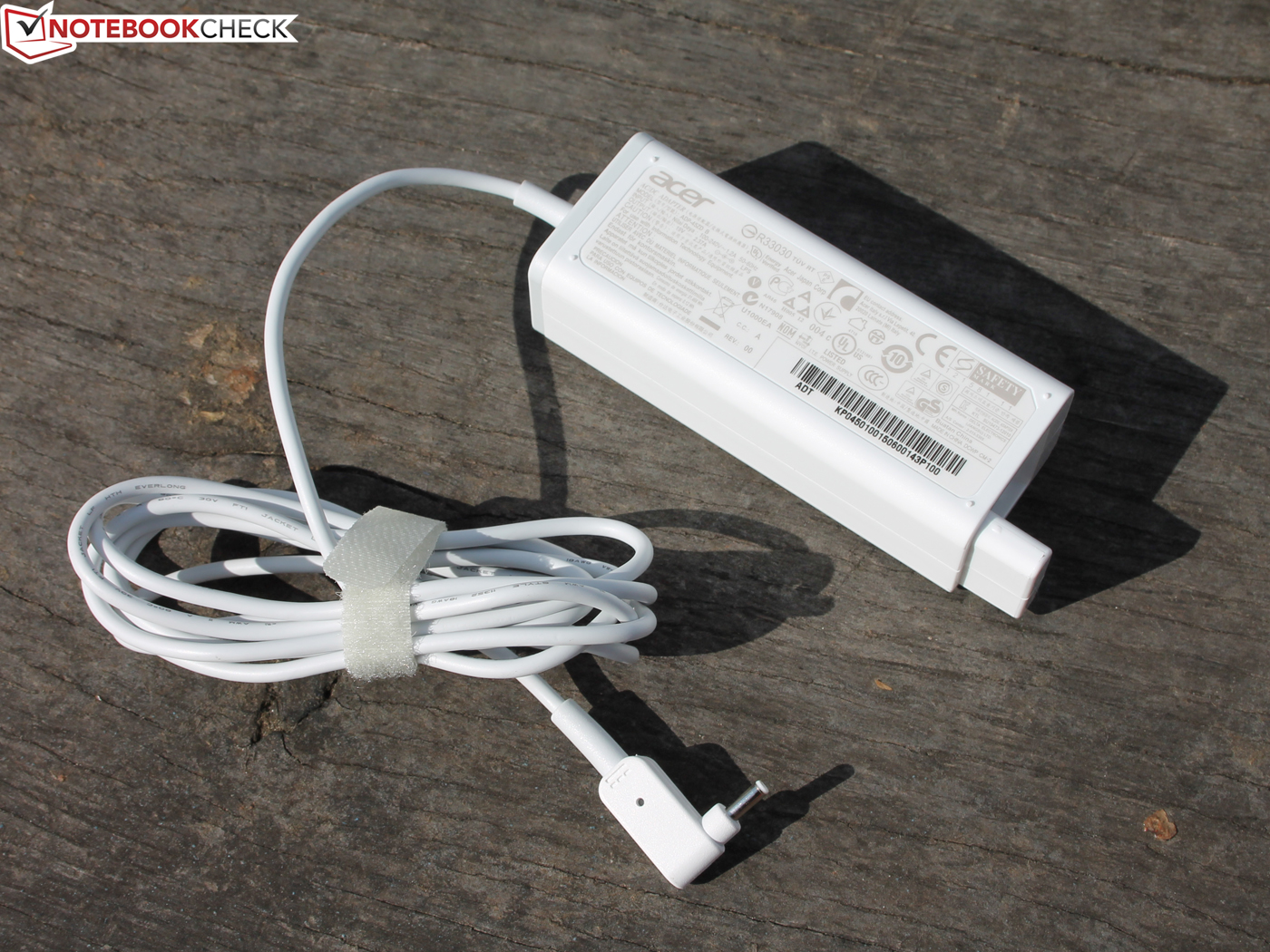

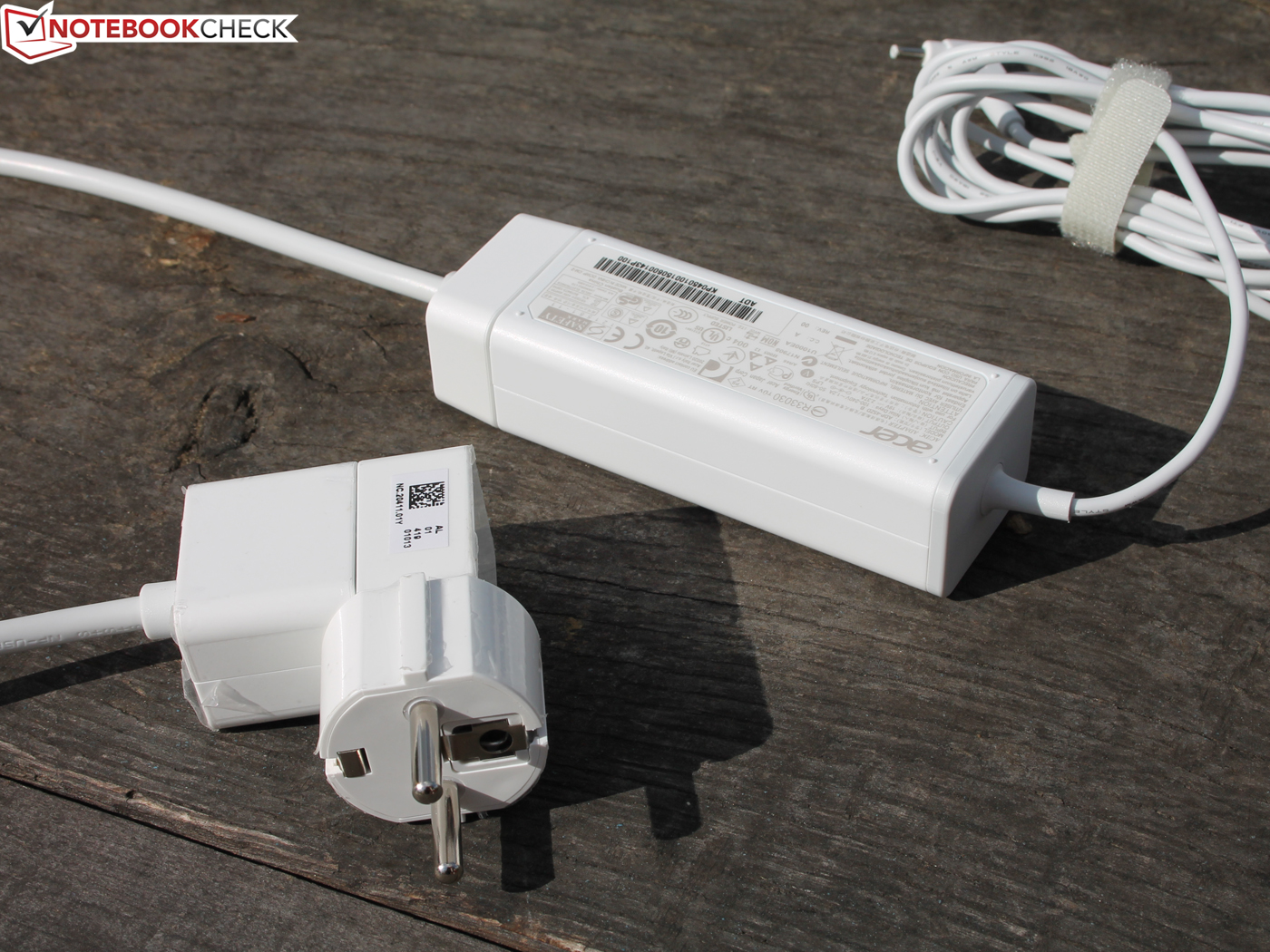

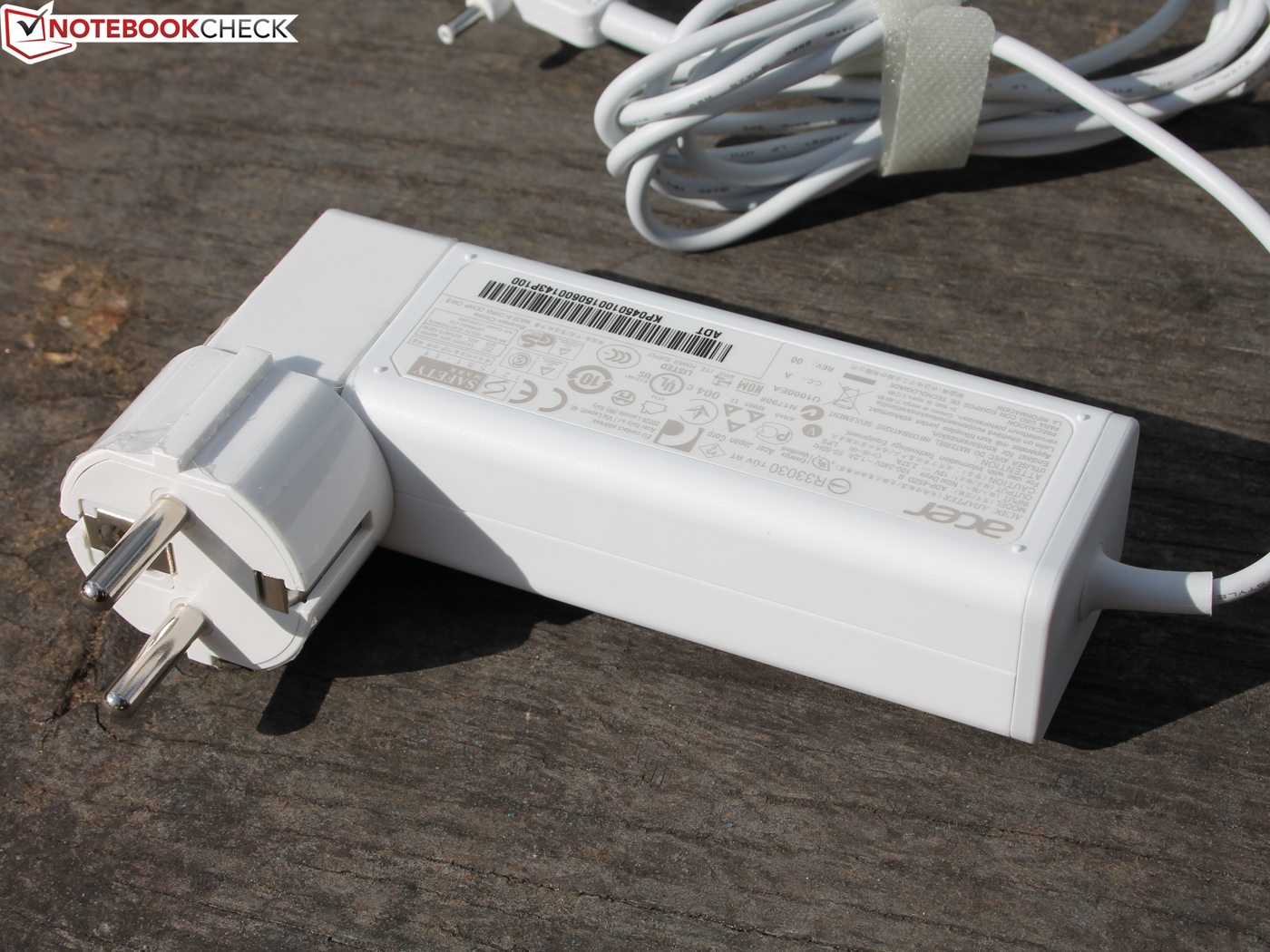

1.327 kg, Güç kaynağı: 304 g

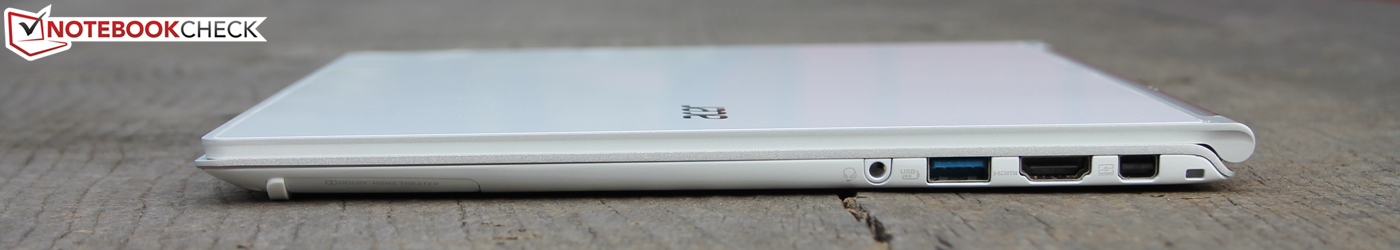

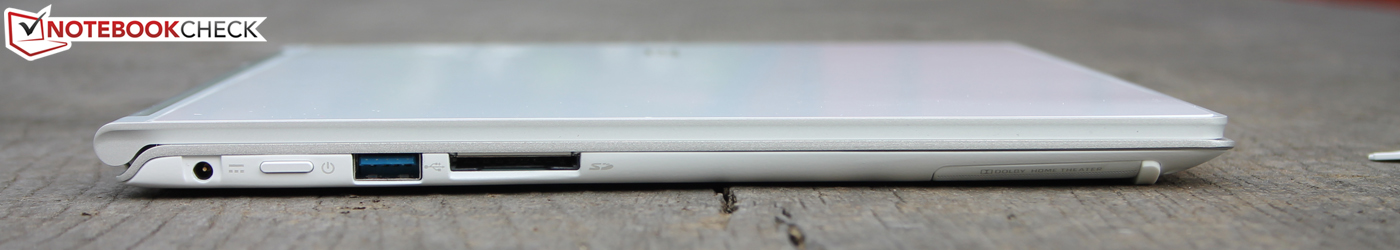

Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
Sharp SHP13FF LQ133T1JW02 tested with X-Rite i1Pro 2
Maksimum: 360 cd/m² (Nits) Ortalama: 341.4 cd/m²Aydınlatma: 90 %
Batarya modunda parlaklık: 238 cd/m²
Kontrast: 1565:1 (Siyah: 0.23 cd/m²)
ΔE Color 3.35 | 0.5-29.43 Ø4.93
ΔE Greyscale 3.62 | 0.5-98 Ø5.2
65% AdobeRGB 1998 (Argyll 1.6.3 3D)
71.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.3% sRGB (Argyll 2.2.0 3D)
70.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.51
| Acer Aspire S7-393-75508G25EWS IPS 2560x1440 | Dell XPS 13-9343 IPS 3200x1800 | Asus ZenBook UX305FA-FB003H IPS 3200x1800 | Apple MacBook Air 13 MD761D/B 2014-06 TN 1440x900 | Lenovo ThinkPad X250-20CLS06D00 IPS 1920x1080 | Asus Zenbook UX303LN-R4141H IPS 1920x1080 | Lenovo ThinkPad X1 Carbon 2015 IPS 2560x1440 | Apple MacBook Pro Retina 13 inch 2015-03 IPS 2560x1600 | |
|---|---|---|---|---|---|---|---|---|
| Display | 1% | -16% | -35% | 1% | -23% | -4% | ||
| Display P3 Coverage | 70.1 | 72 3% | 58.2 -17% | 44.14 -37% | 72.7 4% | 52.4 -25% | 65.9 -6% | |
| sRGB Coverage | 98.3 | 96 -2% | 83.3 -15% | 65.8 -33% | 97.5 -1% | 77.4 -21% | 97 -1% | |
| AdobeRGB 1998 Coverage | 71.1 | 71.6 1% | 60.1 -15% | 45.71 -36% | 71.4 0% | 54 -24% | 67.4 -5% | |
| Screen | -8% | -33% | -7% | -22% | -37% | -27% | -2% | |
| Brightness middle | 360 | 367.3 2% | 310 -14% | 280 -22% | 397 10% | 344 -4% | 252.3 -30% | 361 0% |
| Brightness | 341 | 372 9% | 309 -9% | 263 -23% | 357 5% | 339 -1% | 246 -28% | 342 0% |
| Brightness Distribution | 90 | 77 -14% | 90 0% | 84 -7% | 81 -10% | 88 -2% | 95 6% | 81 -10% |
| Black Level * | 0.23 | 0.178 23% | 0.75 -226% | 0.32 -39% | 0.44 -91% | 0.55 -139% | 0.426 -85% | 0.361 -57% |
| Contrast | 1565 | 2063 32% | 413 -74% | 875 -44% | 902 -42% | 625 -60% | 592 -62% | 1000 -36% |
| Colorchecker dE 2000 * | 3.35 | 5.92 -77% | 2.49 26% | 1.91 43% | 4.2 -25% | 5.45 -63% | 3.8 -13% | 1.82 46% |
| Greyscale dE 2000 * | 3.62 | 4.79 -32% | 1.89 48% | 2 45% | 3.1 14% | 4.53 -25% | 2.92 19% | 1.8 50% |
| Gamma | 2.51 88% | 2.42 91% | 2.36 93% | 2.26 97% | 2.6 85% | 2.27 97% | 2.08 106% | 2.49 88% |
| CCT | 6805 96% | 7013 93% | 6573 99% | 6724 97% | 6246 104% | 7458 87% | 6070 107% | 6417 101% |
| Color Space (Percent of AdobeRGB 1998) | 65 | 63 -3% | 54 -17% | 42 -35% | 64 -2% | 50.41 -22% | 61.9 -5% | |
| Color Space (Percent of sRGB) | 96.4 | 83.1 | 65.5 | 97.4 | 96.9 | |||
| Colorchecker dE 2000 max. * | 3.26 | |||||||
| Total Average (Program / Settings) | -4% /
-5% | -25% /
-28% | -7% /
-7% | -29% /
-25% | -18% /
-27% | -25% /
-26% | -3% /
-2% |
* ... smaller is better
| PCMark 7 Score | 5107 puan | |
| PCMark 8 Home Score Accelerated v2 | 2911 puan | |
| PCMark 8 Work Score Accelerated v2 | 3684 puan | |
Yardım | ||
| Acer Aspire S7-393-75508G25EWS HD Graphics 5500, 5500U, 2x Kingston SMSR150S3256G (RAID 0) | Dell XPS 13-9343 HD Graphics 5500, 5200U, Lite-On IT L8T-256L9G | Asus ZenBook UX305FA-FB003H HD Graphics 5300, 5Y10, SanDisk SD7SN3Q256G1002 | Apple MacBook Air 13 MD761D/B 2014-06 HD Graphics 5000, 4260U, Apple SSD SD0256F | Lenovo ThinkPad X250-20CLS06D00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L | Asus Zenbook UX303LN-R4141H GeForce 840M, 4510U, SanDisk SD6SB1M256G1002 | Lenovo ThinkPad X1 Carbon 2015 HD Graphics 5500, 5500U, Samsung SSD SM951 512 GB MZHPV512HDGL | Apple MacBook Pro Retina 13 inch 2015-03 Iris Graphics 6100, 5257U, Apple SSD SM0128G | |
|---|---|---|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | -15% | -22% | -44% | -17% | 120% | 25% | ||
| Read Seq | 862 | 489.6 -43% | 465.8 -46% | 419.8 -51% | 409 -53% | 1332 55% | 1403 63% | |
| Write Seq | 371.1 | 424.2 14% | 438.7 18% | 228.6 -38% | 436.6 18% | 1480 299% | 657 77% | |
| Read 4k | 27.1 | 34.76 28% | 31 14% | 27.86 3% | 34.64 28% | 43.71 61% | 20.95 -23% | |
| Write 4k | 196.1 | 79.3 -60% | 70.3 -64% | 15.3 -92% | 100.7 -49% | 99.5 -49% | 32.43 -83% | |
| Read 512 | 578 | 371.9 -36% | 299.6 -48% | 355.2 -39% | 301.1 -48% | 988 71% | 810 40% | |
| Write 512 | 363.5 | 395.5 9% | 350.6 -4% | 203.3 -44% | 373 3% | 1393 283% | 648 78% | |
| AS SSD | -14% | -21% | -18% | -49% | -17% | 65% | 27% | |
| Score Total | 1067 | 1018 -5% | 928 -13% | 1086 2% | 523 -51% | 903 -15% | 1653 55% | 1844 73% |
| Score Write | 419 | 369 -12% | 301 -28% | 272 -35% | 122 -71% | 289 -31% | 614 47% | 313 -25% |
| Score Read | 440 | 425 -3% | 411 -7% | 542 23% | 266 -40% | 399 -9% | 683 55% | 1035 135% |
| 4K Read | 28.69 | 30.89 8% | 28.11 -2% | 14.34 -50% | 23.41 -18% | 29.76 4% | 39.9 39% | 20.6 -28% |
| 4K Write | 132.3 | 58.8 -56% | 59.4 -55% | 19.25 -85% | 14.05 -89% | 83.2 -37% | 91.3 -31% | 30.2 -77% |
| Seq Write | 357.8 | 416.8 16% | 371.6 4% | 516 44% | 258.3 -28% | 427.7 20% | 1209 238% | 616 72% |
| Seq Read | 888 | 484.7 -45% | 454.5 -49% | 642 -28% | 457.9 -48% | 437 -51% | 1339 51% | 1233 39% |
| Total Average (Program / Settings) | -15% /
-14% | -22% /
-22% | -18% /
-18% | -47% /
-47% | -17% /
-17% | 93% /
90% | 26% /
26% |
2x Kingston SMSR150S3256G (RAID 0)
Sequential Read:
862 MB/s
Sequential Write:
371.1 MB/s
512K Read:
578 MB/s
512K Write:
363.5 MB/s
4K Read:
27.1 MB/s
4K Write:
196.1 MB/s
4K QD32 Read:
282.1 MB/s
4K QD32 Write:
261.9 MB/s
| 3DMark - 1280x720 Cloud Gate Standard Score (sort by value) | |
| Acer Aspire S7-393-75508G25EWS | |
| Dell XPS 13-9343 | |
| Asus ZenBook UX305FA-FB003H | |
| Apple MacBook Air 13 MD761D/B 2014-06 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Asus Zenbook UX303LN-R4141H | |
| Lenovo ThinkPad X1 Carbon 2015 | |
| Apple MacBook Pro Retina 13 inch 2015-03 | |
| 3DMark 11 Performance | 1120 puan | |
| 3DMark Ice Storm Standard Score | 49552 puan | |
| 3DMark Cloud Gate Standard Score | 5267 puan | |
| 3DMark Fire Strike Score | 769 puan | |
Yardım | ||
| Fifa 15 - 1280x720 Low Preset (sort by value) | |
| Acer Aspire S7-393-75508G25EWS | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Asus Zenbook UX303LN-R4141H | |
| Apple MacBook Pro Retina 13 inch 2015-03 | |
| Middle-earth: Shadow of Mordor - 1280x720 Lowest Preset (sort by value) | |
| Acer Aspire S7-393-75508G25EWS | |
| Asus ZenBook UX305FA-FB003H | |
| Asus Zenbook UX303LN-R4141H | |
| Apple MacBook Pro Retina 13 inch 2015-03 | |
| Civilization: Beyond Earth - 1024x768 Minimum Preset (sort by value) | |
| Acer Aspire S7-393-75508G25EWS | |
| Apple MacBook Pro Retina 13 inch 2015-03 | |
| düşük | orta | yüksek | ultra | |
|---|---|---|---|---|
| Fifa 15 (2014) | 40 | 28 | 17 | |
| Middle-earth: Shadow of Mordor (2014) | 22 | 15 | 8 | |
| Civilization: Beyond Earth (2014) | 42 | 19 | 11 |
| Acer Aspire S7-393-75508G25EWS i7 5500U | Dell XPS 13-9343 i5 5200U | Apple MacBook Air 13 MD761D/B 2014-06 i5 4260U | Lenovo ThinkPad X250-20CLS06D00 i7 5600U | Asus Zenbook UX303LN-R4141H i7 4510U | Apple MacBook Pro Retina 13 inch 2015-03 i5 5257U | Lenovo ThinkPad X1 Carbon 2015 i5 5300U | |
|---|---|---|---|---|---|---|---|
| Noise | -6% | -2% | 4% | 1% | -6% | 6% | |
| Idle Minimum * | 29.6 | 30.2 -2% | 28 5% | 29 2% | 29.5 -0% | 29 2% | 28.5 4% |
| Idle Average * | 29.6 | 30.3 -2% | 28 5% | 29 2% | 29.5 -0% | 29 2% | 28.6 3% |
| Idle Maximum * | 29.6 | 30.4 -3% | 28 5% | 30.3 -2% | 29.5 -0% | 29 2% | 28.8 3% |
| Load Average * | 37.5 | 34.4 8% | 40.5 -8% | 33.4 11% | 34.3 9% | 42.5 -13% | 30.7 18% |
| Load Maximum * | 37.2 | 48 -29% | 43.7 -17% | 33.7 9% | 38.2 -3% | 45.6 -23% | 36.9 1% |
* ... smaller is better
Ses yüksekliği
| Boşta |
| 29.6 / 29.6 / 29.6 dB |
| Çalışırken |
| 37.5 / 37.2 dB |
 | ||
30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm uzaklık) | ||
| Acer Aspire S7-393-75508G25EWS i7 5500U | Dell XPS 13-9343 i5 5200U | Asus ZenBook UX305FA-FB003H Core M 5Y10 | Apple MacBook Air 13 MD761D/B 2014-06 i5 4260U | Lenovo ThinkPad X250-20CLS06D00 i7 5600U | Asus Zenbook UX303LN-R4141H i7 4510U | Apple MacBook Pro Retina 13 inch 2015-03 i5 5257U | Lenovo ThinkPad X1 Carbon 2015 i5 5300U | |
|---|---|---|---|---|---|---|---|---|
| Heat | -9% | -2% | -1% | -10% | -17% | -7% | 3% | |
| Maximum Upper Side * | 39.8 | 40.6 -2% | 43.1 -8% | 43 -8% | 43.6 -10% | 55.7 -40% | 45.1 -13% | 36.2 9% |
| Maximum Bottom * | 38.4 | 41.2 -7% | 41.2 -7% | 40 -4% | 42.3 -10% | 51 -33% | 39.6 -3% | 38 1% |
| Idle Upper Side * | 26.7 | 31.2 -17% | 26.3 1% | 26 3% | 29.1 -9% | 26.6 -0% | 28.5 -7% | 26.4 1% |
| Idle Bottom * | 27.6 | 30.6 -11% | 26.2 5% | 26 6% | 30 -9% | 26.2 5% | 28.3 -3% | 27.4 1% |
* ... smaller is better
(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 38.4 °C / 101 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.8 °C / 82 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+0.5 °C / 0.9 F).
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 38.4 °C / 101 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.8 °C / 82 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+0.5 °C / 0.9 F).
| Acer Aspire S7-393-75508G25EWS i7 5500U | Dell XPS 13 9343 Core i7 i7 5500U | Apple MacBook Air 13 MD761D/B 2014-06 Core M 5Y10 | Lenovo ThinkPad X250-20CLS06D00 i5 4260U | Asus Zenbook UX303LN-R4141H i7 5600U | Apple MacBook Pro Retina 13 inch 2015-03 i7 4510U | Lenovo ThinkPad X1 Carbon 2015 i5 5257U | Asus ZenBook UX305FA-FB003H i5 5300U | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -46% | 7% | -14% | -34% | -45% | -3% | -8% | |
| Idle Minimum * | 4 | 6.6 -65% | 3.4 15% | 2.7 32% | 3.8 5% | 2.8 30% | 3.3 17% | 3.1 22% |
| Idle Average * | 5 | 9.3 -86% | 4 20% | 7 -40% | 7.2 -44% | 7.8 -56% | 6 -20% | 7.5 -50% |
| Idle Maximum * | 6.5 | 11 -69% | 5.8 11% | 8 -23% | 8.4 -29% | 8.1 -25% | 6.7 -3% | 8.6 -32% |
| Load Average * | 31.2 | 32.2 -3% | 32.4 -4% | 28.6 8% | 41.6 -33% | 52.4 -68% | 25 20% | 25.2 19% |
| Load Maximum * | 30.6 | 33.2 -8% | 32.2 -5% | 44.3 -45% | 51.9 -70% | 62.8 -105% | 39 -27% | 30.6 -0% |
* ... smaller is better
Anlık tüketim
| Kapalı / Bekleme modu | 0.1 / 0.2 Watt |
| Boşta | 4 / 5 / 6.5 Watt |
| Çalışırken |
31.2 / 30.6 Watt |

| |
Key:
min: ,
med: ,
max: Voltcraft VC 960 | |
| Acer Aspire S7-393-75508G25EWS i7 5500U | Dell XPS 13-9343 Non-Touch i5 5200U | Asus ZenBook UX305FA-FB003H Core M 5Y10 | Apple MacBook Air 13 MD761D/B 2014-06 i5 4260U | Lenovo ThinkPad X250-20CLS06D00 i7 5600U | Asus Zenbook UX303LN-R4141H i7 4510U | Apple MacBook Pro Retina 13 inch 2015-03 i5 5257U | Lenovo ThinkPad X1 Carbon 2015 i5 5300U | |
|---|---|---|---|---|---|---|---|---|
| Battery Runtime | 40% | 35% | -8% | -19% | 1% | 35% | 3% | |
| Reader / Idle | 838 | 1295 55% | 781 -7% | 648 -23% | 779 -7% | 779 -7% | 1690 102% | 984 17% |
| WiFi v1.3 | 464 | 598 29% | 298 -36% | 539 16% | 285 -39% | |||
| Load | 107 | 145 36% | 189 77% | 114 7% | 92 -14% | 117 9% | 94 -12% | 141 32% |
| H.264 | 396 | 342 | 466 | 581 | ||||
| WiFi | 408 | 515 | 325 | 580 | 401 |
Artılar
+ Yüksek kaliteli yapım
+ Oldukça ince kasa
+ WQHD ekran
+ Multi-touch ekran
+ Çok iyi bakış açıları
+ 180 dereceden fazla açılış değeri
+ Yüksek performans
+ Serin kullanım
+ DP adaptörü ile VGA ve Ethernet
+ Kullanışlı hoparlörler
Eksiler
- Yansıtmalı ekran
- Batarya modunda düşen parlaklık
- Kısıtlı bakım ve güncelleme imkanı
- Kısa sayılabilecek batarya ömrü

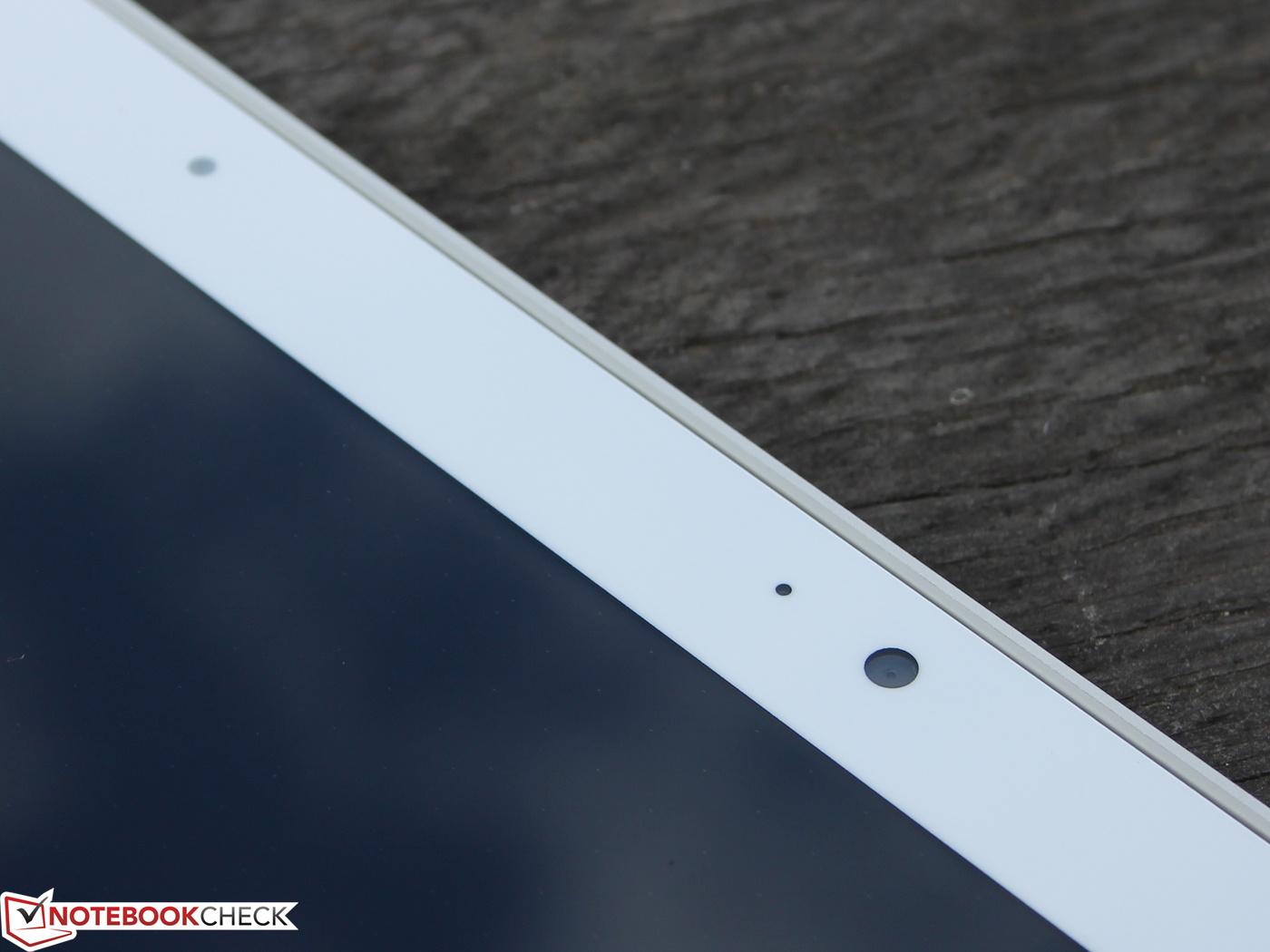

- Zayıf webcam kalitesi
- Keskin köşeli kasa
Yüksek fiyata ince ultrabook: Acer'ın Aspire S7-393 modeli birçok şeyi doğru yapıyor. %84 değerlendirme puanı Top 10 listemizde yer almak için yetmese de makul bir yerde olması için yeterli. Aspire S7 modelinin avantajı ince kasasının çok iyi yapım kalitesi. QHD+ ekran ve yüksek çözünürlük belki herkes için uygun olmayabilir ancak mat Full HD modeller sunulmuyor.
Yüksek performans, serin yüzeyler ve DisplayPort aparatı ile bağlantı noktalarını arttırmak gibi avantajlar mevcut. Ancak ekranın parlak olması ve batarya modundayken güneş ışığında kullanımının çok zor olması gibi dezavantajları da mevcut.
Yazının orjinali için tıklayın.
