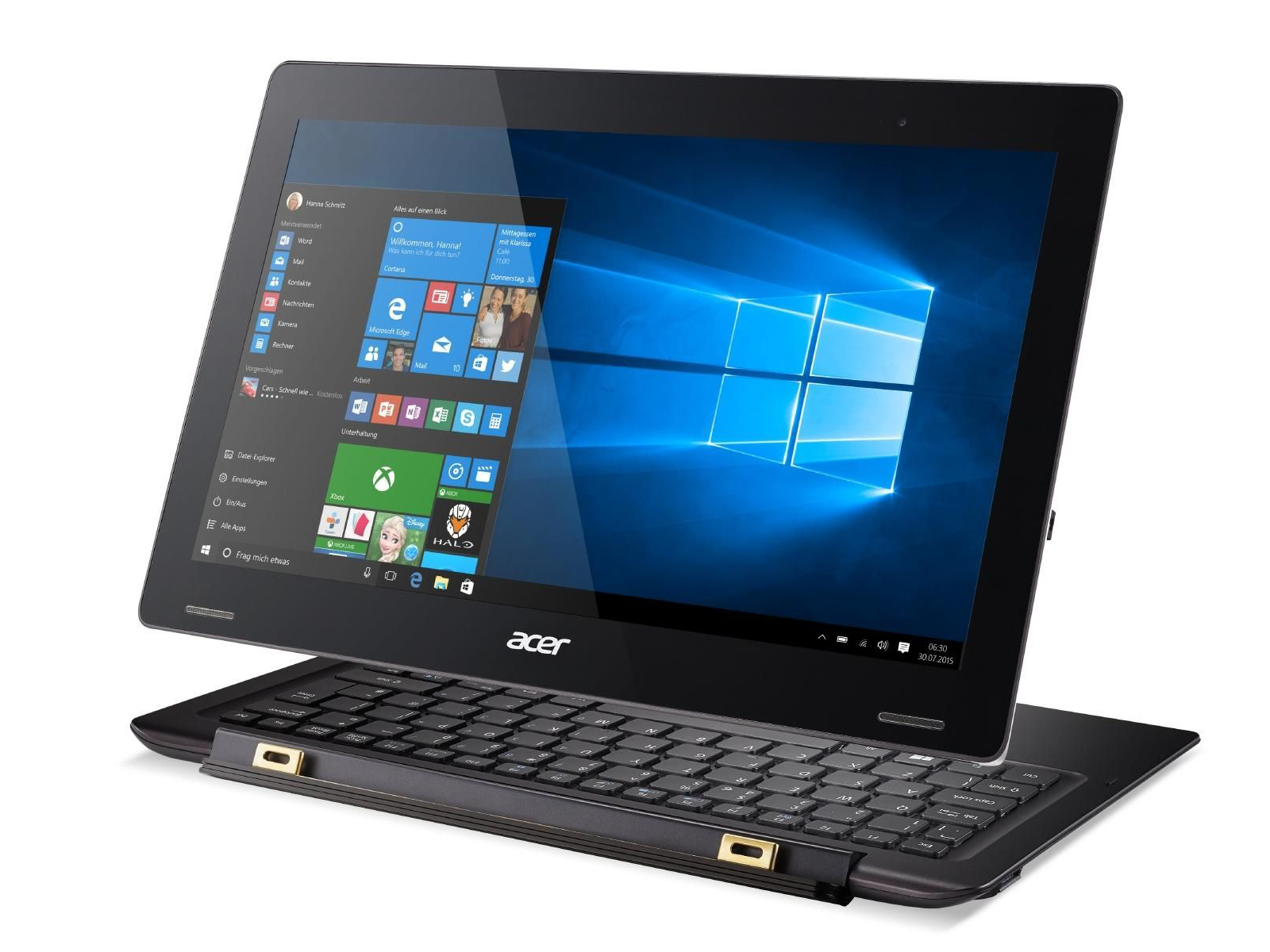

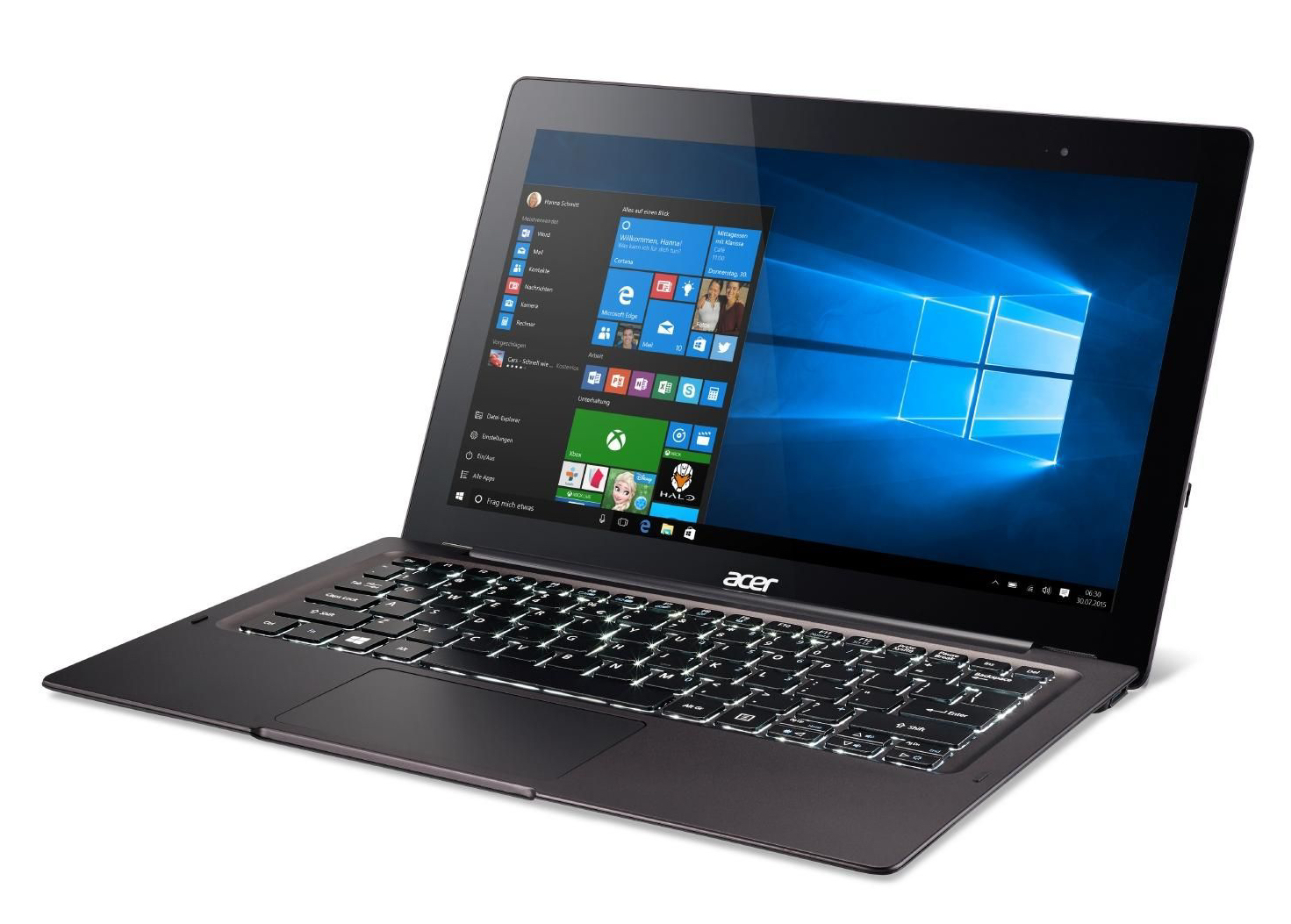

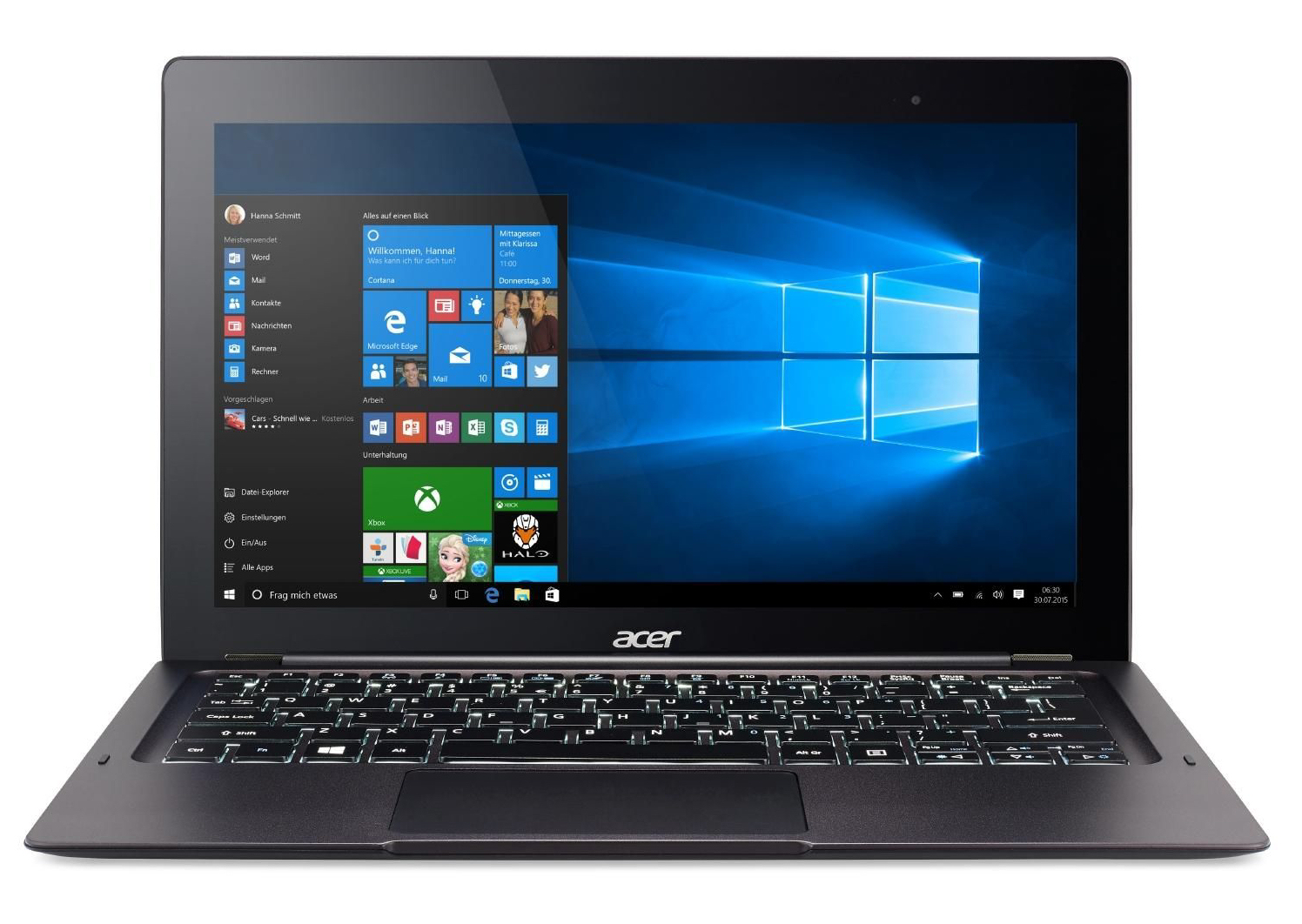

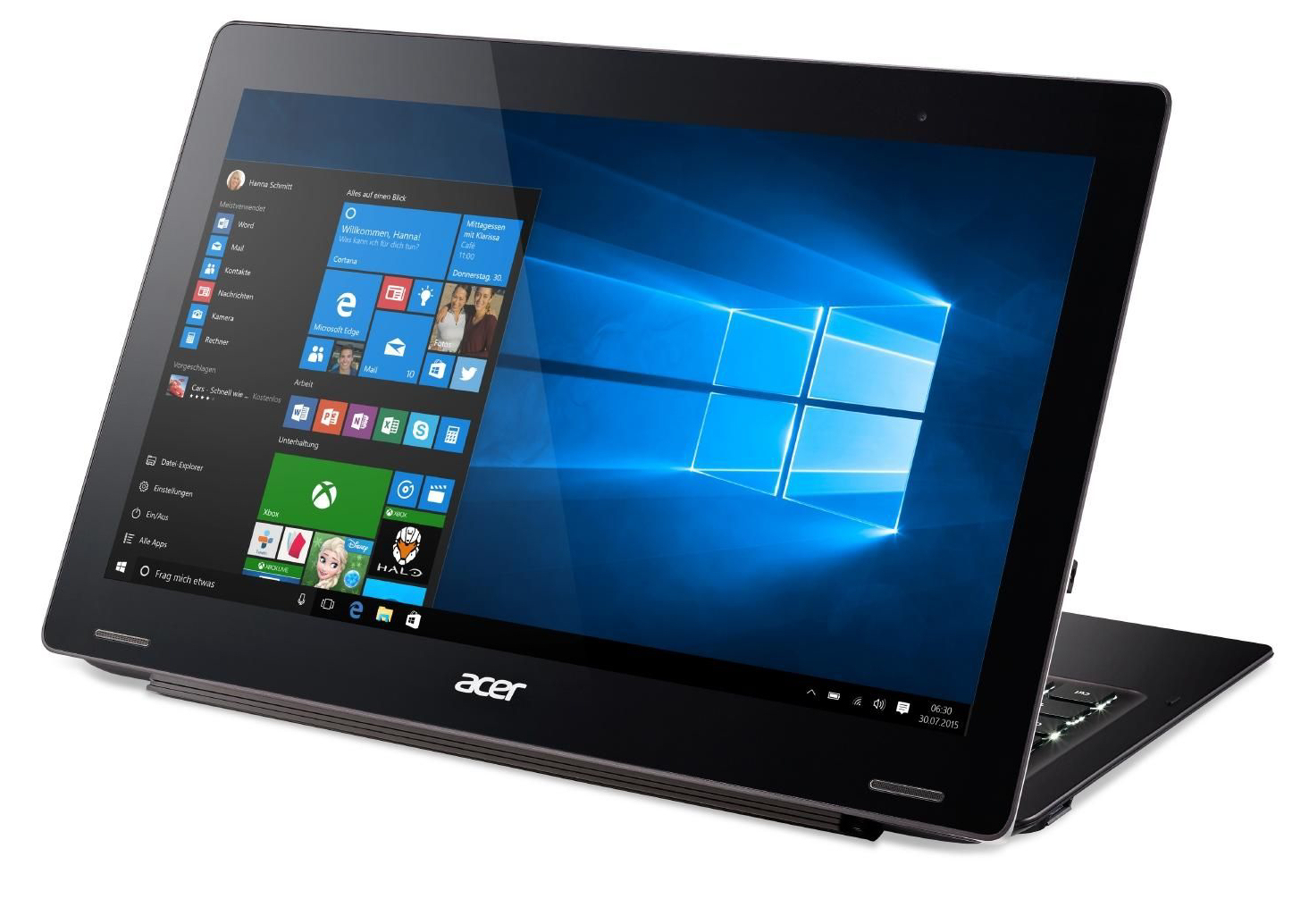

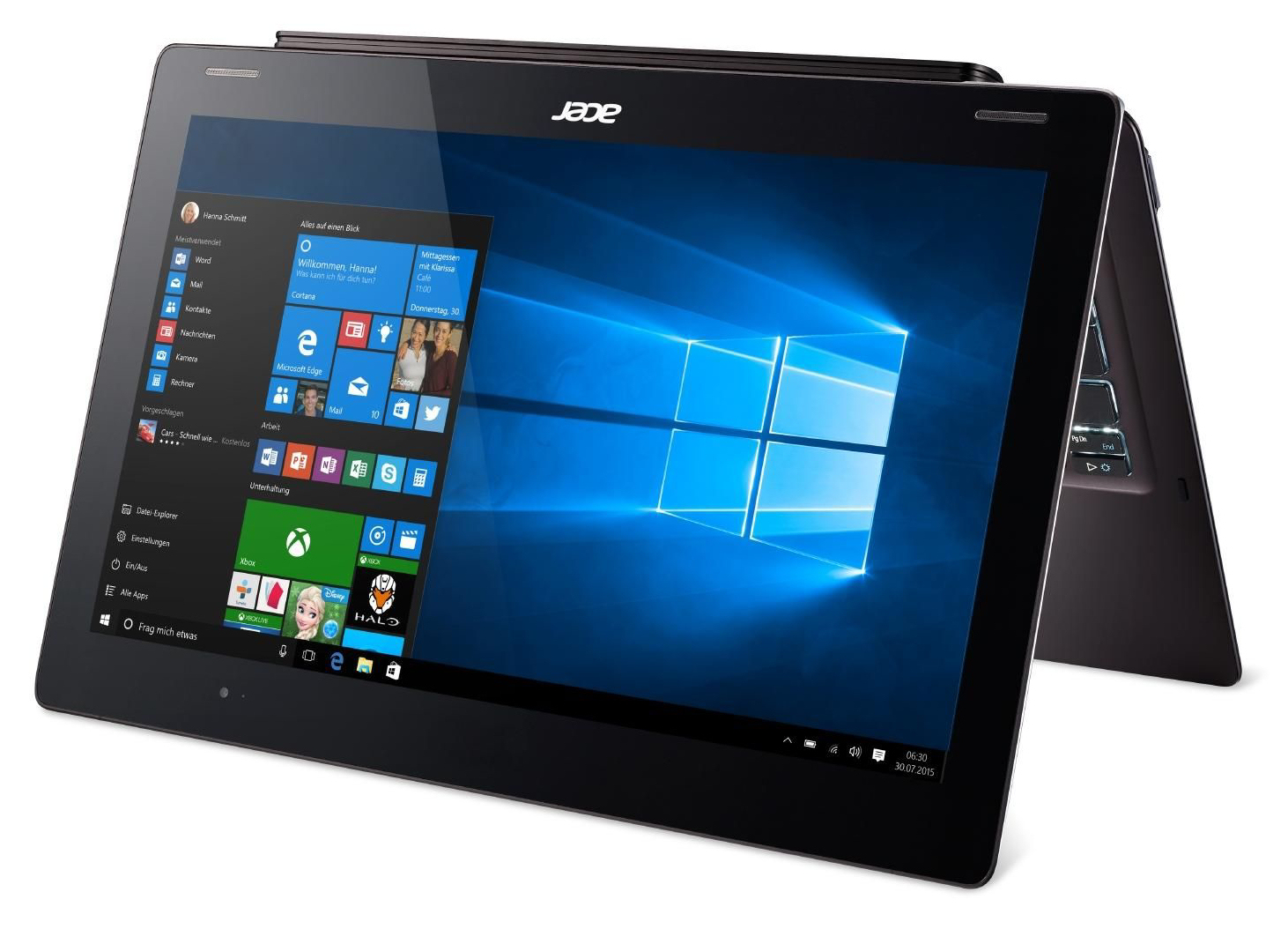

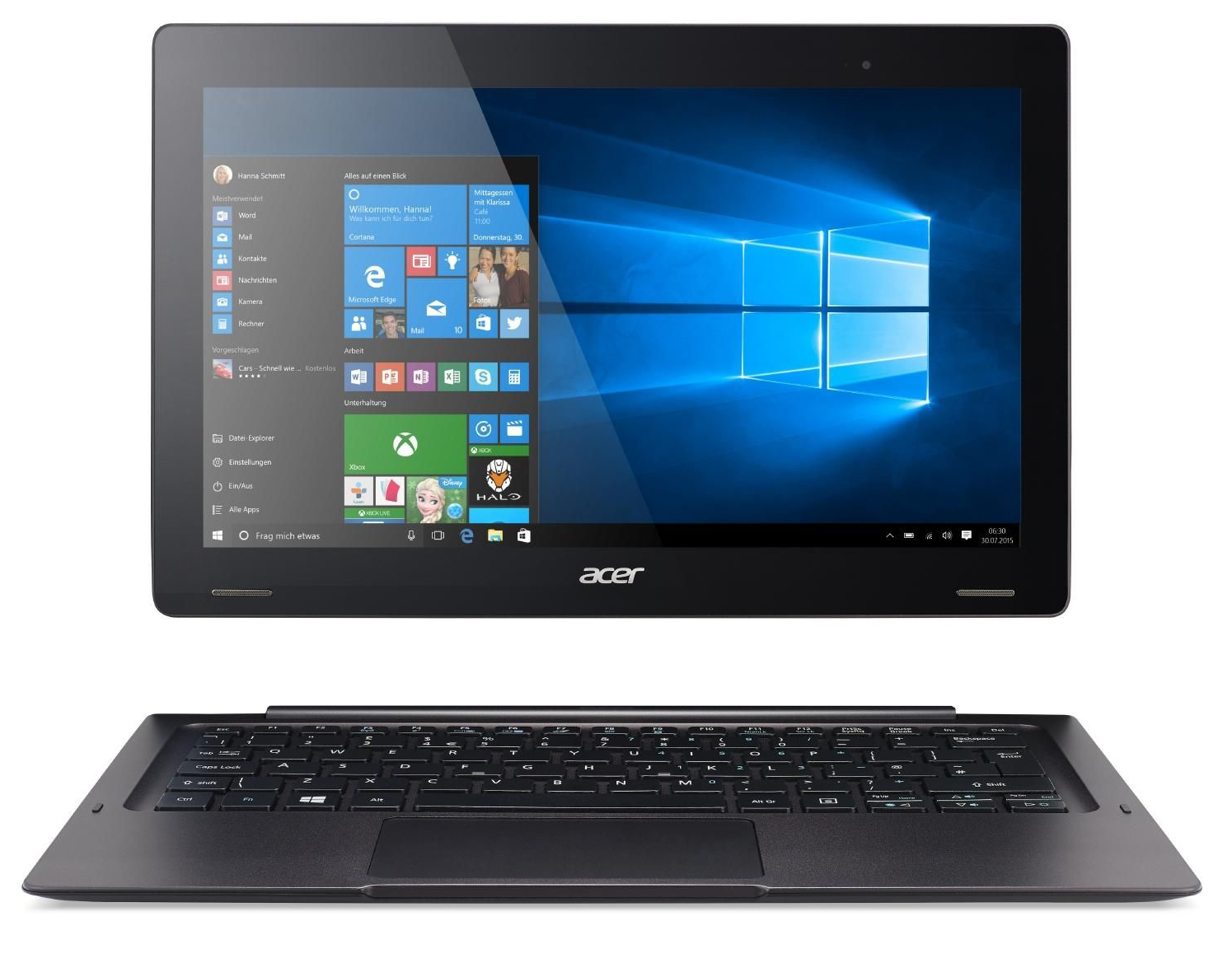

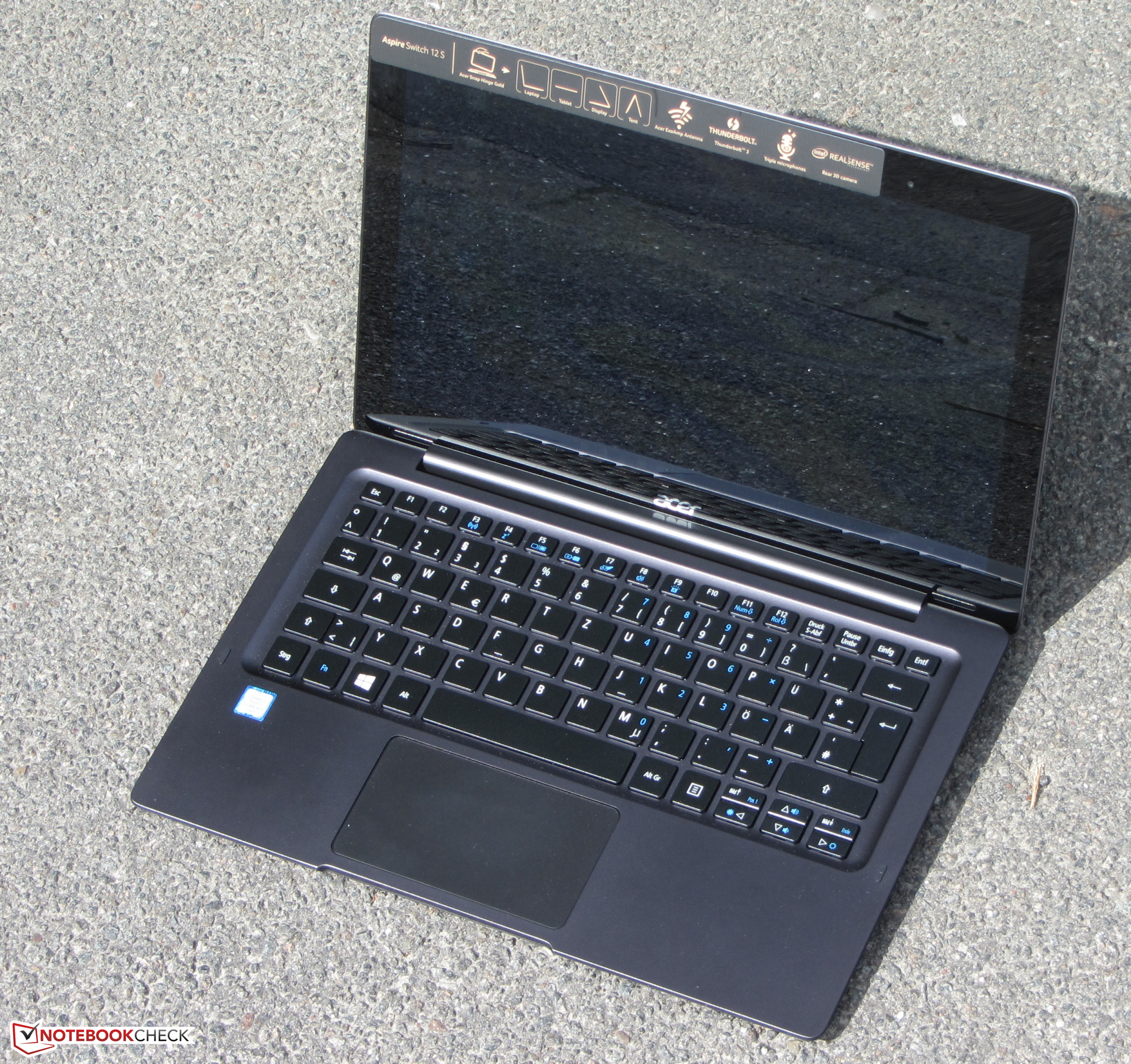

Kısa inceleme: Acer Aspire Switch 12S SW7-272-M3A0 dönüştürülebilir model
Acer Aspire Switch 12S SW7-272-M3A0 (Aspire Switch Seri)
İşlemci
Intel Core m3-6Y30 2 x 0.9 - 2.2 GHz, Skylake
Grafik kartı
Intel HD Graphics 515, Çekirdek: 850 MHz, Dual-Channel, 20.19.15.4331
Bellek
4 GB
, DDR3-1600, Dual-Channel, soldered on
Görüntü
12.50 inç 16:9, 1920 x 1080 pixel 176 PPI, capacitive, native pen support, AU Optronics B125HAN01.0, IPS, parlak: evet, detachable screen
Anakart
Intel Skylake-Y Premium PCH
Harddisk
Lite-On CV1-8B128, 128 GB
, 90 GB Boş
Ağırlık
1.4 kg, Güç kaynağı: 246 g
Fiyat
1199 Euro
Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
AU Optronics B125HAN01.0 tested with X-Rite i1Pro 2
Maksimum: 388 cd/m² (Nits) Ortalama: 377.9 cd/m² Minimum: 14 cd/m²Aydınlatma: 92 %
Batarya modunda parlaklık: 383 cd/m²
Kontrast: 1126:1 (Siyah: 0.34 cd/m²)

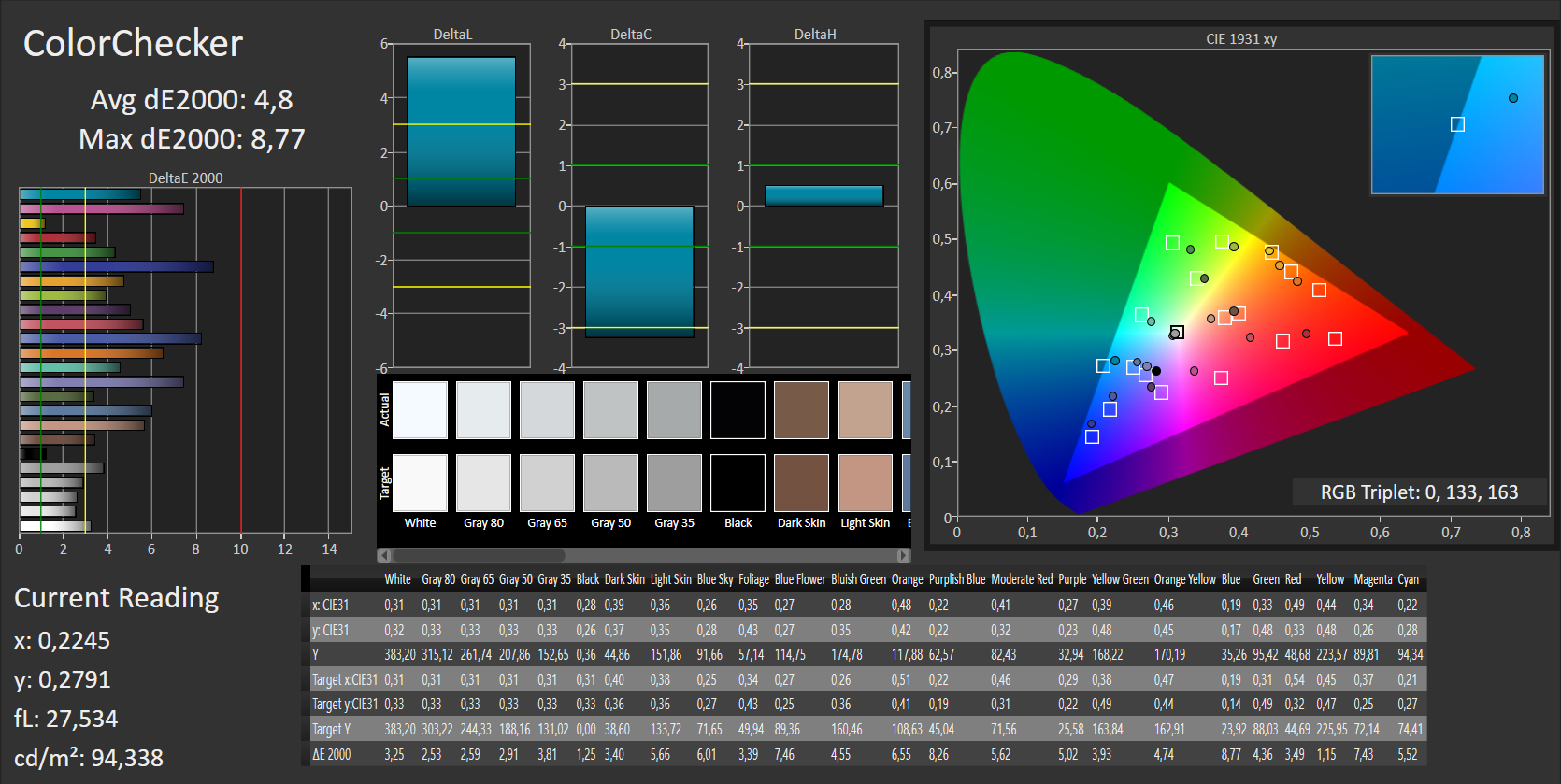

ΔE Color 4.8 | 0.5-29.43 Ø4.92
ΔE Greyscale 2.8 | 0.5-98 Ø5.2
64% sRGB (Argyll 1.6.3 3D)
41% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.63% AdobeRGB 1998 (Argyll 2.2.0 3D)
64% sRGB (Argyll 2.2.0 3D)
43.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.25
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. | ||
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 18 ms ... rise ↗ and fall ↘ combined | ↗ 4 ms rise |  |
| ↘ 14 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 36 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 25 ms ... rise ↗ and fall ↘ combined | ↗ 10 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 31 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||
| Acer Aspire Switch 12S SW7-272-M3A0 IPS, 1920x1080 | Lenovo IdeaPad Miix 700 IPS, 2160x1440 | HP Elite x2 1012 G1 IPS, 1920x1280 | Samsung Galaxy Tab Pro S W700N sAMOLED, 2160x1440 | Microsoft Surface Pro 4, Core m3 IPS, 2736x1824 | Microsoft Surface Pro 4, Core i5, 128GB IPS, 2736x1824 | Acer Aspire Switch 12 SW5-271-61X7 IPS, 1920x1080 | Acer Aspire Switch Alpha 12 SA5-271-56HM IPS, 2160x1440 | |
|---|---|---|---|---|---|---|---|---|
| Display | 56% | 20% | 54% | 50% | 51% | |||
| Display P3 Coverage | 43.2 | 68.1 58% | 53.8 25% | 67.5 56% | 65 50% | 65.5 52% | ||
| sRGB Coverage | 64 | 97.4 52% | 73.7 15% | 96.6 51% | 96.5 51% | 96.1 50% | ||
| AdobeRGB 1998 Coverage | 44.63 | 70.2 57% | 53.8 21% | 69 55% | 67 50% | 66.9 50% | ||
| Response Times | -5% | -30% | -78% | -79% | -35% | |||
| Response Time Grey 50% / Grey 80% * | 25 ? | 30 ? -20% | 33.2 ? -33% | 46 ? -84% | 46 ? -84% | 20 ? 20% | ||
| Response Time Black / White * | 18 ? | 16 ? 11% | 22.8 ? -27% | 31 ? -72% | 31.2 ? -73% | 34 ? -89% | ||
| PWM Frequency | 200 ? | 50 ? | 50 ? | 1000 ? | ||||
| Screen | -18% | -22% | 120% | 17% | 11% | -15% | -19% | |
| Brightness middle | 383 | 341 -11% | 322 -16% | 363 -5% | 389.2 2% | 413 8% | 385 1% | 345 -10% |
| Brightness | 378 | 318 -16% | 319 -16% | 378 0% | 392 4% | 396 5% | 352 -7% | 328 -13% |
| Brightness Distribution | 92 | 87 -5% | 97 5% | 90 -2% | 92 0% | 87 -5% | 85 -8% | 91 -1% |
| Black Level * | 0.34 | 0.36 -6% | 0.42 -24% | 0.03 91% | 0.27 21% | 0.36 -6% | 0.48 -41% | 0.38 -12% |
| Contrast | 1126 | 947 -16% | 767 -32% | 12100 975% | 1441 28% | 1147 2% | 802 -29% | 908 -19% |
| Colorchecker dE 2000 * | 4.8 | 6 -25% | 6.02 -25% | 4.8 -0% | 3.61 25% | 3.09 36% | 4.3 10% | 8.4 -75% |
| Colorchecker dE 2000 max. * | 8.77 | 10.06 -15% | 6.91 21% | 11.9 -36% | ||||
| Greyscale dE 2000 * | 2.8 | 8.12 -190% | 6.29 -125% | 5.04 -80% | 3.8 -36% | 3.92 -40% | 3.73 -33% | 4.3 -54% |
| Gamma | 2.25 98% | 2.23 99% | 2.4 92% | 2.57 86% | 2.16 102% | 2.3 96% | 2.66 83% | 2.63 84% |
| CCT | 6676 97% | 7011 93% | 7712 84% | 7255 90% | 5969 109% | 7333 89% | 6785 96% | 7368 88% |
| Color Space (Percent of AdobeRGB 1998) | 41 | 63.4 55% | 47.8 17% | 73 78% | 63 54% | 61 49% | 62 51% | |
| Color Space (Percent of sRGB) | 64 | 97.4 52% | 73.2 14% | 97 52% | 97 52% | |||
| Total Average (Program / Settings) | 11% /
-0% | -11% /
-14% | 120% /
120% | -2% /
11% | -6% /
7% | -15% /
-15% | -1% /
-6% |
* ... smaller is better
Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Geekbench 3 | Sunspider | Mozilla Kraken 1.1 | Octane V2 | Peacekeeper
| Geekbench 3 | |
| 32 Bit Single-Core Score | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| HP Elite x2 1012 G1 | |
| Lenovo IdeaPad Miix 700 | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
| 32 Bit Multi-Core Score | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| HP Elite x2 1012 G1 | |
| Lenovo IdeaPad Miix 700 | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
* ... smaller is better
| PCMark 7 Score | 4173 puan | |
| PCMark 8 Home Score Accelerated v2 | 2536 puan | |
| PCMark 8 Creative Score Accelerated v2 | 2819 puan | |
| PCMark 8 Work Score Accelerated v2 | 3596 puan | |
Yardım | ||
| PCMark 7 - Score | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| HP Elite x2 1012 G1 | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core m3 | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
| Acer Aspire Switch 12 SW5-271-61X7 | |
Lite-On CV1-8B128
Sequential Read:
445.2 MB/s
Sequential Write:
179.9 MB/s
512K Read:
330.6 MB/s
512K Write:
181.6 MB/s
4K Read:
12.17 MB/s
4K Write:
19.09 MB/s
4K QD32 Read:
137.9 MB/s
4K QD32 Write:
106.5 MB/s
| 3DMark 06 Standard Score | 4968 puan | |
| 3DMark 11 Performance | 814 puan | |
| 3DMark Ice Storm Standard Score | 32704 puan | |
| 3DMark Cloud Gate Standard Score | 3278 puan | |
| 3DMark Fire Strike Score | 453 puan | |
Yardım | ||
| 3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x | |
| HP Elite x2 1012 G1 | |
| Microsoft Surface Pro 4, Core m3 | |
| Lenovo IdeaPad Miix 700 | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
| düşük | orta | yüksek | ultra | |
|---|---|---|---|---|
| Tomb Raider (2013) | 32.3 | 16.9 | 12.1 | 5.8 |
| BioShock Infinite (2013) | 26 | 13.7 | 11.8 | 3.8 |
| Battlefield 4 (2013) | 17.7 | 12.4 | 8.5 | 2.3 |
| Need for Speed 2016 (2016) | 8.4 | 5.9 |
(±) The average temperature for the upper side under maximal load is 34.4 °C / 94 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 40.2 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 27.4 °C / 81 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.9 °C / 102 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-10.8 °C / -19.4 F).
(±) The maximum temperature on the upper side is 40.2 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 27.4 °C / 81 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.9 °C / 102 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-10.8 °C / -19.4 F).
| Acer Aspire Switch 12S SW7-272-M3A0 6Y30, HD Graphics 515 | Lenovo IdeaPad Miix 700 6Y54, HD Graphics 515 | HP Elite x2 1012 G1 6Y54, HD Graphics 515 | Samsung Galaxy Tab Pro S W700N 6Y30, HD Graphics 515 | Microsoft Surface Pro 4, Core m3 6Y30, HD Graphics 515 | Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520 | Acer Aspire Switch 12 SW5-271-61X7 5Y10c, HD Graphics 5300 | Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, HD Graphics 520 | |
|---|---|---|---|---|---|---|---|---|
| Heat | -14% | -15% | -35% | -24% | -51% | -16% | -28% | |
| Maximum Upper Side * | 40.2 | 38.6 4% | 39 3% | 42.5 -6% | 43.6 -8% | 52.3 -30% | 43.6 -8% | 46.7 -16% |
| Maximum Bottom * | 27.4 | 40.8 -49% | 41.2 -50% | 44.6 -63% | 45.2 -65% | 51.4 -88% | 43.4 -58% | 51 -86% |
| Idle Upper Side * | 28.6 | 30.4 -6% | 29.5 -3% | 36.6 -28% | 32.4 -13% | 43.2 -51% | 27.5 4% | 29.5 -3% |
| Idle Bottom * | 27.1 | 28 -3% | 29.8 -10% | 38.6 -42% | 29.6 -9% | 36 -33% | 27.6 -2% | 28.6 -6% |
* ... smaller is better
Anlık tüketim
| Kapalı / Bekleme modu |   0.36 / 1.2 Watt |
| Boşta |  6.3 / 9.4 / 12.3 Watt |
| Çalışırken |
18.6 / 19 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Acer Aspire Switch 12S SW7-272-M3A0 6Y30, HD Graphics 515 | Lenovo IdeaPad Miix 700 6Y54, HD Graphics 515 | HP Elite x2 1012 G1 6Y54, HD Graphics 515 | Samsung Galaxy Tab Pro S W700N 6Y30, HD Graphics 515 | Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520 | Acer Aspire Switch 12 SW5-271-61X7 5Y10c, HD Graphics 5300 | Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, HD Graphics 520 | |
|---|---|---|---|---|---|---|---|
| Power Consumption | -4% | 1% | 28% | 7% | 20% | -19% | |
| Idle Minimum * | 6.3 | 4 37% | 3.7 41% | 3.4 46% | 4.4 30% | 4.1 35% | 7.3 -16% |
| Idle Average * | 9.4 | 8.6 9% | 6.8 28% | 8 15% | 9 4% | 8 15% | 10 -6% |
| Idle Maximum * | 12.3 | 9.3 24% | 7.6 38% | 9 27% | 10.7 13% | 9.3 24% | 10.15 17% |
| Load Average * | 18.6 | 18.6 -0% | 22.5 -21% | 12 35% | 19.6 -5% | 16.3 12% | 25.2 -35% |
| Load Maximum * | 19 | 36.3 -91% | 34.5 -82% | 16.1 15% | 19.9 -5% | 16.8 12% | 29.3 -54% |
* ... smaller is better
| Acer Aspire Switch 12S SW7-272-M3A0 34 Wh | Lenovo IdeaPad Miix 700 41 Wh | HP Elite x2 1012 G1 37 Wh | Samsung Galaxy Tab Pro S W700N 39.5 Wh | Microsoft Surface Pro 4, Core m3 38 Wh | Microsoft Surface Pro 4, Core i5, 128GB 38 Wh | Acer Aspire Switch 12 SW5-271-61X7 37 Wh | Acer Aspire Switch Alpha 12 SA5-271-56HM 37 Wh | |
|---|---|---|---|---|---|---|---|---|
| Battery Runtime | 33% | 21% | 72% | 29% | 24% | 29% | 8% | |
| Reader / Idle | 530 | 861 62% | 732 38% | 1110 109% | 791 49% | 899 70% | 771 45% | 640 21% |
| H.264 | 337 | 450 34% | 432 28% | 515 53% | 378 12% | 468 39% | ||
| WiFi v1.3 | 343 | 440 28% | 443 29% | 525 53% | 488 42% | 427 24% | 321 -6% | |
| Load | 145 | 157 8% | 130 -10% | 138 -5% | 111 -23% | 112 -23% | ||
| WiFi | 360 |
Artılar
+ Kontrastı yüksek parlak ekran
+ Sessiz
+ Hızlı SSD
+ Klavye
Eksiler
- Sadece 12 ay garanti
- İşlemci ve grafik kartında tıkanma
- Ortalama çalışma süreleri
Acer'ın Switch 12S modeli 12.5 inçlik dönüştürülebilir bir model. Skylake jenerasyonu Core-m işlemci yazım işleri ve internette gezinme için yeterli iş gücünü sağlıyor. Dönüştürülebilir model sessiz ve SSD sayesinde hem hızlı hem nadiren ısınıyor. Ekran tatmin edici. Dokunmatik ekranın tepki süresi oldukça iyi ve opsiyonel olarak Stylus ile kullanılabiliyor.
Cihazın fiyatı bizce sundukları için çok fazla.
Öncelikle batarya ömrü sadece ortalama ve çoğu rakip daha iyi süreler sunuyor. Acer, klavye eklentisine ek bir batarya koymayı düşünebilirdi. Stylus da opsiyonel. Son olarak sadece 1 yıllık garanti söz konusu.
Yazının orjinali için tıklayın.
Acer Aspire Switch 12S SW7-272-M3A0
- 06/23/2016 v5.1 (old)
Sascha Mölck
