Kısa inceleme: Apple MacBook Pro 13 (Mid 2017, i5, Touch Bar)

Erken güncelleme. Apple, üzerinden sadece 8 ay geçmesine rağmen MacBook Pro 13 modelini güncelliyor. Modern Kaby Lake işlemci, daha hızlı SSD ile daha fazla performans bekleniyor.

Klaus Hinum, Andreas Osthoff, 👁 Andreas Osthoff, Published 06/18/2017 🇺🇸 🇩🇪 ...

Apple MacBook Pro 13 2017 Touchbar i5 (MacBook Pro 13 2017 Seri)

İşlemci

Intel Core i5-7267U 2 x 3.1 - 3.5 GHz, Kaby Lake

Grafik kartı

Intel Iris Plus Graphics 650

Bellek

8 GB

, DDR3L-2133, Dual-Channel

Görüntü

13.30 inç 16:10, 2560 x 1600 pixel 227 PPI, APPA034, IPS, parlak: evet

Anakart

Intel Kaby Lake-U iHDCP 2.2 Premium PCH

Harddisk

Apple SSD AP0256, 256 GB

Ses kartı

Cirrus Logic CS8409

Bağlantılar

4 USB 3.1 Gen2, 4 Thunderbolt, Ses çıkışları: 3.5 mm stereo jack, 1 Parmak izi okuyucu, Brightness Sensor

Network

Broadcom BCM15700A2 802.11ac (ac = Wi-Fi 5/), Bluetooth 4.2

Boyut

yükseklik x genişlik x derinlik (mm): 15 x 304 x 212

Batarya

49.2 Wh Lithium-Polymer

İşletim sistemi

Apple OS X 10.11 El Capitan

Camera

Webcam: 720p FaceTime HD

Ek özellikler

Hoparlörler: stereo speakers, Klavye: Chiclet (Butterfly v2), Klavye ışığı: evet, 61-watt USB-C PSU, USB-C charging cable, 12 Ay Garanti

Released

06/05/2017

Ağırlık

1.37 kg, Güç kaynağı: 269 g

Fiyat

1999 Euro

Bağlantılar

Apple anasayfa

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Apple MacBook Pro 13 2017 Touchbar i5 Apple MacBook Pro 13 2016 (2.9 GHz) Dell XPS 13 9360 QHD+ i5 DIN A4 ❌


523 cd/m²	536 cd/m²	503 cd/m²
524 cd/m²	551 cd/m²	520 cd/m²
496 cd/m²	487 cd/m²	487 cd/m²

Parlaklığın yayılımı

APPA034 tested with X-Rite i1Pro 2

Maksimum: 551 cd/m² (Nits) Ortalama: 514.1 cd/m² Minimum: 4.8 cd/m²
Aydınlatma: 88 %
Batarya modunda parlaklık: 502 cd/m²
Kontrast: 1148:1 (Siyah: 0.48 cd/m²)
ΔE Color 0.8 | 0.5-29.43 Ø4.91
ΔE Greyscale 1 | 0.5-98 Ø5.2
86.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
98.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.16

Download ICC Dosyası (X-Rite i1Pro 2)

	Apple MacBook Pro 13 2017 Touchbar i5 APPA034, , 2560x1600, 13.3"	Apple MacBook Pro 13 2016 (2.9 GHz) APPA033, , 2560x1600, 13.3"	Apple MacBook Pro 13 2016 APPA034, , 2560x1600, 13.3"	Dell XPS 13 9360 QHD+ i5 Sharp SHP144A, , 3200x1800, 13.3"	Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 B140HAN03_1, , 1920x1080, 14"
Display		1%	-1%	-22%	-27%
Display P3 Coverage	98.6	99.2 1%	97.1 -2%	64.6 -34%	61.4 -38%
sRGB Coverage	100	99.9 0%	99.8 0%	91.6 -8%	85.9 -14%
AdobeRGB 1998 Coverage	86.5	87.6 1%	86.7 0%	66.5 -23%	62.4 -28%
Response Times		-28%	-26%	21%	10%
Response Time Grey 50% / Grey 80% *	48 ?(23.6, 24.4)	47.2 ?(19.6, 27.6) 2%	47.2 ?(21.6, 25.6) 2%	31 ?(13, 18) 35%	41.6 ?(20.4, 21.2) 13%
Response Time Black / White *	33.6 ?(16.4, 17.2)	53 ?(10, 43) -58%	51.6 ?(8.4, 43.2) -54%	31.2 ?(10.8, 20.4) 7%	31.6 ?(18.8, 12.8) 6%
PWM Frequency	119000 ?(80)
Screen		-35%	-38%	-129%	-210%
Brightness middle	551	569 3%	600 9%	444 -19%	311 -44%
Brightness	514	542 5%	564 10%	393 -24%	288 -44%
Brightness Distribution	88	90 2%	89 1%	82 -7%	85 -3%
Black Level *	0.48	0.56 -17%	0.57 -19%	0.33 31%	0.24 50%
Contrast	1148	1016 -11%	1053 -8%	1345 17%	1296 13%
Colorchecker dE 2000 *	0.8	1.4 -75%	1.5 -88%	4 -400%	5.5 -588%
Colorchecker dE 2000 max. *	1.4	2.9 -107%	2.9 -107%	7.7 -450%	9 -543%
Greyscale dE 2000 *	1	1.8 -80%	2 -100%	2.83 -183%	6.2 -520%
Gamma	2.16 ^102%	2.16 ^102%	2.27 ^97%	2.05 ^107%	2.02 ^109%
CCT	6672 ^97%	6877 ^95%	6855 ^95%	6963 ^93%	5950 ^109%
Color Space (Percent of AdobeRGB 1998)		78.4	77	59.3	55.96
Color Space (Percent of sRGB)		99.3	92	91.4	85.77
Total Average (Program / Settings)		-21% / -26%	-22% / -27%	-43% / -81%	-76% / -134%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
33.6 ms ... rise ↗ and fall ↘ combined	↗ 16.4 ms rise
33.6 ms ... rise ↗ and fall ↘ combined	↘ 17.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 89 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).
↔ Response Time 50% Grey to 80% Grey
48 ms ... rise ↗ and fall ↘ combined	↗ 23.6 ms rise
48 ms ... rise ↗ and fall ↘ combined	↘ 24.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 81 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

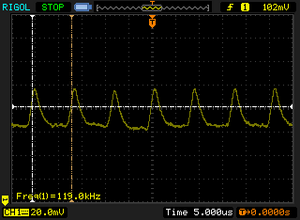

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

119000 Hz

≤ 80 % brightness setting

The display backlight flickers at 119000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 80 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 119000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 CPU Multi 64 Bit

Cinebench R15
CPU Single 64Bit
Acer Predator 17 G9-793-70PJ Intel Core i7-7700HQ	157 Points +11%
Dell XPS 13 9360 FHD i7 Iris Intel Core i7-7560U	153 Points +9%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel Core i7-7500U	143 Points +1%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Core i5-7267U	141 Points
Apple MacBook Pro 13 2016 (2.9 GHz) Intel Core i5-6267U	131 Points -7%
CPU Multi 64Bit
Acer Predator 17 G9-793-70PJ Intel Core i7-7700HQ	732 Points +91%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Core i5-7267U	383 (377^min - 385^max) Points
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel Core i7-7500U	360 Points -6%
Apple MacBook Pro 13 2016 (2.9 GHz) Intel Core i5-6267U	339 Points -11%
Dell XPS 13 9360 FHD i7 Iris Intel Core i7-7560U	336 Points -12%

Cinebench R10 Shading 32Bit

8773

Cinebench R10 Rendering Multiple CPUs 32Bit

11403

Cinebench R10 Rendering Single 32Bit

5010

Cinebench R11.5 OpenGL 64Bit

45.2 fps

Cinebench R11.5 CPU Multi 64Bit

4.09 Points

Cinebench R11.5 CPU Single 64Bit

1.54 Points

Cinebench R15 Ref. Match 64Bit

99.3 %

Cinebench R15 OpenGL 64Bit

41.21 fps

Cinebench R15 CPU Multi 64Bit

383 Points

Cinebench R15 CPU Single 64Bit

141 Points

Yardım

... kıyaslama

PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 i7-7500U, HD Graphics 620	4025 Points +5%
Dell XPS 13 9360 FHD i7 Iris i7-7560U, Iris Plus Graphics 640	3902 Points +2%
Apple MacBook Pro 13 2017 Touchbar i5 i5-7267U, Iris Plus Graphics 650	3829 Points
Apple MacBook Pro 13 2016 (2.9 GHz) 6267U, Iris Graphics 550	3738 Points -2%
Apple MacBook Pro 13 2016 6360U, Iris Graphics 540	3280 Points -14%
Work Score Accelerated v2
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 i7-7500U, HD Graphics 620	4978 Points +22%
Dell XPS 13 9360 FHD i7 Iris i7-7560U, Iris Plus Graphics 640	4890 Points +20%
Apple MacBook Pro 13 2016 (2.9 GHz) 6267U, Iris Graphics 550	4218 Points +3%
Apple MacBook Pro 13 2017 Touchbar i5 i5-7267U, Iris Plus Graphics 650	4081 Points
Apple MacBook Pro 13 2016 6360U, Iris Graphics 540	3853 Points -6%

PCMark 8 Home Score Accelerated v2		3829 puan
PCMark 8 Creative Score Accelerated v2		5188 puan
PCMark 8 Work Score Accelerated v2		4081 puan
PCMark 10 Score		3427 puan
Yardım

	Apple MacBook Pro 13 2017 Touchbar i5 Apple SSD AP0256	Apple MacBook Pro 13 2016 (2.9 GHz) Apple SSD AP0256	Apple MacBook Pro 13 2016 Apple SSD AP0256	Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Samsung PM961 NVMe MZVLW512HMJP	Dell XPS 13 9360 QHD+ i5 Toshiba NVMe THNSN5256GPUK
CrystalDiskMark 3.0		42%	36%	263%	148%
Read Seq	1540	1662 8%	1345 -13%	1827 19%	1168 -24%
Write Seq	1353	1336 -1%	1320 -2%	1383 2%	329 -76%
Read 512	926	1183 28%	831 -10%	814 -12%	1015 10%
Write 512	698	1481 112%	1486 113%	1098 57%	307 -56%
Read 4k	9.92	16.1 62%	31.68 219%	61 515%	33 233%
Write 4k	10.74	23.5 119%	11.02 3%	172.2 1503%	132 1129%
Read 4k QD32	618	657 6%	533 -14%	601 -3%	525 -15%
Write 4k QD32	403.8	419 4%	362 -10%	495.6 23%	325 -20%
AS SSD		21%	-2%	181%	-68%
Seq Read	2327	2405 3%	2275 -2%	2434 5%	1412 -39%
Seq Write	1364	1499 10%	1435 5%	1506 10%	46 -97%
4K Read	12.7	18.8 48%	13.3 5%	56.8 347%
4K Write	19.3	26.1 35%	15.4 -20%	151.1 683%
4K-64 Read	852	894 5%	904 6%	1022 20%
4K-64 Write	419	448 7%	417 0%	905 116%
Access Time Read *	0.26	0.156 40%	0.288 -11%	0.028 89%
Access Time Write *				0.027
Total Average (Program / Settings)		32% / 32%	17% / 18%	222% / 225%	40% / 105%

* ... smaller is better

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

Apple SSD AP0256

Sequential Read: 1540 MB/s

Sequential Write: 1353 MB/s

512K Read: 926 MB/s

512K Write: 698 MB/s

4K Read: 9.92 MB/s

4K Write: 10.74 MB/s

4K QD32 Read: 618 MB/s

4K QD32 Write: 403.8 MB/s

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Apple MacBook Pro 15 2016 (2.6 GHz, 450) AMD Radeon Pro 450, Intel Core i7-6700HQ	4502 Points +63%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Iris Plus Graphics 650, Intel Core i5-7267U	2762 (2743^min - 2780^max) Points
Apple MacBook Pro 13 2016 (2.9 GHz) Intel Iris Graphics 550, Intel Core i5-6267U	2696 Points -2%
Apple MacBook Pro 13 2016 Intel Iris Graphics 540, Intel Core i5-6360U	2401 Points -13%
Dell XPS 13 9360 FHD i7 Iris Intel Iris Plus Graphics 640, Intel Core i7-7560U	2124 Points -23%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel HD Graphics 620, Intel Core i7-7500U	1641 Points -41%

3DMark
1280x720 Cloud Gate Standard Graphics
Apple MacBook Pro 15 2016 (2.6 GHz, 450) AMD Radeon Pro 450, Intel Core i7-6700HQ	21533 Points +64%
Apple MacBook Pro 13 2016 (2.9 GHz) Intel Iris Graphics 550, Intel Core i5-6267U	13172 Points 0%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Iris Plus Graphics 650, Intel Core i5-7267U	13153 Points
Dell XPS 13 9360 FHD i7 Iris Intel Iris Plus Graphics 640, Intel Core i7-7560U	11232 Points -15%
Apple MacBook Pro 13 2016 Intel Iris Graphics 540, Intel Core i5-6360U	11123 Points -15%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel HD Graphics 620, Intel Core i7-7500U	8971 Points -32%
1920x1080 Fire Strike Graphics
Apple MacBook Pro 15 2016 (2.6 GHz, 450) AMD Radeon Pro 450, Intel Core i7-6700HQ	3252 Points +92%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Iris Plus Graphics 650, Intel Core i5-7267U	1698 Points
Apple MacBook Pro 13 2016 (2.9 GHz) Intel Iris Graphics 550, Intel Core i5-6267U	1657 Points -2%
Apple MacBook Pro 13 2016 Intel Iris Graphics 540, Intel Core i5-6360U	1448 Points -15%
Dell XPS 13 9360 FHD i7 Iris Intel Iris Plus Graphics 640, Intel Core i7-7560U	1369 Points -19%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel HD Graphics 620, Intel Core i7-7500U	1093 Points -36%

3DMark 06 Standard Score		15175 puan
3DMark 11 Performance		2924 puan
3DMark Cloud Gate Standard Score		8403 puan
3DMark Fire Strike Score		1586 puan
3DMark Time Spy Score		623 puan
Yardım

... kıyaslama

	düşük	orta	yüksek	ultra
BioShock Infinite (2013)	84	54.4	46.5	13.3
GTA V (2015)	56.5	49.9	11.6	5
The Witcher 3 (2015)	21.4
Dota 2 Reborn (2015)	95	64	29.7	25
Rainbow Six Siege (2015)	54.2	35.6	20.8
Rise of the Tomb Raider (2016)	25.9	18.3
Far Cry Primal (2016)	32	15
The Division (2016)	30
Overwatch (2016)	79.2	57.4	25.6	21.4
Deus Ex Mankind Divided (2016)	19.2	14.6	8.2
Battlefield 1 (2016)	46.1	29.5
Civilization VI (2016)	42.2	20.2
Farming Simulator 17 (2016)			36.8	19.9
Titanfall 2 (2016)	54.1	37.9
Call of Duty Infinite Warfare (2016)	32.4
Dishonored 2 (2016)	15
For Honor (2017)	39.7	15.2
Ghost Recon Wildlands (2017)	17.6
Mass Effect Andromeda (2017)	25.8	10.5
Prey (2017)	51.4	20.2
Rocket League (2017)	113	56.8	38.9
Dirt 4 (2017)	64	21.3	14.2

Ses yüksekliği

Boşta		30.6 / 30.6 / 30.6 dB
HDD		30.6 dB
Çalışırken		41.8 / 41.8 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: Audix TM1, Arta (15 cm uzaklık) environment noise: 30.6 dB(A)

Maksimum yük

Bekleme

Witcher 3


42 °C	43 °C	35 °C
39 °C	39 °C	32 °C
30 °C	29 °C	30 °C

Maksimum: 43 °C
Ortalama: 35.4 °C


35 °C	39 °C	39 °C
31 °C	35 °C	33 °C
31 °C	33 °C	30 °C

Maksimum: 39 °C
Ortalama: 34 °C

Güç kaynağı 53 °C | Oda sıcaklığı 23 °C | Fluke 62 Mini

Maksimum yük

Bekleme

Witcher 3


25 °C	25 °C	23 °C
25 °C	24 °C	23 °C
23 °C	22 °C	23 °C

Maksimum: 25 °C
Ortalama: 23.7 °C


23 °C	24 °C	24 °C
23 °C	24 °C	24 °C
23 °C	23 °C	23 °C

Maksimum: 24 °C
Ortalama: 23.4 °C

Güç kaynağı 34 °C | Oda sıcaklığı 18 °C | Fluke 62 Mini

Maksimum yük

Bekleme

Witcher 3


40 °C	42 °C	37 °C
37 °C	40 °C	33 °C
31 °C	30 °C	30 °C

Maksimum: 42 °C
Ortalama: 35.6 °C


36 °C	39 °C	39 °C
33 °C	34 °C	34 °C
31 °C	30 °C	31 °C

Maksimum: 39 °C
Ortalama: 34.1 °C

Güç kaynağı 51 °C | Oda sıcaklığı 23 °C | Fluke 62 Mini

(±) The average temperature for the upper side under maximal load is 35.4 °C / 96 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 43 °C / 109 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 39 °C / 102 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.7 °C / 75 F, compared to the device average of 30.8 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.6 °C / 96 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.7 °C / -4.9 F).

	Apple MacBook Pro 13 2017 Touchbar i5 Iris Plus Graphics 650, i5-7267U, Apple SSD AP0256	Apple MacBook Pro 13 2016 (2.9 GHz) Iris Graphics 550, 6267U, Apple SSD AP0256	Apple MacBook Pro 13 2016 Iris Graphics 540, 6360U, Apple SSD AP0256	Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP	Dell XPS 13 9360 QHD+ i5 HD Graphics 620, i5-7200U, Toshiba NVMe THNSN5256GPUK
Heat		-2%	-4%	-5%	-11%
Maximum Upper Side *	43	45 -5%	42 2%	48 -12%	40 7%
Maximum Bottom *	39	39 -0%	41 -5%	47.2 -21%	42 -8%
Idle Upper Side *	25	26 -4%	26 -4%	23.5 6%	28 -12%
Idle Bottom *	24	24 -0%	26 -8%	22.6 6%	31 -29%

* ... smaller is better

Batarya ömrü

WiFi Websurfing		8h 39min
Big Buck Bunny H.264 1080p		6h 55min
Çalışırken (maksimum parlaklık)		1h 10min

	Apple MacBook Pro 13 2017 Touchbar i5 i5-7267U, Iris Plus Graphics 650, 49.2 Wh	Apple MacBook Pro 13 2016 (2.9 GHz) 6267U, Iris Graphics 550, 49.2 Wh	Apple MacBook Pro 13 2016 6360U, Iris Graphics 540, 54 Wh	Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 i7-7500U, HD Graphics 620, 57 Wh	Dell XPS 13 9360 QHD+ i5 i5-7200U, HD Graphics 620, 60 Wh
Battery Runtime		6%	42%	41%	43%
H.264	415	483 16%	620 49%	711 71%	547 32%
WiFi v1.3	519	566 9%	686 32%	496 -4%	526 1%
Load	70	66 -6%	101 44%	110 57%	137 96%

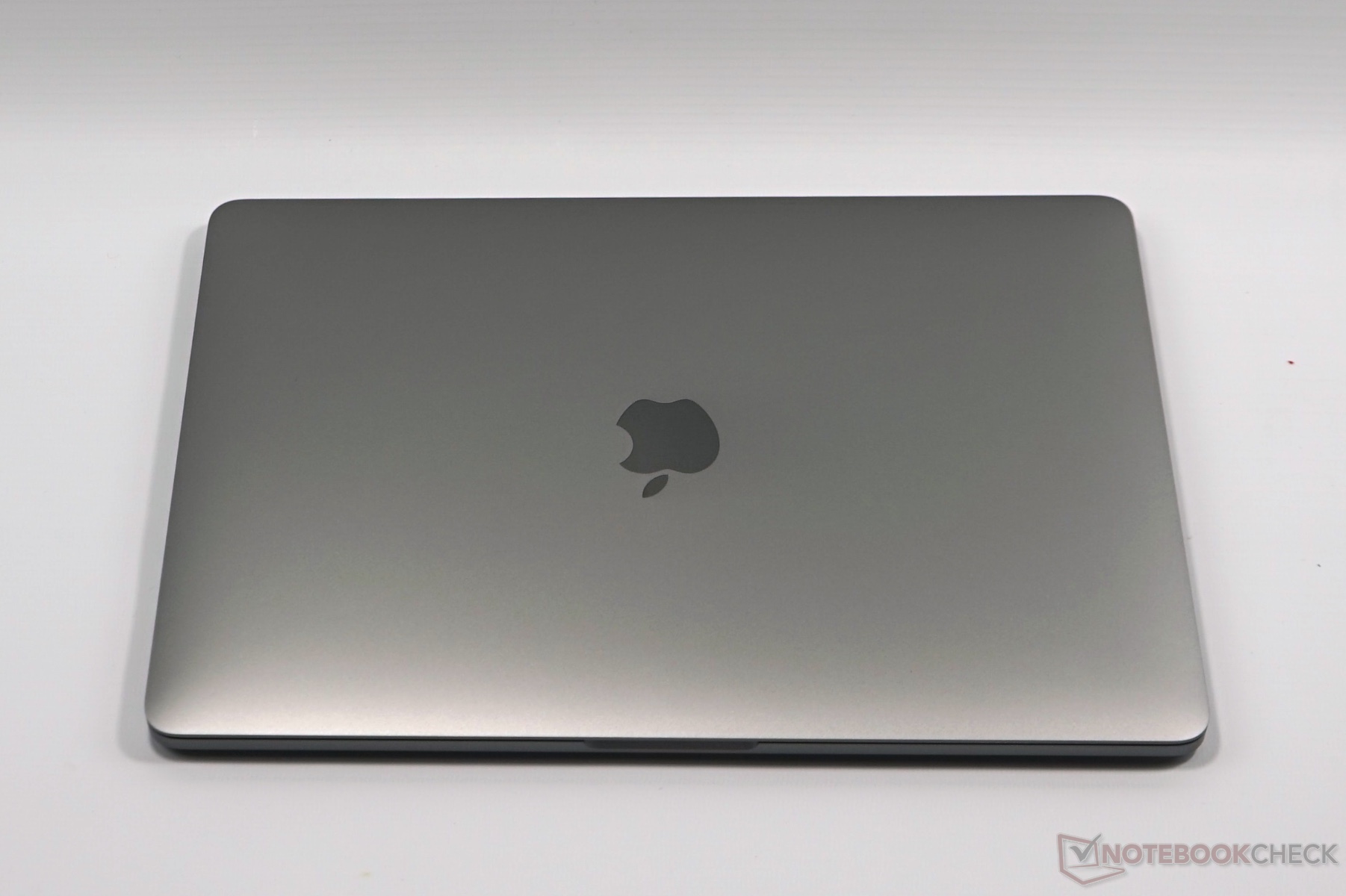

In review: Apple MacBook Pro 13 Mid 2017 (Core i5, Touch Bar)

Testlerimize göre karşımızda ufak bir güncelleme var. Kaby Lake işlemci bir önceki jenerasyona göre biraz daha hızlı ve performansını daha uzun süre götürebiliyor, ancak 2016 modeli alan kullanıcılar için tekrar yeni bir satın alma yapmayı gerektirmiyor.

Ekran, yine harika bir izlenim bırakıyor. Apple, kesinlikle piyasadaki en iyi ekranlardan birini sunduğunu gösteriyor.

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1707 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Apple MacBook Pro 13 (Mid 2017, i5, Touch Bar)

Klaus Hinum, Andreas Osthoff, 2017-06-18 (Update: 2024-11- 4)

Size Comparison

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

More articles related to this device

Price comparison
