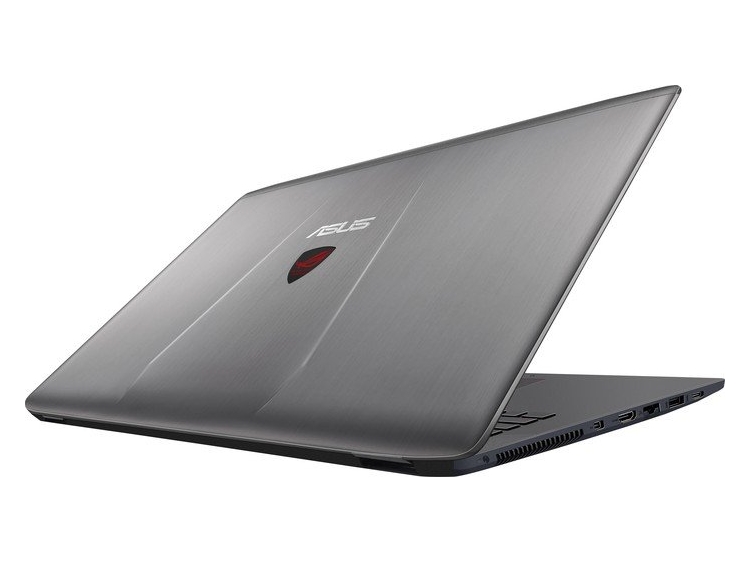

Kısa inceleme: Asus GL752VW Notebook
Asus GL752VW-T4168T (GL752 Seri)

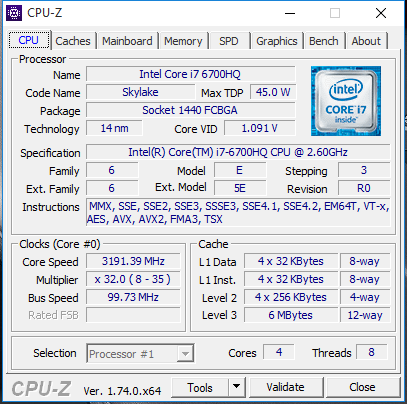

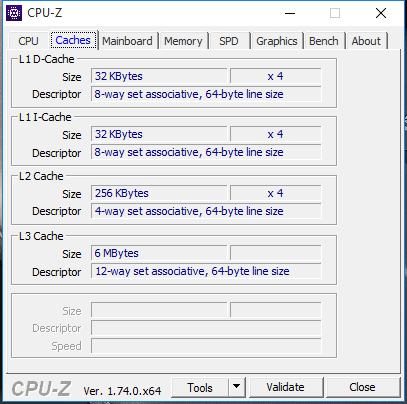

İşlemci
Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

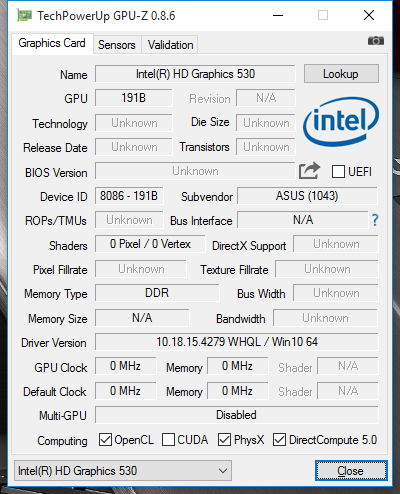

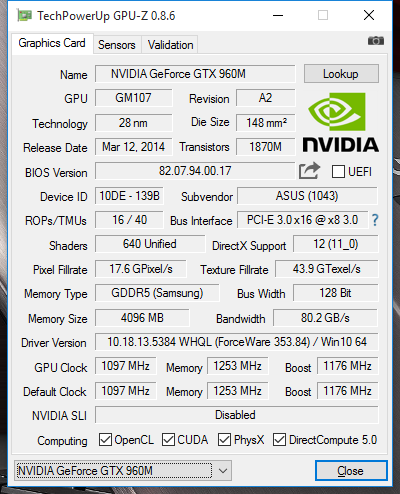

Grafik kartı
NVIDIA GeForce GTX 960M - 4 GB VRAM, Çekirdek: 1097 MHz, Bellek: 5000 MHz, GDDR5, ForceWare 353.84, Nvidia Optimus

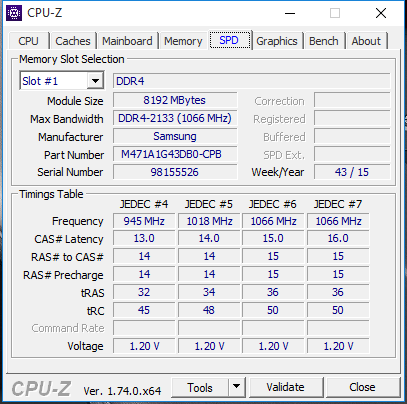

Bellek
8 GB

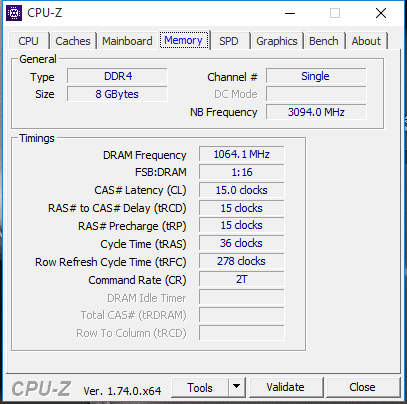

, DDR4, 2133 MHz, Single-Channel, 1 of 4 slots occupied
Görüntü

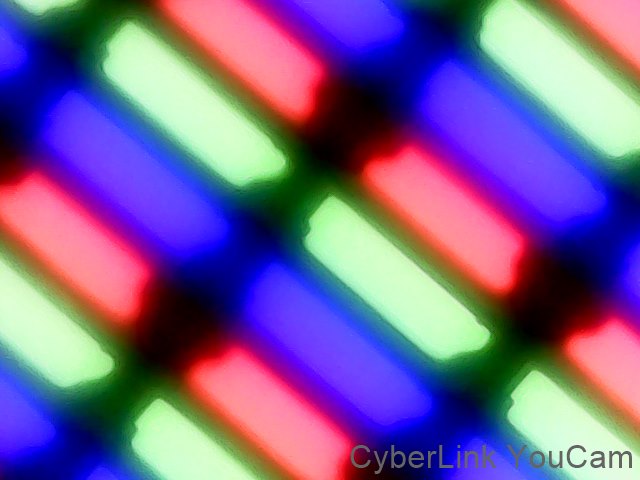

17.30 inç 16:9, 1920 x 1080 pixel, Chi Mei N173HGE-E11 / CMN1735, TN LED, parlak: hayır

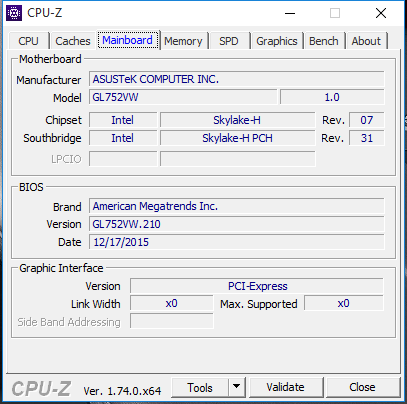

Anakart
Intel HM170 (Skylake PCH-H)
Harddisk
Micron M600 MTFDDAV256MBF mSATA, 256 GB
, + 1 x Seagate ST2000LM003 HN-M201RAD 2 TB
Ağırlık
3 kg, Güç kaynağı: 359 g
Fiyat
1399 €
Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
Chi Mei N173HGE-E11 / CMN1735 tested with X-Rite i1Pro 2
Maksimum: 296 cd/m² (Nits) Ortalama: 267.7 cd/m² Minimum: 16 cd/m²Aydınlatma: 82 %
Batarya modunda parlaklık: 289 cd/m²
Kontrast: 1156:1 (Siyah: 0.25 cd/m²)
ΔE Color 6.49 | 0.5-29.43 Ø4.91
ΔE Greyscale 7.8 | 0.5-98 Ø5.2

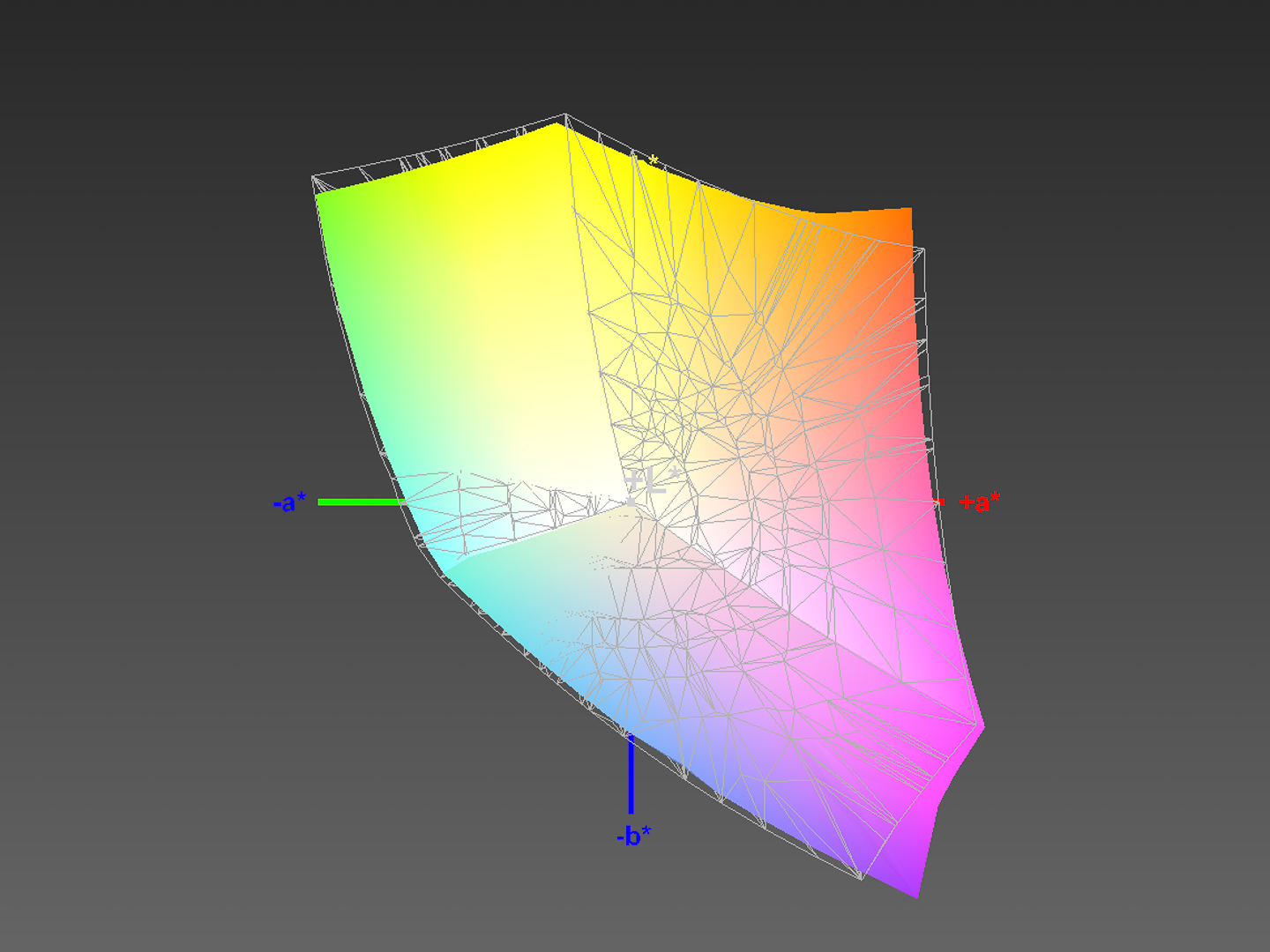

95% sRGB (Argyll 1.6.3 3D)

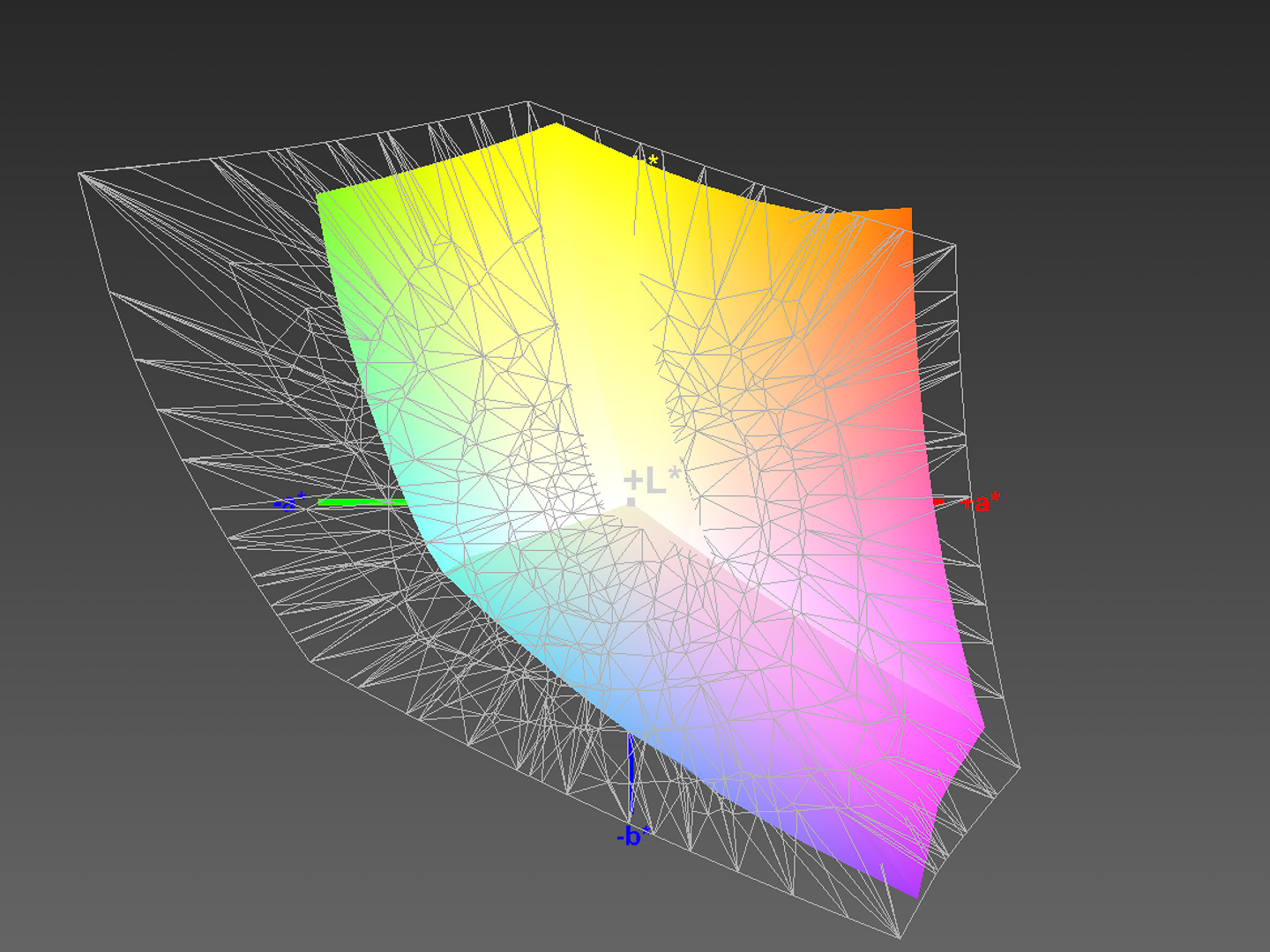

60% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.3% sRGB (Argyll 2.2.0 3D)
64.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.6
| Asus GL752VW-T4168T | Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | HP Envy 17-n107ng | MSI PE70-2QEi581 | Lenovo Ideapad Y700 17ISK 80Q0 | |
|---|---|---|---|---|---|
| Display | 0% | 2% | -5% | -4% | |
| Display P3 Coverage | 64.9 | 67 3% | 65.7 1% | 66.6 3% | 67.4 4% |
| sRGB Coverage | 95.3 | 91.3 -4% | 97.2 2% | 84.6 -11% | 84.8 -11% |
| AdobeRGB 1998 Coverage | 65.7 | 66.7 2% | 67.6 3% | 61.9 -6% | 62 -6% |
| Response Times | -30% | -46% | -37% | ||
| Response Time Grey 50% / Grey 80% * | 44 ? | 58 ? -32% | 49 ? -11% | 51.6 ? -17% | |
| Response Time Black / White * | 22 ? | 28 ? -27% | 32 ? -45% | 34.4 ? -56% | |
| PWM Frequency | 1020 ? | 198 ? -81% | |||
| Screen | 15% | -32% | -9% | 13% | |
| Brightness middle | 289 | 346 20% | 341 18% | 305 6% | 349.7 21% |
| Brightness | 268 | 326 22% | 325 21% | 265 -1% | 332 24% |
| Brightness Distribution | 82 | 88 7% | 91 11% | 79 -4% | 90 10% |
| Black Level * | 0.25 | 0.32 -28% | 1.05 -320% | 0.5 -100% | 0.304 -22% |
| Contrast | 1156 | 1081 -6% | 325 -72% | 610 -47% | 1150 -1% |
| Colorchecker dE 2000 * | 6.49 | 4.01 38% | 4.6 29% | 4.83 26% | 3.99 39% |
| Colorchecker dE 2000 max. * | 11.45 | 8.74 24% | |||
| Greyscale dE 2000 * | 7.8 | 3.58 54% | 6.08 22% | 3.29 58% | 3.34 57% |
| Gamma | 2.6 85% | 2.23 99% | 2.43 91% | 2.39 92% | 2.23 99% |
| CCT | 8187 79% | 6426 101% | 7627 85% | 7080 92% | 6111 106% |
| Color Space (Percent of AdobeRGB 1998) | 60 | 62 3% | 56 -7% | 55.8 -7% | |
| Color Space (Percent of sRGB) | 95 | 97 2% | 84 -12% | 84.8 -11% | |
| Total Average (Program / Settings) | -5% /
4% | -25% /
-28% | -7% /
-8% | -9% /
3% |
* ... smaller is better
Display Response Times
ℹ

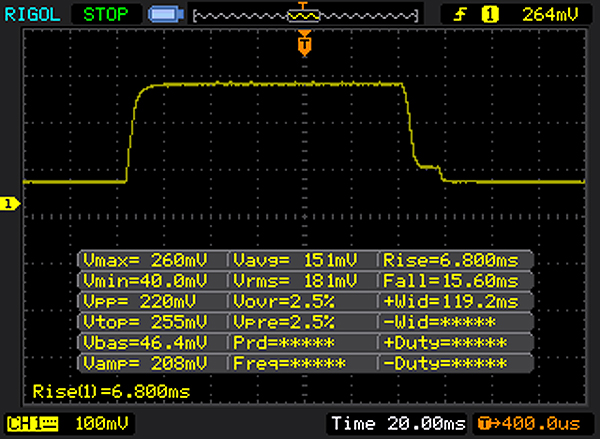

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 22 ms ... rise ↗ and fall ↘ combined | ↗ 7 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 44 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

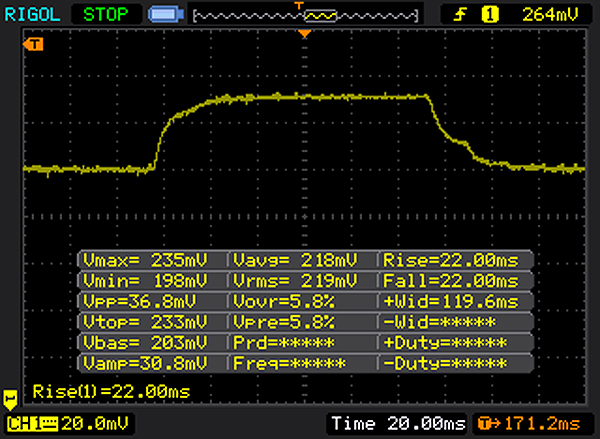

| ↔ Response Time 50% Grey to 80% Grey | ||
| 44 ms ... rise ↗ and fall ↘ combined | ↗ 22 ms rise |  |
| ↘ 22 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 71 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

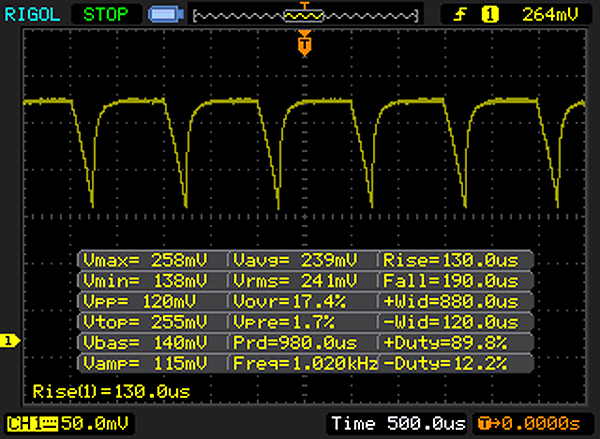

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 1020 Hz | ≤ 90 % brightness setting |  |
The display backlight flickers at 1020 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 1020 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| PCMark 7 Score | 5544 puan | |
| PCMark 8 Home Score Accelerated v2 | 3434 puan | |
| PCMark 8 Creative Score Accelerated v2 | 4349 puan | |
| PCMark 8 Work Score Accelerated v2 | 4648 puan | |
Yardım | ||
Micron M600 MTFDDAV256MBF mSATA
Sequential Read:
489.7 MB/s
Sequential Write:
448 MB/s
512K Read:
434.7 MB/s
512K Write:
434.7 MB/s
4K Read:
27.76 MB/s
4K Write:
79.4 MB/s
4K QD32 Read:
363.2 MB/s
4K QD32 Write:
301 MB/s
| 3DMark 11 - 1280x720 Performance GPU (sort by value) | |
| Asus GL752VW-T4168T | |
| Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | |
| HP Envy 17-n107ng | |
| MSI PE70-2QEi581 | |
| Lenovo Ideapad Y700 17ISK 80Q0 | |
| 3DMark | |
| 1920x1080 Fire Strike Graphics (sort by value) | |
| Asus GL752VW-T4168T | |
| Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | |
| HP Envy 17-n107ng | |
| Lenovo Ideapad Y700 17ISK 80Q0 | |
| 1280x720 Cloud Gate Standard Graphics (sort by value) | |
| Asus GL752VW-T4168T | |
| Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | |
| HP Envy 17-n107ng | |
| Lenovo Ideapad Y700 17ISK 80Q0 | |
| 3DMark 11 Performance | 5327 puan | |
| 3DMark Cloud Gate Standard Score | 16847 puan | |
| 3DMark Fire Strike Score | 3913 puan | |
Yardım | ||
| düşük | orta | yüksek | ultra | |
|---|---|---|---|---|
| Rainbow Six Siege (2015) | 105 | 55.5 | 45.6 | |
| Just Cause 3 (2015) | 63.5 | 33.8 | 28.9 |
Ses yüksekliği
| Boşta |
| 32 / 32 / 32 dB |
| HDD |
| 32.9 dB |

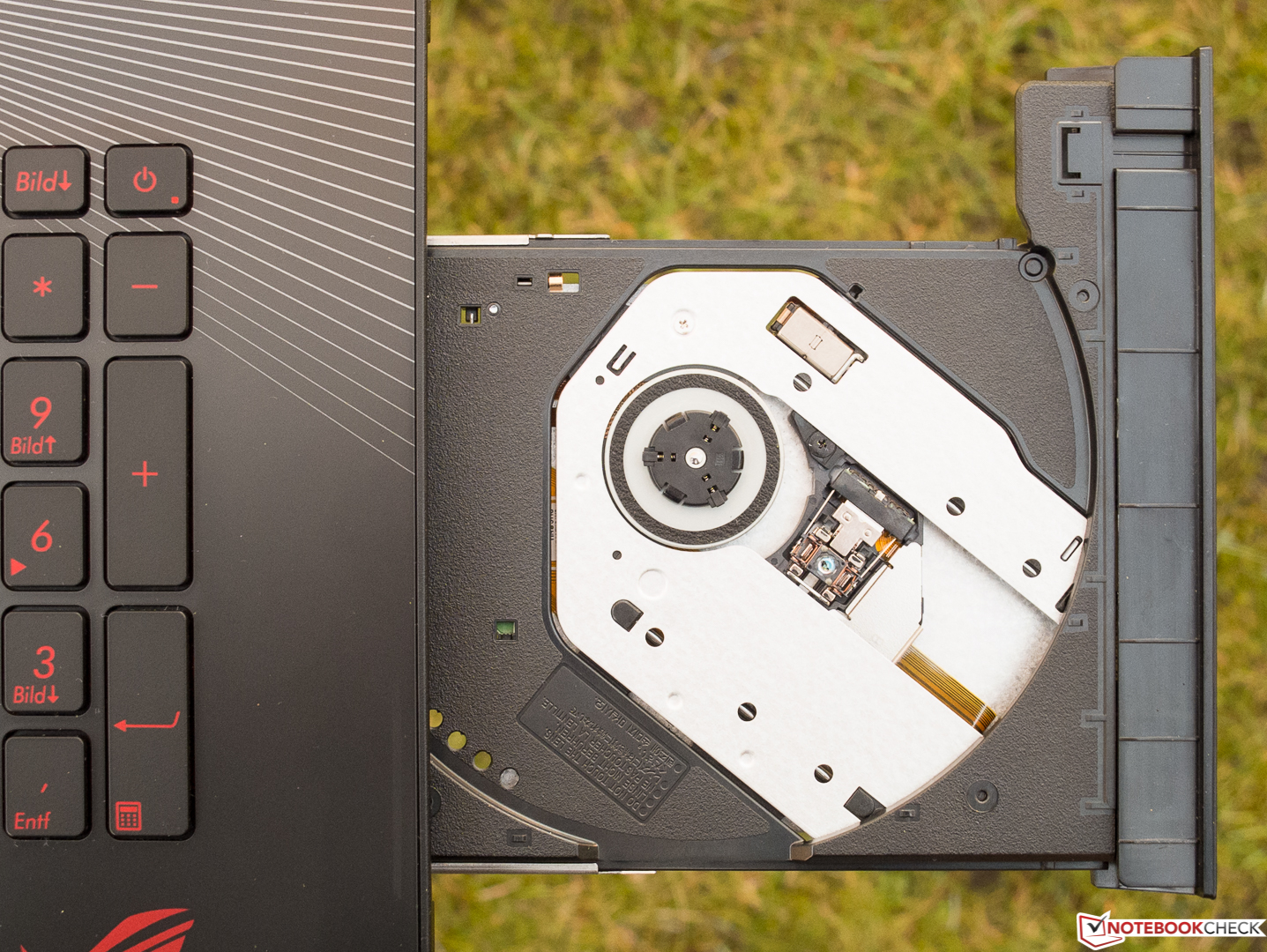

| DVD |
| 36.2 / dB |
| Çalışırken |
| 43.8 / 44 dB |
 | ||
30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm uzaklık) environment noise: 30.5 dB(A) | ||
(±) The average temperature for the upper side under maximal load is 33.7 °C / 93 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 44.1 °C / 111 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 44.8 °C / 113 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 44.1 °C / 111.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-15.3 °C / -27.6 F).
(±) The maximum temperature on the upper side is 44.1 °C / 111 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 44.8 °C / 113 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 44.1 °C / 111.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-15.3 °C / -27.6 F).
| Asus GL752VW-T4168T GeForce GTX 960M, 6700HQ, Micron M600 MTFDDAV256MBF mSATA | Acer Aspire V Nitro Black Edition VN7-792G-74Q4 GeForce GTX 960M, 6700HQ, Toshiba MQ02ABD100H | HP Envy 17-n107ng GeForce GTX 950M, 6700HQ, Samsung SSD PM851 MZNTE512HMJH | MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT | |
|---|---|---|---|---|
| Power Consumption | 21% | 35% | -29% | |
| Idle Minimum * | 14.5 | 5.8 60% | 5.5 62% | 19.1 -32% |
| Idle Average * | 19.3 | 9 53% | 10.8 44% | 24.3 -26% |
| Idle Maximum * | 19.5 | 14.7 25% | 11 44% | 29.2 -50% |
| Load Average * | 78 | 85 -9% | 72 8% | 88.6 -14% |
| Load Maximum * | 100 | 121.5 -22% | 85 15% | 122 -22% |
* ... smaller is better
Anlık tüketim
| Kapalı / Bekleme modu | 2.8 / 3.9 Watt |
| Boşta | 14.5 / 19.3 / 19.5 Watt |
| Çalışırken |
78 / 100 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Artılar
+ Birçok farklı konfigrasyon
+ Sağlam ve iyi yapılmış kasa
+ USB Typc-C, DisplayPort
+ Hızlı kart okuyucu
+ İyi arayüzler
+ Çok iyi kontrast
+ Çok iyi renk kapsamı
+ Çok iyi Turbo kullanımı
Eksiler
- Batarya dışarıdan erişilebilir değil

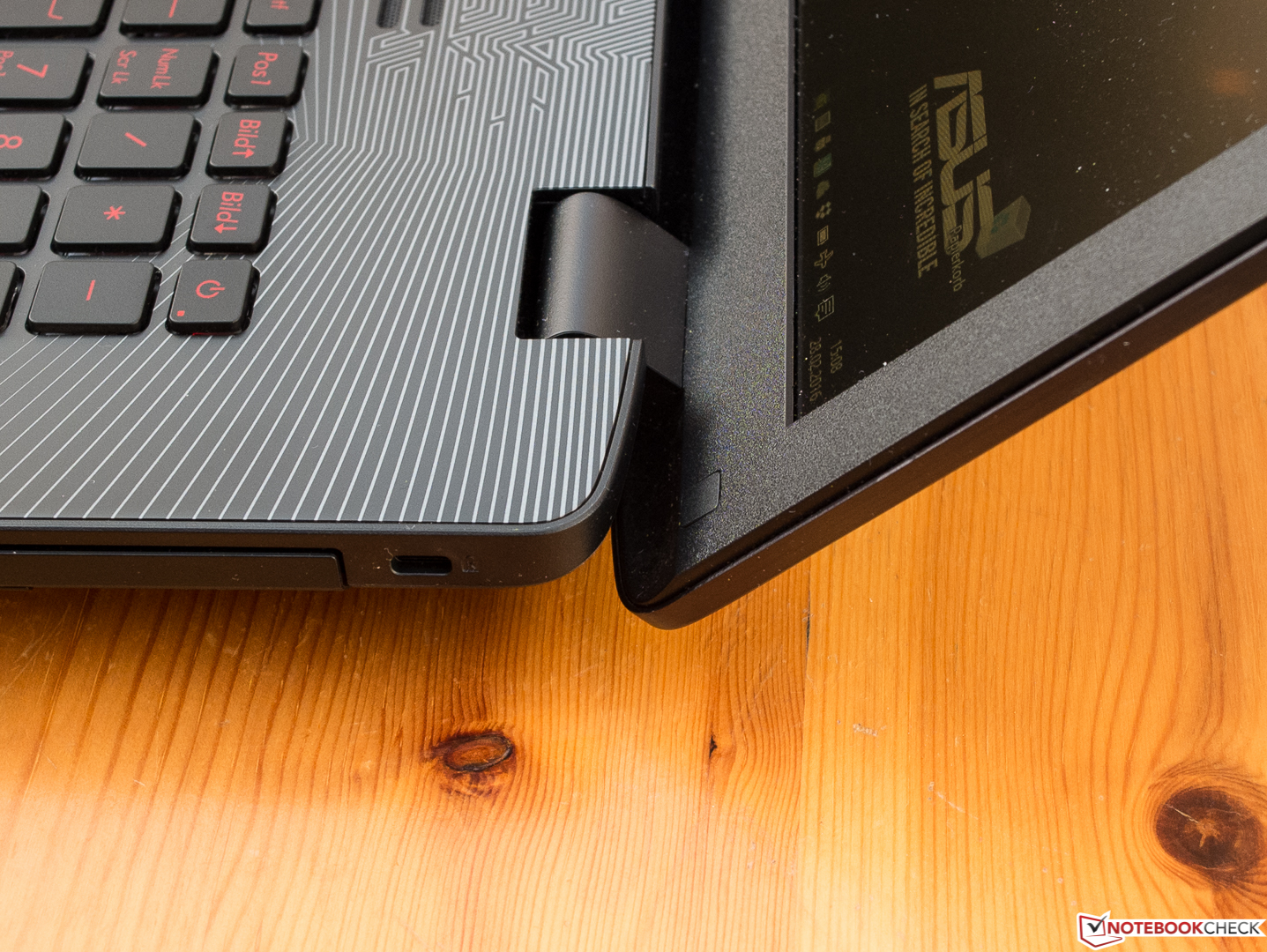

- Titreme esnasında menteşeler oynuyor
- Portlar ön tarafta
- IPS yok
- Arka aydınlatmadaki kayıp rahatsız edici olabiliyor
- 3DMark 11 testinde batarya kullanımında tekrarlanabilir çakılmalar

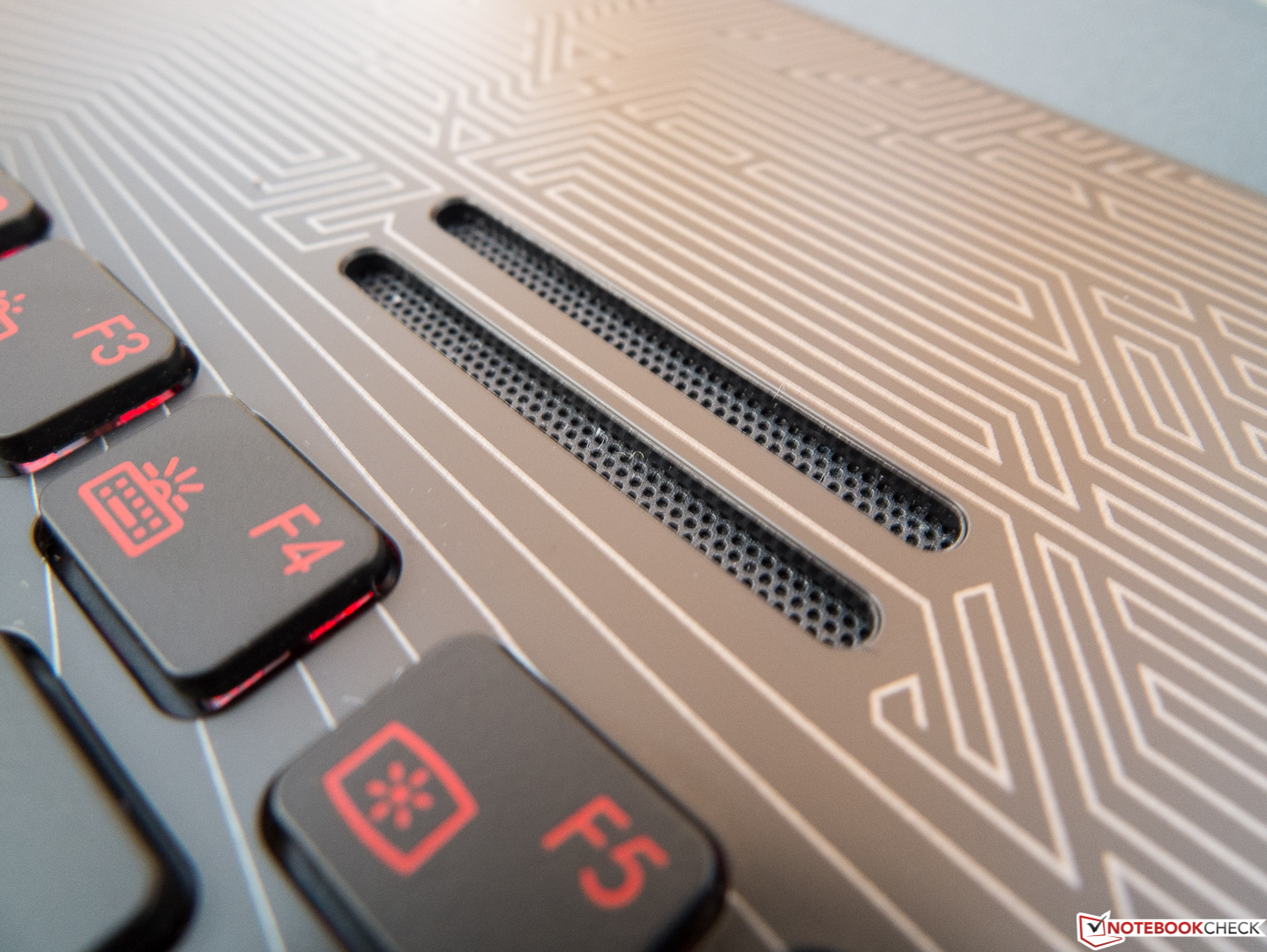

- Zayıf ses sistemi
- Bekleme modunda güç tüketimi çok fazla
GL752VW, Asus için genel manada bir başarı. IPS ekranın olmasını, en azından opsiyonel olmasını çok isterdik. En azından TN ekran en iyi modellerden biri. Ses sisteminin multimedia bir cihaz için zayıf olması da hayal kırıklığı yaratıyor. Ama bakım yönünden iyi yaklaşımlar olduğu görülebiliyor.
Makul fiyata sahip Asus GL752VW modeli herhangi bir büyük soruna sahip değil. Arayüzler ve teknik bileşenler tatmin edici.
Yazının orjinali için tıklayın.
