Kısa inceleme: Dell Latitude 14 Rugged 5404
| |||||||||||||||||||||||||
AU Optronics AUO333C B140XTN tested with X-Rite i1Pro 2
Maksimum: 753 cd/m² (Nits) Ortalama: 699.6 cd/m²Aydınlatma: 84 %
Batarya modunda parlaklık: 751 cd/m²
Kontrast: 341:1 (Siyah: 2.2 cd/m²)
ΔE Color 13.47 | 0.5-29.43 Ø4.91
ΔE Greyscale 14.48 | 0.5-98 Ø5.2
34% AdobeRGB 1998 (Argyll 1.6.3 3D)
36.88% AdobeRGB 1998 (Argyll 2.2.0 3D)
53.7% sRGB (Argyll 2.2.0 3D)
35.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.86
| Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142 | Bullman C-Klasse 3 SRD 14 Touch 3632QM HD Graphics 4000, 3632QM, Plextor PX-256M5M | Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11 | |
|---|---|---|---|
| Display | 3% | 2% | |
| Display P3 Coverage | 35.7 | 36.63 3% | 36.35 2% |
| sRGB Coverage | 53.7 | 54.7 2% | 54.5 1% |
| AdobeRGB 1998 Coverage | 36.88 | 37.88 3% | 37.59 2% |
| Screen | -14% | 26% | |
| Brightness middle | 751 | 539 -28% | 529 -30% |
| Brightness | 700 | 531 -24% | 482 -31% |
| Brightness Distribution | 84 | 71 -15% | 83 -1% |
| Black Level * | 2.2 | 3.59 -63% | 0.61 72% |
| Contrast | 341 | 150 -56% | 867 154% |
| Colorchecker dE 2000 * | 13.47 | 8.93 34% | 10.64 21% |
| Greyscale dE 2000 * | 14.48 | 8.83 39% | 11.79 19% |
| Gamma | 2.86 77% | 2.44 90% | 2.73 81% |
| CCT | 15544 42% | 6889 94% | 6893 94% |
| Color Space (Percent of AdobeRGB 1998) | 34 | 35 3% | 34.85 3% |
| Total Average (Program / Settings) | -6% /
-9% | 14% /
19% |
* ... smaller is better
| Cinebench R11.5 | |
| Dell Latitude 14 Rugged - 5404 | |
| CPU Single 64Bit | |
| CPU Multi 64Bit | |
| Bullman C-Klasse 3 SRD 14 Touch 3632QM | |
| CPU Single 64Bit | |
| CPU Multi 64Bit | |
| Dell Latitude 14 7414 Rugged Extreme | |
| CPU Single 64Bit | |
| CPU Multi 64Bit | |
| Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142 | Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11 | |
|---|---|---|
| PCMark 8 | 15% | |
| Home Score Accelerated v2 | 2221 | 2688 21% |
| Creative Score Accelerated v2 | 2267 | 2482 9% |
| Work Score Accelerated v2 | 3354 | 3864 15% |
| PCMark 7 - Score (sort by value) | |
| Dell Latitude 14 Rugged - 5404 | |
| Bullman C-Klasse 3 SRD 14 Touch 3632QM | |
| PCMark 7 Score | 2629 puan | |
| PCMark 8 Home Score Accelerated v2 | 2221 puan | |
| PCMark 8 Creative Score Accelerated v2 | 2267 puan | |
| PCMark 8 Work Score Accelerated v2 | 3354 puan | |
Yardım | ||
Seagate Momentus Thin ST500LT012-1DG142
Sequential Read:
91.4 MB/s
Sequential Write:
86.7 MB/s
512K Read:
19.58 MB/s
512K Write:
32.59 MB/s
4K Read:
0.315 MB/s
4K Write:
0.56 MB/s
4K QD32 Read:
0.668 MB/s
4K QD32 Write:
0.588 MB/s
| 3DMark | |
| 1280x720 Ice Storm Standard Score (sort by value) | |
| Dell Latitude 14 Rugged - 5404 | |
| Dell Latitude 14 7414 Rugged Extreme | |
| Lenovo IdeaPad S510p 59-405717 | |
| 1280x720 Cloud Gate Standard Score (sort by value) | |
| Dell Latitude 14 Rugged - 5404 | |
| Dell Latitude 14 7414 Rugged Extreme | |
| Lenovo IdeaPad S510p 59-405717 | |
| 3DMark 11 Performance | 787 puan | |
| 3DMark Ice Storm Standard Score | 36888 puan | |
| 3DMark Cloud Gate Standard Score | 4058 puan | |
| 3DMark Fire Strike Score | 523 puan | |
Yardım | ||
| düşük | orta | yüksek | ultra | |
|---|---|---|---|---|
| Sims 4 (2014) | 140.3 | 26 | ||
| F1 2014 (2014) | 40 | 26 | ||
| Dragon Age: Inquisition (2014) | 13.1 | 6 |
| Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142 | Bullman C-Klasse 3 SRD 14 Touch 3632QM HD Graphics 4000, 3632QM, Plextor PX-256M5M | Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11 | |
|---|---|---|---|
| Noise | 2% | 11% | |
| Idle Minimum * | 31.7 | 29.6 7% | 27.8 12% |
| Idle Average * | 31.7 | 29.6 7% | 27.8 12% |
| Idle Maximum * | 31.7 | 29.6 7% | 27.8 12% |
| Load Average * | 33.6 | 35.2 -5% | 31.7 6% |
| Load Maximum * | 35.5 | 37.8 -6% | 31.7 11% |
* ... smaller is better
Ses yüksekliği
| Boşta |
| 31.7 / 31.7 / 31.7 dB |
| HDD |
| 31.7 dB |
| DVD |
| 37.7 / dB |
| Çalışırken |
| 33.6 / 35.5 dB |
 | ||
30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm uzaklık) | ||
(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 35.4 °C / 96 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 35 °C / 95 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.2 °C / 82.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.6 °C / -1.1 F).
(+) The maximum temperature on the upper side is 35.4 °C / 96 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 35 °C / 95 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.2 °C / 82.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.6 °C / -1.1 F).
Anlık tüketim
| Kapalı / Bekleme modu | 0 / 0.3 Watt |
| Boşta | 4.3 / 12.2 / 11.5 Watt |
| Çalışırken |
36.8 / 36 Watt |

| |
Key:
min: ,
med: ,
max: Voltcraft VC 940 | |
| Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142 | Bullman C-Klasse 3 SRD 14 Touch 3632QM HD Graphics 4000, 3632QM, Plextor PX-256M5M | Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11 | |
|---|---|---|---|
| Battery Runtime | 41% | -20% | |
| Reader / Idle | 820 | 914 11% | 505 -38% |
| WiFi | 470 | 683 45% | 417 -11% |
| Load | 132 | 220 67% | 117 -11% |
| H.264 | 328 |

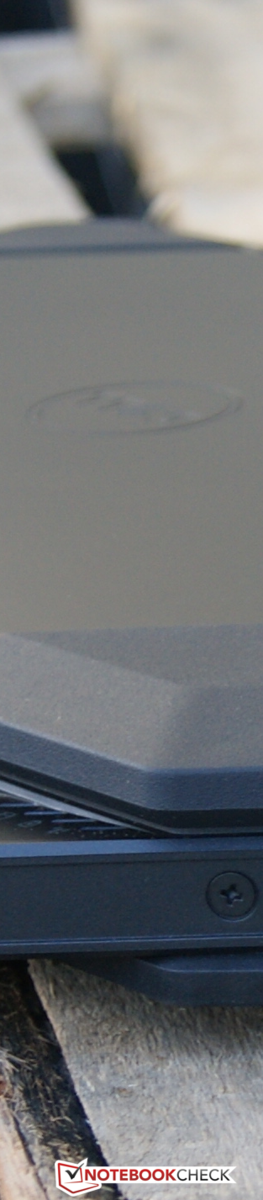

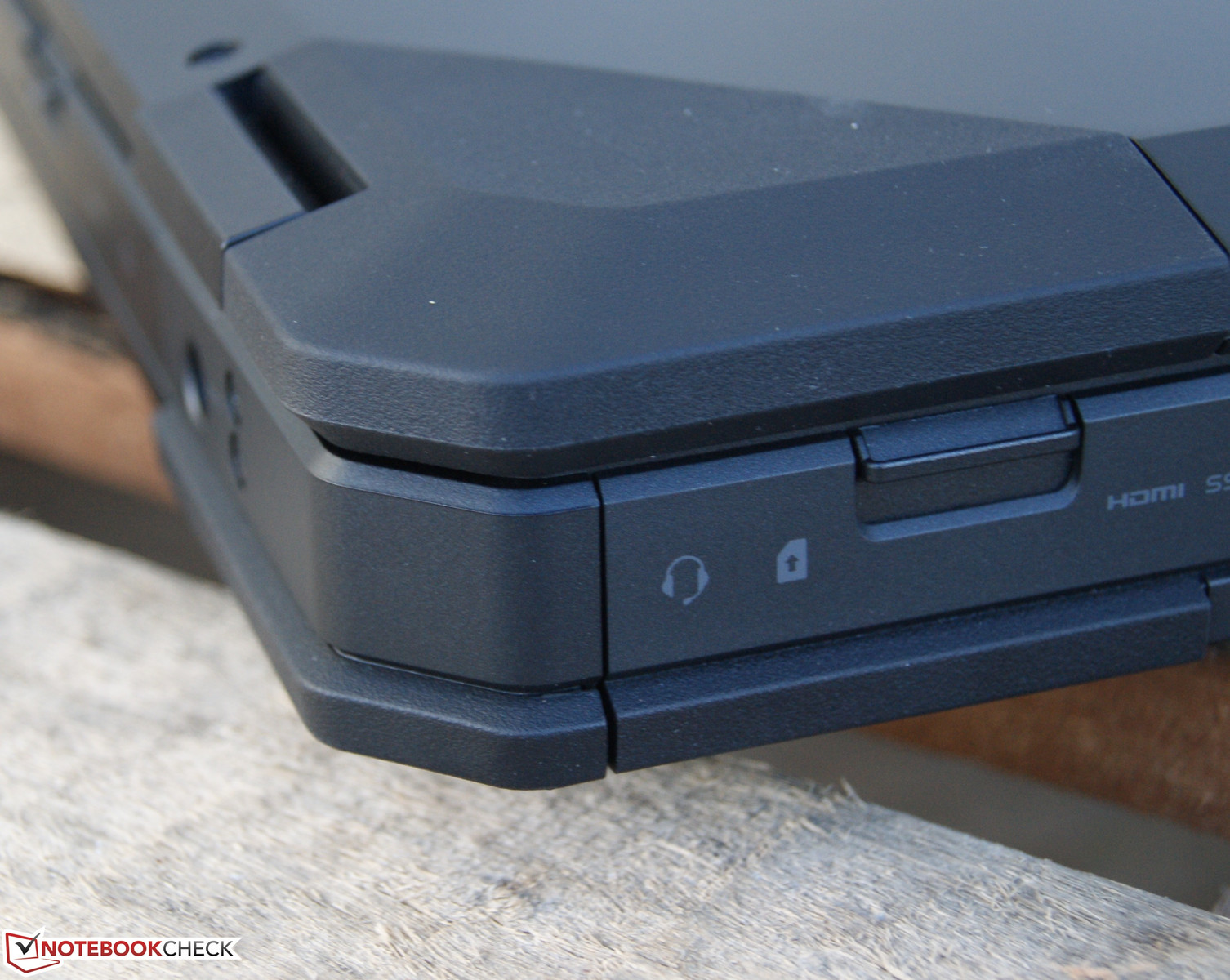

Sağlamlık. Dell'in Latitude Rugged 5404 modeli testimizde kendisini böyle sunuyor. Bu yönden Dell mükemmel bir iş çıkarmış. Klavye kullanımı çok rahat. TrackPad tamamen elden geçmiş ve Extreme serisi ile kıyaslanabilir. Bu yönden cihazda herhangi bir eksiklik yok. Kasa çok sağlam ve birçok endüstriyel gereksinimi sağlıyor. Ancak bazı kesintiler yapılmış. Kapanma mekanizması ve kapakların kalınlığı Extreme serisinde olan yok edilemez görünümünü kaybetmiş gibi.
Ekran yönünden Dell daha çok dış mekan kullanımına odaklanmış. Oldukça yüksek parlaklık ve mat ekran neredeyse her ortamda kullanımı mümkün kılıyor. Ancak kontrast ve renk kaybını bu noktada kabullenmek gerekiyor. SSD daha tercih edilebilir ve istenen bir disk seçimi olurdu.
Bu cihaz için en önemli etmenlerden biri batarya kullanım süresi. Testmizde bir günlük çalışma süresinin sunulduğunu gördük, ancak daha geniş bir batarya veya opsiyonel harici şarj istasyonu Rugged modelinin daha uzun kullanımına olanak sağlayacaktır.
Yazının orjinali için tıklayın.
