Kısa inceleme: Dell Precision 5510 Workstation

Name: Dell Precision 5510
Brand: Dell

XPS 15 profesyoneller için. Dell'in mobile Precision 5510 modeli XPS 15 modelinin daha profesyonel kullanıcıları hedefleyen hali. Asıl fark Nvidia'nın Quadro M1000M kartının özellikle mühendislik yazılımları ve sertifikalı uygulamalarda sunduğu performans.

Tobias Winkler, Published 01/20/2016 🇺🇸 🇩🇪 ...

Business Haswell Laptop / Notebook Touchscreen Windows Workstation

Test device courtesy of Dell Deutschland

Download your licensed rating image as PNG / SVG

Dell Precision 5510 (Precision 5000 Seri)

İşlemci

Intel Xeon E3-1505M v5 4 x 2.8 - 3.7 GHz, Skylake

Grafik kartı

NVIDIA Quadro M1000M - 2048 MB VRAM, Çekirdek: 993 MHz, Bellek: 1253 MHz, GPU Boost 1072 MHz, Forceware 354.56, Nvidia Optimus mit Intel HD Graphics P530

Bellek

16 GB

, DDR4-2133 Micron, 2 slots filled with 8 GB each

Görüntü

15.60 inç 16:9, 3840 x 2160 pixel, multitouch, SHP143E, 7PHPT_LQ156D1, IGZO LED, parlak: evet

Anakart

Intel HM170 (Skylake PCH-H)

Harddisk

SK hynix SC920 512 GB, 512 GB

Ses kartı

Realtek High Definition Audio

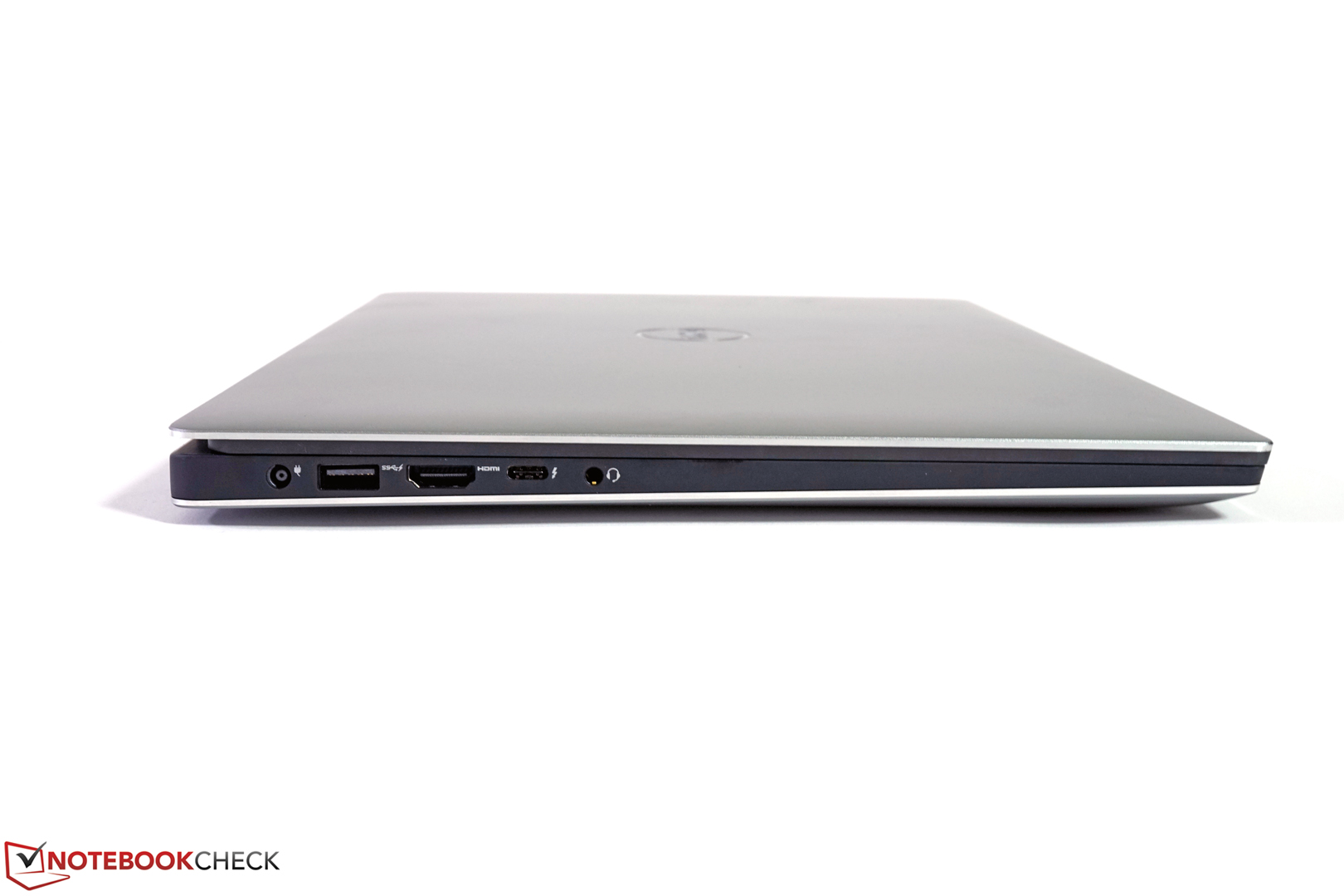

Bağlantılar

2 USB 3.0, 1 USB 3.1 Gen2, 1 HDMI, 1 Kensington Lock, Ses çıkışları: Audio combo in/out, Kart okuyucular: SD, SDXC, SDHC, UHS-11

Network

Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Boyut

yükseklik x genişlik x derinlik (mm): 11.5 x 357 x 235

Batarya

56 Wh Lithium-Ion

İşletim sistemi

Microsoft Windows 7 Professional (64 Bit) + Windows 8 Pro (64 Bit)

Camera

Webcam: 720p

Ek özellikler

Klavye: chiclet, Klavye ışığı: evet, 36 Ay Garanti

Ağırlık

2.02 kg, Güç kaynağı: 440 g

Fiyat

3200 Euro

Bağlantılar

Dell anasayfa
Dell notebook kısmı

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Picture Dell (left to right).: Dell Power Companion (external battery), Dell Premier case, Dell USB Type-C adapter


377 cd/m²	370 cd/m²	361 cd/m²
344 cd/m²	391 cd/m²	350 cd/m²
339 cd/m²	367 cd/m²	348 cd/m²

Parlaklığın yayılımı

SHP143E, 7PHPT_LQ156D1 tested with X-Rite i1Pro 2

Maksimum: 391 cd/m² (Nits) Ortalama: 360.8 cd/m²
Aydınlatma: 87 %
Batarya modunda parlaklık: 387 cd/m²
Kontrast: 978:1 (Siyah: 0.4 cd/m²)
ΔE Color 4.85 | 0.5-29.43 Ø4.92
ΔE Greyscale 4.01 | 0.5-98 Ø5.2
100% sRGB (Argyll 1.6.3 3D)
96% AdobeRGB 1998 (Argyll 1.6.3 3D)
99.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
88.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.18

Download ICC Dosyası (X-Rite i1Pro 2)

Cinebench R10 Shading 32Bit

6845

Cinebench R10 Rendering Multiple CPUs 32Bit

21436

Cinebench R10 Rendering Single 32Bit

5367

Cinebench R10 Shading 64Bit

6845 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

28057 Points

Cinebench R10 Rendering Single CPUs 64Bit

6890 Points

Cinebench R11.5 CPU Multi 64Bit

7.93 Points

Cinebench R11.5 OpenGL 64Bit

85.9 fps

Cinebench R11.5 CPU Single 64Bit

1.6 Points

Cinebench R15 CPU Multi 64Bit

732 Points

Cinebench R15 CPU Single 64Bit

142 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

98.1 fps

Yardım

... kıyaslama

PCMark Vantage Result		19915 puan
PCMark 7 Score		5317 puan
PCMark 8 Home Score Accelerated v2		3941 puan
PCMark 8 Creative Score Accelerated v2		4429 puan
PCMark 8 Work Score Accelerated v2		5100 puan
Yardım

... kıyaslama

AS SSD

SK hynix SC920 512 GB

Sequential Read: 474MB/s

Sequential Write: 389MB/s

4K Read: 17.95MB/s

4K Write: 82.2MB/s

4K-64 Read: 327MB/s

4K-64 Write: 257MB/s

Access Time Read: 0.111ms

Access Time Write: 0.74ms

Copy ISO: 387MB/s

Copy Program: 221MB/s

Copy Game: 349MB/s

Score Read: 392Points

Score Write: 378Points

Score Total: 972Points

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Dell Precision 5510	41 fps
Fujitsu Celsius H730	23.1 fps -44%
Lenovo ThinkPad W541 20EF000SGE	30.87 fps -25%
HP ZBook 15 G2	26.63 fps -35%
MSI GE62 2QC-468XPL	5.31 fps -87%
1920x1080 Tcvis (sort by value)
Dell Precision 5510	40 fps
Fujitsu Celsius H730	27.3 fps -32%
Lenovo ThinkPad W541 20EF000SGE	34.34 fps -14%
HP ZBook 15 G2	21.43 fps -46%
MSI GE62 2QC-468XPL	1.75 fps -96%
1920x1080 SolidWorks (sort by value)
Dell Precision 5510	51 fps
Fujitsu Celsius H730	38.2 fps -25%
Lenovo ThinkPad W541 20EF000SGE	41.64 fps -18%
HP ZBook 15 G2	56.1 fps +10%
MSI GE62 2QC-468XPL	12.26 fps -76%
1920x1080 Pro/ENGINEER (sort by value)
Dell Precision 5510	21 fps
Fujitsu Celsius H730	17.3 fps -18%
Lenovo ThinkPad W541 20EF000SGE	15.96 fps -24%
HP ZBook 15 G2	10.64 fps -49%
MSI GE62 2QC-468XPL	2.52 fps -88%
1920x1080 Maya (sort by value)
Dell Precision 5510	56 fps
Fujitsu Celsius H730	46.6 fps -17%
Lenovo ThinkPad W541 20EF000SGE	52 fps -7%
HP ZBook 15 G2	60.3 fps +8%
MSI GE62 2QC-468XPL	18.87 fps -66%
1920x1080 Lightwave (sort by value)
Dell Precision 5510	54 fps
Fujitsu Celsius H730	50 fps -7%
Lenovo ThinkPad W541 20EF000SGE	47.6 fps -12%
HP ZBook 15 G2	75.8 fps +40%
MSI GE62 2QC-468XPL	21.87 fps -59%
1920x1080 Ensight (sort by value)
Dell Precision 5510	39 fps
Fujitsu Celsius H730	17.4 fps -55%
Lenovo ThinkPad W541 20EF000SGE	24.64 fps -37%
HP ZBook 15 G2	25.07 fps -36%
MSI GE62 2QC-468XPL	35.12 fps -10%
1920x1080 Catia (sort by value)
Dell Precision 5510	54 fps
Fujitsu Celsius H730	34.5 fps -36%
Lenovo ThinkPad W541 20EF000SGE	39.12 fps -28%
HP ZBook 15 G2	35.61 fps -34%
MSI GE62 2QC-468XPL	18.49 fps -66%

Legend

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

MSI GE62 2QC-468XPL Intel Core i7-5700HQ, NVIDIA GeForce GTX 960M, Samsung SSD PM851 256 GB MZNTE256HMHP

SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Dell Precision 5510	62 fps
Fujitsu Celsius H730	32.9 fps -47%
Lenovo ThinkPad W541 20EF000SGE	22.41 fps -64%
HP ZBook 15 G2	39.72 fps -36%
Dell XPS 15 2016 9550	22.03 fps -64%
1900x1060 Siemens NX (snx-02) (sort by value)
Dell Precision 5510	31 fps
Fujitsu Celsius H730	15.5 fps -50%
Lenovo ThinkPad W541 20EF000SGE	21.35 fps -31%
HP ZBook 15 G2	29.69 fps -4%
Dell XPS 15 2016 9550	2.39 fps -92%
1900x1060 Showcase (showcase-01) (sort by value)
Dell Precision 5510	20 fps
Fujitsu Celsius H730	9.1 fps -54%
Lenovo ThinkPad W541 20EF000SGE	11.23 fps -44%
HP ZBook 15 G2	16.36 fps -18%
Dell XPS 15 2016 9550	21.73 fps +9%
1900x1060 Medical (medical-01) (sort by value)
Dell Precision 5510	12 fps
Fujitsu Celsius H730	4.9 fps -59%
Lenovo ThinkPad W541 20EF000SGE	2.16 fps -82%
HP ZBook 15 G2	7.82 fps -35%
Dell XPS 15 2016 9550	12.3 fps +3%
1900x1060 Maya (maya-04) (sort by value)
Dell Precision 5510	30 fps
Fujitsu Celsius H730	14.2 fps -53%
Lenovo ThinkPad W541 20EF000SGE	15.82 fps -47%
HP ZBook 15 G2	24.92 fps -17%
Dell XPS 15 2016 9550	15.37 fps -49%
1900x1060 Energy (energy-01) (sort by value)
Dell Precision 5510	0.69 fps
Fujitsu Celsius H730	0.33 fps -52%
Lenovo ThinkPad W541 20EF000SGE	0.17 fps -75%
HP ZBook 15 G2	0.44 fps -36%
Dell XPS 15 2016 9550	0.74 fps +7%
1900x1060 Creo (creo-01) (sort by value)
Dell Precision 5510	34 fps
Fujitsu Celsius H730	16.2 fps -52%
Lenovo ThinkPad W541 20EF000SGE	19.14 fps -44%
HP ZBook 15 G2	19.64 fps -42%
Dell XPS 15 2016 9550	10.72 fps -68%
1900x1060 Catia (catia-04) (sort by value)
Dell Precision 5510	37 fps
Fujitsu Celsius H730	16.6 fps -55%
Lenovo ThinkPad W541 20EF000SGE	19.6 fps -47%
HP ZBook 15 G2	23.62 fps -36%
Dell XPS 15 2016 9550	15.76 fps -57%

Legend

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

Dell XPS 15 2016 9550 Intel Core i5-6300HQ, NVIDIA GeForce GTX 960M, WDC WD10SPCX-75KHST0 + LiteON CS1-SP32-11 M.2 2242 32GB

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Dell Precision 5510	534 Samples/s
Fujitsu Celsius H730	108 Samples/s -80%
HP Z1 G2 G1X47EA	74 Samples/s -86%
Lenovo ThinkPad W541 20EF000SGE	68 Samples/s -87%
HP ZBook 15 G2	375 Samples/s -30%
Entry Workstation AMD FirePro W4100	262 Samples/s -51%
Entry Workstation AMD FirePro W2100	137 Samples/s -74%
Sala GPUs-only (sort by value)
Dell Precision 5510	889 Samples/s
Fujitsu Celsius H730	221 Samples/s -75%
HP Z1 G2 G1X47EA	158 Samples/s -82%
Lenovo ThinkPad W541 20EF000SGE	146 Samples/s -84%
HP ZBook 15 G2	675 Samples/s -24%
Entry Workstation AMD FirePro W4100	478 Samples/s -46%
Entry Workstation AMD FirePro W2100	243 Samples/s -73%

SiSoft Sandra 2016
Image Processing (sort by value)
Dell Precision 5510	127.5 MPix/s
HP Z1 G2 G1X47EA	44.47 MPix/s -65%
Entry Workstation AMD FirePro W2100	37.08 MPix/s -71%
GP Cryptography (Higher Security AES256+SHA2-512) (sort by value)
Dell Precision 5510	7.38 GB/s
HP Z1 G2 G1X47EA	1.77 GB/s -76%
Entry Workstation AMD FirePro W2100	0.82 GB/s -89%
GP Financial Analysis (FP High/Double Precision) (sort by value)
Dell Precision 5510	17 KOPT/s
HP Z1 G2 G1X47EA	14.49 KOPT/s -15%
Entry Workstation AMD FirePro W2100	4.07 KOPT/s -76%

Legend

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

Entry Workstation AMD FirePro W4100 Intel Core i5-4430, AMD FirePro W4100, Intel SSD 320 Series SSDSA2CW120G3

Entry Workstation AMD FirePro W2100 Intel Core i5-4430, AMD FirePro W2100, Intel SSD 320 Series SSDSA2CW120G3

3DMark 06 Standard Score		24573 puan
3DMark 11 Performance		4648 puan
3DMark Ice Storm Standard Score		41248 puan
3DMark Cloud Gate Standard Score		16180 puan
3DMark Fire Strike Score		3344 puan
Yardım

... kıyaslama

Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 5510	43.4 fps
HP Z1 G2 G1X47EA	20.4 fps -53%
Entry Workstation AMD FirePro W4100	16.5 fps -62%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 5510	44.9 fps
HP Z1 G2 G1X47EA	22.5 fps -50%
Entry Workstation AMD FirePro W4100	20.1 fps -55%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8 (sort by value)
Dell Precision 5510	18.7 fps
1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Dell Precision 5510	16.2 fps
Entry Workstation AMD FirePro W4100	7.1 fps -56%

Legend

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Entry Workstation AMD FirePro W4100 Intel Core i5-4430, AMD FirePro W4100, Intel SSD 320 Series SSDSA2CW120G3

	düşük	orta	yüksek	ultra	4K
Tomb Raider (2013)	279	144	98	43
BioShock Infinite (2013)	195	111	100	38
Metro: Last Light (2013)		83	49	25
GRID 2 (2013)	195	153	136	43
Company of Heroes 2 (2013)	54	48	34	12
Total War: Rome II (2013)	166	126	107	20
Thief (2014)	78	53	45	23
GRID: Autosport (2014)	248	143	82	43
Middle-earth: Shadow of Mordor (2014)	169	131	34	26
Ryse: Son of Rome (2014)	76	52	23	21
F1 2014 (2014)	133	128	123	84
Dirt Rally (2015)	261	115	62	29	20
The Witcher 3 (2015)	54	38	17	11	7
Anno 2205 (2015)	121	65	30	14	12

The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Dell Precision 5510	7 fps
1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Dell Precision 5510	11 fps
Nexoc G515 II	14.4 fps +31%
Acer Aspire V5-591G-71K2	11.2 fps +2%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Dell Precision 5510	17 fps
HP Z1 G2 G1X47EA	9 fps -47%
Nexoc G515 II	26.6 fps +56%
Acer Aspire V5-591G-71K2	19.7 fps +16%
1366x768 Medium Graphics & Postprocessing (sort by value)
Dell Precision 5510	38 fps
HP Z1 G2 G1X47EA	18 fps -53%
Nexoc G515 II	50.7 fps +33%
Acer Aspire V5-591G-71K2	37.6 fps -1%
1024x768 Low Graphics & Postprocessing (sort by value)
Dell Precision 5510	54 fps
HP Z1 G2 G1X47EA	26 fps -52%
Acer Aspire V5-591G-71K2	60.9 fps +13%

Dirt Rally
3840x2160 High Preset (sort by value)
Dell Precision 5510	20 fps
1920x1080 Ultra Preset AA:4x MS (sort by value)
Dell Precision 5510	29 fps
Nexoc G515 II	33.9 fps +17%
Acer Aspire V5-591G-71K2	24.6 fps -15%
1920x1080 High Preset (sort by value)
Dell Precision 5510	62 fps
HP Z1 G2 G1X47EA	25 fps -60%
Nexoc G515 II	74.8 fps +21%
Acer Aspire V5-591G-71K2	60.2 fps -3%
1366x768 Medium Preset (sort by value)
Dell Precision 5510	115 fps
HP Z1 G2 G1X47EA	60 fps -48%
Acer Aspire V5-591G-71K2	102.9 fps -11%
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510	261 fps
HP Z1 G2 G1X47EA	225 fps -14%
Acer Aspire V5-591G-71K2	225.9 fps -13%

Anno 2205
3840x2160 High Preset AA:4x (sort by value)
Dell Precision 5510	12 fps
1920x1080 Ultra High Preset AA:8x (sort by value)
Dell Precision 5510	14 fps
Acer Aspire V5-591G-71K2	8.8 fps -37%
1920x1080 High Preset AA:4x (sort by value)
Dell Precision 5510	30 fps
HP Z1 G2 G1X47EA	14 fps -53%
Acer Aspire V5-591G-71K2	21.9 fps -27%
1366x768 Medium Preset AA:2x (sort by value)
Dell Precision 5510	65 fps
HP Z1 G2 G1X47EA	33 fps -49%
Acer Aspire V5-591G-71K2	48.9 fps -25%
1024x768 Low Preset (sort by value)
Dell Precision 5510	121 fps
HP Z1 G2 G1X47EA	54 fps -55%
Acer Aspire V5-591G-71K2	89.8 fps -26%

Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Dell Precision 5510	25 fps
SCHENKER M505	22.4 fps -10%
1366x768 High (DX11) AF:16x (sort by value)
Dell Precision 5510	49 fps
SCHENKER M505	42.1 fps -14%
1366x768 Medium (DX10) AF:4x (sort by value)
Dell Precision 5510	83 fps
SCHENKER M505	59.2 fps -29%
1024x768 Low (DX10) AF:4x (sort by value)
SCHENKER M505	61 fps

Middle-earth: Shadow of Mordor
1920x1080 Ultra Preset (HD Package) (sort by value)
Dell Precision 5510	26 fps
HP Z1 G2 G1X47EA	16 fps -38%
SCHENKER M505	17 fps -35%
1920x1080 High Preset (sort by value)
Dell Precision 5510	34 fps
HP Z1 G2 G1X47EA	17 fps -50%
SCHENKER M505	27.9 fps -18%
1344x756 Medium Preset (sort by value)
Dell Precision 5510	131 fps
HP Z1 G2 G1X47EA	34 fps -74%
SCHENKER M505	54.1 fps -59%
1280x720 Lowest Preset (sort by value)
Dell Precision 5510	169 fps
HP Z1 G2 G1X47EA	67 fps -60%
SCHENKER M505	85.4 fps -49%

Tomb Raider
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Dell Precision 5510	43 fps
Acer Aspire V5-591G-71K2	34.6 fps -20%
SCHENKER M505	33.7 fps -22%
1366x768 High Preset AA:FX AF:8x (sort by value)
Dell Precision 5510	98 fps
Acer Aspire V5-591G-71K2	71.8 fps -27%
SCHENKER M505	71.9 fps -27%
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Dell Precision 5510	144 fps
Acer Aspire V5-591G-71K2	130.2 fps -10%
SCHENKER M505	131.4 fps -9%
1024x768 Low Preset (sort by value)
Dell Precision 5510	279 fps
Acer Aspire V5-591G-71K2	272.1 fps -2%
SCHENKER M505	226.7 fps -19%

Ryse: Son of Rome
1920x1080 Very High Texture Res. + High Graphics Quality (Motion Blur & Temporal AA On, Rest Off/Disabled) AF:8x (sort by value)
Dell Precision 5510	21 fps
SCHENKER M505	19.8 fps -6%
1920x1080 High Texture Res. + High Graphics Quality (Rest Off/Disabled) AF:8x (sort by value)
Dell Precision 5510	23 fps
SCHENKER M505	21.1 fps -8%
1366x768 Medium Texture Res. + Normal Graphics Quality (Rest Off/Disabled) AF:4x (sort by value)
Dell Precision 5510	52 fps
SCHENKER M505	42.5 fps -18%
1024x768 Low Texture Res. + Low Graphics Quality (Rest Off/Disabled) AF:2x (sort by value)
Dell Precision 5510	76 fps
SCHENKER M505	52.2 fps -31%

GRID: Autosport
1920x1080 Ultra Preset AA:4x MS (sort by value)
Dell Precision 5510	43 fps
HP Z1 G2 G1X47EA	21 fps -51%
Acer Aspire V5-591G-71K2	27.1 fps -37%
SCHENKER M505	35.2 fps -18%
1920x1080 High Preset (sort by value)
Dell Precision 5510	82 fps
HP Z1 G2 G1X47EA	40 fps -51%
Acer Aspire V5-591G-71K2	81.7 fps 0%
SCHENKER M505	63.6 fps -22%
1366x768 Medium Preset (sort by value)
Dell Precision 5510	143 fps
HP Z1 G2 G1X47EA	102 fps -29%
Acer Aspire V5-591G-71K2	123.9 fps -13%
SCHENKER M505	97.6 fps -32%
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510	248 fps
HP Z1 G2 G1X47EA	268 fps +8%
Acer Aspire V5-591G-71K2	210 fps -15%
SCHENKER M505	158.6 fps -36%

Thief
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Dell Precision 5510	23 fps
SCHENKER M505	19.3 fps -16%
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Dell Precision 5510	45 fps
SCHENKER M505	40.4 fps -10%
1366x768 Normal Preset AA:FX (sort by value)
Dell Precision 5510	53 fps
SCHENKER M505	49.4 fps -7%
1024x768 Very Low Preset (sort by value)
Dell Precision 5510	78 fps
SCHENKER M505	64.1 fps -18%

F1 2014
1920x1080 Ultra Preset AA:4x MS (sort by value)
Dell Precision 5510	84 fps
SCHENKER M505	69 fps -18%
1920x1080 High Preset (sort by value)
Dell Precision 5510	123 fps
SCHENKER M505	82 fps -33%
1366x768 Medium Preset (sort by value)
Dell Precision 5510	128 fps
SCHENKER M505	89 fps -30%
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510	133 fps
SCHENKER M505	116 fps -13%

Total War: Rome II
1920x1080 Extreme Preset (sort by value)
Dell Precision 5510	20 fps
1366x768 High Preset (sort by value)
Dell Precision 5510	107 fps
1366x768 Medium Preset (sort by value)
Dell Precision 5510	126 fps
1024x768 Low Preset (sort by value)
Dell Precision 5510	166 fps

Company of Heroes 2
1920x1080 Maximum / Higher / High AA:High (sort by value)
Dell Precision 5510	12 fps
1366x768 High AA:Medium (sort by value)
Dell Precision 5510	34 fps
1366x768 Medium AA:Off (sort by value)
Dell Precision 5510	48 fps
1024x768 Minimum / Low / Off AA:Off (sort by value)
Dell Precision 5510	54 fps

GRID 2
1920x1080 Ultra Preset AA:4xMS (sort by value)
Dell Precision 5510	43 fps
1366x768 High Preset AA:2xMS (sort by value)
Dell Precision 5510	136 fps
1366x768 Medium Preset (sort by value)
Dell Precision 5510	153 fps
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510	195 fps

BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Dell Precision 5510	38 fps
SCHENKER M505	29.6 fps -22%
1366x768 High Preset (sort by value)
Dell Precision 5510	100 fps
SCHENKER M505	86.1 fps -14%
1366x768 Medium Preset (sort by value)
Dell Precision 5510	111 fps
SCHENKER M505	99.9 fps -10%
1280x720 Very Low Preset (sort by value)
Dell Precision 5510	195 fps
SCHENKER M505	134.4 fps -31%

Ses yüksekliği

Boşta		30 / 30 / 30 dB
Çalışırken		42.08 / 46.78 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: Audix TM1 Arta (15 cm uzaklık)

Maksimum yük

Bekleme


38.7 °C	45.8 °C	32.1 °C
39.5 °C	45.6 °C	30.6 °C
30.6 °C	31 °C	28.7 °C

Maksimum: 45.8 °C
Ortalama: 35.8 °C


33.6 °C	46.7 °C	38.8 °C
33.5 °C	35.7 °C	37.5 °C
32.9 °C	36.1 °C	35 °C

Maksimum: 46.7 °C
Ortalama: 36.6 °C

Güç kaynağı 60.2 °C | Oda sıcaklığı 20 °C | Fennel FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 35.8 °C / 96 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 45.8 °C / 114 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 46.7 °C / 116 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 29 °C / 84 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-3.1 °C / -5.6 F).

Anlık tüketim

Kapalı / Bekleme modu	0.36 / 1.4 Watt
Boşta	8.6 / 16.2 / 16.7 Watt
Çalışırken	82.6 / 131.8 Watt


Key: min: , med: , max: Metrahit Energy

Batarya ömrü

Boşta (WLAN kapalı, minimum parlaklık)		7h 08min
WLAN açıkken		4h 58min
WiFi Websurfing		4h 46min
Big Buck Bunny H.264 1080p		3h 17min
Çalışırken (maksimum parlaklık)		1h 49min

Artılar

+ Kasa

+ Stabilite

+ Sistem performansı

+ CAD performansı

+ Bağlantı olanakları

+ Ekran

+ Multitouch özelliği

+ Arayüzler

+ Düşük kullanımda sessiz sistem

+ Sıcaklık üretimi

+ Arayüzlerin konumlanması

+ Konfigrasyon olanakları

+ 36 ay garanti

Eksiler

- Yüksek ses

- Güç kaynağının kapasitesi

- Batarya modunda performans tıkanmaları

- İşlemci yoğun kullanımda tıkanabiliyor

- Dell Premier rengi

- Fiyat

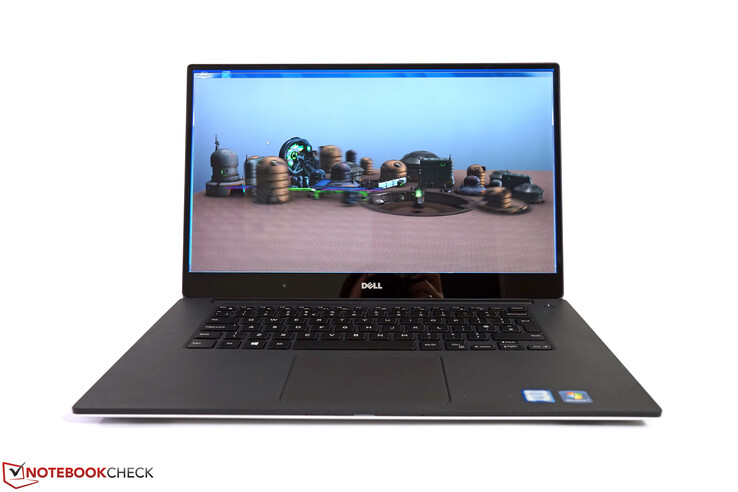

Dell Precision 5510: Slim, light and high-performance

Dell, Precision 5510 ile oldukça ilgi çekici bir cihaz geliştirmiş. Göz alıcı özelliklerinin yanı sıra, ince yapımı ve üst kalite bileşenleri ile gayet etkileyici.

Genel olarak performans çok iyi. Bazı durumlarda elbette performans kayıpları var ancak bunlar çok uç senaryolar.

Cihazın en önemli özelliklerinden biri kesinlikle UHD IGZO ekranı. Geniş renk aralığı, iyi kontrastı, makul parlaklığı ve harika renk tutarlılığı ile öne çıkıyor. Cihazın tek dezavantajı ise yüksek güç tüketimi ve kısa batarya süreleri.

Ama yine de kullanım durumuna göre 3-4 saat aralığında bir mobilite söz konusu. 2 kiloluk ağırlığı ile taşıması da kolay.

3200 Euroluk fiyat etiketi ile çok iyi bir cihaza sahip olacağınızı söyleyebiliriz. Cihazın size göre olup olmadığına ise kişisel olarak karar vermelisiniz.

Yazının orjinali için tıklayın.

Dell Precision 5510 - 03/17/2016 v5 ^(old)
Tobias Winkler

İşcilik

95 / 98 → 97%

Klavye

88%

Mouse

94%

Bağlanılabilirlik

52 / 81 → 64%

Ağırlık

63 / 10-66 → 95%
