Kısa inceleme: HP ZBook 17 G3 çalışma istasyonu
HP ZBook 17 G3 TZV66eA (ZBook 17 G3 Seri)
İşlemci
Intel Xeon E3-1535M v5 4 x 2.9 - 3.8 GHz, Skylake
Grafik kartı
NVIDIA Quadro M3000M - 4 GB VRAM, Çekirdek: 1050 MHz, Bellek: 1253 MHz, GDDR5, 362.13, Optimus
Bellek
32 GB
, DDR4-2133, Dual-Channel, 2/4 slots free, up to 64 GB
Görüntü
17.30 inç 16:9, 1920 x 1080 pixel 127 PPI, SDC3854, IPS, parlak: hayır
Anakart
Intel CM236 (Skylake PCH-H)
Harddisk
Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB
Ağırlık
3.26 kg, Güç kaynağı: 987 g
Fiyat
4500 Euro
Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 200 Hz | ≤ 40 % brightness setting |  |
The display backlight flickers at 200 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 40 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| |||||||||||||||||||||||||
SDC3854 tested with X-Rite i1Pro 2
Maksimum: 259 cd/m² (Nits) Ortalama: 243.1 cd/m² Minimum: 13 cd/m²Aydınlatma: 86 %
Batarya modunda parlaklık: 252 cd/m²
Kontrast: 1200:1 (Siyah: 0.21 cd/m²)
ΔE Color 2.2 | 0.5-29.43 Ø4.91
ΔE Greyscale 2.7 | 0.5-98 Ø5.2
97% sRGB (Calman 2D)
96% sRGB (Argyll 1.6.3 3D)
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
69% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.9% sRGB (Argyll 2.2.0 3D)
67.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.28
| HP ZBook 17 G3 TZV66eA IPS, 1920x1080 | Dell Precision 7710 IPS LED, 1920x1080 | Lenovo ThinkPad P70 IPS, 3840x2160 | MSI WT72-6QM IPS, 1920x1080 | Bullman E-Klasse 5 AH-IPS WLED, 1920x1080 | HP ZBook 17 E9X11AA-ABA LED IPS, 1920x1080 | |
|---|---|---|---|---|---|---|
| Display | -0% | 21% | -7% | -8% | 25% | |
| Display P3 Coverage | 67.3 | 66.6 -1% | 90.8 35% | 67.3 0% | 66.5 -1% | 85.7 27% |
| sRGB Coverage | 95.9 | 96.9 1% | 100 4% | 85.4 -11% | 84.5 -12% | 100 4% |
| AdobeRGB 1998 Coverage | 69 | 68.6 -1% | 85.4 24% | 62.5 -9% | 61.8 -10% | 99.2 44% |
| Response Times | -9% | 10% | -11% | |||
| Response Time Grey 50% / Grey 80% * | 50.4 ? | 50 ? 1% | 44 ? 13% | 42 ? 17% | ||
| Response Time Black / White * | 28.4 ? | 36 ? -27% | 27.6 ? 3% | 26 ? 8% | ||
| PWM Frequency | 200 ? | 198 ? -1% | 228 ? 14% | 86 ? -57% | ||
| Screen | -11% | -22% | -42% | -18% | 3% | |
| Brightness middle | 252 | 332 32% | 365 45% | 303 20% | 355 41% | 320 27% |
| Brightness | 243 | 307 26% | 341 40% | 298 23% | 335 38% | 311 28% |
| Brightness Distribution | 86 | 83 -3% | 85 -1% | 94 9% | 89 3% | 88 2% |
| Black Level * | 0.21 | 0.33 -57% | 0.4 -90% | 0.46 -119% | 0.44 -110% | 0.359 -71% |
| Contrast | 1200 | 1006 -16% | 913 -24% | 659 -45% | 807 -33% | 891 -26% |
| Colorchecker dE 2000 * | 2.2 | 3 -36% | 3.8 -73% | 5.77 -162% | 3.73 -70% | 2.04 7% |
| Colorchecker dE 2000 max. * | 3.8 | |||||
| Greyscale dE 2000 * | 2.7 | 4 -48% | 6.09 -126% | 4.87 -80% | 2.84 -5% | 2.45 9% |
| Gamma | 2.28 96% | 2 110% | 2.3 96% | 1.99 111% | 2.12 104% | 2.28 96% |
| CCT | 6686 97% | 7089 92% | 6332 103% | 7363 88% | 6457 101% | 6518 100% |
| Color Space (Percent of AdobeRGB 1998) | 62 | 62 0% | 76.01 23% | 56.04 -10% | 55.45 -11% | 93 50% |
| Color Space (Percent of sRGB) | 96 | 97 1% | 99.97 4% | 85.27 -11% | 84.39 -12% | 100 4% |
| Total Average (Program / Settings) | -7% /
-9% | 3% /
-7% | -20% /
-28% | -13% /
-15% | 14% /
9% |
* ... smaller is better
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 28.4 ms ... rise ↗ and fall ↘ combined | ↗ 7.2 ms rise |  |
| ↘ 21.2 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

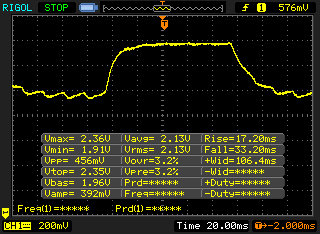

| ↔ Response Time 50% Grey to 80% Grey | ||
| 50.4 ms ... rise ↗ and fall ↘ combined | ↗ 17.2 ms rise |  |
| ↘ 33.2 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 85 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Bullman E-Klasse 5 | |
| Dell Precision 7710 | |
| HP ZBook 17 G3 TZV66eA | |
| MSI WT72-6QM | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G2 J8Z55ET | |
| CPU Single 64Bit | |
| Bullman E-Klasse 5 | |
| Dell Precision 7710 | |
| MSI WT72-6QM | |
| HP ZBook 17 G3 TZV66eA | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G2 J8Z55ET | |
| Cinebench R11.5 | |
| CPU Multi 64Bit | |
| Bullman E-Klasse 5 | |
| Dell Precision 7710 | |
| HP ZBook 17 G3 TZV66eA | |
| MSI WT72-6QM | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G2 J8Z55ET | |
| CPU Single 64Bit | |
| Bullman E-Klasse 5 | |
| Dell Precision 7710 | |
| HP ZBook 17 G3 TZV66eA | |
| MSI WT72-6QM | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G2 J8Z55ET | |
| Cinebench R10 | |
| Rendering Multiple CPUs 32Bit | |
| Bullman E-Klasse 5 | |
| Dell Precision 7710 | |
| HP ZBook 17 G3 TZV66eA | |
| MSI WT72-6QM | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G2 J8Z55ET | |
| Rendering Single 32Bit | |
| Bullman E-Klasse 5 | |
| Dell Precision 7710 | |
| HP ZBook 17 G3 TZV66eA | |
| MSI WT72-6QM | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G2 J8Z55ET | |
| Rendering Multiple CPUs 64Bit | |
| Bullman E-Klasse 5 | |
| HP ZBook 17 G3 TZV66eA | |
| Dell Precision 7710 | |
| MSI WT72-6QM | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G2 J8Z55ET | |
| Rendering Single CPUs 64Bit | |
| Bullman E-Klasse 5 | |
| Dell Precision 7710 | |
| MSI WT72-6QM | |
| HP ZBook 17 G3 TZV66eA | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G2 J8Z55ET | |
| PCMark 7 - Score | |
| MSI WT72-6QM | |
| Bullman E-Klasse 5 | |
| HP ZBook 17 G3 TZV66eA | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G2 J8Z55ET | |
| PCMark 8 | |
| Work Score Accelerated v2 | |
| MSI WT72-6QM | |
| Dell Precision 7710 | |
| Bullman E-Klasse 5 | |
| HP ZBook 17 G3 TZV66eA | |
| HP ZBook 17 G2 J8Z55ET | |
| Lenovo ThinkPad P70 | |
| Creative Score Accelerated v2 | |
| Dell Precision 7710 | |
| HP ZBook 17 G2 J8Z55ET | |
| Bullman E-Klasse 5 | |
| HP ZBook 17 G3 TZV66eA | |
| Home Score Accelerated v2 | |
| Dell Precision 7710 | |
| MSI WT72-6QM | |
| HP ZBook 17 G2 J8Z55ET | |
| Bullman E-Klasse 5 | |
| HP ZBook 17 G3 TZV66eA | |
| Lenovo ThinkPad P70 | |
| PCMark 7 Score | 5487 puan | |
| PCMark 8 Home Score Accelerated v2 | 4133 puan | |
| PCMark 8 Creative Score Accelerated v2 | 4564 puan | |
| PCMark 8 Work Score Accelerated v2 | 5271 puan | |
Yardım | ||
Samsung SM951 MZVPV256HDGL m.2 PCI-e
Sequential Read:
1481 MB/s
Sequential Write:
1243 MB/s
512K Read:
1202 MB/s
512K Write:
1163 MB/s
4K Read:
58.7 MB/s
4K Write:
207.4 MB/s
4K QD32 Read:
832 MB/s
4K QD32 Write:
377.9 MB/s
| LuxMark v2.0 64Bit | |
| Room GPUs-only | |
| MSI WT72-6QM | |
| HP ZBook 17 G3 TZV66eA | |
| Lenovo ThinkPad P70 | |
| Dell Precision 7710 | |
| HP ZBook 17 G2 J8Z55ET | |
| Bullman E-Klasse 5 | |
| Sala GPUs-only | |
| HP ZBook 17 G3 TZV66eA | |
| Lenovo ThinkPad P70 | |
| MSI WT72-6QM | |
| Dell Precision 7710 | |
| HP ZBook 17 G2 J8Z55ET | |
| Bullman E-Klasse 5 | |
| SiSoft Sandra 2016 | |
| Image Processing | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G3 TZV66eA | |
| GP Cryptography (Higher Security AES256+SHA2-512) | |
| HP ZBook 17 G3 TZV66eA | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| GP Financial Analysis (FP High/Double Precision) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| HP ZBook 17 G3 TZV66eA | |
| Unigine Heaven 3.0 | |
| 1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off | |
| MSI WT72-6QM | |
| HP ZBook 17 G3 TZV66eA | |
| Lenovo ThinkPad P70 | |
| Dell Precision 7710 | |
| HP ZBook 17 G2 J8Z55ET | |
| Bullman E-Klasse 5 | |
| 1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off | |
| MSI WT72-6QM | |
| HP ZBook 17 G3 TZV66eA | |
| Dell Precision 7710 | |
| HP ZBook 17 G2 J8Z55ET | |
| Lenovo ThinkPad P70 | |
| Bullman E-Klasse 5 | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| MSI WT72-6QM | |
| HP ZBook 17 G3 TZV66eA | |
| Lenovo ThinkPad P70 | |
| Dell Precision 7710 | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| HP ZBook 17 G3 TZV66eA | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| 3DMark | |
| 1920x1080 Fire Strike Score | |
| MSI WT72-6QM | |
| Acer Predator 15 G9-592-7925 | |
| Dell Precision 7710 | |
| HP ZBook 17 G3 TZV66eA | |
| Lenovo ThinkPad P70 | |
| SCHENKER XMG A726 | |
| MSI GE62-6QD16H11 | |
| HP ZBook 17 G2 J8Z55ET | |
| Bullman E-Klasse 5 | |
| 1920x1080 Fire Strike Graphics | |
| MSI WT72-6QM | |
| Acer Predator 15 G9-592-7925 | |
| Dell Precision 7710 | |
| HP ZBook 17 G3 TZV66eA | |
| Lenovo ThinkPad P70 | |
| SCHENKER XMG A726 | |
| MSI GE62-6QD16H11 | |
| HP ZBook 17 G2 J8Z55ET | |
| Bullman E-Klasse 5 | |
| 3DMark 06 Standard Score | 27895 puan | |
| 3DMark 11 Performance | 8586 puan | |
| 3DMark Ice Storm Standard Score | 91685 puan | |
| 3DMark Cloud Gate Standard Score | 23083 puan | |
| 3DMark Fire Strike Score | 6108 puan | |
Yardım | ||
| düşük | orta | yüksek | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 226.3 | 182.7 | 166.7 | 69.8 |
| The Witcher 3 (2015) | 122.7 | 74.6 | 42.4 | 22.5 |
| Rise of the Tomb Raider (2016) | 114.9 | 69.9 | 40.2 | 33.4 |
Ses yüksekliği
| Boşta |
| 30 / 30 / 30 dB |
| Çalışırken |
| 48.9 / 48.9 dB |
 | ||
30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm uzaklık) environment noise: 30 dB(A) | ||
| HP ZBook 17 G3 TZV66eA Quadro M3000M | Dell Precision 7710 FirePro W7170M | Lenovo ThinkPad P70 Quadro M3000M | MSI WT72-6QM Quadro M5000M | Bullman E-Klasse 5 Quadro K3100M | HP ZBook 17 G2 J8Z55ET FirePro M6100 | |
|---|---|---|---|---|---|---|
| Noise | 3% | 7% | 1% | 3% | 2% | |
| off / environment * | 30 | 30 -0% | 30 -0% | |||
| Idle Minimum * | 30 | 30 -0% | 30 -0% | 33.3 -11% | 28.5 5% | 29.2 3% |
| Idle Average * | 30 | 30 -0% | 30 -0% | 33.4 -11% | 28.5 5% | 29.9 -0% |
| Idle Maximum * | 30 | 30 -0% | 30 -0% | 33.5 -12% | 28.5 5% | 29.9 -0% |
| Load Average * | 48.9 | 43.2 12% | 36.5 25% | 38.8 21% | 47.8 2% | 46.8 4% |
| Load Maximum * | 48.9 | 47.13 4% | 40.8 17% | 40.2 18% | 50.8 -4% | 46.8 4% |
* ... smaller is better
(±) The average temperature for the upper side under maximal load is 36.6 °C / 98 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 55.5 °C / 132 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55.8 °C / 132 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.4 °C / 84.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-1.6 °C / -2.9 F).
(-) The maximum temperature on the upper side is 55.5 °C / 132 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55.8 °C / 132 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.4 °C / 84.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-1.6 °C / -2.9 F).
| HP ZBook 17 G3 TZV66eA E3-1535M v5, Quadro M3000M | Dell Precision 7710 E3-1535M v5, FirePro W7170M | Lenovo ThinkPad P70 6820HQ, Quadro M3000M | MSI WT72-6QM E3-1505M v5, Quadro M5000M | Bullman E-Klasse 5 4790K, Quadro K3100M | HP ZBook 17 G2 J8Z55ET 4710MQ, FirePro M6100 | |
|---|---|---|---|---|---|---|
| Heat | 6% | 12% | 5% | -12% | 12% | |
| Maximum Upper Side * | 55.5 | 35.6 36% | 39 30% | 40.6 27% | 42.3 24% | 39.2 29% |
| Maximum Bottom * | 55.8 | 55 1% | 35.4 37% | 42.6 24% | 44.2 21% | 37.2 33% |
| Idle Upper Side * | 29.1 | 29.3 -1% | 30.8 -6% | 28.2 3% | 41.6 -43% | 28.9 1% |
| Idle Bottom * | 29 | 32.8 -13% | 33.1 -14% | 38.6 -33% | 43.9 -51% | 33 -14% |
* ... smaller is better
Anlık tüketim
| Kapalı / Bekleme modu | 0.4 / 0.7 Watt |
| Boşta | 6.7 / 12.5 / 13.2 Watt |
| Çalışırken |
128.2 / 158.9 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| HP ZBook 17 G3 TZV66eA E3-1535M v5, Quadro M3000M, 1920x1080 | Dell Precision 7710 E3-1535M v5, FirePro W7170M, 1920x1080 | Lenovo ThinkPad P70 6820HQ, Quadro M3000M, 3840x2160 | MSI WT72-6QM E3-1505M v5, Quadro M5000M, 1920x1080 | Bullman E-Klasse 5 4790K, Quadro K3100M, 1920x1080 | HP ZBook 17 G2 J8Z55ET 4710MQ, FirePro M6100, 1920x1080 | |
|---|---|---|---|---|---|---|
| Power Consumption | -47% | -31% | -108% | -175% | -164% | |
| Idle Minimum * | 6.7 | 6.04 10% | 12.1 -81% | 24.8 -270% | 33.7 -403% | 29.7 -343% |
| Idle Average * | 12.5 | 15.2 -22% | 19.7 -58% | 29.7 -138% | 39.3 -214% | 41.6 -233% |
| Idle Maximum * | 13.2 | 42.3 -220% | 20.5 -55% | 30.1 -128% | 40.2 -205% | 42.3 -220% |
| Load Average * | 128.2 | 112.8 12% | 94.3 26% | 105.2 18% | 148 -15% | 136.1 -6% |
| Load Maximum * | 158.9 | 182.2 -15% | 139.6 12% | 192.2 -21% | 221 -39% | 184 -16% |
* ... smaller is better
| HP ZBook 17 G3 TZV66eA 96 Wh, mAh | Dell Precision 7710 72 Wh, mAh | Lenovo ThinkPad P70 96 Wh, mAh | MSI WT72-6QM Wh, 86580 mAh | Bullman E-Klasse 5 82 Wh, mAh | HP ZBook 17 G2 J8Z55ET 75 Wh, mAh | |
|---|---|---|---|---|---|---|
| Battery Runtime | -5% | -5% | -35% | -54% | -64% | |
| Reader / Idle | 956 | 775 -19% | 464 -51% | 413 -57% | 166 -83% | 162 -83% |
| H.264 | 299 | 283 -5% | 452 51% | 123 -59% | 142 -53% | |
| WiFi v1.3 | 290 | 365 26% | 361 24% | 245 -16% | 144 -50% | |
| Load | 110 | 85 -23% | 64 -42% | 76 -31% | 85 -23% | 49 -55% |
| WiFi | 149 |
Artılar
+ Harika kasa
+ İnce ve hafif sayılır
+ Çok yüksek performans
+ Tutarlı ekran
+ İyi arayüzler
+ Modern bağlantı noktaları
+ Çok iyi genişletme imkanı
+ Hızlı WLAN
+ Bileşenler konusunda büyük seçim şansı
Eksiler
- Yoğun kullanımda sesli ve sıcak
- Ekran daha parlak olabilirdi
- Test cihazımızda oynak ekran menteşesi
- İşlemci yoğun kullanımda tam performansını sunamıyor
- Bataryada düşen performans
- Bataryaya dışardan erişim yok
- SIM slotunun yeri
- Çok pahalı
HP ZBook 17 G3 mükemmel çalışma istasyonu mu? Cevap hayır, ama HP çok iyi bir cihaz sunuyor. G3 serisinin özellikle kasa tasarımını beğeniyoruz, bizce kalite bakımından en iyilerden biri. Modern bağlantı noktaları, geniş donanım seçeneği ve bakım imkanı yönünden harika.
En büyük dezavantajı belki de sistem değerleri. Çünkü rakipler aynı bileşenlere rağmen daha iyi sonuçlar verebiliyor. Full HD ekran tam olarak tatmin etmiyor. Kutudan çıkar çıkmaz kalibre olmuş bir ekran var kontrastı da oldukça iyi ama aydınlatması rakiplerine göre çok düşük. Opsiyonel 4K DreamColor bu alanda daha iyi sonuç verecektir.
HP ZBook 17 G3 çok iyi bir çalışma istasyonu. Test ettiğimiz konfigrasyon belki en pahalısı, ancak bazı alanlarda rakiplerinin gerisinde.
Cihazın 4500 Euro gibi bir fiyat etiketi var. Daha düşük modellere bakmak faydalı olabilir. Çalışma istasyonları yönünden neredeyse tüm modelleri incelemiş olarak tam bir kazanan belirtmek zor. ZBook 17 G3 biraz önce ancak her cihazın kendi eksiklikleri var. Bu yüzden kişisel tercihler önemli. ZBook 17 G3 modelinin sistem değerleri yönüden geliştirilme alanı hala var.
İncelemenin tamamı için tıklayın.
HP ZBook 17 G3 TZV66eA
- 05/24/2016 v5.1 (old)
Andreas Osthoff
Workstation - Ortalama Ağırlık
Price comparison
