MagyarKısa inceleme: Lenovo ThinkPad L560 (Core i5, HDD) Notebook
Lenovo ThinkPad L560-20F10026GE
İşlemci
Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Grafik kartı
Intel HD Graphics 520, Çekirdek: 1000 MHz, Bellek: 800 MHz, 20.19.15.4312
Bellek
8 GB
, 1 of 2 RAM slots used, DDR3L SDRAM HYUNDAI, 16 GB max
Görüntü
15.60 inç 16:9, 1920 x 1080 pixel 141 PPI, LG LP156WF6-SPK1, AH-IPS, 262K, 6bit, CIE 1931 45%, parlak: hayır
Anakart
Intel Skylake-U Premium PCH
Harddisk
WDC Slim WD10SPCX-21KHST0, 1000 GB
, 5400 rpm, SATA, 873 GB Boş
Ağırlık
2.4 kg, Güç kaynağı: 304 g
Fiyat
899 Euro
Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
LG LP156WF6-SPK1 tested with X-Rite i1Pro 2
Maksimum: 262 cd/m² (Nits) Ortalama: 250.2 cd/m² Minimum: 7 cd/m²Aydınlatma: 92 %
Batarya modunda parlaklık: 261 cd/m²
Kontrast: 903:1 (Siyah: 0.29 cd/m²)
ΔE Color 8.49 | 0.5-29.43 Ø4.93
ΔE Greyscale 8.11 | 0.5-98 Ø5.2
57.94% sRGB (Argyll 1.6.3 3D)
37.07% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.33% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.3% sRGB (Argyll 2.2.0 3D)
39% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.37
| Lenovo ThinkPad L560-20F10026GE 1920x1080, AH-IPS | Lenovo ThinkPad L540 20AV002YGE 1920x1080, TN LED | Lenovo ThinkPad L460-20FVS01400 1920x1080, IPS | Lenovo ThinkPad E550-20DF00CNGE 1920x1080, TN-Panel | HP ProBook 450 G3 1920x1080, TN LED | Dell Inspiron 15-5558 1920x1080, IPS | |
|---|---|---|---|---|---|---|
| Display | 35% | 8% | 2% | -2% | 6% | |
| Display P3 Coverage | 39 | 53.5 37% | 42.2 8% | 39.84 2% | 38.1 -2% | 41.22 6% |
| sRGB Coverage | 58.3 | 76.7 32% | 62.3 7% | 59.3 2% | 57.3 -2% | 61.8 6% |
| AdobeRGB 1998 Coverage | 40.33 | 54.8 36% | 43.72 8% | 41.2 2% | 39.37 -2% | 42.58 6% |
| Response Times | -10% | -3% | ||||
| Response Time Grey 50% / Grey 80% * | 39.2 ? | 44.4 ? -13% | 41.2 ? -5% | |||
| Response Time Black / White * | 28 ? | 29.6 ? -6% | 28 ? -0% | |||
| PWM Frequency | ||||||
| Screen | -29% | 6% | -22% | -18% | -1% | |
| Brightness middle | 262 | 303 16% | 245 -6% | 195 -26% | 211 -19% | 177 -32% |
| Brightness | 250 | 290 16% | 225 -10% | 188 -25% | 214 -14% | 176 -30% |
| Brightness Distribution | 92 | 85 -8% | 83 -10% | 90 -2% | 91 -1% | 78 -15% |
| Black Level * | 0.29 | 0.7 -141% | 0.24 17% | 0.46 -59% | 0.43 -48% | 0.15 48% |
| Contrast | 903 | 433 -52% | 1021 13% | 424 -53% | 491 -46% | 1180 31% |
| Colorchecker dE 2000 * | 8.49 | 11.58 -36% | 6.89 19% | 9.92 -17% | 9.25 -9% | 8.52 -0% |
| Colorchecker dE 2000 max. * | 17.99 | 17.62 2% | ||||
| Greyscale dE 2000 * | 8.11 | 13.65 -68% | 6.45 20% | 10.06 -24% | 9.83 -21% | 9.72 -20% |
| Gamma | 2.37 93% | 2.59 85% | 2.46 89% | 2.37 93% | 2.82 78% | 1.85 119% |
| CCT | 6300 103% | 13248 49% | 6857 95% | 11552 56% | 10890 60% | 5036 129% |
| Color Space (Percent of AdobeRGB 1998) | 37.07 | 51.12 38% | 40.1 8% | 38 3% | 36.4 -2% | 39 5% |
| Color Space (Percent of sRGB) | 57.94 | 61.8 7% | 59.3 2% | 57.3 -1% | 61 5% | |
| Total Average (Program / Settings) | 3% /
-12% | 1% /
4% | -10% /
-16% | -8% /
-12% | 3% /
1% |
* ... smaller is better
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 28 ms ... rise ↗ and fall ↘ combined | ↗ 12.4 ms rise |  |
| ↘ 15.6 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 68 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 39.2 ms ... rise ↗ and fall ↘ combined | ↗ 18.8 ms rise |  |
| ↘ 20.4 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 56 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | ||
| Cinebench R10 | |
| Rendering Multiple CPUs 64Bit (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| Rendering Single CPUs 64Bit (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| JetStream 1.1 - Total Score (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad L460-20FVS01400 | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| HP ProBook 450 G3 | |
| Octane V2 - Total Score (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad L460-20FVS01400 | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| HP ProBook 450 G3 | |
| Dell Inspiron 15-5558 | |
| Mozilla Kraken 1.1 - Total (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad L460-20FVS01400 | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| HP ProBook 450 G3 | |
| Dell Inspiron 15-5558 | |
* ... smaller is better

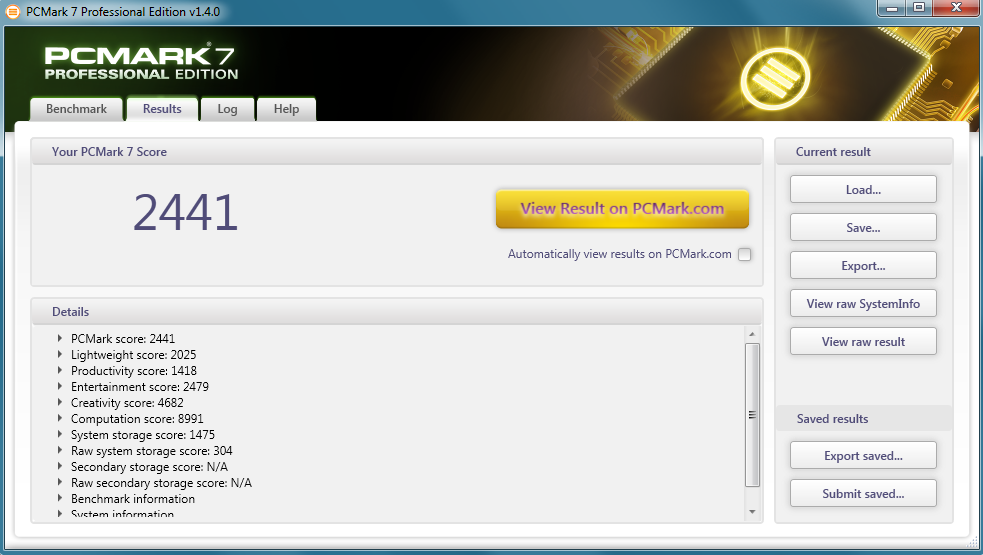

| PCMark 7 Score | 2441 puan | |
| PCMark 8 Home Score Accelerated v2 | 2886 puan | |
| PCMark 8 Creative Score Accelerated v2 | 3024 puan | |

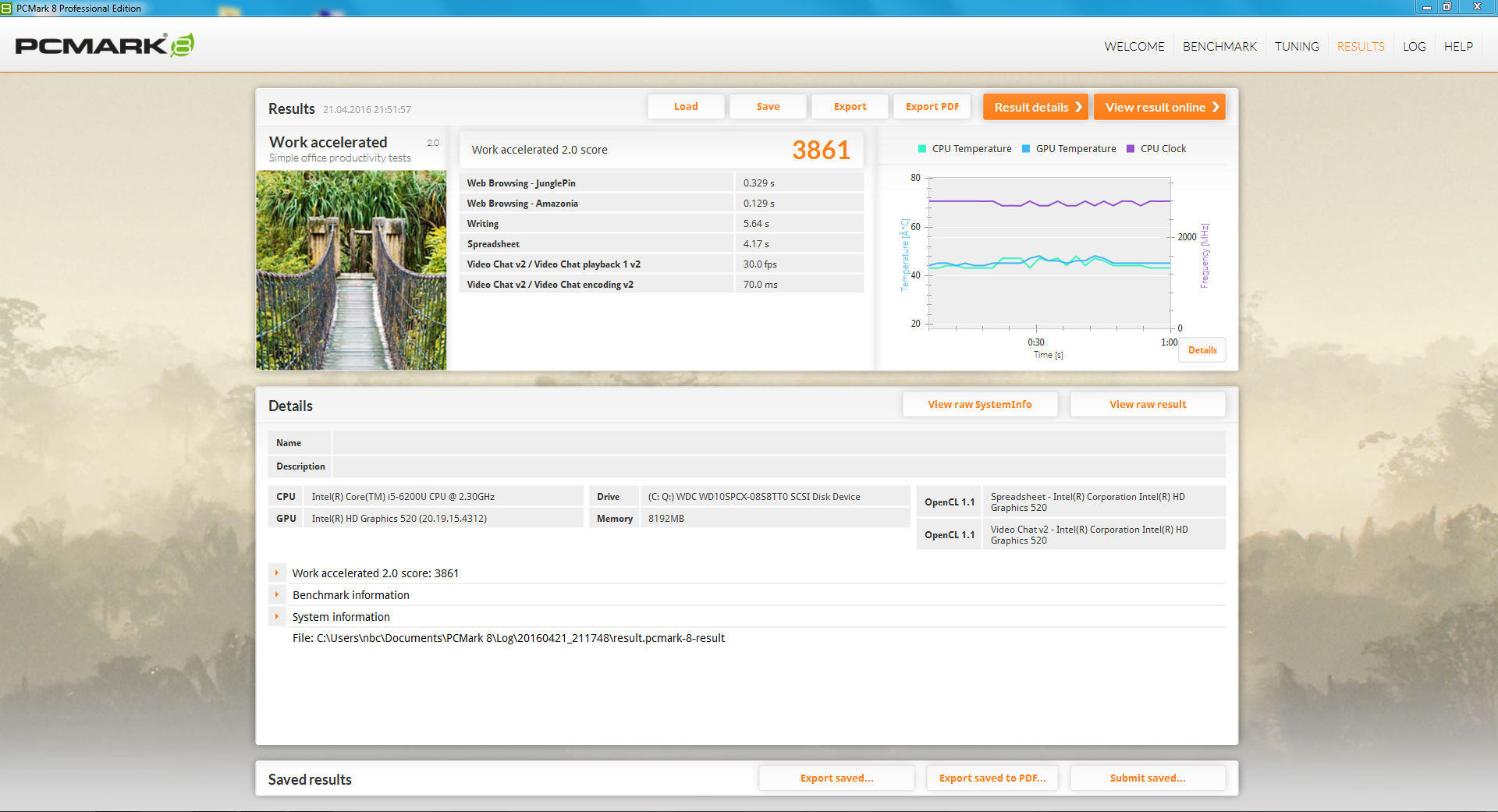

| PCMark 8 Work Score Accelerated v2 | 3861 puan | |
Yardım | ||
WDC Slim WD10SPCX-21KHST0
Maksimum transfer hızı:
44.1 MB/s
Minimum transfer hızı:
92.8 MB/s
Ortlama transfer hızı:
76.6 MB/s
Erişim hızı:
19 ms
Yakma hızı:
50.7 MB/s
| 3DMark | |
| 1280x720 Ice Storm Standard Score (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad L540 20AV002YGE | |
| Lenovo ThinkPad L460-20FVS01400 | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| HP ProBook 450 G3 | |
| Dell Inspiron 15-5558 | |
| Acer TravelMate P278-MG-76L2 | |
| 1280x720 Cloud Gate Standard Score (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad L540 20AV002YGE | |
| Lenovo ThinkPad L460-20FVS01400 | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| HP ProBook 450 G3 | |
| Dell Inspiron 15-5558 | |
| Acer TravelMate P278-MG-76L2 | |
| 1920x1080 Fire Strike Score (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad L540 20AV002YGE | |
| Lenovo ThinkPad L460-20FVS01400 | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| HP ProBook 450 G3 | |
| Dell Inspiron 15-5558 | |
| Acer TravelMate P278-MG-76L2 | |
| 3DMark 11 | |
| 1280x720 Performance (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad L540 20AV002YGE | |
| Lenovo ThinkPad L460-20FVS01400 | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| HP ProBook 450 G3 | |
| Dell Inspiron 15-5558 | |
| Acer TravelMate P278-MG-76L2 | |
| 1280x720 Performance GPU (sort by value) | |
| Lenovo ThinkPad L560-20F10026GE | |
| Lenovo ThinkPad L540 20AV002YGE | |
| Lenovo ThinkPad L460-20FVS01400 | |
| Lenovo ThinkPad E550-20DF00CNGE | |
| HP ProBook 450 G3 | |
| Dell Inspiron 15-5558 | |
| Acer TravelMate P278-MG-76L2 | |
| 3DMark 06 1280x720 Score | 6847 puan | |
| 3DMark 11 Performance | 1339 puan | |
| 3DMark Ice Storm Standard Score | 41900 puan | |
| 3DMark Cloud Gate Standard Score | 5038 puan | |
| 3DMark Fire Strike Score | 616 puan | |
| 3DMark Fire Strike Extreme Score | 286 puan | |
Yardım | ||
| düşük | orta | yüksek | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 35.9 | 20.6 | 16.8 | 5.1 |
| Battlefield 4 (2013) | 32.3 | 24.8 | 14.7 | 4.1 |
| Rise of the Tomb Raider (2016) | 11.2 | 8.7 | 4.2 |
| Lenovo ThinkPad L560-20F10026GE HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0 | Lenovo ThinkPad L540 20AV002YGE HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630 | Lenovo ThinkPad L460-20FVS01400 Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU | Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0 | HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15 | Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100 | |
|---|---|---|---|---|---|---|
| Noise | -6% | 1% | -1% | 1% | -20% | |
| off / environment * | 29.4 | 29.2 1% | ||||
| Idle Minimum * | 30.1 | 31.9 -6% | 29.2 3% | 29.8 1% | 29.7 1% | 33.5 -11% |
| Idle Average * | 30.1 | 32.4 -8% | 29.2 3% | 29.8 1% | 29.7 1% | 33.5 -11% |
| Idle Maximum * | 30.1 | 32.4 -8% | 29.2 3% | 31.1 -3% | 29.7 1% | 33.5 -11% |
| Load Average * | 33.4 | 34.8 -4% | 32.5 3% | 33.1 1% | 33.1 1% | 45.9 -37% |
| Load Maximum * | 34.7 | 36.1 -4% | 37.2 -7% | 35.6 -3% | 34.2 1% | 45.3 -31% |
* ... smaller is better
Ses yüksekliği
| Boşta |
| 30.1 / 30.1 / 30.1 dB |
| Çalışırken |
| 33.4 / 34.7 dB |
 | ||
30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü |
||
min:  , med:  , max:  ECM8000 + Voltcraft SL-451 (15 cm uzaklık) environment noise: 29.4 dB(A) | ||
(+) The average temperature for the upper side under maximal load is 30.2 °C / 86 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 37.2 °C / 99 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 36 °C / 97 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.6 °C / 83 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.2 °C / 84.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-1.5 °C / -2.7 F).
(+) The maximum temperature on the upper side is 37.2 °C / 99 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 36 °C / 97 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.6 °C / 83 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.2 °C / 84.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-1.5 °C / -2.7 F).
| Lenovo ThinkPad L560-20F10026GE HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0 | Lenovo ThinkPad L540 20AV002YGE HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630 | Lenovo ThinkPad L460-20FVS01400 Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU | Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0 | HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15 | Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100 | Acer TravelMate P278-MG-76L2 GeForce 940M, 6500U, Lite-On CV1-8B256 | |
|---|---|---|---|---|---|---|---|
| Power Consumption | -60% | -2% | -11% | -5% | 3% | -62% | |
| Idle Minimum * | 5 | 9.5 -90% | 3.1 38% | 4.1 18% | 4.9 2% | 4.3 14% | 5.8 -16% |
| Idle Average * | 7.9 | 13.1 -66% | 6.3 20% | 6.7 15% | 8.2 -4% | 6.5 18% | 11.6 -47% |
| Idle Maximum * | 8.6 | 13.4 -56% | 7.9 8% | 7.7 10% | 9 -5% | 7.4 14% | 13.6 -58% |
| Load Average * | 27.5 | 38.6 -40% | 29.5 -7% | 37.6 -37% | 30.1 -9% | 33.3 -21% | 51 -85% |
| Load Maximum * | 33.7 | 49.5 -47% | 57.3 -70% | 54.7 -62% | 36.1 -7% | 36.3 -8% | 69 -105% |
* ... smaller is better
Anlık tüketim
| Kapalı / Bekleme modu | 0.36 / 0.55 Watt |
| Boşta | 5 / 7.9 / 8.6 Watt |
| Çalışırken |
27.5 / 33.7 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad L560-20F10026GE 48 Wh | Lenovo ThinkPad L540 20AV002YGE 56 Wh | Lenovo ThinkPad L460-20FVS01400 48 Wh | Lenovo ThinkPad E550-20DF00CNGE 48 Wh | HP ProBook 450 G3 44 Wh | Dell Inspiron 15-5558 40 Wh | Acer TravelMate P278-MG-76L2 37 Wh | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | -30% | 29% | -12% | -9% | -4% | -11% | |
| Reader / Idle | 698 | 391 -44% | 1153 65% | 663 -5% | 575 -18% | 666 -5% | 601 -14% |
| H.264 | 277 | 431 56% | 311 12% | 337 22% | 315 14% | 288 4% | |

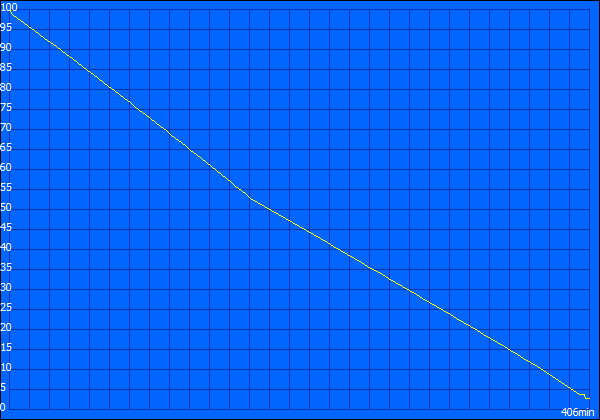

| WiFi v1.3 | 406 | 425 5% | 293 -28% | 309 -24% | 337 -17% | 297 -27% | |
| Load | 109 | 93 -15% | 97 -11% | 82 -25% | 90 -17% | 103 -6% | 104 -5% |
| WiFi | 298 |
Artılar
+ Düşük güç tüketimi
+ İyi batarya süresi
+ Boş M.2 slotu
+ Bakım kapağı
+ Docking portu
+ Birçok güvenlik özelliği
+ Geniş bakış açılı ekran
+ Batarya kolayca değiştirilebiliyor
+ Çok sessiz sistem
+ Fiyat politikası
Eksiler
- Ortalama ekran parlaklığı
- Zayıf renk kapsamı
- Kasa daha stabil olmalı
- SSD yok
- Klavye aydınlatması yok
Lenovo ThinkPad L560 eski ThinkPad L540 modelinin başarılı bir güncellemesi. Düşük güç tüketimli işlemcileri kullanma konusunda Lenovo bu cihaz için her şeyi doğru yapmış diyebiliriz. Düşük güç tüketimi ile uzun süreli batarya kullanımı mümkün kılınmış. 1000 Euronun altındaki fiyat etiketi olası kullanıcıların ilgisini çekecektir. Güvenlik özellikleri veya diğer genişletme olanaklarından da ödün verilmemiş. Docking istasyonu ile de bağlantı imkanı arttırılabiliyor.
Haswell'den Skylake'e geçerek Lenovo doğru tercihi yapmış. Ancak ThinkPad L560 çok iyi bir iş cihazında olması gereken birçok ufak detaydan yoksun.
Yine de elbette eleştiriye açık noktalar mevcut. Burada ekrana özellikle dikkat çekmek gerekiyor. Gerekli bakış açılarını sağlasa bile renk kapsamı konusunda çok ortalama. Ek olarak ekran parlaklığı ortalama seviyelerde kaldığından çok ışıklı ortamlarda kullanımı zor. SSD kullanılması sistemi hızlandırabilirdi. Klavyenin de karanlık ortamlarda kullanımı için arka aydınlatması olmasını isterdik.
Bunlara rağmen ThinkPad L560 iyi bir iş cihazı. Güç tasarruflu Skylake işlemci gündelik ofis işleri için yeterli. Docking bağlantısı ya da TrackPoint olmadan yapamayan kullanıcıların ThinkPad modelleri dışında neredeyse hiç alternatifi yok.
Yazının orjinali için tıklayın.
Lenovo ThinkPad L560-20F10026GE
-
05/03/2016 v5.1 (old)
Sebastian Bade
Office - Ortalama Ağırlık
