Kısa inceleme: Lenovo ThinkPad T570 (Core i7, 4K, 940MX) Laptop

Yüksek çözünürlük. Geniş testimiz esnasında Lenovo ThinkPad T570 bizi çoğu anlamda tatmin etmişti. Ancak önceki jenerasyonda olduğu gibi Full HD ekran eleştiriye yer bırakıyor. Bu güncellememizde 4K ekranın bu eksikliği nasıl doldurabildiğine bakıyoruz.

For the original German review, see here.

Some devices are worth taking a second look. This is particularly the case if there are many different models that vary greatly in the way they are equipped. The ThinkPad T570 is such a case. In our first test we examined a basic model, equipped with a Full HD IPS display, a Core-i5 processor, as well as a 256 GB PCIe SSD. In this test update, we test a configuration with the expensive 4K IPS display, i7 CPU, and a 512 GB PCIe SSD. Also on-board: a mid-range Nvidia GPU.

As usual for a test update, we refer to the initial, complete test of the T570 for information on the casing, input devices, speaker, and features. This test focuses mainly on the display, performance, as well as the battery life and cooling system.

Note that the only similar model with a 4K display that appears to be available in the US is the 20H9004RUS, which can currently be found for $2162.99, but does not include the Nvidia GPU.

Lenovo ThinkPad T570-20HAS01E00 (ThinkPad T570 Seri)
İşlemci
Intel Core i7-7500U 2 x 2.7 - 3.5 GHz, Kaby Lake
Grafik kartı
NVIDIA GeForce 940MX - 2048 MB VRAM, Çekirdek: 1149.7 MHz, Bellek: 1252.8 MHz, GDDR5 storage, GM108-GPU, 376.54, Optimus
Bellek
8 GB
, DDR4 2400, 1 of 2 slots empty
Görüntü
15.60 inç 16:9, 3840 x 2160 pixel 282 PPI, BOE NV156QUM-N44, IPS, parlak: hayır
Anakart
Intel Kaby Lake-U Premium PCH
Harddisk
Samsung PM961 NVMe MZVLW512HMJP, 512 GB
, 2280 M.2 PCIe NVMe SSD, 448 GB Boş
Ses kartı
Intel Kaby Lake-U/Y PCH - High Definition Audio
Bağlantılar
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Portu, Ses çıkışları: 3.5 mm Kombo-Audio, Kart okuyucular: 4-in-1 SD card reader, 1 SmartCard, 1 Parmak izi okuyucu, NFC
Network
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Boyut
yükseklik x genişlik x derinlik (mm): 20.2 x 365.8 x 252.8
Batarya
56 Wh Lithium-Ion, removeable, two batteries, internal 32 Wh, external 24 Wh
İşletim sistemi
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Ek özellikler
Hoparlörler: 2W stereo speakers, Klavye: 6-row chiclet keyboard, Klavye ışığı: evet, Lenovo Settings, Lenovo Companion, Office Trial, 36 Ay Garanti
Ağırlık
2.019 kg, Güç kaynağı: 351 g
Fiyat
1599 Euro
Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Lenovo ThinkPad T570
Lenovo ThinkPad T570
Lenovo ThinkPad T570
Lenovo ThinkPad T570
Lenovo ThinkPad T570
Lenovo ThinkPad T570
Lenovo ThinkPad T570
Lenovo ThinkPad T570
Lenovo ThinkPad T570
Lenovo ThinkPad T570

Size Comparison

383.6 mm 257.7 mm 20.8 mm 1.9 kg380 mm 252 mm 22.4 mm 2.3 kg378 mm 256 mm 19.2 mm 1.7 kg365.8 mm 252.8 mm 20.2 mm 2 kg357 mm 235 mm 17 mm 2 kg349 mm 241 mm 16 mm 1.8 kg297 mm 210 mm 1 mm 5.7 g
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad T570-20HAS01E00

76.3 MB/s
Fujitsu LifeBook U757

74 MB/s -3%
HP EliteBook 850 G4-Z2W86ET

73.2 MB/s -4%
Dell XPS 15 2017 9560 (7300HQ, Full-HD)

57.3 MB/s -25%
maximum AS SSD Seq Read Test (1GB)
Dell XPS 15 2017 9560 (7300HQ, Full-HD)

202.8 MB/s +124%
Lenovo ThinkPad T570-20HAS01E00

90.7 MB/s
HP EliteBook 850 G4-Z2W86ET

85.4 MB/s -6%
Fujitsu LifeBook U757

82.6 MB/s -9%
Networking
iperf3 transmit AX12
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Broadcom BCM15700A2 802.11ac (Klaus I211)
949 MBit/s +91%
Dell XPS 15 2017 9560 (7300HQ, Full-HD)
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
641 MBit/s +29%
HP EliteBook 850 G4-Z2W86ET
Intel Dual Band Wireless-AC 8265
523 MBit/s +5%
Fujitsu LifeBook U757
Intel Dual Band Wireless-AC 8265
522 MBit/s +5%
Lenovo ThinkPad T570-20HAS01E00
Intel Dual Band Wireless-AC 8265
498 MBit/s
iperf3 receive AX12
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Broadcom BCM15700A2 802.11ac (Klaus I211)
948 MBit/s +42%
Dell XPS 15 2017 9560 (7300HQ, Full-HD)
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
674 MBit/s +1%
Lenovo ThinkPad T570-20HAS01E00
Intel Dual Band Wireless-AC 8265
667 MBit/s
Fujitsu LifeBook U757
Intel Dual Band Wireless-AC 8265
660 MBit/s -1%
HP EliteBook 850 G4-Z2W86ET
Intel Dual Band Wireless-AC 8265
588 MBit/s -12%

Security

As far as the security features are concerned, the test device is to a large extent identical to the Full HD model that we tested before. There is an important difference, however: Next to the webcam in the display frame sits an additional infrared camera for face recognition with Windows Hello. In practice, this works very well, even if you might need to run through the recognition improvement process several times until the infrared camera recognizes the face really reliably.

Display

NV156QUM-N44: close view of subpixels
NV156QUM-N44: close view of subpixels
Hardly any back-light bleeding
Hardly any back-light bleeding

One of the main attractions of our better-equipped T570 model is surely the built-in UHD IPS display (3840x2160). Among other things, this is also because Lenovo's other display options are semi-great at most. As customary for business laptops, there is an HD TN option (1366x768), which the buyers should definitely avoid. The display option that is built into most of the T570 units is the Full HD IPS (1920x1080) display, which we evaluated in our first test. That display was not quite able to convince us: Although, as is typical for IPS displays, the viewing angles and the contrast are good, the comparatively low brightness of 245 cd/m² and the very low color space coverage left much to be desired. We already knew that from the predecessor, the T560. The old curse that business devices have displays that are rather below average, has not been completely overcome yet.

On the basis of the measurements of the 4K/UHD display, we can say with a clear conscience that at least in the most expensive display option, Lenovo has done almost everything right. It was also true in the T560, whose 3K IPS display option (2880x1620) is replaced by the 4K display (the T570 is the first ThinkPad of the T-series with a 4K display ever). Just the display brightness is reason enough to reach for the expensive display option. At 314 cd/m² on average, the built-in panel coming from BOE is considerably brighter than the Full HD display. With this, the 4K display does almost as well as the 3K display in the predecessor: a good result, even if the displays in the Dell XPS 15 and especially in the Apple MacBook Pro 15 are again much brighter than that. As with the 3K predecessor, the 4K panel has some PWM, although it is with a much higher frequency of 925 Hz, which should give no cause for concern to most users. The display hardly shows any backlight bleeding; only during bootup it can be seen minimally on the bottom edge. At 89% the brightness distribution is good, but not outstanding. Shadowing cannot be seen with the naked eye.

312
cd/m²
326
cd/m²
310
cd/m²
312
cd/m²
339
cd/m²
315
cd/m²
306
cd/m²
307
cd/m²
303
cd/m²
Parlaklığın yayılımı
BOE NV156QUM-N44 tested with X-Rite i1Pro 2
Maksimum: 339 cd/m² (Nits) Ortalama: 314.4 cd/m² Minimum: 3.2 cd/m²
Aydınlatma: 89 %
Batarya modunda parlaklık: 339 cd/m²
Kontrast: 942:1 (Siyah: 0.36 cd/m²)
ΔE Color 4.2 | 0.5-29.43 Ø4.92
ΔE Greyscale 5.1 | 0.5-98 Ø5.2
91% sRGB (Argyll 1.6.3 3D)
59.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
66.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
91.1% sRGB (Argyll 2.2.0 3D)
70% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.16

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 926 Hz ≤ 90 % brightness setting

The display backlight flickers at 926 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 926 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

Lenovo ThinkPad T570-20HAS01E00
BOE NV156QUM-N44, , 3840x2160, 15.6"
Lenovo ThinkPad T570-20H90002GE
N156HCA-EAA, , 1920x1080, 15.6"
Lenovo ThinkPad T560-20FH002RGE
Panasonic VVX16T028J00, , 2880x1620, 15.6"
HP EliteBook 850 G4-Z2W86ET
AUO35ED, , 1920x1080, 15.6"
Fujitsu LifeBook U757
LP156WF6-SPP1, , 1920x1080, 15.6"
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
2880x1800, 15.4"
Dell XPS 15 9560 (i7-7700HQ, UHD)
3840x2160, 15.6"
Display
-32%
-5%
-13%
-7%
29%
Display P3 Coverage
70
44.08
-37%
64.4
-8%
56.8
-19%
65.8
-6%
89.7
28%
sRGB Coverage
91.1
65.6
-28%
87.8
-4%
83.7
-8%
84.8
-7%
100
10%
AdobeRGB 1998 Coverage
66.7
45.66
-32%
64.1
-4%
58.7
-12%
62
-7%
100
50%
Response Times
892%
-34%
-30%
-31%
4139%
-64%
Response Time Grey 50% / Grey 80% *
41.6 ?(13.2, 28.4)
41.6 ?(22, 19.6)
-0%
32.8 ?(17.2, 15.6)
21%
47.2 ?(26.8, 20.4)
-13%
36 ?(17.2, 18.8)
13%
47.3 ?(22.1, 25.2)
-14%
57.2 ?(27.2, 30)
-38%
Response Time Black / White *
15.2 ?(2, 13.2)
20.8 ?(6.8, 14)
-37%
22.4 ?(11.6, 10.8)
-47%
15.2 ?(10, 5.2)
-0%
26.4 ?(15.6, 10.8)
-74%
31.2 ?(16.7, 14.5)
-105%
39.2 ?(23.6, 15.6)
-158%
PWM Frequency
926 ?(90)
26040 ?(40)
2712%
220 ?(90)
-76%
199.2 ?(50)
-78%
117000 ?(80, 200)
12535%
962
4%
Screen
-6%
-11%
-65%
-1%
45%
4%
Brightness middle
339
262
-23%
339
0%
338
0%
313
-8%
483
42%
370.1
9%
Brightness
314
245
-22%
322
3%
341
9%
294
-6%
465
48%
356
13%
Brightness Distribution
89
89
0%
88
-1%
90
1%
84
-6%
92
3%
87
-2%
Black Level *
0.36
0.24
33%
0.32
11%
0.81
-125%
0.27
25%
0.33
8%
0.37
-3%
Contrast
942
1092
16%
1059
12%
417
-56%
1159
23%
1464
55%
1000
6%
Colorchecker dE 2000 *
4.2
4.5
-7%
5.88
-40%
10.9
-160%
4.5
-7%
1.4
67%
5.3
-26%
Colorchecker dE 2000 max. *
7.8
10.5
-35%
11.08
-42%
18.7
-140%
10.5
-35%
3
62%
9.9
-27%
Greyscale dE 2000 *
5.1
3.5
31%
7.41
-45%
13.3
-161%
4
22%
1.5
71%
4.6
10%
Gamma
2.16 102%
2.32 95%
2.36 93%
2.11 104%
2.24 98%
2.34 94%
2.31 95%
CCT
6569 99%
6524 100%
6036 108%
16030 41%
6387 102%
6650 98%
6284 103%
Color Space (Percent of AdobeRGB 1998)
59.4
42.04
-29%
57.14
-4%
53.8
-9%
55.3
-7%
88.3
49%
Color Space (Percent of sRGB)
91
65.4
-28%
87.68
-4%
83.4
-8%
84.74
-7%
100
10%
Total Average (Program / Settings)
285% / 157%
-17% / -14%
-36% / -49%
-13% / -6%
2092% / 1161%
-10% / -4%

* ... smaller is better

Colors
Colors
Saturation
Saturation
Grayscale
Grayscale
Colors (calibrated)
Colors (calibrated)
Saturation (calibrated)
Saturation (calibrated)
Grayscale (calibrated)
Grayscale (calibrated)

In terms of contrast, the display falls slightly behind the Full HD panel of the first T570 test: 942:1 is neither a very good, nor a particularly bad value, but simply average for an IPS display. Subjectively, the presentation of black as well as text can absolutely convince. As set by the manufacturer, the BOE display has a slight green tint, which can be removed by a calibration. As always, our ICC color profile can be downloaded above. Unfortunately, even with calibration you still cannot achieve a perfect result, and especially with saturation, the top values deviate a little.

As with brightness, the 4K display also clearly does better in the color space coverage than the Full HD display. At 91% sRGB, it just misses a really good value (95 - 100% sRGB). This is also due to the fact that the display projects even beyond AdobeRGB in the yellow-green color area, but lacks colors in particular in the purple-red and green-blue areas. Thus, the AdobeRGB coverage is also slightly disappointing; the BOE 4K display is not a wide gamut panel. Here we are curious about the 4K IPS display in Lenovo's ThinkPad P51 (test coming soon), which Lenovo advertises with a 100% NTSC color space.

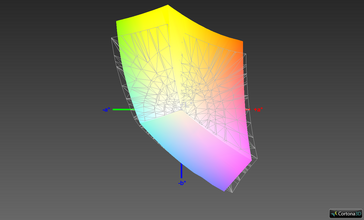

sRGB: 91%
sRGB: 91%
AdobeRGB: 59%
AdobeRGB: 59%

With its matte display surface and brightness of above 300 cd/m², the T570 can be used very well outdoors, as long as you do not sit in direct sunlight. In indirect sunlight, the contents can be recognized fairly well. Of course you can work most comfortably, if you look for a shady place.

Outdoors: sun
Outdoors: sun
Outdoors: shade
Outdoors: shade

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
15.2 ms ... rise ↗ and fall ↘ combined↗ 2 ms rise
↘ 13.2 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 33 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
41.6 ms ... rise ↗ and fall ↘ combined↗ 13.2 ms rise
↘ 28.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 64 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

As typical for an IPS display, the stability of the viewing angles is outstanding. In the T570 with Full HD display we complained that the brightness drops quicker from wide viewing angles. This is almost not at all the case in the 4K display, which is a sign of a high-quality IPS display.

Image outputs via Thunderbolt 3/USB Type-C and HDMI are razor-sharp.

Stability of the viewing angles
Stability of the viewing angles

Performance

Our test unit (20HAS01E00) corresponds roughly to the top configuration of the T570, with the 4K display, Intel Core i7-7500UGeForce 940MX, 512 GB SSD, and 8 GB of RAM (DDR4-2400, 1 of 2 slots empty). All this can be purchased for 1599 Euros (~$1743). Is this a price too good to be true for a high-quality business device? A little, since it is a configuration from the Lenovo Campus educational program. Regular customers cannot purchase this configuration. It is similar to the 20H9001EGE configuration, which has the Core i7-7600U, the same GPU and SSD, as well as 16 GB of RAM instead of 8 GB, and as well as WWAN. Regular customers pay 2299 Euros (~$2506) for a notebook like that.

HWiNFO
HWiNFO
CPU-Z
CPU-Z
CPU-Z: cache
CPU-Z: cache
CPU-Z: main board
CPU-Z: main board
CPU-Z: memory
CPU-Z: memory
CPU-Z: SPD
CPU-Z: SPD
GPU-Z: Intel HD 620
GPU-Z: Intel HD 620
LatencyMon
LatencyMon

Processor

The Core i7-7500U used in our test unit is the second fastest processor of Intel's U-series with a TDP of 15 watts. It is a dual-core processor with four threads (due to Hyperthreading), as well as a base clock speed of 2.7 GHz. According to Intel's specifications, the CPU can clock up to a maximum of 3.5 GHz (Turbo-Boost). You can directly compare with other mobile processors in our processor-benchmark comparison.

Our first T570 test unit uses the Core i5-7200U. This device shows some interesting characteristics, such as a TDP that was raised to 25 watts, which all the T/X-ThinkPads of the 2017 generation that we tested bring along as well. This is also the case in our test unit, so that the processor can exhaust its full performance potential. However, as in the other test unit, we notice in the tests that the performance varies widely from one benchmark run to the next. This is not due to the BIOS, but a setting in the pre-installed Lenovo Settings app: here the "Intelligent Cooling" must be deactivated to achieve constant results. During the Cinebench R15 multi-core loop test which lasts 30 minutes, the maximum result is achieved and can also be maintained with some small variations.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380Tooltip
Cinebench R15 CPU Multi 64 Bit

In any case, the Cinebench test performance of the T570 is impressive for a ULV. In the single-core test, it is even slightly ahead of Apple's MacBook Pro 15, which uses the older i7-6700HQ. But of course the processor cannot keep up with the quad-core processors in the multi-core tests. In comparison to the T570 with the i5-7200U, our test unit is about 13% faster.

Unfortunately, the performance is reduced during battery operation as well. In this case, the processor clock speed drops to about 2.5 to 2.7 GHz. The performance brake could not be deactivated even after a BIOS update and various settings changes.

Cinebench R15
CPU Single 64Bit
Dell XPS 15 9560 (i7-7700HQ, UHD)
Intel Core i7-7700HQ
157 Points +8%
Lenovo ThinkPad T570-20HAS01E00
Intel Core i7-7500U
146 Points
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Intel Core i7-6700HQ
141 Points -3%
Fujitsu LifeBook U757
Intel Core i5-7200U
128 Points -12%
Lenovo ThinkPad T570-20H90002GE
Intel Core i5-7200U
128 Points -12%
HP EliteBook 850 G4-Z2W86ET
Intel Core i5-7200U
126 Points -14%
CPU Multi 64Bit
Dell XPS 15 9560 (i7-7700HQ, UHD)
Intel Core i7-7700HQ
735 Points +97%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Intel Core i7-6700HQ
666 Points +79%
Lenovo ThinkPad T570-20HAS01E00
Intel Core i7-7500U
373 Points
Fujitsu LifeBook U757
Intel Core i5-7200U
331 Points -11%
HP EliteBook 850 G4-Z2W86ET
Intel Core i5-7200U
330 Points -12%
Lenovo ThinkPad T570-20H90002GE
Intel Core i5-7200U
330 Points -12%
Cinebench R15 CPU Multi 64Bit
373 Points
Cinebench R15 CPU Single 64Bit
146 Points
Yardım

System Performance

To our surprise, the test unit achieves fairly weak results in the PCMark test and came in last place in both tests. The T570 with iGPU ends up in first place in the work test, which is strange, since our test unit really has the stronger equipment. The SSD has about the same speed in both units. We suspect that the high resolution impacted the test result negatively. In everyday usage, the weak results are definitely not reflected, and the T570 runs quite as fast as you would expect from a notebook with such relatively fast components.

PCMark 8
Home Score Accelerated v2
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Radeon Pro 450, 6700HQ, Apple SSD SM0256L
3637 Points +19%
Dell XPS 15 9560 (i7-7700HQ, UHD)
GeForce GTX 1050 Mobile, i7-7700HQ, Lite-On CX2-8B512-Q11
3588 Points +18%
HP EliteBook 850 G4-Z2W86ET
HD Graphics 620, i5-7200U, Samsung PM951 NVMe MZVLV256
3542 Points +16%
Lenovo ThinkPad T570-20H90002GE
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
3523 Points +16%
Fujitsu LifeBook U757
HD Graphics 620, i5-7200U, Samsung CM871a MZNTY256HDHP
3320 Points +9%
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP
3049 Points
Work Score Accelerated v2
Lenovo ThinkPad T570-20H90002GE
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
4606 Points +18%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Radeon Pro 450, 6700HQ, Apple SSD SM0256L
4426 Points +14%
Dell XPS 15 9560 (i7-7700HQ, UHD)
GeForce GTX 1050 Mobile, i7-7700HQ, Lite-On CX2-8B512-Q11
4422 Points +14%
HP EliteBook 850 G4-Z2W86ET
HD Graphics 620, i5-7200U, Samsung PM951 NVMe MZVLV256
4330 Points +11%
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP
3892 Points
PCMark 8 Home Score Accelerated v2
3049 puan
PCMark 8 Work Score Accelerated v2
3892 puan
Yardım

Storage Devices

While the other T570 is still equipped with the 256 GB version of the Samsung PM961, the more expensive T570 uses the Samsung PM961 with 512 GB of capacity. The PM961 is a PCIe-NVMe SSD of the latest generation that is built into the T570 as a 2280-M.2 SSD. Despite the PCIe-x2 limitation of the T570, the SSD delivers very good results. The PM871 that was built into the T560 predecessor is about 50% slower. The PM961 also gets excellent results in the important read/write 4K benchmarks. Here, the T570 shows a good update of its predecessor, which could not handle a M.2-PCIe SSD yet.

You can compare further benchmarks with other SSDs and HDDs as well in our benchmark tool

Lenovo ThinkPad T570-20HAS01E00
Samsung PM961 NVMe MZVLW512HMJP
Lenovo ThinkPad T560-20FH002RGE
Samsung SSD PM871 MZ7LN256HCHP
HP EliteBook 850 G4-Z2W86ET
Samsung PM951 NVMe MZVLV256
Fujitsu LifeBook U757
Samsung CM871a MZNTY256HDHP
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Apple SSD SM0256L
Dell XPS 15 9560 (i7-7700HQ, UHD)
Lite-On CX2-8B512-Q11
Lenovo ThinkPad T470s-20HGS00V00
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
CrystalDiskMark 3.0
-50%
-29%
-47%
-16%
4%
18%
Read Seq
1210
513
-58%
1245
3%
509
-58%
1298
7%
1684
39%
1760
45%
Write Seq
1134
306.1
-73%
298.6
-74%
488.4
-57%
1343
18%
1106
-2%
1666
47%
Read 512
789
450.6
-43%
673
-15%
414.3
-47%
842
7%
977
24%
832
5%
Write 512
903
305.5
-66%
298.8
-67%
321.7
-64%
945
5%
1119
24%
1064
18%
Read 4k
58.4
33.4
-43%
41.79
-28%
36.43
-38%
9.8
-83%
45.14
-23%
53.2
-9%
Write 4k
144.1
85.6
-41%
138.4
-4%
88.4
-39%
13
-91%
134.1
-7%
167.4
16%
Read 4k QD32
559
346.9
-38%
495
-11%
402.8
-28%
630
13%
509
-9%
630
13%
Write 4k QD32
474.4
278.9
-41%
297.5
-37%
256.7
-46%
443
-7%
398.1
-16%
533
12%
Samsung PM961 NVMe MZVLW512HMJP
Sequential Read: 1210 MB/s
Sequential Write: 1134 MB/s
512K Read: 789 MB/s
512K Write: 903 MB/s
4K Read: 58.4 MB/s
4K Write: 144.1 MB/s
4K QD32 Read: 559 MB/s
4K QD32 Write: 474.4 MB/s

Graphics card

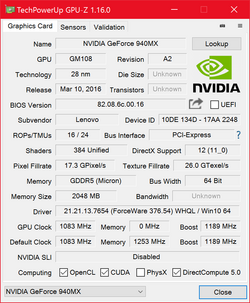

GPU-Z: Nvidia GeForce 940MX
GPU-Z: Nvidia GeForce 940MX

At the first glance, you might think that Lenovo has left everything as is in the dedicated graphics chip, since the T560 predecessor was already equipped with the GeForce 940MX. However, this year Lenovo has finally made use of the 940MX's advantage over the direct 940M predecessor, using GDDR5 instead of DDR3 storage. Otherwise, not much changed with the chip; it is still a GPU of the lower mid-range which uses the outdated Maxwell architecture. A successor based on the Pascal architecture is not yet in sight.

The move to GDDR5 pays off: compared to the predecessor, the T570 is clearly more or less faster, depending on the benchmark. In the 3DMark Cloud Gate benchmark where the T570 is ahead of the T560 by 34%, the difference is particularly large, but also in the Fire Strike benchmark, it can clearly move ahead by an increase of 28%. The older 3DMark11 results in a smaller increase of 16%, however. Despite this performance improvement, it is still far behind the Pascal-based GeForce GTX 1050, which is built into the Dell XPS 15

Unlike the CPU, the Nvidia GPU is not throttled during battery operation and its full power remains available. This is an important difference compared with the T570 without dGPU, since there, the integrated Intel HD Graphics 620 GPU was affected by performance throttling like the CPU. By the way, the Intel HD 620 is losing in the benchmarks to the GeForce 940MX in the T570 by about 47 to 64%, depending on the test.

3DMark 11 - 1280x720 Performance GPU
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
4502 Points +65%
Lenovo ThinkPad T570-20HAS01E00
NVIDIA GeForce 940MX, Intel Core i7-7500U
2727 Points
Lenovo ThinkPad T560-20FH002RGE
NVIDIA GeForce 940MX, Intel Core i7-6600U
2360 Points -13%
Lenovo ThinkPad T570-20H90002GE
Intel HD Graphics 620, Intel Core i5-7200U
1431 Points -48%
HP EliteBook 850 G4-Z2W86ET
Intel HD Graphics 620, Intel Core i5-7200U
1417 Points -48%
Fujitsu LifeBook U757
Intel HD Graphics 620, Intel Core i5-7200U
1309 Points -52%
3DMark
1280x720 Cloud Gate Standard Graphics
Dell XPS 15 9560 (i7-7700HQ, UHD)
NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-7700HQ
31274 Points +137%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
21533 Points +63%
Lenovo ThinkPad T570-20HAS01E00
NVIDIA GeForce 940MX, Intel Core i7-7500U
13181 Points
Lenovo ThinkPad T560-20FH002RGE
NVIDIA GeForce 940MX, Intel Core i7-6600U
8764 Points -34%
Lenovo ThinkPad T570-20H90002GE
Intel HD Graphics 620, Intel Core i5-7200U
7030 Points -47%
HP EliteBook 850 G4-Z2W86ET
Intel HD Graphics 620, Intel Core i5-7200U
6840 Points -48%
1920x1080 Fire Strike Graphics
Dell XPS 15 9560 (i7-7700HQ, UHD)
NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-7700HQ
6074 Points +165%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
3252 Points +42%
Lenovo ThinkPad T570-20HAS01E00
NVIDIA GeForce 940MX, Intel Core i7-7500U
2294 Points
Lenovo ThinkPad T560-20FH002RGE
NVIDIA GeForce 940MX, Intel Core i7-6600U
1651 Points -28%
Lenovo ThinkPad T570-20H90002GE
Intel HD Graphics 620, Intel Core i5-7200U
822 Points -64%
HP EliteBook 850 G4-Z2W86ET
Intel HD Graphics 620, Intel Core i5-7200U
792 Points -65%
3DMark 11 Performance
2931 puan
3DMark Cloud Gate Standard Score
8308 puan
3DMark Fire Strike Score
2098 puan
Yardım

Gaming Performance

Due to the dedicated graphics card, the T570 becomes almost suitable for gaming. But of course for newer games, the details have to be reduced considerably in some cases, and forget about gaming in 4K resolution. If you want to play, you should definitely get a configuration with a dGPU. The distance to the T570 with iGPU is more than clear, and also the T560 predecessor is left behind noticeably. Yet, it has no chance against the GeForce GTX 1050 in the gaming test as well. So anyone who really wants to play seriously should look for a notebook with at least that GPU. The T570 is something rather for the occasional gamers or those who like older games, which however, can be played with higher details.

BioShock Infinite - 1366x768 High Preset
Dell XPS 15 9560 (i7-7700HQ, UHD)
GeForce GTX 1050 Mobile, i7-7700HQ, Lite-On CX2-8B512-Q11
152.5 fps +137%
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP
64.3 fps
Lenovo ThinkPad T560-20FH002RGE
GeForce 940MX, 6600U, Samsung SSD PM871 MZ7LN256HCHP
43.9 fps -32%
HP EliteBook 850 G4-Z2W86ET
HD Graphics 620, i5-7200U, Samsung PM951 NVMe MZVLV256
20.5 fps -68%
Lenovo ThinkPad T570-20H90002GE
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
20.2 fps -69%
düşükortayüksekultra4K
BioShock Infinite (2013) 137.9 72.4 64.3 21.5
The Witcher 3 (2015) 42.5 25.7 11.5
Civilization VI (2016) 52.1 30.7 16.4 12.6 10.1

Emissions

Noise emissions

Cooling system with two heat pipes
Cooling system with two heat pipes

While idling, the fan is turned off permanently, as it should be for a 15.6-inch notebook with an energy saving ULV processor. During everyday operation, the test unit remains quiet as well, at least as far as the fan is concerned. If you hold your ear closer to the keyboard, a sort of hiss becomes audible near the TrackPoint. Not good for something like this to occur in a device of this price range.

During load, the fan turns on and can be clearly heard at a maximum of 41.3 dB(A), although the whirring of the fan does not have a frequency that feels uncomfortable. Also, it is not so loud as to become a massive disturbance.

As expected, in the model with dGPU, Lenovo uses a cooling system that is slightly stronger. The biggest difference is having two copper heat pipes, instead of just one.

Ses yüksekliği

Boşta
29.3 / 29.3 / 31.1 dB
Çalışırken
35.2 / 41.3 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm uzaklık)   environment noise: 29.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.333.234.632.42532.432.73337.33130.330.932.733.84028.328.829.930.15026.127.828.730.56325.427.928.428.38026.527.827.428.110025.725.925.526.212524.725.724.726.916023.22322.924.420022.722.522.724.825021.822.220.924.531521.721.520.524.840020.520.219.622.650020.219.918.922.863021.619.618.225.380022.619.917.627.1100023.920.91728125023.419.416.527.3160024.62016.129.5200023.318.515.828.8250024.518.515.830.4315026.319.416.135.3400023.11816.430.7500020.51716.626.463002016.916.725.7800018.916.916.921.91000019.316.916.920.91250020.6171722.61600022.317.317.421SPL35.231.129.241.3N2.21.51.23.4median 22.6median 19.6median 17median 25.7Delta1.52.21.62.837.533.234.336.931.434.137.832.933.236.331.330.931.328.328.82927.626.728.127.72726.523.425.126.825.327.124.42323.623.523.92424.826.224.522.622.423.221.62122.62019.721.12018.722.12019.623.920.319.824.52016.92319.714.922.519.614.321.519.714.120.317.513.819.717.314.119.215.514.11815.214.115.71514.114.915.214.415.114.614.214.814.614.114.4312933.11.51.21.8median 20median 16.9median 22.13.63.93hearing rangehide median Fan NoiseLenovo ThinkPad T570-20HAS01E00HP EliteBook 850 G4-Z2W86ET

Temperature

Stress test: Prime95 + FurMark
Stress test: Prime95 + FurMark

While idling, the T570 with dGPU remains cool and quiet. Not surprising, since thanks to Optimus, the dedicated GPU is deactivated during idle mode, so there is no difference here. Under load, however, the difference is dramatic: Particularly on the bottom, the T570 becomes very hot, and the 60 °C mark (140 °F) is crossed at the hot spot in the center of the bottom. This makes using it on your lap impossible under load. At least the hand rest warms up only moderately, preventing the T570 from becoming too hot to be usable. Undoubtedly, this is a negative point.

Despite the high surface temperatures, the T570 with the GeForce GPU does not entirely come off badly. As in the test unit without dGPU, the TDP increase to 25 watts in the stress test remains without effect: after several seconds with the full Turbo, the clock drops to around 2.2 GHz, varying significantly, sometimes even dropping down to 1.8 GHz. After about 5 minutes, the clock speed stabilizes above the 2 GHz mark, at times reaching 2.8 GHz, staying at 2.6 GHz on average. Thus we have throttling, but it is not dramatic. This is caused by the temperature as well as the TDP: the TDP of the CPU is at around 12 watts during the stress test; in addition, Lenovo sets a temperature limit of 75 °C (167 °F), which was only crossed minimally in the test. The GPU can maintain its maximum clock speed of 1150 MHz for a long time, but after about 20 minutes, the clock speed falls to 980 MHz.

A 3DMark11 benchmark run right after the stress test was unremarkable, so in everyday use, the throttling problems remain within limits.

Maksimum yük
 41.6 °C42.5 °C39 °C
 43.1 °C42.4 °C39.2 °C
 38.1 °C39.6 °C36.9 °C
Maksimum: 43.1 °C
Ortalama: 40.3 °C
47.4 °C54.5 °C54.6 °C
43.5 °C55.4 °C54.9 °C
29.8 °C26.8 °C26.1 °C
Maksimum: 55.4 °C
Ortalama: 43.7 °C
Güç kaynağı  44 °C | Oda sıcaklığı 21.6 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 40.3 °C / 105 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 43.1 °C / 110 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 55.4 °C / 132 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 29.5 °C / 85 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39.6 °C / 103.3 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-11.9 °C / -21.4 F).
Top (load)
Top (load)
Bottom (load)
Bottom (load)

Frequency diagram in comparison (checkboxes above can be checked or unchecked!)

Power Management

Power Consumption

If you compare our test unit with the base configuration of the T570, the power consumption is significantly higher. This is not surprising, since the 4K display and GeForce 940MX use considerably more, with the latter in particular contributing to the much higher rate during load. The two competing devices by HP and Fujitsu reach consumption rates similar to the T570 with iGPU and Full HD display; despite the quad-core, the Apple MacBook Pro 15, however, is almost on the same level as the 4K T570. During load, the T570 has the advantage, during idle, the MacBook. Only the Dell XPS 15 uses considerably more power.

Lenovo supplies the T570 with a 65-watt power supply. As we are seeing, however, the T570 uses up to 75 watts under load, so the power supply is clearly under-sized. During the stress test, the power consumption under load falls below 65 watts, though. However, Lenovo should really supply the T570 with 4K panel and dGPU with a 90-watt power supply. To save on this point, is incomprehensible and a bad decision.

Anlık tüketim
Kapalı / Bekleme modudarklight 0.24 / 0.33 Watt
Boştadarkmidlight 4.7 / 9.9 / 10.9 Watt
Çalışırken midlight 56.1 / 75 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad T570-20HAS01E00
i7-7500U, GeForce 940MX, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 15.6"
Lenovo ThinkPad T570-20H90002GE
i5-7200U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 15.6"
HP EliteBook 850 G4-Z2W86ET
i5-7200U, HD Graphics 620, Samsung PM951 NVMe MZVLV256, TN LED, 1920x1080, 15.6"
Fujitsu LifeBook U757
i5-7200U, HD Graphics 620, Samsung CM871a MZNTY256HDHP, IPS LED, 1920x1080, 15.6"
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
6700HQ, Radeon Pro 450, Apple SSD SM0256L, IPS, 2880x1800, 15.4"
Dell XPS 15 9560 (i7-7700HQ, UHD)
i7-7700HQ, GeForce GTX 1050 Mobile, Lite-On CX2-8B512-Q11, IGZO IPS, 3840x2160, 15.6"
Power Consumption
31%
39%
33%
2%
-83%
Idle Minimum *
4.7
3.6
23%
3.58
24%
3.96
16%
2.9
38%
11.9
-153%
Idle Average *
9.9
7.7
22%
5.97
40%
7.74
22%
9.7
2%
17.1
-73%
Idle Maximum *
10.9
8.2
25%
6.81
38%
8.64
21%
10.1
7%
17.3
-59%
Load Average *
56.1
30.8
45%
29.4
48%
28.8
49%
65
-16%
94.7
-69%
Load Maximum *
75
46.1
39%
39.7
47%
32
57%
89.5
-19%
122
-63%
Witcher 3 ultra *
104.8

* ... smaller is better

Battery Life

Our current test model has the same battery configuration as the other ThinkPad T570. That is, it has an internal 32-Wh and an external 24-Wh battery, bringing the total battery capacity to 56 Wh. This capacity can optionally be doubled by upgrading to a 72-Wh battery. Please note, however, that this battery will then protrude from the case.

The relatively high rates of power consumption were also a foretaste of the mediocre battery life. The T570 model with iGPU runs about 40 minutes longer in the WLAN test, and the HP EliteBook 840 G4 with a smaller battery, for about two hours longer. For really good battery runtimes, the optional large battery is recommended, since the runtimes are only average with the small battery.

Charging the test unit takes quite long, which is probably due to the dual-battery configuration. Initially, the internal battery is charged up to 80%. Next, the external battery is charged fully, and only then the internal battery is charged up to 100%. Overall the charging process takes more than 3.5 hours.

Batarya ömrü
Boşta (WLAN kapalı, minimum parlaklık)
13h 19min
WiFi Websurfing (Edge)
6h 54min
Big Buck Bunny H.264 1080p
8h 04min
Çalışırken (maksimum parlaklık)
2h 51min
Lenovo ThinkPad T570-20HAS01E00
i7-7500U, GeForce 940MX, 56 Wh
Lenovo ThinkPad T570-20H90002GE
i5-7200U, HD Graphics 620, 56 Wh
HP EliteBook 850 G4-Z2W86ET
i5-7200U, HD Graphics 620, 51 Wh
Fujitsu LifeBook U757
i5-7200U, HD Graphics 620, 50 Wh
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
6700HQ, Radeon Pro 450, 76 Wh
Dell XPS 15 9560 (i7-7700HQ, UHD)
i7-7700HQ, GeForce GTX 1050 Mobile, 97 Wh
Battery Runtime
24%
22%
6%
-5%
-10%
Reader / Idle
799
1167
46%
1081
35%
831
4%
H.264
484
587
21%
637
32%
516
7%
WiFi v1.3
414
454
10%
530
28%
440
6%
602
45%
434
5%
Load
171
201
18%
160
-6%
55
-68%
103
-40%

Verdict

Artılar

+ Stabil kasa ve iyi işcilik
+ Harika arayüzler
+ Mat, parlak ve canlı 4K ekran
+ Geniş bağlantı olanakları
+ Thunderbolt 3 / USB-C
+ Makul bakım olanakları
+ 3 yıl garanti
+ Hızlı WLAN
+ Genellikle sessiz kullanım
+ WWAN hazır
+ İyi işlemci performansı
+ Oyun oynanabilir

Eksiler

- Batarya kullanımında işlemci performansı düşüyor
- Uzun şarj süresi
- Güç kaynağı yeterli gücü sunmuyor
- Yoğun kullanımda kasanın altında ısınma
- Pahalı

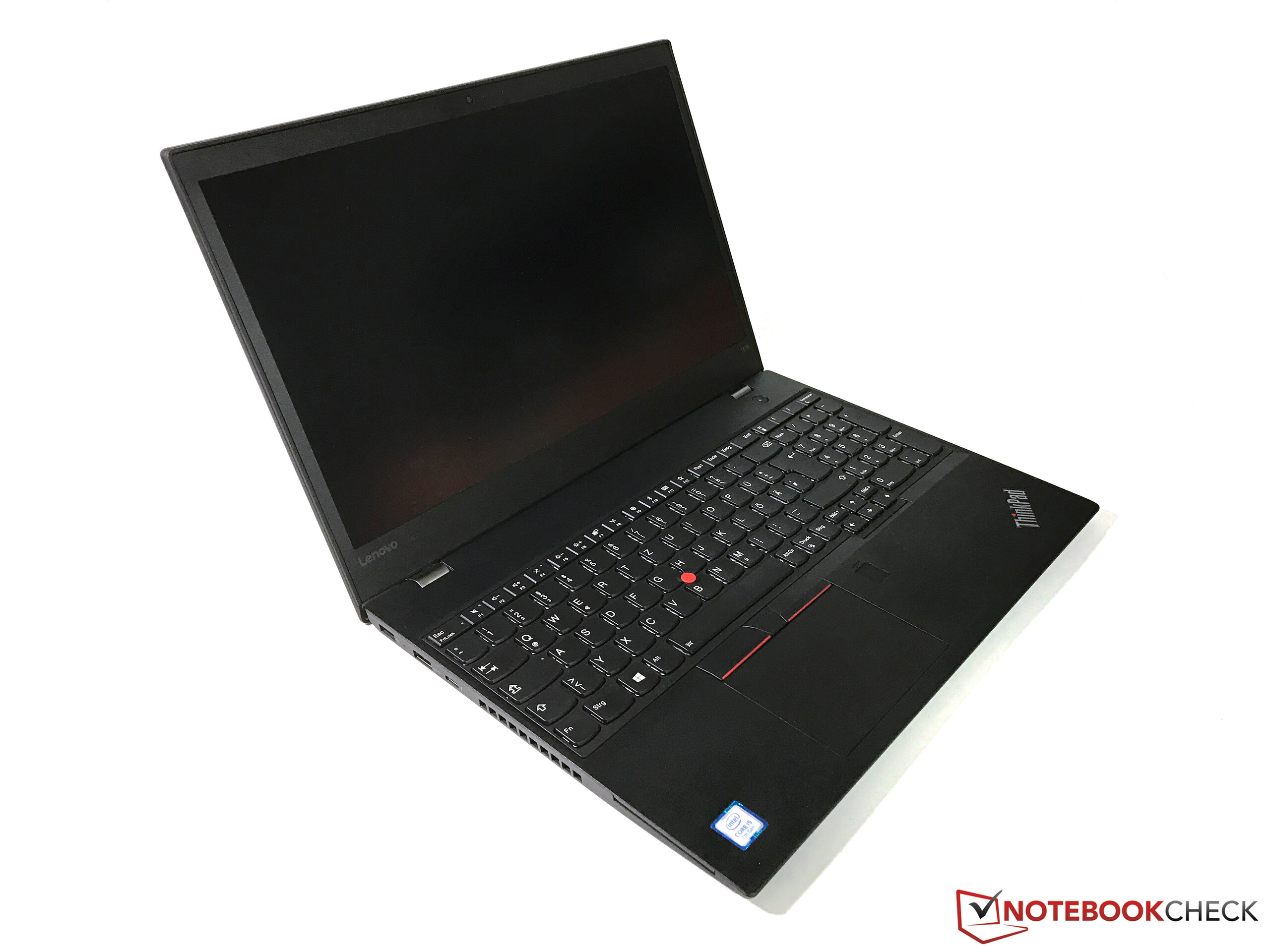

In the test: Lenovo ThinkPad T570. Test unit provided by Campuspoint.
In the test: Lenovo ThinkPad T570. Test unit provided by Campuspoint.

The more expensive T570 can convince us just as much as the more affordable model. It has many good characteristics that our initial test unit also had: the robust, relatively compact case, the comfortable input devices, as well as the many connection options. Practical features such as PowerBridge or the infrared camera turn the T570 into a very flexible laptop. In addition to the advantages from the affordable T570, now also come the 4K display of a convincing quality and the NVIDIA GPU, which, despite being an older model, is considerably more powerful than the Intel GPU integrated into the CPU.

However, this model is also not without problems. Our biggest complaint is the enforced CPU performance reduction during battery operation. During mains operation, we could avoid the performance fluctuations in this model with a settings change, but the performance during battery operation cannot be raised in this way. An added, new problem is the heat development on the bottom during load, which can probably be attributed to the Nvidia GPU. In terms of this problem, the T560 did a little better, perhaps due to its thicker and larger case. In addition, the price for the non-student version of the T570 with 4K display and Nvidia GPU is not really very affordable, and the supplied power supply is not sufficiently sized for operation during load.

With the 4K display, the T570 presents a good overall package and is a promising candidate in the 15.6-inch segment, since it offers an interesting combination of business features and multimedia characteristics.

In summary, the T570 with a 4K display can be clearly recommended. With this display, it was markedly improved in a crucial area where the initial test unit had disappointed. If it were not for the performance reduction during battery operation, it would have achieved a "very good" recommendation. Here we reduce the end note by two percentage points. With this, the reduction is slightly less than for the first test unit, since at this time, the GPU is not affected by the performance reduction and the performance in mains operation is stable.

There are countless alternatives with a 15.6-inch display, whereas the business sector in particular is more concentrated on the 14-inch format. The MacBook Pro 15 and the Dell XPS 15 are strong competitors, which do not offer the business features and the excellent keyboard of the T570, but considerably stronger GPU and CPU options, instead.

Lenovo ThinkPad T570-20HAS01E00 - 04/25/2017 v6 (old)
Benjamin Herzig

İşcilik
88 / 98 → 90%
Klavye
94%
Mouse
89%
Bağlanılabilirlik
73 / 80 → 91%
Ağırlık
63 / 20-67 → 91%
Batarya
89%
Görüntü
90%
Oyun performansı
68 / 68 → 100%
Uygulama performansı
83 / 92 → 90%
Isınma
84%
Ses
88%
Audio
71%
Camera
53 / 85 → 62%
İzlenim
-2%
Ortalama
74%
87%
Office - Ortalama Ağırlık

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Lenovo ThinkPad T570 (Core i7, 4K, 940MX) Laptop
Benjamin Herzig, 2017-04-30 (Update: 2024-11- 4)
