Kısa inceleme: Microsoft Surface Book 2 15 (i7, GTX 1060) Laptop

Artık 15 inç.Microsoft Surface Book 2 modelinin daha geniş ekranlı varyasyonunun ötelenmesinin üzerinden geçeli birkaç ay olmuşken yeni modeli artık görebiliyoruz. Bu güçlü bileşenlerin güç tüketimine etkisini incelemek ilginç olacak.

Andreas Osthoff, 👁 Andreas Osthoff, Published 03/04/2018 🇺🇸 🇩🇪 ...

Convertible / 2-in-1 Geforce Gaming Windows Touchscreen

Microsoft Surface Book 2 15 (Surface Book 2 Seri)

İşlemci

Intel Core i7-8650U 4 x 1.9 - 4.2 GHz, Kaby Lake Refresh

Grafik kartı

NVIDIA GeForce GTX 1060 Mobile - 6 GB VRAM, Çekirdek: 1569 MHz, Bellek: 2002 MHz, GDDR5, 388.08, Optimus

Bellek

16 GB

, LPDDR3-1866, Dual-Channel, soldered in

Görüntü

15.00 inç 3:2, 3240 x 2160 pixel 260 PPI, capacitive, 10 touch-points, LG Philips LGD0554, IPS, ID: LP150QD112604, parlak: evet

Anakart

Intel Kaby Lake-U iHDCP 2.2 Premium PCH

Harddisk

Samsung PM961 MZVLW256HEHP, 256 GB

, 204 GB Boş

Ses kartı

Intel Kaby Lake-U/Y PCH - High Definition Audio

Bağlantılar

3 USB 3.0, Ses çıkışları: 3.5 mm audio jack, Kart okuyucular: SDXC (UHS-II), Brightness Sensor, Alıcılar: ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, Xbox Wireless, TPM 2.0, Windows Hello, Surface Connect

Network

ASIX AX88772B USB2.0 to Fast Ethernet (10/100MBit/s), Marvell AVASTAR Wireless-AC Network Controller (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1

Boyut

yükseklik x genişlik x derinlik (mm): 23 x 343 x 251

Batarya

86 Wh Lithium-Polymer, 23 Wh Tablet, 63 Wh Base, Batarya kullanım süresi (üreticiye göre): 17 h

İşletim sistemi

Microsoft Windows 10 Pro 64 Bit

Camera

Primary Camera: 8 MPix autofocus, 1080p Video
Secondary Camera: 5 MPix 1080p Video

Ek özellikler

Hoparlörler: Stereo with Dolby Audio Premium, Klavye: chiclet-style, Klavye ışığı: evet, Surface AC adapter with 102 watts and USB Type-A charging port (5W), quick start guide, safety notes and warranty information, Office 365 (trial version), 12 Ay Garanti

Ağırlık

1.894 kg, Güç kaynağı: 381 g

Fiyat

2799 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

Dell XPS 15 9560 (i7-7700HQ, UHD) Microsoft Surface Book 2 15 Apple MacBook Pro 15 2017 (2.9 GHz, 560) Razer Blade (2017) UHD Microsoft Surface Book 2 DIN A4 ❌

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

21930 Hz

≤ 50 % brightness setting

The display backlight flickers at 21930 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 21930 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8706 (minimum: 5 - maximum: 343500) Hz was measured.


	464 cd/m²	444 cd/m²	463 cd/m²
	436 cd/m²	446 cd/m²	453 cd/m²
	414 cd/m²	432 cd/m²	446 cd/m²

Parlaklığın yayılımı

LG Philips LGD0554 tested with X-Rite i1Pro 2

Maksimum: 464 cd/m² (Nits) Ortalama: 444.2 cd/m² Minimum: 3.7 cd/m²
Aydınlatma: 89 %
Batarya modunda parlaklık: 446 cd/m²
Kontrast: 1784:1 (Siyah: 0.25 cd/m²)
ΔE Color 1.7 | 0.5-29.43 Ø4.91
ΔE Greyscale 1.7 | 0.5-98 Ø5.2
92.9% sRGB (Argyll 1.6.3 3D)
58.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
Gamma: 2.11

	Microsoft Surface Book 2 15 LG Philips LGD0554, , 3240x2160, 15"	Razer Blade (2017) UHD BEO0743, , 3840x2160, 14"	Dell XPS 15 9560 (i7-7700HQ, UHD) 3840x2160, 15.6"	Apple MacBook Pro 15 2017 (2.9 GHz, 560) 2880x1800, 15.4"	Microsoft Surface Book 2 Panasonic MEI96A2 , , 3000x2000, 13.5"
Display
Display P3 Coverage		67.8	89.7		67.9
sRGB Coverage		94.6	100		95.7
AdobeRGB 1998 Coverage		69	100		69.4
Response Times		-59%	-74%	-19%	-37%
Response Time Grey 50% / Grey 80% *	37.6 ?(18, 19.6)	51 ?(25, 26) -36%	57.2 ?(27.2, 30) -52%	42.4 ?(20.4, 22) -13%	52.8 ?(25.2, 27.6) -40%
Response Time Black / White *	22.4 ?(11.2, 11.2)	32 ?(19, 13) -43%	39.2 ?(23.6, 15.6) -75%	28 ?(14.8, 13.2) -25%	30 ?(16.4, 13.6) -34%
PWM Frequency	21930 ?(50)	200 ?(90) -99%	962 -96%
Screen		-36%	-72%	-4%	-5%
Brightness middle	446	422 -5%	370.1 -17%	534 20%	385 -14%
Brightness	444	402 -9%	356 -20%	502 13%	372 -16%
Brightness Distribution	89	91 2%	87 -2%	86 -3%	89 0%
Black Level *	0.25	0.29 -16%	0.37 -48%	0.31 -24%	0.21 16%
Contrast	1784	1455 -18%	1000 -44%	1723 -3%	1833 3%
Colorchecker dE 2000 *	1.7	3.06 -80%	5.3 -212%	1.8 -6%	1.6 6%
Colorchecker dE 2000 max. *	2.7	5.86 -117%	9.9 -267%	3.8 -41%	4.5 -67%
Greyscale dE 2000 *	1.7	3.84 -126%	4.6 -171%	2.4 -41%	1.5 12%
Gamma	2.11 ^104%	2.52 ^87%	2.31 ^95%	2.27 ^97%	2.22 ^99%
CCT	6384 ^102%	7100 ^92%	6284 ^103%	6563 ^99%	6502 ^100%
Color Space (Percent of AdobeRGB 1998)	58.6	64 9%	88.3 51%	77.92 33%	64 9%
Color Space (Percent of sRGB)	92.9	95 2%	100 8%	99.94 8%	95.9 3%
Total Average (Program / Settings)		-48% / -41%	-73% / -73%	-12% / -7%	-21% / -10%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
22.4 ms ... rise ↗ and fall ↘ combined	↗ 11.2 ms rise
22.4 ms ... rise ↗ and fall ↘ combined	↘ 11.2 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 46 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms).

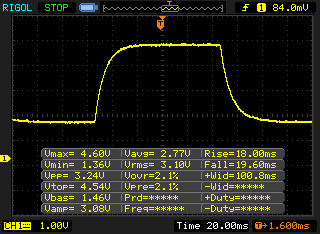

↔ Response Time 50% Grey to 80% Grey
37.6 ms ... rise ↗ and fall ↘ combined	↗ 18 ms rise
37.6 ms ... rise ↗ and fall ↘ combined	↘ 19.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 51 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

LatencyMon (YouTube open)

LatencyMon (wireless communication enabled)

Cinebench R15
CPU Single 64Bit
Average of class Multimedia (99.6 - 323, n=89, last 2 years)	258 Points +45%
Microsoft Surface Book 2 15 Intel Core i7-8650U	178 Points
Microsoft Surface Book 2 Intel Core i7-8650U	177 Points -1%
Average Intel Core i7-8650U (128 - 178, n=17)	165 Points -7%
Apple MacBook Pro 15 2017 (2.9 GHz, 560) Intel Core i7-7820HQ (macOS)	160 Points -10%
Dell XPS 15 9560 (i7-7700HQ, UHD) Intel Core i7-7700HQ	157 Points -12%
Razer Blade (2017) UHD Intel Core i7-7700HQ	146 Points -18%
Dell XPS 13 9370 FHD i5 Intel Core i5-8250U	144 Points -19%
Microsoft Surface Book with Performance Base Intel Core i7-6600U	139 Points -22%
CPU Multi 64Bit
Average of class Multimedia (1252 - 4774, n=94, last 2 years)	2445 Points +262%
Apple MacBook Pro 15 2017 (2.9 GHz, 560) Intel Core i7-7820HQ (macOS)	757 Points +12%
Apple MacBook Pro 15 2017 (2.9 GHz, 560) Intel Core i7-7820HQ (Win10)	630 Points -7%
Razer Blade (2017) UHD Intel Core i7-7700HQ	747 Points +11%
Dell XPS 15 9560 (i7-7700HQ, UHD) Intel Core i7-7700HQ	735 Points +9%
Microsoft Surface Book 2 15 Intel Core i7-8650U (Best Performance)	675 Points
Microsoft Surface Book 2 15 Intel Core i7-8650U (Better Performance)	657 Points -3%
Microsoft Surface Book 2 15 Intel Core i7-8650U (Recommended)	649 Points -4%
Microsoft Surface Book 2 Intel Core i7-8650U	673 Points 0%
Dell XPS 13 9370 FHD i5 Intel Core i5-8250U	669 Points -1%
Average Intel Core i7-8650U (451 - 675, n=19)	589 Points -13%
Microsoft Surface Book with Performance Base Intel Core i7-6600U	324 Points -52%

Cinebench R15 CPU Multi 64 Bit (Rot: Beste Leistung, Gelb: Bessere Leistung, Grau: Empfohlen)

Ses yüksekliği

Boşta		29.1 / 29.1 / 29.1 dB
Çalışırken		35.7 / 45.3 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: Audix TM1, Arta (15 cm uzaklık) environment noise: 29.1 dB(A)

Maksimum yük


	36.8 °C	43.5 °C	41 °C
	36 °C	43.2 °C	40.5 °C
	40.2 °C	40.6 °C	41.8 °C

Maksimum: 43.5 °C
Ortalama: 40.4 °C


	39.3 °C	41.5 °C	39.9 °C
	38.9 °C	42.7 °C	38.4 °C
	35.8 °C	38 °C	34.5 °C

Maksimum: 42.7 °C
Ortalama: 38.8 °C

Güç kaynağı 40.6 °C | Oda sıcaklığı 20.1 °C | Voltcraft IR-900

Bekleme


	22.6 °C	24.4 °C	24 °C
	24.8 °C	25.3 °C	24.5 °C
	24.2 °C	28.4 °C	28 °C

Maksimum: 28.4 °C
Ortalama: 25.1 °C


	21.8 °C	22 °C	22.1 °C
	22.3 °C	22.7 °C	22.3 °C
	23.2 °C	23.7 °C	22.7 °C

Maksimum: 23.7 °C
Ortalama: 22.5 °C

Güç kaynağı 25.3 °C | Oda sıcaklığı 20.1 °C | Voltcraft IR-900

Witcher 3


	35.6 °C	38.7 °C	36.5 °C
	34.6 °C	38.4 °C	36.8 °C
	38.6 °C	36.4 °C	41.1 °C

Maksimum: 41.1 °C
Ortalama: 37.4 °C


	36 °C	37.1 °C	35.4 °C
	36.2 °C	37.5 °C	34 °C
	34.5 °C	36.3 °C	33.8 °C

Maksimum: 37.5 °C
Ortalama: 35.6 °C

Güç kaynağı 40.5 °C | Oda sıcaklığı 20.2 °C | Voltcraft IR-900

(-) The average temperature for the upper side under maximal load is 40.4 °C / 105 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 43.5 °C / 110 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 42.7 °C / 109 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.1 °C / 77 F, compared to the device average of 31.3 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 37.4 °C / 99 F, compared to the device average of 31.3 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 41.8 °C / 107.2 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-13 °C / -23.4 F).

Maksimum yük


	38.8 °C	39.8 °C	41.8 °C
	38.4 °C	41 °C	39.7 °C
	28.4 °C	28.1 °C	31.5 °C

Maksimum: 41.8 °C
Ortalama: 36.4 °C


	41.3 °C	42.8 °C	42.6 °C
	41.5 °C	43.1 °C	41.2 °C
	32.4 °C	33.6 °C	30.8 °C

Maksimum: 43.1 °C
Ortalama: 38.8 °C

Güç kaynağı 40.6 °C | Oda sıcaklığı 20.1 °C | Voltcraft IR-900

Bekleme


	22.4 °C	22.7 °C	22.6 °C
	22.2 °C	22.3 °C	22.5 °C
	21.9 °C	21.9 °C	22.1 °C

Maksimum: 22.7 °C
Ortalama: 22.3 °C


	21.4 °C	21.5 °C	21.5 °C
	21.4 °C	21.3 °C	21.1 °C
	21 °C	21.1 °C	20.8 °C

Maksimum: 21.5 °C
Ortalama: 21.2 °C

Güç kaynağı 25.3 °C | Oda sıcaklığı 20.1 °C | Voltcraft IR-900

Witcher 3


	39 °C	40.1 °C	42.9 °C
	38.8 °C	39.7 °C	40.9 °C
	29.2 °C	29.4 °C	32.5 °C

Maksimum: 42.9 °C
Ortalama: 36.9 °C


	42.9 °C	44.1 °C	41.5 °C
	42 °C	44.2 °C	40.3 °C
	33.1 °C	32.5 °C	31.4 °C

Maksimum: 44.2 °C
Ortalama: 39.1 °C

Güç kaynağı 40.5 °C | Oda sıcaklığı 20.2 °C | Voltcraft IR-900

(±) The average temperature for the upper side under maximal load is 36.4 °C / 98 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 41.8 °C / 107 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 43.1 °C / 110 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 22.3 °C / 72 F, compared to the device average of 31.3 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 36.9 °C / 98 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.5 °C / 90.5 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-3.7 °C / -6.7 F).

Batarya ömrü

WiFi Websurfing (Edge)		10h 35min
Big Buck Bunny H.264 1080p		15h 15min
Çalışırken (maksimum parlaklık)		2h 25min

	Microsoft Surface Book 2 15 i7-8650U, GeForce GTX 1060 Mobile, 86 Wh	Razer Blade (2017) UHD i7-7700HQ, GeForce GTX 1060 Mobile, 70 Wh	Dell XPS 15 9560 (i7-7700HQ, UHD) i7-7700HQ, GeForce GTX 1050 Mobile, 97 Wh	Apple MacBook Pro 15 2017 (2.9 GHz, 560) i7-7820HQ, Radeon Pro 560, Wh	Microsoft Surface Book 2 i7-8650U, GeForce GTX 1050 Mobile, 75 Wh	Average of class Multimedia
Battery Runtime		-46%	-32%	7%	4%	1%
WiFi v1.3	635	340 -46%	434 -32%	677 7%	663 4%	640 ?(279 - 1204, n=88, last 2 years) 1%
Witcher 3 ultra				76	230	76.3 ?(57 - 96, n=4, last 2 years)

In review: Microsoft Surface Book 2. Review device provided courtesy of: notebooksbilliger.de

Cihazla geçirdiğimiz birkaç kısa saatin ardından küçük kardeşiyle büyük ölçüde benzeştiği noktaları bulmak mümkün. Tablet aktif olarak soğutuluyor ama geliştirilen soğutma mekanizmasından daha iyi beklediğimizi belirtmek gerek.

Ekran daha parlak olmasına karşın parlaklık kontrolü iyi değil. Fabrika çıkışında iyi bir kalibrasyon da yok. İlk testlerimize göre batarya kullanımı büyüyen ekrana rağmen iyi sonuçlar veriyor.
