Size Comparison
Networking | |
iperf3 transmit AX12 | |
Razer Blade (2016) | |
iperf3 receive AX12 | |
Razer Blade (2016) |
|
Aydınlatma: 69 %
Batarya modunda parlaklık: 328 cd/m²
Kontrast: 1491:1 (Siyah: 0.22 cd/m²)
ΔE Color 1.91 | 0.5-29.43 Ø4.93
ΔE Greyscale 1.69 | 0.5-98 Ø5.2
97% sRGB (Argyll 1.6.3 3D)
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.8% sRGB (Argyll 2.2.0 3D)
66.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.3
Razer Blade (2016) Sharp LQ140Z1JW01 (SHP1401), IGZO, 3200x1800, 14" | SCHENKER XMG P406 LG Philips 140WF1 (LGD040A), IPS, 1920x1080, 14" | MSI GS43VR 6RE-006US Name: LG Philips LP140WF3-SPD1, ID: LGD046D, IPS, 1920x1080, 14" | Asus Strix GL502VS-FY032T LG Philips LP156WF6-SPB6 (LGD046F), IPS, 1920x1080, 15.6" | |
---|---|---|---|---|
Display | -9% | -7% | -10% | |
Display P3 Coverage | 66.9 | 66.2 -1% | 65.5 -2% | 64.5 -4% |
sRGB Coverage | 96.8 | 82.8 -14% | 86.4 -11% | 83.1 -14% |
AdobeRGB 1998 Coverage | 68.2 | 60.5 -11% | 63.1 -7% | 60.8 -11% |
Response Times | -9% | 29% | 23% | |
Response Time Grey 50% / Grey 80% * | 41 ? | 56 ? -37% | 31.6 ? 23% | 38 ? 7% |
Response Time Black / White * | 37 ? | 30 ? 19% | 24.4 ? 34% | 23 ? 38% |
PWM Frequency | 200 ? | |||
Screen | -58% | -27% | -58% | |
Brightness middle | 328 | 282 -14% | 288.4 -12% | 315 -4% |
Brightness | 328 | 266 -19% | 282 -14% | 290 -12% |
Brightness Distribution | 69 | 81 17% | 83 20% | 85 23% |
Black Level * | 0.22 | 0.22 -0% | 0.35 -59% | 0.32 -45% |
Contrast | 1491 | 1282 -14% | 824 -45% | 984 -34% |
Colorchecker dE 2000 * | 1.91 | 4.98 -161% | 2.61 -37% | 4.88 -155% |
Colorchecker dE 2000 max. * | 3.23 | 10.2 -216% | 7.34 -127% | 8.88 -175% |
Greyscale dE 2000 * | 1.69 | 4.08 -141% | 1.18 30% | 4.17 -147% |
Gamma | 2.3 96% | 2.51 88% | 2.24 98% | 2.53 87% |
CCT | 6418 101% | 5877 111% | 6506 100% | 6683 97% |
Color Space (Percent of AdobeRGB 1998) | 63 | 54 -14% | 56.4 -10% | 55 -13% |
Color Space (Percent of sRGB) | 97 | 83 -14% | 86.4 -11% | 83 -14% |
Total Average (Program / Settings) | -25% /
-41% | -2% /
-15% | -15% /
-37% |
* ... smaller is better

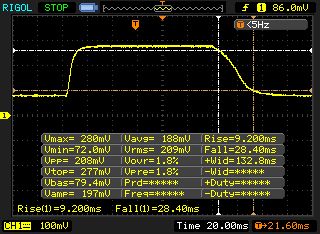

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
37 ms ... rise ↗ and fall ↘ combined | ↗ 9 ms rise | |
↘ 28 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 95 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

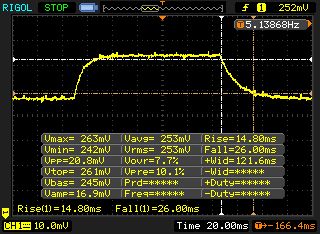

↔ Response Time 50% Grey to 80% Grey | ||
41 ms ... rise ↗ and fall ↘ combined | ↗ 15 ms rise | |
↘ 26 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 61 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). |

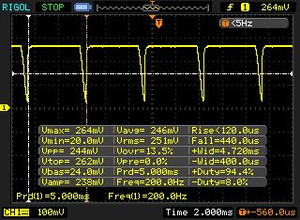

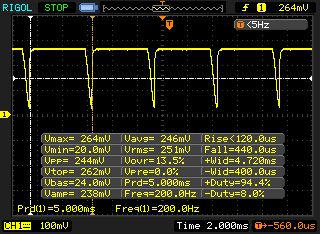

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 200 Hz | ≤ 90 % brightness setting | |
The display backlight flickers at 200 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. |
Cinebench R15 | |
CPU Single 64Bit | |
Asus Strix GL502VS-FY032T | |
Razer Blade (2016) | |
SCHENKER XMG P406 | |
MSI GS43VR 6RE-006US | |
CPU Multi 64Bit | |
SCHENKER XMG P406 | |
Asus Strix GL502VS-FY032T | |
MSI GS43VR 6RE-006US | |
Razer Blade (2016) |
PCMark 8 | |
Home Score Accelerated v2 | |
Asus Strix GL502VS-FY032T | |
MSI GS43VR 6RE-006US | |
Razer Blade (2016) | |
SCHENKER XMG P406 | |
Work Score Accelerated v2 | |
SCHENKER XMG P406 | |
Asus Strix GL502VS-FY032T | |
MSI GS43VR 6RE-006US | |
Razer Blade (2016) |
PCMark 8 Home Score Accelerated v2 | 3417 puan | |
PCMark 8 Work Score Accelerated v2 | 4214 puan | |
Yardım |

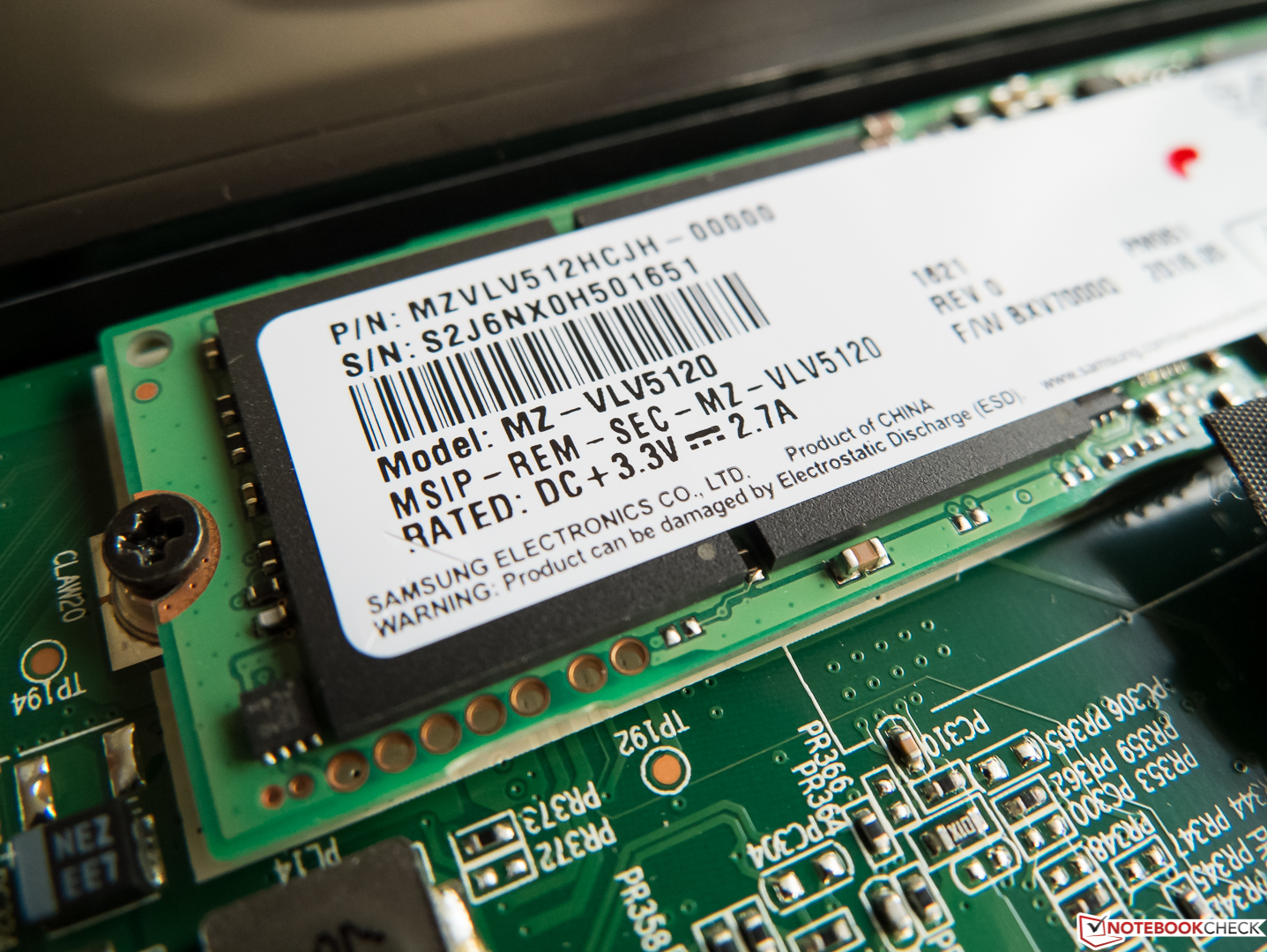

Razer Blade (2016) Samsung PM951 NVMe MZVLV512 | SCHENKER XMG P406 Samsung SM951 MZHPV256HDGL m.2 PCI-e | MSI GS43VR 6RE-006US SanDisk SD8SN8U1T001122 | Asus Strix GL502VS-FY032T SanDisk SD8SNAT256G1002 | |
---|---|---|---|---|
CrystalDiskMark 3.0 | 28% | -63% | -54% | |
Read Seq | 1296 | 1634 26% | 335.3 -74% | 485.4 -63% |
Write Seq | 603 | 1290 114% | 299 -50% | 312.4 -48% |
Read 512 | 655 | 1149 75% | 223 -66% | 294.8 -55% |
Write 512 | 604 | 1285 113% | 246.7 -59% | 287.8 -52% |
Read 4k | 42.22 | 43.82 4% | 17.68 -58% | 21.44 -49% |
Write 4k | 139.6 | 110.3 -21% | 35.31 -75% | 75.7 -46% |
Read 4k QD32 | 573 | 320.5 -44% | 247.4 -57% | 149.4 -74% |
Write 4k QD32 | 480 | 287.3 -40% | 156.3 -67% | 256.3 -47% |
3DMark 11 - 1280x720 Performance GPU | |
Asus Strix GL502VS-FY032T | |
MSI GS43VR 6RE-006US | |
Razer Blade (2016) | |
SCHENKER XMG P406 |
3DMark - 1920x1080 Fire Strike Graphics | |
Asus Strix GL502VS-FY032T | |
MSI GS43VR 6RE-006US | |
Razer Blade (2016) | |
SCHENKER XMG P406 |
3DMark 11 Performance | 11139 puan | |
3DMark Fire Strike Score | 9193 puan | |
Yardım |
Mirror's Edge Catalyst | |
1920x1080 Ultra Preset AF:16x | |
Asus Strix GL502VS-FY032T | |
Razer Blade (2016) | |
1920x1080 High Preset AF:16x | |
Asus Strix GL502VS-FY032T | |
Razer Blade (2016) |
The Witcher 3 | |
1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Asus Strix GL502VS-FY032T | |
Razer Blade (2016) | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Asus Strix GL502VS-FY032T | |
Razer Blade (2016) |
düşük | orta | yüksek | ultra | |
---|---|---|---|---|
The Witcher 3 (2015) | 66.2 | 37.3 | ||
Star Wars Battlefront (2015) | 76.5 | |||
Mirror's Edge Catalyst (2016) | 63.6 | 57.4 | 49.1 | |
Battlefield 1 (2016) | 81.7 | 59.9 | 56.4 | |
Dishonored 2 (2016) | 52.1 | 47 | 44.1 |
Battlefield 1 | |
1920x1080 Ultra Preset AA:T | |
Razer Blade (2016) EC 4.00 | |
Razer Blade (2016) | |
1920x1080 High Preset AA:T | |
Razer Blade (2016) EC 4.00 | |
Razer Blade (2016) |
Ses yüksekliği
Boşta |
| 31 / 33 / 35 dB |
Çalışırken |
| 39 / 51 dB |
| ||
30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü |
||
min: , med: , max: Audix TM1, Arta (15 cm uzaklık) environment noise: 30 dB(A) |
Razer Blade (2016) GeForce GTX 1060 Mobile, 6700HQ | SCHENKER XMG P406 GeForce GTX 970M, 6700HQ | MSI GS43VR 6RE-006US GeForce GTX 1060 Mobile, 6700HQ | Asus Strix GL502VS-FY032T GeForce GTX 1070 Mobile, 6700HQ | |
---|---|---|---|---|
Noise | -6% | -4% | 0% | |
off / environment * | 30 | 29.1 3% | 30 -0% | |
Idle Minimum * | 31 | 30 3% | 32 -3% | 32 -3% |
Idle Average * | 33 | 32 3% | 32 3% | 33 -0% |
Idle Maximum * | 35 | 40 -14% | 33.5 4% | 34 3% |
Load Average * | 39 | 47 -21% | 50 -28% | 39 -0% |
Load Maximum * | 51 | 51 -0% | 51.5 -1% | 51 -0% |
* ... smaller is better
(-) The maximum temperature on the upper side is 52.7 °C / 127 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 48.4 °C / 119 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 26.6 °C / 80 F, compared to the device average of 33.9 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39.1 °C / 102.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-10.2 °C / -18.4 F).
Razer Blade (2016) GeForce GTX 1060 Mobile, 6700HQ | SCHENKER XMG P406 GeForce GTX 970M, 6700HQ | MSI GS43VR 6RE-006US GeForce GTX 1060 Mobile, 6700HQ | Asus Strix GL502VS-FY032T GeForce GTX 1070 Mobile, 6700HQ | |
---|---|---|---|---|
Heat | -25% | -20% | -3% | |
Maximum Upper Side * | 52.7 | 55 -4% | 55.6 -6% | 48 9% |
Maximum Bottom * | 48.4 | 58.7 -21% | 62.4 -29% | 46.8 3% |
Idle Upper Side * | 29.3 | 36.9 -26% | 33.2 -13% | 33.7 -15% |
Idle Bottom * | 28.4 | 41.7 -47% | 37.2 -31% | 30.5 -7% |
* ... smaller is better
Razer Blade (2016) audio analysis
(±) | speaker loudness is average but good (79 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8.4% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(+) | mids are linear (4.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(+) | highs are linear (5.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.1% difference to median)
Compared to same class
» 44% of all tested devices in this class were better, 12% similar, 45% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 27% of all tested devices were better, 8% similar, 65% worse
» The best had a delta of 4%, average was 25%, worst was 134%
MSI GS43VR 6RE-006US audio analysis
(±) | speaker loudness is average but good (76.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.5% lower than median
(±) | linearity of bass is average (12% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(±) | linearity of mids is average (9.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.4% higher than median
(±) | linearity of highs is average (8.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (28.9% difference to median)
Compared to same class
» 94% of all tested devices in this class were better, 2% similar, 4% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 85% of all tested devices were better, 3% similar, 12% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Kapalı / Bekleme modu | 0.1 / 0.5 Watt |
Boşta | 9 / 14 / 22 Watt |
Çalışırken |
72 / 124 Watt |
Key:
min: ,
med: ,
max: Voltcraft VC940 |
Razer Blade (2016) GeForce GTX 1060 Mobile, 6700HQ | SCHENKER XMG P406 GeForce GTX 970M, 6700HQ | MSI GS43VR 6RE-006US GeForce GTX 1060 Mobile, 6700HQ | Asus Strix GL502VS-FY032T GeForce GTX 1070 Mobile, 6700HQ | |
---|---|---|---|---|
Power Consumption | -22% | -27% | -58% | |
Idle Minimum * | 9 | 12 -33% | 12.1 -34% | 20 -122% |
Idle Average * | 14 | 16 -14% | 19 -36% | 24 -71% |
Idle Maximum * | 22 | 22 -0% | 19.5 11% | 29 -32% |
Load Average * | 72 | 90 -25% | 106.7 -48% | 86 -19% |
Load Maximum * | 124 | 170 -37% | 159 -28% | 183 -48% |
* ... smaller is better
Razer Blade (2016) 70 Wh | SCHENKER XMG P406 45 Wh | MSI GS43VR 6RE-006US 61 Wh | Asus Strix GL502VS-FY032T 62 Wh | |
---|---|---|---|---|
Battery Runtime | ||||
WiFi v1.3 | 243 | 197 -19% | 261 7% | 196 -19% |
Artılar
Eksiler
Avantajlarının çokluğunu düşündüğümüzde işlemci tıkanmasından ötürü hayal kırıklığından başka bir şey yaşayamıyoruz. Düşük zaman süreleri de aynı zamanda olası alıcının tekrar düşünmesine sebep olacaktır. Zorunlu kayıt olma süreci de bir diğer rahatsızlık. İnce kasadan ötürü sistem seslerini kabul edebilirdik, ancak fandan gelen yüksek ses kullanıcılar için direk sorun olabilir.
Yeni Razer Blade birçok şeyi doğru yapıyor, ancak işlemci performansı yönünden geri kaldığı için potansiyelini kullanamıyor.
Büyük avantajlarından biri elbette harika kasası, daha iyisi nasıl yapılabilir bilmiyoruz. Tuş dağılımı biraz garik olsa da, Chrome kesinlikle geniş düzenleme olanakları ile tam bir hazine. Hızlı WLAN, Thunderbolt 3 ve HDMI 2.0 ile Blade modeli geleceğe hazır. Atlanmaması gereken diğer nokta da parlak IGZO ekranı ile güçlü kontrast ve tutarlı renklerin sunulması.
If Razer solves the throttling issues, we would give the Blade a 84% rating. It might very well be that our test model was defective. Sadly, we feel ourselves obligated to drop the rating by 2% (for now).
Update 12/05/16: As mentioned earlier, the CPU throttling was fixed by an EC update. The rating is therefore increased to the original 84 %.
İşlemci takılması sorununun bir güncelleme ile çözüldüğü bilgisini aldık. Bunu bildirmekten zevk duyup, genel ortalamanın %84 olduğunu belirtmek isteriz.
