Name: GMK NucBox M7 Pro
Brand: GMK

Karar - Makul Ölçüde Hızlı Ancak Ucuz

GMK, en yeni ve en iyiler yerine daha eski işlemcileri dikkatle seçerek mini bilgisayarları rakiplerinden belirgin şekilde daha ucuza sunabiliyor. Bu durumda, AMD Ryzen 9 Pro 6950H birkaç nesil geride kalmış olabilir, ancak yine de performansı, daha pahalı olanlarla karşılaştırılabilir hızlarla ofis iş yüklerinin çoğu için fazlasıyla yeterli Intel NUC 13 Pro. Entegre OcuLink bağlantı noktasından yararlanmak isteyen kullanıcılar NucBox M7 Pro'dan daha da fazla değer bulacaktır, çünkü böyle bir seçenek fiyat noktası ne olursa olsun mini PC'lerde nadirdir.

Biraz iyileştirmeye ihtiyaç duyabilecek iki husus parlak üst panel ve fan RPM davranışıdır. Parlak üst panel rakiplerine kıyasla çirkin parmak izlerini daha kolay çekerken, fanlar masaüstünde rölantide çalışırken bile gereğinden fazla aktif görünüyor. Entegre bir parmak izi okuyucu da özellikle ofis ortamında güvenliği artırabilirdi. NucBox M7 Pro, en ucuz seçeneklerden biri olsa bile en şık ya da en sessiz seçenek olmayabilir.

Artılar

+ kolay servis edilebilirlik; 2x SODIMM + 2x M.2 PCIe4 SSD

+ dolar başına iyi performans

+ çok sayıda entegre bağlantı noktası

+ ucuz

Eksiler

- çizilmelere ve parmak izlerine karşı hassas üst plastik kapak

- fan gürültüsü davranışı iyileştirilebilir

- nispeten yüksek güç tüketimi

- parmak izi okuyucu yok

$459.98

GMKtec Mini PC Gaming, M7 AMD Ryzen 7 PRO 6850H (8C/16T 4.70Ghz) Dual NIC LAN 2.5G Desktop Computer Windows 11 Pro, 16 DDR5 RAM + 512GB Hard Drive PCle SSD, Dual USB4, HDMI 2.1, USB-C

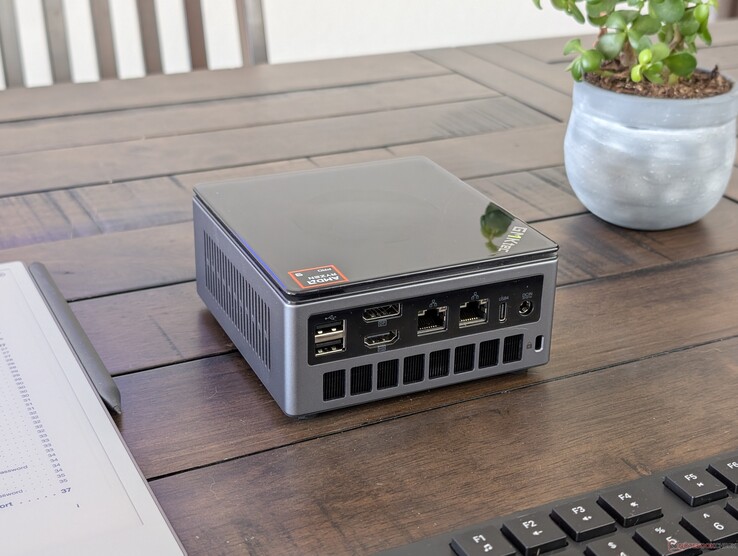

NucBox M7 Pro, profesyonel kullanıcıları hedefleyen uygun fiyatlı bir mini PC'dir. Adına uygun olarak Ryzen 9 Pro 6950H taşıyor ve bu nedenle vPro benzeri özelliklere ihtiyaç duyan kullanıcıları hedefliyor. Bununla birlikte, ucuz başlangıç fiyatı GMK mini PC'yi ev ofis kullanıcıları için de cazip kılıyor.

Test ünitemiz Ryzen 9 Pro 6950H CPU, 32 GB RAM ve 1 TB SSD ile donatılmış olarak yaklaşık 440 dolara geliyor. Barebone seçeneği de sadece 320 $ karşılığında mevcut. Pro olmayan normal M7 modeli, daha yavaş Ryzen 7 Pro 6850H ile gelmesine rağmen görsel olarak aynıdır.

Alternatifler arasında aşağıdakiler gibi diğer profesyonel mini PC'ler bulunur Intel NUC 13 Pro veya MSI Cubi NUC M1.

Daha fazla GMK incelemesi:

Dava

Yarı saydam plastik üst kapak, NucBox M7 Pro'yu diğer mini PC'lerden görsel olarak ayırmaya yardımcı olur. Pürüzsüz parlak üst kısım, aksi takdirde donuk mat gri kasaya biraz görsel yetenek katar. Bununla birlikte, çıkarılabilir parlak üst kısmın Playstation 4'teki çıkarılabilir parlak plastik kapak gibi çizilmelere ve parmak izlerine karşı çok hassas olduğunu unutmayın.

Boyut ve ağırlık olarak, bu modelden biraz daha büyük ve ağırdır NucBox K9. Bu, daha büyük soğutma çözümüne ve daha çeşitli bağlantı noktalarına bağlanabilir.

Boyut ve ağırlık karşılaştırması

GMK NucBox M7 Pro MSI Cubi NUC 1M Geekom GT1 Mega Beelink SER9 GMK NucBox K9 Intel NUC 13 Pro Kit NUC13ANK DIN A5 ❌

Bağlanabilirlik

Intel NUC 13 Pro veya NucBox K9 dahil olmak üzere birçok pahalı rakipten daha fazla bağlantı noktası seçeneği mevcuttur. En dikkat çekici olanı, desteklenen masaüstü GPU'lara bağlanmak için OcuLink bağlantı noktası ve uyumlu USB-C AC adaptörleriniz varsa AC adaptör bağlantı noktası olarak da kullanılabilen çift USB4 bağlantı noktasıdır.

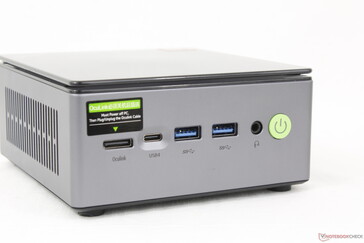

OcuLink, DisplayPort + Güç Dağıtımı ile USB4 (40 Gbps), 2x USB-A 3.0, 3,5 mm kulaklık, Güç düğmesi

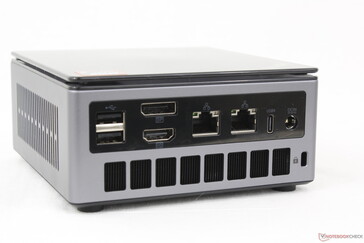

Arka: 2x USB 2.0-A, DisplayPort 2.0, HDMI 2.1, 2x RJ-45 (2,5 Gbps), DisplayPort + Güç Dağıtımı ile USB (40 Gbps), AC adaptörü, Kensington kilidi

İletişim

Intel AX200, muhtemelen maliyetten tasarruf etmek için Wi-Fi 6E veya Wi-Fi 7 desteği olmadan standart olarak gelir. Performans yine de istikrarlı ve güvenilir.

Çıkarılabilir M.2 WLAN modülü birincil SSD'nin altında yer alır

Networking
iperf3 transmit AXE11000
GMK NucBox M7 Pro	1147 (1025^min - 1206^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -27%
GMK NucBox K9 Intel Wi-Fi 6 AX201	823 (607^min - 901^max) MBit/s -28%
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	741 (690^min - 797^max) MBit/s -35%
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	636 (430^min - 784^max) MBit/s -45%
Beelink SER9 Intel Wi-Fi 6 AX200	609 (334^min - 677^max) MBit/s -47%
iperf3 receive AXE11000
GMK NucBox M7 Pro	1267 (1019^min - 1377^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s -26%
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	888 (825^min - 926^max) MBit/s -30%
Beelink SER9 Intel Wi-Fi 6 AX200	814 (717^min - 861^max) MBit/s -36%
GMK NucBox K9 Intel Wi-Fi 6 AX201	764 (635^min - 829^max) MBit/s -40%
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	692 (506^min - 872^max) MBit/s -45%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	1400 (1199^min - 1463^max) MBit/s
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	1242 (1110^min - 1348^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	1560 (1528^min - 1585^max) MBit/s
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	1149 (666^min - 1346^max) MBit/s

GMK NucBox M7 Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø1147 (1025-1206)

GMK NucBox M7 Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø1267 (1019-1377)

Bakım

İki DDR5 SODIMM yuvasına ve iki M.2 2280 PCIe4 SSD yuvasına erişmek için yalnızca bir yıldız tornavida gerekir. Ancak diğer mini bilgisayarların çoğundan farklı olarak anakartın bu tarafına aşağıda gösterildiği gibi alttan değil üstten erişilebiliyor.

Parlak üst kapak, üst fanı ve dört yıldız vidayı ortaya çıkarmak için herhangi bir alet kullanmadan döndürülerek çıkarılabilir

Phillips vidaların çıkarılması yükseltilebilir bileşenlere erişim sağlar

Sürdürülebilirlik

GMKtec, geri dönüştürülmüş malzemelerin kaynakları veya yüzdeleri hakkında ayrıntıya girmeden "sürdürülebilir şekilde üretilmiştir" şeklinde reklam yapmaktadır. Ambalaj karton ve köpükten oluşuyor ve kutunun içinde plastik bulunmuyor.

Aksesuarlar ve Garanti

Perakende kutusunda, normal fıçı AC adaptörü ve evraklara ek olarak bir HDMI kablosu ve vidalı VESA montaj aparatı bulunur. ABD'de satın alındığında standart bir yıllık sınırlı üretici garantisi geçerlidir.

Performans

Test Koşulları

Aşağıdaki kıyaslamaları çalıştırmadan önce Windows'u Performans moduna ayarladık.

İşlemci

Bizim Ryzen 9 Pro 6950H daha iyi performans gösterir Ryzen 9 Pro 6950HS hP EliteBook 845 G9'da çok iş parçacıklı yüklerde yaklaşık yüzde 10 ila 15 oranında. Gibi daha yeni CPU'lara sahip alternatifler Core i7-13700H veya Ryzen 9 8945HS zen 3+ Ryzen 9'umuzdan daha iyi performans gösterebilir, ancak bu tür mini bilgisayarlar daha pahalı olma eğilimindedir ve arzu edilen vPro veya AMD Pro özelliklerinden yoksun olabilirler.

Cinebench R15 Multi Loop

GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H: Ø2139 (2119.65-2152.85)

Beelink SER9 AMD Ryzen AI 9 HX 370: Ø3253 (3218.02-3282.46)

Geekom GT1 Mega Intel Core Ultra 9 185H: Ø2442 (2286.63-2795.05)

MSI Cubi NUC 1M Intel Core 7 150U: Ø971 (535.59-1039.66)

GMK NucBox K9 Intel Core Ultra 5 125H: Ø1902 (1827.4-1965.8)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum G7 PT AMD Ryzen 9 7945HX	89.1 pt
Beelink SER9 AMD Ryzen AI 9 HX 370	75.4 pt
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	72.6 pt
Apple Mac Mini M4 ^-8! Apple M4 (10 cores)	71.3 pt
Minisforum MS-A1 AMD Ryzen 7 8700G	69.4 pt
Geekom A8 AMD Ryzen 9 8945HS	68.2 pt
Geekom GT1 Mega Intel Core Ultra 9 185H	66.7 pt
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	66.1 pt
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	66 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	63.3 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	62.9 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	60.5 pt
Intel NUC 13 Pro Kit NUC13ANK ^-2! Intel Core i7-1360P	60.1 pt
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	58.4 pt
GMK NucBox K9 ^-1! Intel Core Ultra 5 125H	58.4 pt
Average AMD Ryzen 9 PRO 6950H	58.4 pt
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	57.3 pt
Khadas Mind 2 Intel Core Ultra 7 155H	55.8 pt
GMK NucBox M4 Intel Core i9-11900H	55 pt
MSI Cubi NUC 1M Intel Core 7 150U	53 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H	52.7 pt
HP EliteBook 845 G9 6F6H6EA ^-2! AMD Ryzen 9 PRO 6950HS	50.5 pt
Beelink Mini S12 Pro Intel Processor N100	21.9 pt

Cinebench R23 / Multi Core
Minisforum G7 PT AMD Ryzen 9 7945HX	30799 Points +128%
Beelink SER9 AMD Ryzen AI 9 HX 370	21897 (21441.9^min - 21897.4^max) Points +62%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	20962 Points +55%
Geekom GT1 Mega Intel Core Ultra 9 185H	18608 Points +38%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	17615 Points +30%
Minisforum MS-A1 AMD Ryzen 7 8700G	17128 Points +27%
Geekom A8 AMD Ryzen 9 8945HS	16795 Points +24%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	16270 (15738.9^min - 16269.6^max) Points +21%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15012 Points +11%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14573 Points +8%
Minisforum UH125 Pro Intel Core Ultra 5 125H	14564 Points +8%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points +7%
Khadas Mind 2 Intel Core Ultra 7 155H	14099 Points +4%
Apple Mac Mini M4 Apple M4 (10 cores)	13845 Points +3%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	13501 (13281^min - 13501.3^max) Points
Average AMD Ryzen 9 PRO 6950H ()	13501 Points 0%
GMK NucBox K9 Intel Core Ultra 5 125H	12989 (12625.3^min - 12989.4^max) Points -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points -6%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	11790 Points -13%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	11515 (11150.7^min - 11515.3^max) Points -15%
GMK NucBox M4 Intel Core i9-11900H	11135 (10740.5^min - 11134.5^max) Points -18%
MSI Cubi NUC 1M Intel Core 7 150U	7226 (6983.97^min - 7226.42^max) Points -46%
Beelink Mini S12 Pro Intel Processor N100	2916 (2877.53^min - 2916.35^max) Points -78%

Cinebench R23 / Single Core
Apple Mac Mini M4 Apple M4 (10 cores)	2269 Points +40%
Beelink SER9 AMD Ryzen AI 9 HX 370	2035 Points +26%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	2010 Points +24%
Minisforum G7 PT AMD Ryzen 9 7945HX	1957 Points +21%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	1930 Points +20%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1917 Points +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points +18%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +18%
MSI Cubi NUC 1M Intel Core 7 150U	1878 Points +16%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points +14%
Geekom A8 AMD Ryzen 9 8945HS	1825 Points +13%
Minisforum MS-A1 AMD Ryzen 7 8700G	1817 Points +13%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1780 Points +10%
Geekom GT1 Mega Intel Core Ultra 9 185H	1774 Points +10%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	1764 Points +9%
GMK NucBox K9 Intel Core Ultra 5 125H	1735 Points +7%
Khadas Mind 2 Intel Core Ultra 7 155H	1643 Points +2%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1640 Points +2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	1615 Points
Average AMD Ryzen 9 PRO 6950H ()	1615 Points 0%
GMK NucBox M4 Intel Core i9-11900H	1605 Points -1%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	1514 Points -6%
Beelink Mini S12 Pro Intel Processor N100	931 Points -42%

Cinebench R20 / CPU (Multi Core)
Minisforum G7 PT AMD Ryzen 9 7945HX	12210 Points +132%
Beelink SER9 AMD Ryzen AI 9 HX 370	8605 Points +64%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	8208 Points +56%
Geekom GT1 Mega Intel Core Ultra 9 185H	7192 Points +37%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	6997 Points +33%
Minisforum MS-A1 AMD Ryzen 7 8700G	6736 Points +28%
Geekom A8 AMD Ryzen 9 8945HS	6591 Points +25%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	6267 Points +19%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	5811 Points +11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points +10%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5633 Points +7%
Minisforum UH125 Pro Intel Core Ultra 5 125H	5618 Points +7%
Khadas Mind 2 Intel Core Ultra 7 155H	5448 Points +4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	5256 Points
Average AMD Ryzen 9 PRO 6950H ()	5256 Points 0%
GMK NucBox K9 Intel Core Ultra 5 125H	4948 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points -7%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	4577 Points -13%
GMK NucBox M4 Intel Core i9-11900H	4324 Points -18%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	4319 Points -18%
Apple Mac Mini M4 Apple M4 (10 cores)	3642 Points -31%
MSI Cubi NUC 1M Intel Core 7 150U	2821 Points -46%
Beelink Mini S12 Pro Intel Processor N100	1115 Points -79%

Cinebench R20 / CPU (Single Core)
Beelink SER9 AMD Ryzen AI 9 HX 370	793 Points +26%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	786 Points +25%
Minisforum G7 PT AMD Ryzen 9 7945HX	754 Points +20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points +17%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	736 Points +17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +15%
MSI Cubi NUC 1M Intel Core 7 150U	718 Points +14%
Geekom A8 AMD Ryzen 9 8945HS	711 Points +13%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	707 Points +12%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	706 Points +12%
Minisforum MS-A1 AMD Ryzen 7 8700G	705 Points +12%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	702 Points +12%
Geekom GT1 Mega Intel Core Ultra 9 185H	696 Points +11%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	685 Points +9%
GMK NucBox K9 Intel Core Ultra 5 125H	664 Points +6%
Minisforum UH125 Pro Intel Core Ultra 5 125H	629 Points 0%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	629 Points
Average AMD Ryzen 9 PRO 6950H ()	629 Points 0%
GMK NucBox M4 Intel Core i9-11900H	615 Points -2%
Khadas Mind 2 Intel Core Ultra 7 155H	609 Points -3%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	591 Points -6%
Apple Mac Mini M4 Apple M4 (10 cores)	565 Points -10%
Beelink Mini S12 Pro Intel Processor N100	357 Points -43%

Cinebench R15 / CPU Multi 64Bit
Minisforum G7 PT AMD Ryzen 9 7945HX	4998 Points +132%
Beelink SER9 AMD Ryzen AI 9 HX 370	3282 (3218.02^min - 3282.46^max) Points +52%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	3143 Points +46%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	2863 Points +33%
Geekom GT1 Mega Intel Core Ultra 9 185H	2794 Points +30%
Minisforum MS-A1 AMD Ryzen 7 8700G	2693 Points +25%
Geekom A8 AMD Ryzen 9 8945HS	2640 Points +23%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2435 Points +13%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	2414 (2262.06^min - 2414.15^max) Points +12%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2405 Points +12%
Khadas Mind 2 Intel Core Ultra 7 155H	2280 Points +6%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2245 Points +4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points +4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	2153 (2119.65^min - 2152.85^max) Points
Average AMD Ryzen 9 PRO 6950H ()	2153 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points -6%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	2022 Points -6%
GMK NucBox K9 Intel Core Ultra 5 125H	1966 (1827.4^min - 1965.8^max) Points -9%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	1913 (1872.75^min - 1912.59^max) Points -11%
Apple Mac Mini M4 Apple M4 (10 cores)	1913 Points -11%
GMK NucBox M4 Intel Core i9-11900H	1770 (1710.13^min - 1769.75^max) Points -18%
MSI Cubi NUC 1M Intel Core 7 150U	1040 (535.59^min - 1039.66^max) Points -52%
Beelink Mini S12 Pro Intel Processor N100	467 (458.73^min - 467.21^max) Points -78%

Cinebench R15 / CPU Single 64Bit
Beelink SER9 AMD Ryzen AI 9 HX 370	315 Points +21%
Minisforum G7 PT AMD Ryzen 9 7945HX	309 Points +19%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	307 Points +18%
Apple Mac Mini M4 Apple M4 (10 cores)	304 Points +17%
Geekom A8 AMD Ryzen 9 8945HS	287 Points +10%
Minisforum MS-A1 AMD Ryzen 7 8700G	286 Points +10%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	273 Points +5%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	273 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points +4%
Geekom GT1 Mega Intel Core Ultra 9 185H	262 Points +1%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	262 Points +1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points 0%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	260 Points
Average AMD Ryzen 9 PRO 6950H ()	260 Points 0%
MSI Cubi NUC 1M Intel Core 7 150U	258 Points -1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	256 Points -2%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	252 Points -3%
GMK NucBox K9 Intel Core Ultra 5 125H	251 Points -3%
GMK NucBox M4 Intel Core i9-11900H	243 Points -7%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	239 Points -8%
Minisforum UH125 Pro Intel Core Ultra 5 125H	235 Points -10%
Khadas Mind 2 Intel Core Ultra 7 155H	234 Points -10%
Beelink Mini S12 Pro Intel Processor N100	153.9 Points -41%

Blender / v2.79 BMW27 CPU
Beelink Mini S12 Pro Intel Processor N100	1048 Seconds * -352%
MSI Cubi NUC 1M Intel Core 7 150U	451 Seconds * -94%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	288 Seconds * -24%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * -19%
GMK NucBox M4 Intel Core i9-11900H	270 Seconds * -16%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	264 Seconds * -14%
GMK NucBox K9 Intel Core Ultra 5 125H	248 Seconds * -7%
Khadas Mind 2 Intel Core Ultra 7 155H	248 Seconds * -7%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	232 Seconds *
Average AMD Ryzen 9 PRO 6950H ()	232 Seconds * -0%
Minisforum UH125 Pro Intel Core Ultra 5 125H	230 Seconds * +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	223 Seconds * +4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	223 Seconds * +4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * +7%
Geekom A8 AMD Ryzen 9 8945HS	196 Seconds * +16%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	195 Seconds * +16%
Geekom GT1 Mega Intel Core Ultra 9 185H	191 Seconds * +18%
Minisforum MS-A1 AMD Ryzen 7 8700G	186 Seconds * +20%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	184 Seconds * +21%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	157 Seconds * +32%
Beelink SER9 AMD Ryzen AI 9 HX 370	148 Seconds * +36%
Minisforum G7 PT AMD Ryzen 9 7945HX	99 Seconds * +57%

7-Zip 18.03 / 7z b 4
Minisforum G7 PT AMD Ryzen 9 7945HX	131378 MIPS +115%
Beelink SER9 AMD Ryzen AI 9 HX 370	81175 MIPS +33%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	80013 MIPS +31%
Minisforum MS-A1 AMD Ryzen 7 8700G	75427 MIPS +23%
Geekom A8 AMD Ryzen 9 8945HS	71874 MIPS +18%
Geekom GT1 Mega Intel Core Ultra 9 185H	71050 MIPS +16%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	69720 MIPS +14%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	65594 MIPS +7%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	61152 MIPS
Average AMD Ryzen 9 PRO 6950H ()	61152 MIPS 0%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	55528 MIPS -9%
Khadas Mind 2 Intel Core Ultra 7 155H	55271 MIPS -10%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	54851 MIPS -10%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS -13%
GMK NucBox M4 Intel Core i9-11900H	49486 MIPS -19%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	49474 MIPS -19%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	45820 MIPS -25%
MSI Cubi NUC 1M Intel Core 7 150U	31447 MIPS -49%
Beelink Mini S12 Pro Intel Processor N100	13291 MIPS -78%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0 MIPS -100%

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum G7 PT AMD Ryzen 9 7945HX	7609 MIPS +27%
Geekom A8 AMD Ryzen 9 8945HS	6668 MIPS +12%
Minisforum MS-A1 AMD Ryzen 7 8700G	6665 MIPS +12%
Beelink SER9 AMD Ryzen AI 9 HX 370	6208 MIPS +4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	6198 MIPS +4%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	6191 MIPS +4%
GMK NucBox M4 Intel Core i9-11900H	6018 MIPS +1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS +1%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	5980 MIPS 0%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	5970 MIPS
Average AMD Ryzen 9 PRO 6950H ()	5970 MIPS 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS 0%
MSI Cubi NUC 1M Intel Core 7 150U	5898 MIPS -1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5887 MIPS -1%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	5774 MIPS -3%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	5713 MIPS -4%
Geekom GT1 Mega Intel Core Ultra 9 185H	5657 MIPS -5%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	5516 MIPS -8%
GMK NucBox K9 Intel Core Ultra 5 125H	5004 MIPS -16%
Khadas Mind 2 Intel Core Ultra 7 155H	4795 MIPS -20%
Minisforum UH125 Pro Intel Core Ultra 5 125H	4699 MIPS -21%
Beelink Mini S12 Pro Intel Processor N100	3958 MIPS -34%

Geekbench 6.3 / Multi-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	16765 Points +61%
Apple Mac Mini M4 Apple M4 (10 cores)	15072 Points +44%
Beelink SER9 AMD Ryzen AI 9 HX 370	15043 Points +44%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	14657 Points +40%
Geekom GT1 Mega Intel Core Ultra 9 185H	13974 Points +34%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	13848 Points +33%
Minisforum MS-A1 AMD Ryzen 7 8700G	13741 Points +32%
Geekom A8 AMD Ryzen 9 8945HS	13619 Points +30%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	12649 Points +21%
Khadas Mind 2 Intel Core Ultra 7 155H	11782 Points +13%
Minisforum UH125 Pro Intel Core Ultra 5 125H	11268 Points +8%
GMK NucBox K9 Intel Core Ultra 5 125H	11087 Points +6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10644 Points +2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	10439 Points
Average AMD Ryzen 9 PRO 6950H ()	10439 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10362 Points -1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10348 Points -1%
GMK NucBox M4 Intel Core i9-11900H	9401 Points -10%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9225 Points -12%
MSI Cubi NUC 1M Intel Core 7 150U	8756 Points -16%
Beelink Mini S12 Pro Intel Processor N100	3236 Points -69%

Geekbench 6.3 / Single-Core
Apple Mac Mini M4 Apple M4 (10 cores)	3838 Points +73%
Minisforum G7 PT AMD Ryzen 9 7945HX	2880 Points +30%
Beelink SER9 AMD Ryzen AI 9 HX 370	2863 Points +29%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	2780 Points +25%
Minisforum MS-A1 AMD Ryzen 7 8700G	2711 Points +22%
Geekom A8 AMD Ryzen 9 8945HS	2698 Points +22%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	2652 Points +20%
MSI Cubi NUC 1M Intel Core 7 150U	2646 Points +19%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2600 Points +17%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2583 Points +17%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	2546 Points +15%
Geekom GT1 Mega Intel Core Ultra 9 185H	2500 Points +13%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2483 Points +12%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	2465 Points +11%
GMK NucBox M4 Intel Core i9-11900H	2355 Points +6%
GMK NucBox K9 Intel Core Ultra 5 125H	2297 Points +4%
Khadas Mind 2 Intel Core Ultra 7 155H	2218 Points 0%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	2217 Points
Average AMD Ryzen 9 PRO 6950H ()	2217 Points 0%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2199 Points -1%
Beelink Mini S12 Pro Intel Processor N100	1245 Points -44%

Geekbench 5.5 / Multi-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	19836 Points +107%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	14439 Points +50%
Beelink SER9 AMD Ryzen AI 9 HX 370	14301 Points +49%
Geekom GT1 Mega Intel Core Ultra 9 185H	13763 Points +43%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	13566 Points +41%
Minisforum MS-A1 AMD Ryzen 7 8700G	12618 Points +31%
Geekom A8 AMD Ryzen 9 8945HS	12481 Points +30%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	12237 Points +28%
Khadas Mind 2 Intel Core Ultra 7 155H	11449 Points +19%
Minisforum UH125 Pro Intel Core Ultra 5 125H	10788 Points +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +10%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10543 Points +10%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points +8%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10322 Points +8%
GMK NucBox K9 Intel Core Ultra 5 125H	10025 Points +4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	9596 Points
Average AMD Ryzen 9 PRO 6950H ()	9596 Points 0%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9122 Points -5%
GMK NucBox M4 Intel Core i9-11900H	8829 Points -8%
MSI Cubi NUC 1M Intel Core 7 150U	7788 Points -19%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	7664 Points -20%
Beelink Mini S12 Pro Intel Processor N100	2867 Points -70%

Geekbench 5.5 / Single-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	2147 Points +31%
Minisforum MS-A1 AMD Ryzen 7 8700G	2012 Points +23%
Geekom A8 AMD Ryzen 9 8945HS	1996 Points +22%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	1958 Points +19%
Beelink SER9 AMD Ryzen AI 9 HX 370	1957 Points +19%
MSI Cubi NUC 1M Intel Core 7 150U	1910 Points +16%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1898 Points +16%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	1897 Points +16%
Geekom GT1 Mega Intel Core Ultra 9 185H	1852 Points +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points +12%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points +12%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1805 Points +10%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	1743 Points +6%
GMK NucBox M4 Intel Core i9-11900H	1692 Points +3%
GMK NucBox K9 Intel Core Ultra 5 125H	1668 Points +2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	1641 Points
Average AMD Ryzen 9 PRO 6950H ()	1641 Points 0%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1593 Points -3%
Khadas Mind 2 Intel Core Ultra 7 155H	1578 Points -4%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	1549 Points -6%
Beelink Mini S12 Pro Intel Processor N100	1018 Points -38%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum G7 PT AMD Ryzen 9 7945HX	34.6 fps +110%
Beelink SER9 AMD Ryzen AI 9 HX 370	26.1 fps +58%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	25.3 fps +53%
Minisforum MS-A1 AMD Ryzen 7 8700G	22.3 fps +35%
Geekom A8 AMD Ryzen 9 8945HS	20.9 fps +27%
Geekom GT1 Mega Intel Core Ultra 9 185H	20.2 fps +22%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	19.7 fps +19%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	17.8 fps +8%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps +7%
Minisforum UH125 Pro Intel Core Ultra 5 125H	16.7 fps +1%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	16.5 fps
Average AMD Ryzen 9 PRO 6950H ()	16.5 fps 0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.4 fps -1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	16.3 fps -1%
Khadas Mind 2 Intel Core Ultra 7 155H	15.7 fps -5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps -14%
GMK NucBox K9 Intel Core Ultra 5 125H	13.8 fps -16%
GMK NucBox M4 Intel Core i9-11900H	13.6 fps -18%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	12.8 fps -22%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	12.7 fps -23%
MSI Cubi NUC 1M Intel Core 7 150U	8.57 fps -48%
Beelink Mini S12 Pro Intel Processor N100	3.41 fps -79%

LibreOffice / 20 Documents To PDF
Minisforum UH125 Pro Intel Core Ultra 5 125H	70.9 s * -49%
Beelink Mini S12 Pro Intel Processor N100	69.6 s * -47%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	66.6 s * -40%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	66.2 s * -39%
Khadas Mind 2 Intel Core Ultra 7 155H	63.2 s * -33%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	52.5 s * -11%
Geekom GT1 Mega Intel Core Ultra 9 185H	52.1 s * -10%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	51.8 s * -9%
Beelink SER9 AMD Ryzen AI 9 HX 370	51.6 s * -9%
Geekom A8 AMD Ryzen 9 8945HS	49.9 s * -5%
Minisforum G7 PT AMD Ryzen 9 7945HX	49.7 s * -5%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	48.4 s * -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	47.5 s *
Average AMD Ryzen 9 PRO 6950H ()	47.5 s * -0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	46 s * +3%
Minisforum MS-A1 AMD Ryzen 7 8700G	45.5 s * +4%
GMK NucBox K9 Intel Core Ultra 5 125H	44 s * +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * +8%
GMK NucBox M4 Intel Core i9-11900H	42.3 s * +11%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	40.5 s * +15%
MSI Cubi NUC 1M Intel Core 7 150U	37.9 s * +20%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +21%

R Benchmark 2.5 / Overall mean
Beelink Mini S12 Pro Intel Processor N100	0.822 sec * -74%
Khadas Mind 2 Intel Core Ultra 7 155H	0.522 sec * -11%
GMK NucBox M4 Intel Core i9-11900H	0.52 sec * -10%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.513 sec * -9%
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS	0.511 sec * -8%
GMK NucBox K9 Intel Core Ultra 5 125H	0.4898 sec * -4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	0.4715 sec *
Average AMD Ryzen 9 PRO 6950H ()	0.4715 sec * -0%
Geekom GT1 Mega Intel Core Ultra 9 185H	0.4571 sec * +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * +4%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	0.4504 sec * +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	0.4469 sec * +5%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	0.4457 sec * +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +6%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	0.4447 sec * +6%
MSI Cubi NUC 1M Intel Core 7 150U	0.4438 sec * +6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	0.4356 sec * +8%
Geekom A8 AMD Ryzen 9 8945HS	0.4346 sec * +8%
Minisforum MS-A1 AMD Ryzen 7 8700G	0.4285 sec * +9%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370	0.4251 sec * +10%
Minisforum G7 PT AMD Ryzen 9 7945HX	0.406 sec * +14%
Beelink SER9 AMD Ryzen AI 9 HX 370	0.406 sec * +14%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Performance Rating
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	95.9 pt
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	68.7 pt
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	67.1 pt
Average AMD Ryzen 9 PRO 6950H	67.1 pt
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	54.9 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	50.6 pt
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	33.5 pt

AIDA64 / FP32 Ray-Trace
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	34743 KRay/s +126%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	15374 KRay/s
Average AMD Ryzen 9 PRO 6950H ()	15374 KRay/s 0%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	15184 KRay/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -28%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	10755 KRay/s -30%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	6306 KRay/s -59%

AIDA64 / FPU Julia
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	132394 Points +39%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	95131 Points
Average AMD Ryzen 9 PRO 6950H ()	95131 Points 0%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	78346 Points -18%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	58422 Points -39%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -42%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	32582 Points -66%

AIDA64 / CPU SHA3
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	5656 MB/s +72%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	3753 MB/s +14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	3297 MB/s
Average AMD Ryzen 9 PRO 6950H ()	3297 MB/s 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	2922 MB/s -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -17%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	1656 MB/s -50%

AIDA64 / CPU Queen
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	99023 Points +2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	97443 Points
Average AMD Ryzen 9 PRO 6950H ()	97443 Points 0%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	86969 Points -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points -11%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	78797 Points -19%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	62280 Points -36%

AIDA64 / FPU SinJulia
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	18959 Points +50%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	12639 Points
Average AMD Ryzen 9 PRO 6950H ()	12639 Points 0%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	10289 Points -19%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	7780 Points -38%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -42%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	4387 Points -65%

AIDA64 / FPU Mandel
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	70450 Points +33%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	53002 Points
Average AMD Ryzen 9 PRO 6950H ()	53002 Points 0%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	38945 Points -27%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	27972 Points -47%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -48%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	16042 Points -70%

AIDA64 / CPU AES
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	138481 MB/s +5%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	131458 MB/s
Average AMD Ryzen 9 PRO 6950H ()	131458 MB/s 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	108402 MB/s -18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -25%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	81324 MB/s -38%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	33007 MB/s -75%

AIDA64 / CPU ZLib
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	1444 MB/s +76%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	1181 MB/s +44%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	844 MB/s +3%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	819 MB/s
Average AMD Ryzen 9 PRO 6950H ()	819 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s -1%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	491 MB/s -40%

AIDA64 / FP64 Ray-Trace
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	18694 KRay/s +130%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	8111 KRay/s
Average AMD Ryzen 9 PRO 6950H ()	8111 KRay/s 0%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	7925 KRay/s -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -27%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	5657 KRay/s -30%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	3417 KRay/s -58%

AIDA64 / CPU PhotoWorxx
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	48813 MPixel/s +63%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	47032 MPixel/s +57%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	46296 MPixel/s +55%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	37889 MPixel/s +27%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	29899 MPixel/s
Average AMD Ryzen 9 PRO 6950H ()	29899 MPixel/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s -3%

Sistem Performansı

GPU ağırlıklı Dijital İçerik Oluşturma puanı geride kalmaya başlasa da PCMark puanları piyasadaki mevcut alternatiflere karşı rekabetçi olmaya devam ediyor

PCMark 10 / Score
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	7613 Points +14%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	7232 Points +8%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	6679 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	6679 Points 0%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	6463 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6281 Points -6%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	6080 Points -9%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11596 Points +11%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	10856 Points +4%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	10824 Points +3%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	10697 Points +2%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	10684 Points +2%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	10458 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	10458 Points 0%

PCMark 10 / Productivity
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	9812 Points +12%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	8797 Points +1%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	8752 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	8752 Points 0%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	8387 Points -4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7893 Points -10%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	7659 Points -12%

PCMark 10 / Digital Content Creation
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	11422 Points +29%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	10781 Points +22%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	8940 Points +1%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	8834 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	8834 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7348 Points -17%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	6701 Points -24%

CrossMark / Overall
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	1888 Points +30%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1810 Points +25%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1734 Points +20%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1692 Points +17%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1633 Points +13%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1448 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	1448 Points 0%

CrossMark / Productivity
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	1827 Points +32%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1778 Points +29%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1740 Points +26%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1594 Points +15%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1588 Points +15%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1381 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	1381 Points 0%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1970 Points +16%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	1959 Points +15%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1868 Points +10%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1714 Points +1%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1708 Points 0%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1702 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	1702 Points 0%

CrossMark / Responsiveness
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	1864 Points +81%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1685 Points +64%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1578 Points +53%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1520 Points +48%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1520 Points +48%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1030 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	1030 Points 0%

WebXPRT 3 / Overall
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	311 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	305 Points 0%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	304 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	304 Points 0%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	286 Points -6%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	286 Points -6%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	262 Points -14%

WebXPRT 4 / Overall
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	271 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	266 Points +12%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	259 Points +9%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	237 Points
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	237 Points 0%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	231 Points -3%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	231 Points -3%

Mozilla Kraken 1.1 / Total
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	570 ms *
Average AMD Ryzen 9 PRO 6950H, AMD Radeon 680M ()	570 ms * -0%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	566 ms * +1%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	518 ms * +9%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	494 ms * +13%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	489 ms * +14%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	445 ms * +22%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	89287 MB/s +74%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	73624 MB/s +44%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	67482 MB/s +32%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	59609 MB/s +16%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	51181 MB/s
Average AMD Ryzen 9 PRO 6950H ()	51181 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s -12%

AIDA64 / Memory Read
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	98398 MB/s +90%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	79371 MB/s +53%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	70520 MB/s +36%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	68780 MB/s +33%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	51788 MB/s
Average AMD Ryzen 9 PRO 6950H ()	51788 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -13%

AIDA64 / Memory Write
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	98583 MB/s +79%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	72187 MB/s +31%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	71218 MB/s +29%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	60626 MB/s +10%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	55227 MB/s
Average AMD Ryzen 9 PRO 6950H ()	55227 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -16%

AIDA64 / Memory Latency
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	140.2 ns * -66%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	136.7 ns * -62%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	115.2 ns * -36%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	84.4 ns *
Average AMD Ryzen 9 PRO 6950H ()	84.4 ns * -0%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	74.5 ns * +12%

* ... smaller is better

DPC Gecikme Süresi

LatencyMon, ana sayfamızın birden fazla tarayıcı sekmesini açarken DPC sorunlarını ortaya çıkarıyor. Ayrıca, ideal olarak hiç kare düşmemesi gerekirken 60 FPS'de 4K video oynatırken birkaç kare düşmesi yaşadık.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	29083.3 μs * -109%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	13915.3 μs *
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	4103.1 μs * +71%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	1145.7 μs * +92%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * +92%

* ... smaller is better

Depolama Cihazları

Ünitemiz nispeten nadir bulunan Zettastone CP200 NVMe SSD. Aktarım hızları, Samsung PM9A1 gibi daha pahalı SSD'lerdeki >6500 MB/sn'ye kıyasla yaklaşık 3500 MB/sn'de zirve yaparak CP200'ü orta seviye bir ürün haline getirmektedir.

İki adede kadar M.2 2280 SSD'yi destekler

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

CDM 5/6 Read Seq Q32T1: 3193 MB/s

CDM 5/6 Write Seq Q32T1: 3135 MB/s

CDM 5/6 Read 4K Q32T1: 583.9 MB/s

CDM 5/6 Write 4K Q32T1: 379.3 MB/s

CDM 5 Read Seq: 2239 MB/s

CDM 5 Write Seq: 2799 MB/s

CDM 5/6 Read 4K: 63 MB/s

CDM 5/6 Write 4K: 167.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	83.8 pt
GMK NucBox K9 MasonSemi 1TB MC7000	80.8 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	64.5 pt
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	56.5 pt
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	53.6 pt
GMK NucBox M7 Pro	46.5 pt

DiskSpd
seq read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	4128 (4092.8^min - 4128.38^max) MB/s +59%
GMK NucBox K9 MasonSemi 1TB MC7000	3783 (3597.81^min - 3782.84^max) MB/s +45%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +30%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2734 (2730.27^min - 2734.25^max) MB/s +5%
GMK NucBox M7 Pro	2601 (2578.12^min - 2600.64^max) MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2257 (2254.02^min - 2257.37^max) MB/s -13%
seq write
GMK NucBox K9 MasonSemi 1TB MC7000	5556 (1352.45^min - 5556.19^max) MB/s +98%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3976 (425.08^min - 3975.57^max) MB/s +41%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +20%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	3215 (3133.8^min - 3214.8^max) MB/s +14%
GMK NucBox M7 Pro	2810 (2768.58^min - 2810.02^max) MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1873 (688.38^min - 1873.41^max) MB/s -33%
seq q8 t1 read
GMK NucBox K9 MasonSemi 1TB MC7000	7066 (6607.49^min - 7066.35^max) MB/s +102%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +92%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	5060 (4781.3^min - 5060.16^max) MB/s +45%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	4987 (4558.37^min - 4987.33^max) MB/s +42%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	4658 (3456.11^min - 4657.77^max) MB/s +33%
GMK NucBox M7 Pro	3500 (3155.37^min - 3500.44^max) MB/s
seq q8 t1 write
GMK NucBox K9 MasonSemi 1TB MC7000	6647 (1260.59^min - 6647.13^max) MB/s +111%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3985 (52.74^min - 3985.01^max) MB/s +26%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	3308 (3211.45^min - 3307.84^max) MB/s +5%
GMK NucBox M7 Pro	3154 (3135.87^min - 3154.12^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s -10%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2047 (794.1^min - 2047.34^max) MB/s -35%
4k q1 t1 read
GMK NucBox K9 MasonSemi 1TB MC7000	79.5 (78.92^min - 79.5^max) MB/s +22%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	73.3 (72.01^min - 73.31^max) MB/s +13%
GMK NucBox M7 Pro	65 (61.11^min - 64.99^max) MB/s
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	62.5 (62.22^min - 62.52^max) MB/s -4%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	53.7 (52.17^min - 53.71^max) MB/s -17%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -20%
4k q1 t1 write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	353 (348.24^min - 353.16^max) MB/s +98%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	282 (265.11^min - 281.58^max) MB/s +58%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	236 (212.83^min - 235.59^max) MB/s +33%
GMK NucBox K9 MasonSemi 1TB MC7000	205 (173.87^min - 205.2^max) MB/s +15%
GMK NucBox M7 Pro	178 (177.2^min - 178.04^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s 0%
4k q32 t16 read
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	3162 (3155.7^min - 3161.51^max) MB/s +63%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2876 (2861.34^min - 2875.92^max) MB/s +48%
GMK NucBox K9 MasonSemi 1TB MC7000	2243 (1941.91^min - 2243.48^max) MB/s +15%
GMK NucBox M7 Pro	1942 (1937.92^min - 1941.71^max) MB/s
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	1533 (1419.74^min - 1533.25^max) MB/s -21%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -37%
4k q32 t16 write
GMK NucBox K9 MasonSemi 1TB MC7000	3232 (3002.64^min - 3232.41^max) MB/s +125%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2822 (709.76^min - 2821.52^max) MB/s +97%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	2010 (1622.95^min - 2010.14^max) MB/s +40%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1782 (864.63^min - 1781.78^max) MB/s +24%
GMK NucBox M7 Pro	1434 (1109.55^min - 1433.62^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -56%

AS SSD
Score Total
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	8215 Points +120%
GMK NucBox K9 MasonSemi 1TB MC7000	7509 Points +101%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +61%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	4872 Points +31%
GMK NucBox M7 Pro	3732 Points
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	2750 Points -26%
Score Read
GMK NucBox K9 MasonSemi 1TB MC7000	3258 Points +135%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2779 Points +100%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +21%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1511 Points +9%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	1443 Points +4%
GMK NucBox M7 Pro	1388 Points
Score Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3987 Points +145%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +119%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2688 Points +65%
GMK NucBox K9 MasonSemi 1TB MC7000	2593 Points +59%
GMK NucBox M7 Pro	1629 Points
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	651 Points -60%
Seq Read
GMK NucBox K9 MasonSemi 1TB MC7000	5766.47 MB/s +90%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +57%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	4327.67 MB/s +43%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	3789.22 MB/s +25%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3587 MB/s +18%
GMK NucBox M7 Pro	3027.6 MB/s
Seq Write
GMK NucBox K9 MasonSemi 1TB MC7000	5653.88 MB/s +98%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3938 MB/s +38%
GMK NucBox M7 Pro	2851.13 MB/s
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	2606.84 MB/s -9%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s -14%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1679.72 MB/s -41%
4K Read
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	83.6 MB/s +41%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +32%
GMK NucBox K9 MasonSemi 1TB MC7000	67.66 MB/s +14%
GMK NucBox M7 Pro	59.12 MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	46.12 MB/s -22%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	42.24 MB/s -29%
4K Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	314 MB/s +110%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	219.64 MB/s +47%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	217.48 MB/s +45%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +40%
GMK NucBox M7 Pro	149.72 MB/s
GMK NucBox K9 MasonSemi 1TB MC7000	148.58 MB/s -1%
4K-64 Read
GMK NucBox K9 MasonSemi 1TB MC7000	2614.06 MB/s +155%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2336 MB/s +128%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +9%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1086.32 MB/s +6%
GMK NucBox M7 Pro	1026.38 MB/s
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	967.82 MB/s -6%
4K-64 Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3279 MB/s +175%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +161%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2300.17 MB/s +93%
GMK NucBox K9 MasonSemi 1TB MC7000	1879.53 MB/s +57%
GMK NucBox M7 Pro	1193.68 MB/s
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	172.85 MB/s -86%
Access Time Read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	0.072 ms * -9%
GMK NucBox M7 Pro	0.066 ms *
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	0.061 ms * +8%
GMK NucBox K9 MasonSemi 1TB MC7000	0.06 ms * +9%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +32%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	0.027 ms * +59%
Access Time Write
GMK NucBox M7 Pro	0.44 ms *
GMK NucBox K9 MasonSemi 1TB MC7000	0.195 ms * +56%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	0.092 ms * +79%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	0.088 ms * +80%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +95%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	0.014 ms * +97%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox M7 Pro; diskspd 2.0.17 f: Ø3531 (3250.59-3546.32)

GPU Performansı

Her ne kadar artık birkaç yaşına gelmiş olsa da Radeon 680M entegre bir GPU için hala oldukça güçlüdür. Sistemimiz yeni sistemlerden biraz daha iyi performans gösterecektir Ark 7 nucBox K9'da test edilen oyunların ve ayarların çoğunda.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	99.3 pt
Minisforum EliteMini AI370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	97.4 pt
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	89.6 pt
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	85.4 pt
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	82.7 pt
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	81.3 pt
Khadas Mind 2 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	81.1 pt
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	73.9 pt
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	71.7 pt
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	70 pt
Average AMD Radeon 680M	65.2 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	47.4 pt
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	44.4 pt
Lenovo IdeaCentre Mini 01IRH8 ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	43.6 pt
GMK NucBox M4 ^-1! Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	24.4 pt
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	24.3 pt
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	24.1 pt
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	24 pt
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	11.6 pt

3DMark 11 - 1280x720 Performance GPU
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	16800 Points +43%
Minisforum EliteMini AI370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	16098 Points +37%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	13533 Points +15%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13309 Points +13%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	13248 Points +13%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13163 Points +12%
Khadas Mind 2 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	11902 Points +1%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	11755 Points
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10737 Points -9%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10303 Points -12%
Average AMD Radeon 680M (6858 - 11755, n=35)	10068 Points -14%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points -39%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points -41%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	6282 Points -47%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	3428 Points -71%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	3428 Points -71%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	3422 Points -71%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	3122 Points -73%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1510 Points -87%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum EliteMini AI370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	56580 Points +26%
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	55908 Points +24%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	52200 Points +16%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	49053 Points +9%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	48717 Points +8%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	47040 Points +5%
Khadas Mind 2 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	45726 Points +2%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	44934 Points
Average AMD Radeon 680M (24634 - 50120, n=28)	40899 Points -9%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	40086 Points -11%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	39695 Points -12%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	29301 Points -35%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -39%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	16983 Points -62%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	16753 Points -63%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	16443 Points -63%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	16288 Points -64%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8965 Points -80%
1920x1080 Fire Strike Graphics
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	10037 Points +30%
Minisforum EliteMini AI370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9626 Points +25%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8726 Points +13%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8396 Points +9%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	8354 Points +8%
Khadas Mind 2 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	8260 Points +7%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	8061 Points +5%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	7706 Points
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7325 Points -5%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7047 Points -9%
Average AMD Radeon 680M (3791 - 7706, n=36)	6701 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points -32%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	4899 Points -36%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points -38%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	2655 Points -66%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	2655 Points -66%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2643 Points -66%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	2517 Points -67%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1258 Points -84%
2560x1440 Time Spy Graphics
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3610 Points +44%
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3546 Points +42%
Minisforum EliteMini AI370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3533 Points +41%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3476 Points +39%
Khadas Mind 2 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3269 Points +31%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	2901 Points +16%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	2890 Points +16%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2881 Points +15%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2796 Points +12%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	2500 Points
Average AMD Radeon 680M (1359 - 2607, n=36)	2227 Points -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points -33%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points -40%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	1428 Points -43%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	739 Points -70%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	737 Points -71%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	731 Points -71%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	328 Points -87%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom CPU
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2052 Seconds * -423%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	829 Seconds * -111%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	513 Seconds * -31%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	479 Seconds * -22%
Average AMD Radeon 680M (389 - 609, n=32)	475 Seconds * -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * -18%
Khadas Mind 2 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	448 Seconds * -14%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * -13%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	435 Seconds * -11%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	399 Seconds * -2%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	396 Seconds * -1%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	392 Seconds *
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	391 Seconds * -0%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	332 Seconds * +15%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	326 Seconds * +17%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	313 Seconds * +20%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	300 Seconds * +23%
Minisforum EliteMini AI370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	242 Seconds * +38%
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	229 Seconds * +42%
v3.3 Classroom oneAPI/Intel
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	308 Seconds *
Khadas Mind 2 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	225 Seconds *
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	215 Seconds *
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	212 Seconds *

* ... smaller is better

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	170.3 fps +63%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	130.8 fps +25%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	104.6 fps
Average AMD Radeon 680M (59.3 - 126.2, n=17)	98.2 fps -6%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	89 fps -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	59.8 fps -43%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 fps -48%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	37.9 fps -64%
1920x1080 Low Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	88.3 fps +35%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	65.6 fps
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	62 fps -5%
Average AMD Radeon 680M (37.7 - 65.8, n=18)	52.2 fps -20%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	50.7 fps -23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.5 fps -50%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.5 fps -58%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	27.5 fps -58%
1920x1080 Medium Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	62.3 fps +31%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	47.7 fps
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	42.5 fps -11%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	39.4 fps -17%
Average AMD Radeon 680M (28.2 - 47.7, n=18)	38.9 fps -18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 fps -47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.9 fps -56%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	20.3 fps -57%
1920x1080 High Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	41.8 fps +29%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	32.7 fps +1%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	32.3 fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	26.8 fps -17%
Average AMD Radeon 680M (19.8 - 32.3, n=18)	26.3 fps -19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.1 fps -50%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	14 fps -57%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.5 fps -58%
1920x1080 Badass Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	32.5 fps +25%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	29.8 fps +14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	26.1 fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.4 fps -14%
Average AMD Radeon 680M (16 - 26.1, n=18)	21 fps -20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	12.7 fps -51%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	10.9 fps -58%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.6 fps -59%

GTA V
1920x1080 Lowest Settings possible
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	150.9 (4.46^min, 100^P1) fps +37%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	139.9 (5.21^min, 76.9^P1) fps +27%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	134.6 (37.6^min, 90.9^P1) fps +22%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	130.2 (12.9^min, 100^P1) fps +18%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	127.8 (45.2^min, 90.9^P1) fps +16%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	124.8 (38.5^min, 83.3^P1) fps +13%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	121.4 (39.2^min, 83.3^P1) fps +10%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	119.9 (4.07^min, 76.9^P1) fps +9%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	118.7 (7.47^min, 83.3^P1) fps +8%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	110.4 (9.4^min, 71.4^P1) fps
Average AMD Radeon 680M (56.9 - 115.8, n=23)	102.9 fps -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (9.46^min, 58.8^P1) fps -22%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	78.6 (26^min, 50^P1) fps -29%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	64.6 (20.6^min, 45.5^P1) fps -41%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	53.9 (29.4^min, 40^P1) fps -51%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	50.2 (16.7^min, 38.5^P1) fps -55%
1366x768 Normal/Off AF:4x
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	159 (4.52^min, 100^P1) fps +16%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	158.9 (4.43^min, 100^P1) fps +16%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	154.1 (4.46^min, 100^P1) fps +12%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	152.6 (5.62^min, 100^P1) fps +11%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	151.8 (3.68^min, 83.3^P1) fps +11%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	151.3 (4.78^min, 90.9^P1) fps +10%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	143.3 (4.67^min, 83.3^P1) fps +5%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	137.1 (7.4^min, 83.3^P1) fps
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	131.5 (4.53^min, 47.6^P1) fps -4%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	125.5 (15.3^min, 76.9^P1) fps -8%
Average AMD Radeon 680M (60.7 - 143.9, n=28)	120 fps -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	107.3 (19^min, 62.5^P1) fps -22%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	90.8 (26.7^min, 62.5^P1) fps -34%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	86.1 (7.7^min, 50^P1) fps -37%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	84.7 (20.1^min, 58.8^P1) fps -38%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84 (16.1^min, 55.6^P1) fps -39%
1920x1080 Normal/Off AF:4x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	145.5 (4.84^min, 90.9^P1) fps +30%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	139.7 (4.21^min, 83.3^P1) fps +24%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	133.5 (19.1^min, 90.9^P1) fps +19%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	124 (11.3^min, 83.3^P1) fps +10%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	123.7 (32.5^min, 83.3^P1) fps +10%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	115.2 (38.2^min, 76.9^P1) fps +3%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	112.9 (17.1^min, 76.9^P1) fps +1%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	112.3 (21.5^min, 71.4^P1) fps
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	109.8 (7.83^min, 50^P1) fps -2%
Average AMD Radeon 680M (54.9 - 117.3, n=23)	102.3 fps -9%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	95.2 (10.5^min, 66.7^P1) fps -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	75.9 (6.19^min, 50^P1) fps -32%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71 (6.44^min, 40^P1) fps -37%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	57.5 (17.4^min, 38.5^P1) fps -49%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	53.9 (16^min, 38.5^P1) fps -52%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	50.5 (10.2^min, 37^P1) fps -55%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	79.5 (10.2^min, 50^P1) fps +49%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	79 (9.77^min, 52.6^P1) fps +48%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	64.7 (4.56^min, 31.3^P1) fps +22%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	61.9 (2.97^min, 41.7^P1) fps +16%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	53.2 (4.77^min, 35.7^P1) fps
Average AMD Radeon 680M (25.9 - 99.1, n=31)	49.2 fps -8%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	43.5 (3.49^min, 32.3^P1) fps -18%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	40.6 (3.3^min, 30.3^P1) fps -24%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	38.9 (3.15^min, 28.6^P1) fps -27%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	35.9 (2.99^min, 27^P1) fps -33%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.6 (6.68^min, 22.7^P1) fps -37%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23.6 (8.96^min, 17.2^P1) fps -56%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.7 (9.05^min, 15.9^P1) fps -61%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	15.9 (6.66^min, 12.5^P1) fps -70%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	12.3 (4.52^min, 9.35^P1) fps -77%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	12 (4.17^min, 9.17^P1) fps -77%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	33.2 (5.14^min, 23.3^P1) fps +39%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	31.5 (3.06^min, 21.7^P1) fps +32%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	24.9 (3.89^min, 13.7^P1) fps +4%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	24.6 (1.758^min, 16.9^P1) fps +3%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	23.9 (2.34^min, 15.6^P1) fps
Average AMD Radeon 680M (11.3 - 24.8, n=31)	21.5 fps -10%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	16.6 (3.08^min, 12.7^P1) fps -31%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	15.8 (3.06^min, 12^P1) fps -34%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	15.3 (2.97^min, 11.8^P1) fps -36%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	13.9 (2.71^min, 10.6^P1) fps -42%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	12.7 (2.89^min, 8.93^P1) fps -47%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.98 (4.2^min, 6.21^P1) fps -58%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	6.8 (3.29^min, 3.76^P1) fps -72%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	5.34 (2.38^min, 2.94^P1) fps -78%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	175.6 (150.3^min) fps +20%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	164.8 (145.3^min) fps +13%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	159.7 (142.1^min) fps +9%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	146.2 (124.5^min) fps
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	132.3 (115.1^min) fps -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	123.8 (98^min) fps -15%
Average AMD Radeon 680M (34.4 - 146.2, n=36)	115 fps -21%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	112.3 (96.7^min) fps -23%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps -24%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	110.5 (63^min) fps -24%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	105.8 (73.2^min) fps -28%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	104.7 (61.7^min) fps -28%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	102.4 (80.7^min) fps -30%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	101.5 (54.9^min) fps -31%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	97.7 (67.3^min) fps -33%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	97.7 (57.3^min) fps -33%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	95.5 (63.7^min) fps -35%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	80.8 (58.2^min) fps -45%
1366x768 med (1/3)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	133.6 (115.4^min) fps +17%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	130.2 (106.6^min) fps +14%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	125.7 (99.8^min) fps +10%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	122.9 (103^min) fps +7%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	114.4 (96.3^min) fps
Average AMD Radeon 680M (33.3 - 121.4, n=36)	95.6 fps -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (77.2^min) fps -18%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	83.1 (60.5^min) fps -27%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps -28%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	78.4 (32.1^min) fps -31%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	78 (58.5^min) fps -32%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	77.8 (56.7^min) fps -32%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	74.4 (58.9^min) fps -35%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	70.1 (61.4^min) fps -39%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	62.8 (36.3^min) fps -45%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	61.9 (45.9^min) fps -46%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	54.2 (30.3^min) fps -53%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	51.6 (44.6^min) fps -55%
1920x1080 high (2/3)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	100 (89^min) fps +18%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	99.2 (85.6^min) fps +17%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	95.9 (85.7^min) fps +13%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	88.3 (74.1^min) fps +4%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	87.8 (28.3^min) fps +3%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	85.1 (74.5^min) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	75.6 (48.6^min) fps -11%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	73.6 (47.5^min) fps -14%
Average AMD Radeon 680M (33.2 - 89.1, n=36)	71.7 fps -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (59.9^min) fps -21%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	62.5 (42.1^min) fps -27%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps -33%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	54.8 (35.3^min) fps -36%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	47 (29^min) fps -45%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	43.9 (24.2^min) fps -48%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	38 (35.3^min) fps -55%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	36.1 (33^min) fps -58%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	20.7 (19.3^min) fps -76%
1920x1080 ultra (3/3) best looking
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	89.8 (79.5^min) fps +19%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	87.4 (75.7^min) fps +16%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	86.5 (77.2^min) fps +14%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	82.25 (71^min) fps +9%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	76 (33.1^min) fps +1%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	75.6 (67.2^min) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	73.3 (48.5^min) fps -3%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	70.5 (47.4^min) fps -7%
Average AMD Radeon 680M (33.2 - 84.9, n=36)	63 fps -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps -19%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	57.8 (39.9^min) fps -24%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps -31%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	45.5 (27.1^min) fps -40%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	41.8 (27.6^min) fps -45%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	40.7 (22.6^min) fps -46%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	35.4 (33.1^min) fps -53%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	32.8 (29.4^min) fps -57%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	19.1 (17.7^min) fps -75%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	94.6 fps +40%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	93.7 fps +39%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	79.2 fps +17%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	75.8 fps +12%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	75.3 fps +11%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	67.6 fps
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	64.8 fps -4%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	59.6 fps -12%
Average AMD Radeon 680M (34.4 - 74.7, n=34)	59.4 fps -12%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	58.3 fps -14%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	54.4 fps -20%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	40.9 fps -39%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps -45%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	26.3 fps -61%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	26.2 fps -61%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	24.2 fps -64%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23 fps -66%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	13.4 fps -80%
1920x1080 Standard Quality
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	48.4 fps +36%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	47.5 fps +33%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	41 fps +15%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	40.2 fps +13%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	37.4 fps +5%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	37 fps +4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	35.6 fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.3 fps -6%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	32.9 fps -8%
Average AMD Radeon 680M (18.3 - 36.9, n=35)	30.9 fps -13%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	25.1 fps -29%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23 fps -35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 fps -44%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	14.3 fps -60%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	13.3 fps -63%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	12.9 fps -64%
1920x1080 High Quality
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	34.4 fps +40%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	33.3 fps +36%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	28.9 fps +18%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	28.6 fps +17%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	27.6 fps +13%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	26.1 fps +7%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	24.5 fps
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	23.4 fps -4%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.3 fps -9%
Average AMD Radeon 680M (12.9 - 26.2, n=35)	22.1 fps -10%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	19.5 fps -20%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	16.6 fps -32%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps -40%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	9.38 fps -62%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	9.3 fps -62%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	9.17 fps -63%

X-Plane 11.11
1280x720 low (fps_test=1)
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	91.1 fps +37%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	85.1 fps +28%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	69.1 fps +4%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	66.4 fps 0%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	66.3 fps 0%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	66.3 fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	65.5 fps -1%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	57 fps -14%
Average AMD Radeon 680M (26.8 - 66.7, n=36)	55.5 fps -16%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	52.7 fps -21%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	52.2 fps -21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps -35%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.8 fps -41%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	28.5 fps -57%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	12.9 fps -81%
1920x1080 med (fps_test=2)
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	69.9 fps +32%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	67.6 fps +28%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	52.9 fps
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	52.1 fps -2%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	49.8 fps -6%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	48.9 fps -8%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	47.8 fps -10%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	44.8 fps -15%
Average AMD Radeon 680M (21.1 - 53.1, n=36)	43.8 fps -17%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	40.3 fps -24%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	39.4 fps -26%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps -38%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	26.3 fps -50%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	21.7 fps -59%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	10.9 fps -79%
1920x1080 high (fps_test=3)
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	53.3 fps +20%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	51.6 fps +16%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	44.5 fps
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	42.3 fps -5%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	42.2 fps -5%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	41.5 fps -7%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	39.9 fps -10%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	37.3 fps -16%
Average AMD Radeon 680M (16.6 - 44.5, n=36)	35.9 fps -19%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	34.1 fps -23%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.4 fps -25%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps -36%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.3 fps -48%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	18.8 fps -58%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	10.4 fps -77%

Far Cry 5
1280x720 Low Preset AA:T
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	101 (84^min) fps +35%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	88 (77^min) fps +17%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	75 (66^min) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	71 (63^min) fps -5%
Average AMD Radeon 680M (37 - 82, n=27)	62.3 fps -17%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	49 (43^min) fps -35%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	46 (37^min) fps -39%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45 (41^min) fps -40%
1920x1080 Medium Preset AA:T
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	60 (53^min) fps +33%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	49 (44^min) fps +9%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	45 (40^min) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	40 (37^min) fps -11%
Average AMD Radeon 680M (21 - 45, n=27)	36.7 fps -18%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	28 (24^min) fps -38%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (24^min) fps -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22 (20^min) fps -51%
1920x1080 High Preset AA:T
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	55 (48^min) fps +34%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	42 (33^min) fps +2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	41 (37^min) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	37 (34^min) fps -10%
Average AMD Radeon 680M (18 - 41, n=27)	33.5 fps -18%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	26 (22^min) fps -37%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25 (22^min) fps -39%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	21 (19^min) fps -49%
1920x1080 Ultra Preset AA:T
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	52 (46^min) fps +33%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	41 (33^min) fps +5%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	39 (35^min) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	35 (32^min) fps -10%
Average AMD Radeon 680M (20 - 40, n=26)	32.2 fps -17%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	24 (21^min) fps -38%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	23 (21^min) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -49%

Strange Brigade
1280x720 lowest AF:1
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	199.8 (147.5^min, 170.3^P1) fps +40%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	148.6 (45.8^min, 118.4^P1) fps +4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	142.4 (103.7^min, 121.7^P1) fps
Average AMD Radeon 680M (72.9 - 167.5, n=34)	131.9 fps -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	95.4 (19.5^min, 37.2^P1) fps -33%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	89.2 (21.3^min, 32.1^P1) fps -37%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	88.2 (20^min, 29.9^P1) fps -38%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	74.1 (35.8^min, 62.6^P1) fps -48%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	61.4 (14.5^min, 18.6^P1) fps -57%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	56.5 (13.2^min, 17.2^P1) fps -60%
1920x1080 medium AA:medium AF:4
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	82 (48.6^min, 70.5^P1) fps +43%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	66.9 (26.4^min, 57.6^P1) fps +17%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	63.9 (33.2^min, 54.3^P1) fps +11%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	57.4 (49.6^min, 51.6^P1) fps
Average AMD Radeon 680M (30 - 63, n=34)	53.8 fps -6%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	38.9 (14.7^min, 28.5^P1) fps -32%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	37.3 (12^min, 16.1^P1) fps -35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	34.7 (12.5^min, 20^P1) fps -40%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	23.1 (6.7^min, 11.2^P1) fps -60%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	22.4 (6.3^min, 10.3^P1) fps -61%
1920x1080 high AA:high AF:8
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	69.8 (49.9^min, 54.1^P1) fps +43%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	56.9 (26.1^min, 43.8^P1) fps +17%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	53.5 (28.6^min, 42^P1) fps +10%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	48.7 (32.8^min, 38.7^P1) fps
Average AMD Radeon 680M (25.3 - 53.1, n=34)	44.5 fps -9%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	31.1 (8.7^min, 16.3^P1) fps -36%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31 (8.5^min, 12^P1) fps -36%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	29.2 (9^min, 13.5^P1) fps -40%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	17.7 (5^min, 5.99^P1) fps -64%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	17.2 (5^min, 5.39^P1) fps -65%
1920x1080 ultra AA:ultra AF:16
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	59.7 (43.6^min, 46.2^P1) fps +42%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	49.2 (21.9^min, 29.5^P1) fps +17%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	43.5 (8.2^min, 17.8^P1) fps +4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	42 (31.2^min, 33.7^P1) fps
Average AMD Radeon 680M (22 - 44.2, n=34)	38.2 fps -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps -40%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.2 (5.3^min, 6.89^P1) fps -40%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps -45%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.4 (5^min, 5^P1) fps -61%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	15.9 (5^min, 5^P1) fps -62%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	186.8 (137^min, 123^P1) fps +29%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	167.9 (135^min, 113^P1) fps +16%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	144.7 (122^min, 92^P1) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	130.2 (112^min, 96^P1) fps -10%
Average AMD Radeon 680M (75.5 - 147.3, n=19)	126.1 fps -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80 (64^min, 64^P1) fps -45%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71.8 (51^min, 58^P1) fps -50%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	71.6 (59^min, 58^P1) fps -51%
1920x1080 Low Preset AA:T AF:16x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	110.1 (87^min, 54^P1) fps +34%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	94.8 (66^min, 55^P1) fps +15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	82.4 (65^min, 59^P1) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	79.4 (63^min, 66^P1) fps -4%
Average AMD Radeon 680M (44.1 - 85.4, n=25)	73.3 fps -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	48 (40^min, 40^P1) fps -42%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	42.3 (35^min, 32^P1) fps -49%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.2 (32^min, 31^P1) fps -52%
1920x1080 Medium Preset AA:T AF:16x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	100.8 (78^min, 63^P1) fps +34%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	85.4 (71^min, 65^P1) fps +14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	75.1 (63^min, 53^P1) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	71.9 (61^min, 59^P1) fps -4%
Average AMD Radeon 680M (38 - 75.1, n=25)	64.5 fps -14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	44.3 (36^min, 36^P1) fps -41%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	38.2 (32^min, 31^P1) fps -49%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36.7 (30^min, 30^P1) fps -51%
1920x1080 High Preset AA:T AF:16x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	76.8 (55^min, 44^P1) fps +37%
Geekom A8 AMD Ryzen 9 8945HS, AMD Radeon 780M	62.6 (48^min, 38^P1) fps +11%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	56.2 (46^min, 40^P1) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	52.9 (46^min, 45^P1) fps -6%
Average AMD Radeon 680M (30 - 56.2, n=25)	47.7 fps -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.2 (27^min, 26^P1) fps -44%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	28.3 (24^min, 22^P1) fps -50%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27 (22^min, 22^P1) fps -52%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 fps +63%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	21.4 (17^min, 16^P1) fps +46%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	21.2 (12^min, 13^P1) fps +44%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.7 (17^min, 17^P1) fps +41%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	14.7 (10^min, 10^P1) fps
Average AMD Radeon 680M (7.85 - 14.7, n=22)	11.5 fps -22%

Baldur's Gate 3
1280x720 Low Preset
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	73.4 (33.3^min, 47.6^P0.1, 56.5^P1) fps +47%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	65.9 (33.4^min, 33.9^P0.1, 36.6^P1) fps +32%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	58.9 fps +18%
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	57.6 (31.7^min, 33.6^P0.1, 37.9^P1) fps +15%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	56.4 (29^min, 30.5^P0.1, 37.9^P1) fps +13%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	50.8 fps +1%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	50.1 fps
Average AMD Radeon 680M (46.8 - 50.1, n=3)	48.6 fps -3%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	48.5 (16.6^min, 27.3^P0.1, 31.4^P1) fps -3%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	45 (14.9^min, 19.4^P0.1, 29^P1) fps -10%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	22.9 fps -54%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	16.9 (10.9^min, 11.1^P0.1, 12.8^P1) fps -66%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	16.6 (2.68^min, 3.81^P0.1, 6.04^P1) fps -67%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	14.4 (8.68^min, 9.6^P0.1, 11.1^P1) fps -71%
1920x1080 Medium Preset
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	37.7 (25.6^min, 28.9^P0.1, 31.7^P1) fps +18%
Apple Mac Mini M4 Apple M4 (10 cores), Apple M4 10-core GPU	36.4 fps +14%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	32.7 (16.3^min, 16.7^P0.1, 17.9^P1) fps +2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	32 fps
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	30.3 (18.1^min, 18.2^P0.1, 20.2^P1) fps -5%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	29.7 (17.5^min, 18.4^P0.1, 19.7^P1) fps -7%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	29.1 fps -9%
Average AMD Radeon 680M (24 - 32, n=4)	28.1 fps -12%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	27.9 fps -13%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	25 (9.42^min, 11.3^P0.1, 16.1^P1) fps -22%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	23.2 (14.2^min, 14.4^P0.1, 15.2^P1) fps -27%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	7.86 (5.51^min, 5.72^P0.1, 6.18^P1) fps -75%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	7.5 (2.3^min, 2.32^P0.1, 2.44^P1) fps -77%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	6.97 (5.1^min, 5.12^P0.1, 5.36^P1) fps -78%
1920x1080 High Preset
Apple Mac Mini M4 Apple M4 (10 cores), Apple M4 10-core GPU	32.3 fps +24%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	30.9 (23.3^min, 24.1^P0.1, 26.5^P1) fps +19%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	28.2 fps +8%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	27 (14^min, 14.4^P0.1, 22.7^P1) fps +4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	26 fps
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	25.4 (13.9^min, 14.3^P0.1, 16.3^P1) fps -2%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	25.2 (14.5^min, 14.6^P0.1, 16.2^P1) fps -3%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	24.2 fps -7%
Average AMD Radeon 680M (20 - 26, n=4)	23 fps -12%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	21.6 (11.7^min, 12.4^P0.1, 13.9^P1) fps -17%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	19.5 (9.2^min, 10.4^P0.1, 12.7^P1) fps -25%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	6.88 (5.24^min, 5.26^P0.1, 5.41^P1) fps -74%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	6.12 (4.49^min, 4.52^P0.1, 4.8^P1) fps -76%
1920x1080 Ultra Preset
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	30.7 (24.7^min, 24.9^P0.1, 26.6^P1) fps +21%
Apple Mac Mini M4 Apple M4 (10 cores), Apple M4 10-core GPU	30.1 fps +19%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	26 (13.8^min, 14.3^P0.1, 22.5^P1) fps +3%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	25.3 fps
Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	25.2 (11.9^min, 13^P0.1, 16.6^P1) fps 0%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	24.4 (8.14^min, 11.8^P0.1, 15.7^P1) fps -4%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	23.1 fps -9%
Average AMD Radeon 680M (19 - 25.3, n=4)	22.3 fps -12%
Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	21 (12.8^min, 12.9^P0.1, 13.6^P1) fps -17%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	19.5 (11.2^min, 12.1^P0.1, 13.2^P1) fps -23%

Cyberpunk 2077 ultra FPS Chart

GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M: Ø19.4 (17.8-20.7)

	düşük	orta	yüksek	ultra
GTA V (2015)	141.6	137.1	53.2	23.9
Dota 2 Reborn (2015)	146.2	114.4	85.1	75.6
Final Fantasy XV Benchmark (2018)	67.6	35.6	24.5
X-Plane 11.11 (2018)	66.3	52.9	44.5
Far Cry 5 (2018)	75	45	41	39
Strange Brigade (2018)	142.4	57.4	48.7	42
Tiny Tina's Wonderlands (2022)	65.6	47.7	32.3	26.1
F1 22 (2022)	82.4	75.1	56.2	14.7
Baldur's Gate 3 (2023)	38.6	32	26	25.3
Cyberpunk 2077 2.1 Phantom Liberty (2023)	37.3	28.7	22.6	19.3

Emisyonlar

Sistem Gürültüsü

İki dahili fan, masaüstünde hiçbir uygulama çalışmadan otururken bile asla boş durmuyor. Fan gürültüsü, web'de gezinirken 37 dB(A) olarak duyulabilirken, web'de 30 dB(A)'nın çok altındadır Beelink SER9 veya Güç Tasarrufu moduna ayarlandığında bile MSI Cubi NUC M1'de 30 dB(A)'nın biraz üzerinde. Fan profili eğrisi bu konuda kesinlikle geliştirilebilir.

Fan gürültü profili (Beyaz: Arka plan, Kırmızı: Sistem boşta, Mavi: 3DMark 06, Turuncu: Cyberpunk 2077, Yeşil: Prime95+FurMark stres)

Ses yüksekliği

Boşta		35.9 / 36.7 / 36.7 dB
Çalışırken		38.4 / 39.8 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: Earthworks M23R, Arta (15 cm uzaklık) environment noise: 23 dB(A)

Sıcaklık

AC adaptörü, zorlu yükleri uzun süre çalıştırırken 44 C'nin üzerine ulaşır

Temiz hava, son modellerde olduğu gibi çıkarılabilir plastik üst kısmın kenarlarından girer ThinkCentre Neo Ultra. Oyunlar gibi zorlu yükleri çalıştırırken yüzey sıcaklıkları yalnızca 30 C civarında nispeten serin kalır. Sistem, arka kısımda havalandırma için yeterli alan olduğu sürece hava akışını önemli ölçüde etkilemeden dikey olarak konumlandırılabilir.

Stres Testi

CPU, Prime95 stresini başlatırken 3,6 GHz, 54 W ve 73 C'de stabilize olur ve zaman içinde kayda değer bir performans düşüşü olmaz. Bu, U serisi işlemcilerle çalışan bilgisayarlardan daha uzun süre daha yüksek saat hızlarını sürdürmek için tasarlanan H serisi işlemcilerden beklenen bir durumdur.

Cyberpunk 2077 çalıştırılırken çekirdek sıcaklığı 74 C'de sabitlenirken Intel destekli NucBox K9'da bu değer 72 C'dir.

Enerji Yönetimi

Güç Tüketimi

Eski bir CPU üzerinde çalışan bir sistem olarak, güç tüketimi genellikle yeni nesil işlemcilerle çalışan diğer mini PC'ler kadar verimli değildir. NucBox K9 ile örneğin Core Ultra 5 125H, performans açısından Ryzen 9 Pro 6950H'ye çok benzese de genel olarak belirgin şekilde daha az güç gerektiriyor.

CPU yüzde 100 yükteyken orta büyüklükteki (13,2 x 5,8 x 3,2 cm) 120 W AC adaptörden maksimum 90 W çekildiğini kaydedebiliyoruz.

Prime95 stresi başlatıldığında tüketim 89 W'a yükselir

Prime95+FurMark stresi 10s işaretinde başlatıldı

Anlık tüketim

Kapalı / Bekleme modu	1.6 / 2.3 Watt
Boşta	14.6 / 15 / 16 Watt
Çalışırken	80.4 / 89.5 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M, , , x,	Beelink SER9 Ryzen AI 9 HX 370, Radeon 890M, Crucial P3 Plus CT1000P3PSSD8, , x,	Geekom GT1 Mega Ultra 9 185H, Arc 8-Core, Crucial P3 Plus CT2000P3PSSD8 , , x,	MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs, WD PC SN560 SDDPNQE-1T00, , x,	GMK NucBox K9 Ultra 5 125H, Arc 7-Core, MasonSemi 1TB MC7000, , x,	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Power Consumption		36%	30%	48%	28%	31%
Idle Minimum *	14.6	5.7 61%	4.1 72%	6.4 56%	10.9 25%	5.1 65%
Idle Average *	15	5.9 61%	6.6 56%	8.3 45%	11 27%	5.8 61%
Idle Maximum *	16	6 62%	11.3 29%	10.4 35%	11.4 29%	10.2 36%
Load Average *	80.4	68.7 15%	65.8 18%	38.5 52%	52.8 34%	68.1 15%
Cyberpunk 2077 ultra external monitor *	86.2	78.2 9%	69.4 19%	36.1 58%	57.1 34%
Load Maximum *	89.5	82 8%	104.8 -17%	52.5 41%	72.2 19%	108.3 -21%

* ... smaller is better

Power Consumption Cyberpunk / Stress Test

GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M: Ø88.2 (86.4-89.5)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core: Ø72 (71.3-72.6)

Power Consumption external Monitor

GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø87.1 (85.2-88.6)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; Prime95 V2810 Stress (external Monitor): Ø70.5 (69.4-71)

GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø80.7 (79.9-82.4)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; Cinebench R15 Multi (external Monitor): Ø62.9 (31.3-65.1)

GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø86.1 (83.8-87.8)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø48.5 (47-52.2)

GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M; Idle 1min (external Monitor): Ø16.3 (15.6-23.6)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; Idle 1min (external Monitor): Ø11.1 (10.8-13.9)

GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø86.2 (83.6-89)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø57.1 (56.3-59.8)

Notebookcheck Değerlendirmesi

Back to the verdict

GMK NucBox M7 Pro - 12/19/2024 v8
Allen Ngo

İşcilik

74 / 98 → 76%

Bağlanılabilirlik

58 / 81 → 71%

Ağırlık

81%

Oyun performansı

51 / 80 → 63%

Uygulama performansı

81 / 92 → 88%

Ses

66%

Ortalama

47%

66%

Mini PC - Ortalama Ağırlık

CO2 Emissions
No Data

Materials
0%

Packaging
50%

Power Use
62.4%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 29.1%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Image	Model / Review	Price	Weight	Height	Display
1. 66.1%	GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H ⎘ AMD Radeon 680M ⎘ 32 GB Bellek	Amazon: $459.98 List Price: 440 USD	621 g	58.4 mm	x
2. 77.1%	Beelink SER9 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Bellek, 1024 GB SSD	Amazon: $999.00 List Price: 1000 USD	814 g	44.7 mm	x
3. 78.8%	Geekom GT1 Mega Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Bellek, 2048 GB SSD	Amazon: 1. $989.00 GEEKOM GT1 Mega AI Mini PC,1... 2. GEEKOM GT1 Mega AI Mini PC,1... 3. $979.00 GEEKOM IT1 Mega AI Mini PC,1... List Price: 1149 EUR	693 g	46.9 mm	x
4. 66.1%	MSI Cubi NUC 1M Intel Core 7 150U ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Bellek, 1024 GB SSD	Amazon: $689.00 List Price: 950 USD	660 g	50.1 mm	x
5. 67.3%	GMK NucBox K9 Intel Core Ultra 5 125H ⎘ Intel Arc 7-Core iGPU ⎘ 32 GB Bellek, 1024 GB SSD	Amazon: List Price: 560 USD	528 g	47 mm	x
6. 80.8% ^{v7 (old)}	Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Bellek, 512 GB SSD	Amazon: 1. $679.00 Intel NUC 13 Pro NUC13ANHi5 ... 2. $1,099.99 Intel NUC 13 Pro Kit NUC13AN... 3. $929.00 Intel NUC 13 PRO NUC13ANHi7 ...	538 g	37 mm	x

Cinebench 2024 CPU Multi Core kıyaslama
HP Spectre x360 16 RTX 4050 (min) Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU	28.1
...
Minisforum Mercury Series EM780 R7 7840U, Radeon 780M	730
Asus ZenBook 14 UX3405MA Ultra 7 155H, Arc 8-Core	733
Acemagic Tank03 i9-12900H, GeForce RTX 3080 Laptop GPU	734
GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M	743
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	746
Lenovo ThinkPad T14s Gen 6 21N10007GE SD X Elite X1E-78-100, Adreno X1-85 3.8 TFLOPS	746
Acer Swift Go 14 SFG14-72 Ultra 7 155H, Arc 8-Core	747
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

GMK NucBox M7 Pro mini PC incelemesi: Eski Ryzen 9 işlemci hala oldukça iyi dayanıyor

AMD Zen 3+ her zamankinden daha uygun fiyatlı.

Karar - Makul Ölçüde Hızlı Ancak Ucuz

Artılar

Eksiler

Fiyat ve Bulunabilirlik

Karşılaştırılan olası alternatifler

Table of Contents

Teknik Özellikler

Dava

Boyut ve ağırlık karşılaştırması

Bağlanabilirlik

İletişim

Bakım

Sürdürülebilirlik

Aksesuarlar ve Garanti

Performans

Test Koşulları

İşlemci

Cinebench R15 Multi Loop

Sistem Performansı

DPC Gecikme Süresi

Depolama Cihazları

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU Performansı

Cyberpunk 2077 ultra FPS Chart

Emisyonlar

Sistem Gürültüsü

Sıcaklık

Stres Testi

Enerji Yönetimi

Güç Tüketimi

Power Consumption Cyberpunk / Stress Test

Power Consumption external Monitor

Notebookcheck Değerlendirmesi

More articles related to this device

Transparency

3DMark 11 Performance		11491 puan
3DMark Cloud Gate Standard Score		32852 puan
3DMark Fire Strike Score		6990 puan
3DMark Time Spy Score		2805 puan
Yardım

3DMark 11 kıyaslama
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Apple MacBook Pro 15 2018 (2.9 GHz, Vega 20) i9-8950HK, Radeon Pro Vega 20	11353
HP ZBook Firefly 14 G11 Ultra 7 165H, RTX A500 Laptop GPU	11364
Dell Inspiron 14 7445 2-in-1 R7 8840HS, Radeon 780M	11413
GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M	11491
Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M	11531
HP Pavilion Plus 14-ey0095cl R7 7840U, Radeon 780M	11571
Acer Aspire V17 Nitro BE VN7-793G-706L i7-7700HQ, GeForce GTX 1060 Mobile	11575
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609

	GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Noise		17%	-3%	8%	-1%	1%
off / environment *	23	23.2 -1%	24.8 -8%	23.5 -2%	23 -0%	29.8 -30%
Idle Minimum *	35.9	26.6 26%	25.4 29%	29.9 17%	29.8 17%	30.2 16%
Idle Average *	36.7	26.8 27%	27.2 26%	29.9 19%	35.7 3%	31.1 15%
Idle Maximum *	36.7	26.8 27%	27.5 25%	32 13%	35.7 3%	31.9 13%
Load Average *	38.4	33.4 13%	50.9 -33%	33.5 13%	41.9 -9%	40 -4%
Cyberpunk 2077 ultra *	38.7	34.6 11%	50.8 -31%	39.1 -1%	43.8 -13%
Load Maximum *	39.8	33.8 15%	50.9 -28%	40.5 -2%	44 -11%	40.5 -2%

	Ortalama CPU Saati (GHz)	GPU Saati (MHz)	Ortalama CPU Sıcaklığı (°C)
Sistem Boşta	--	--	33
Prime95 Stres	3,6	200	73
Prime95 + FurMark Stress	3.6	1483	70
Cyberpunk 2077 Stres	0.8	2400	74
